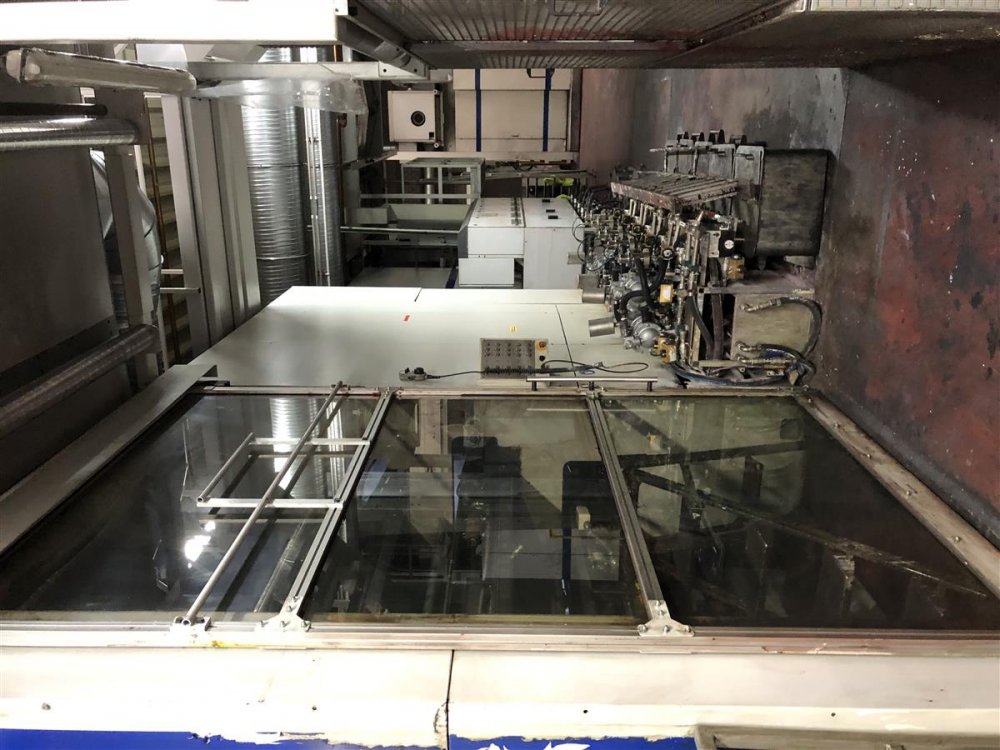

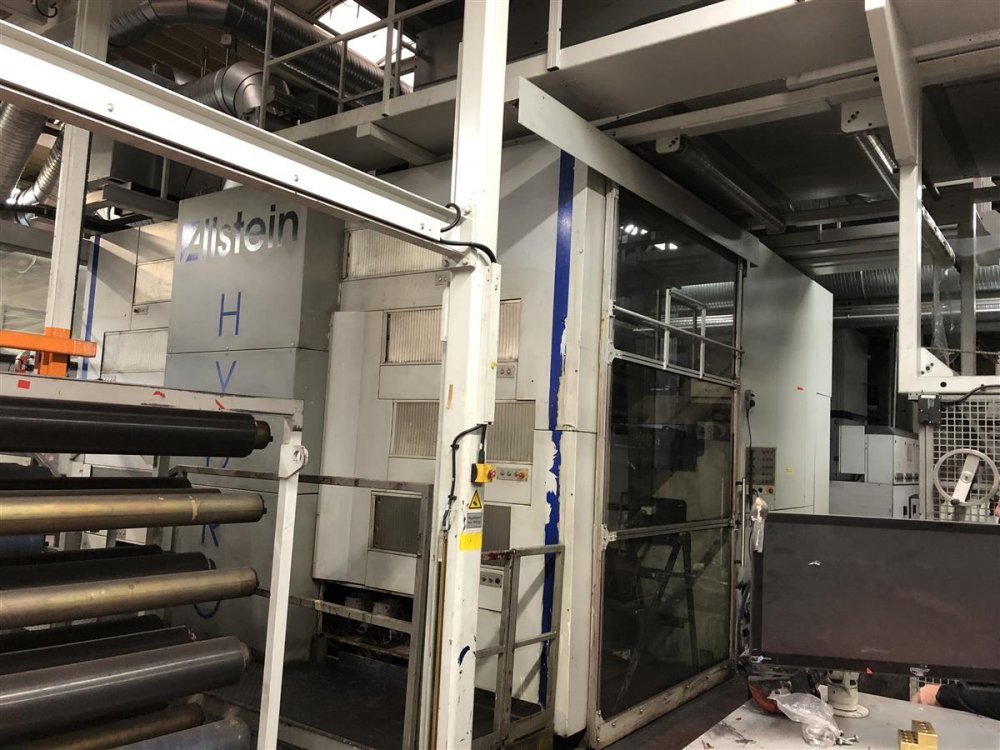

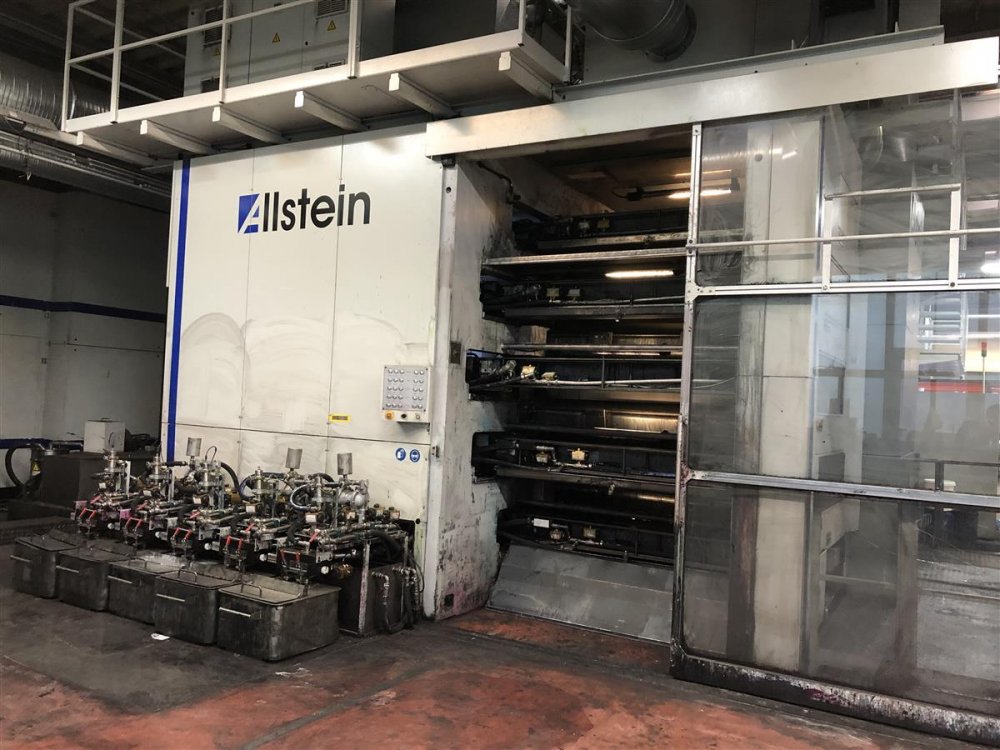

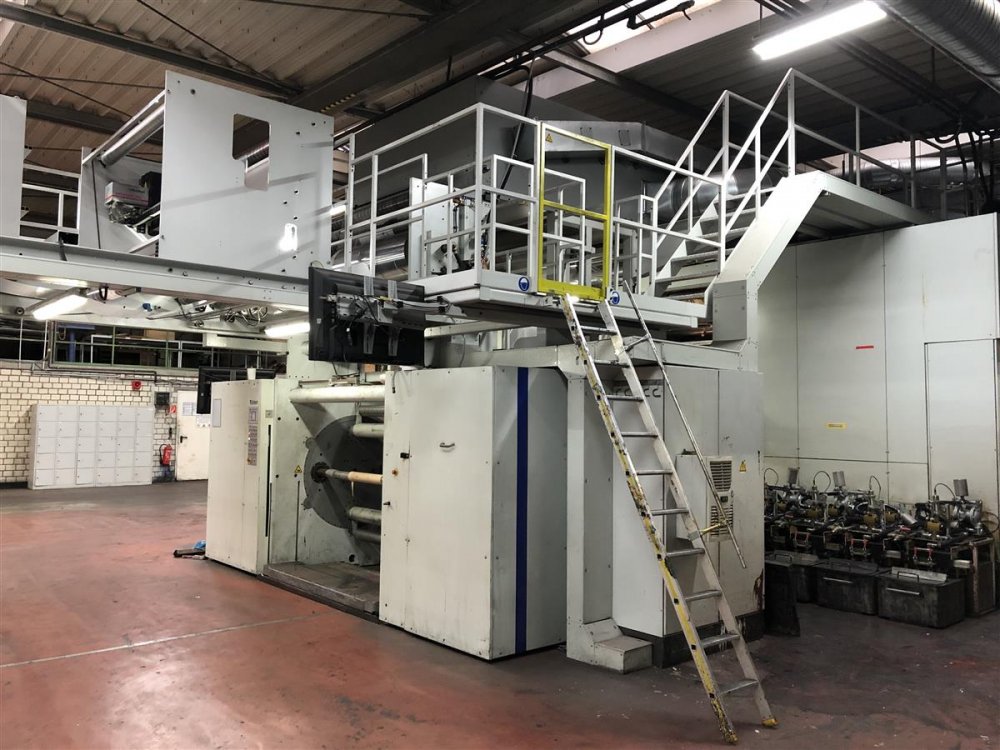

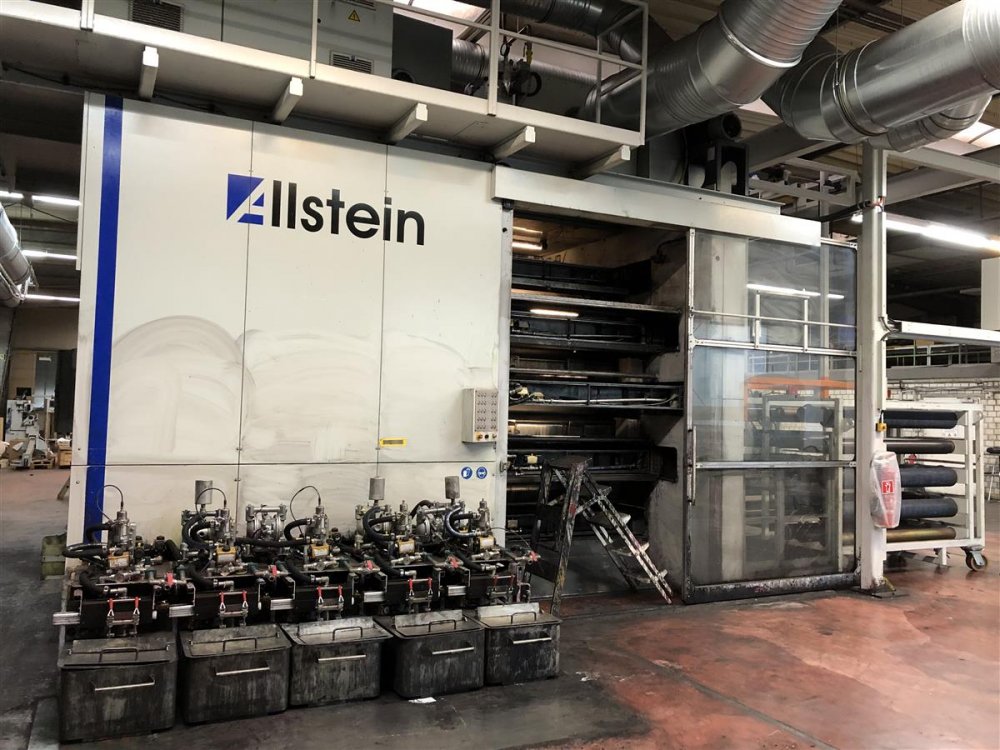

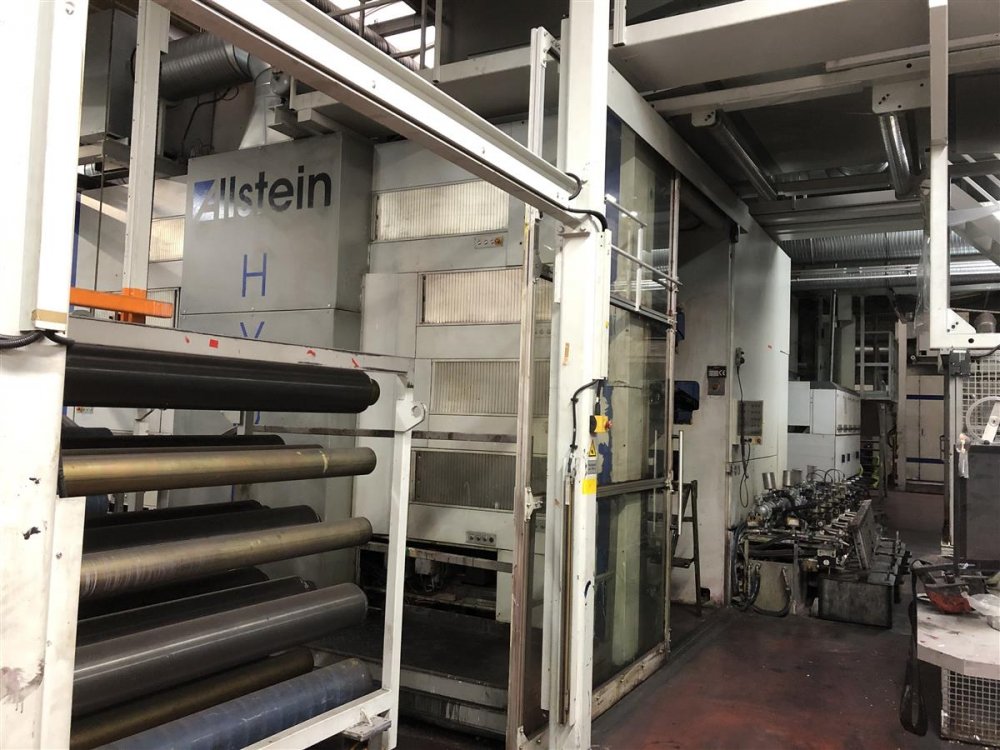

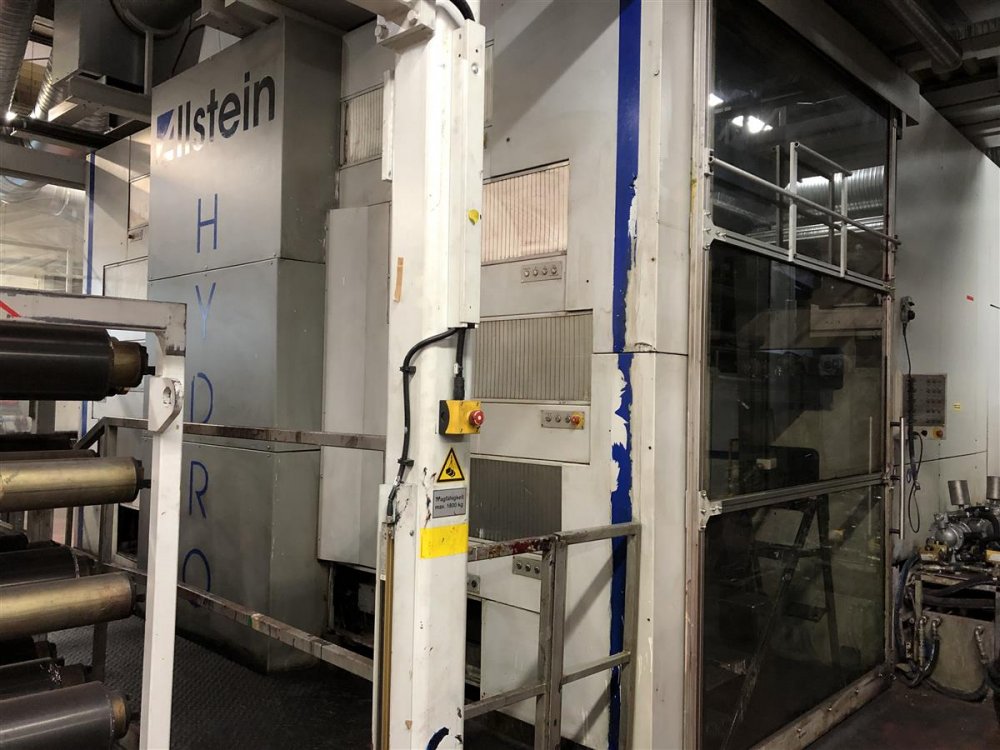

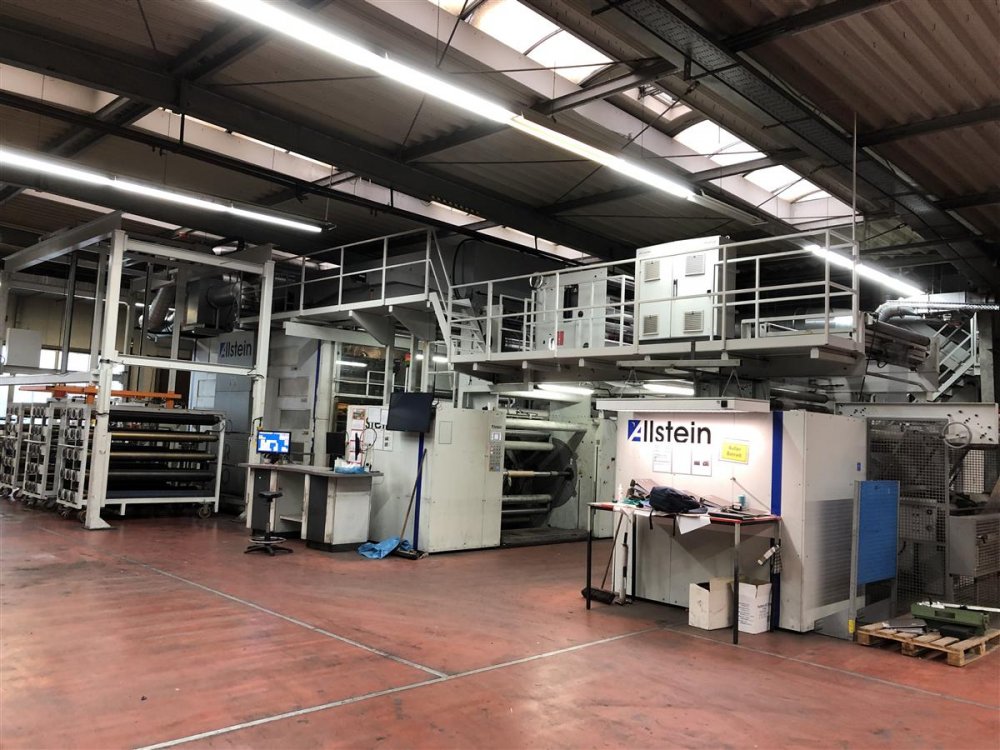

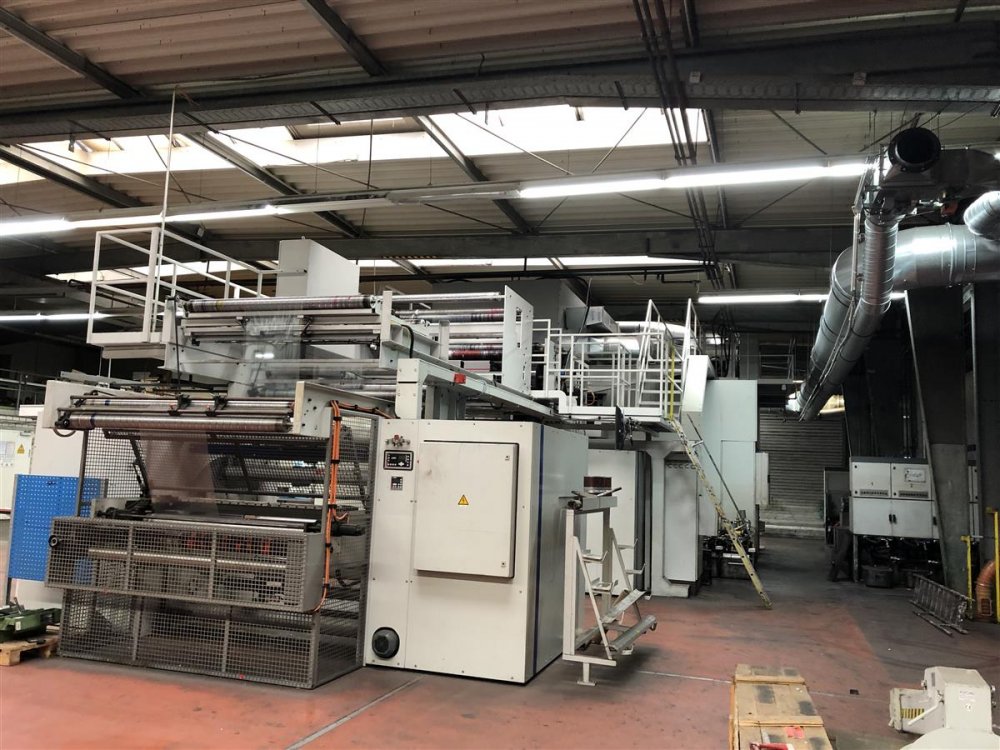

ALLSTEIN Hydro 10 Flexo printer 8 colors

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Machine Code FL945
Manufacturer ALLSTEIN
Model Hydro 10
Year 2014
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes

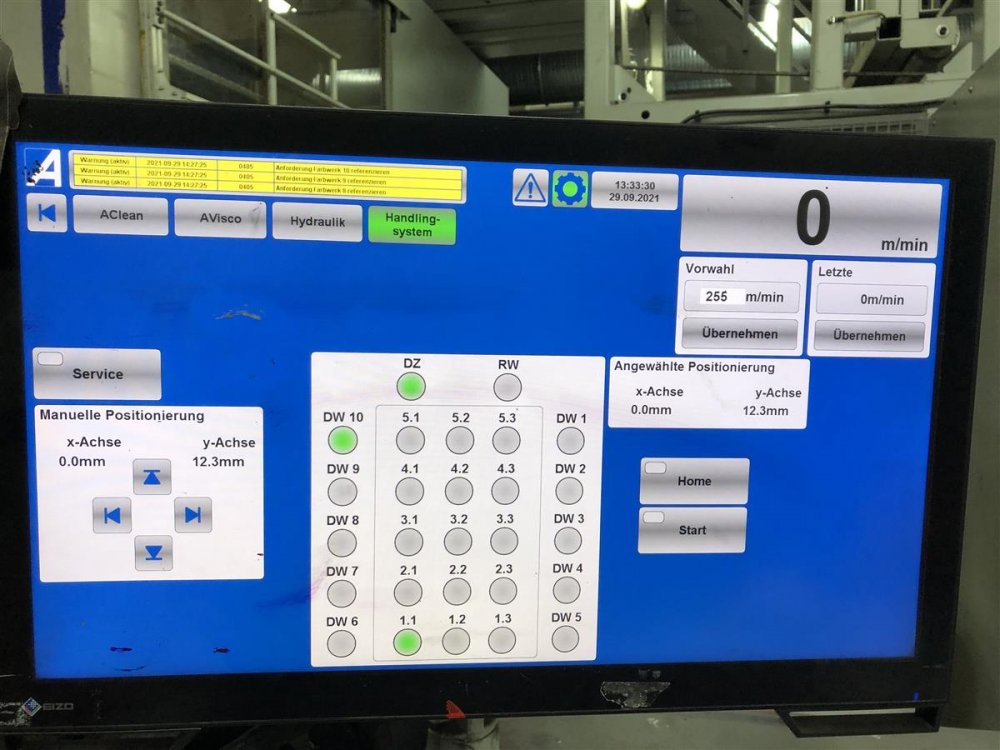

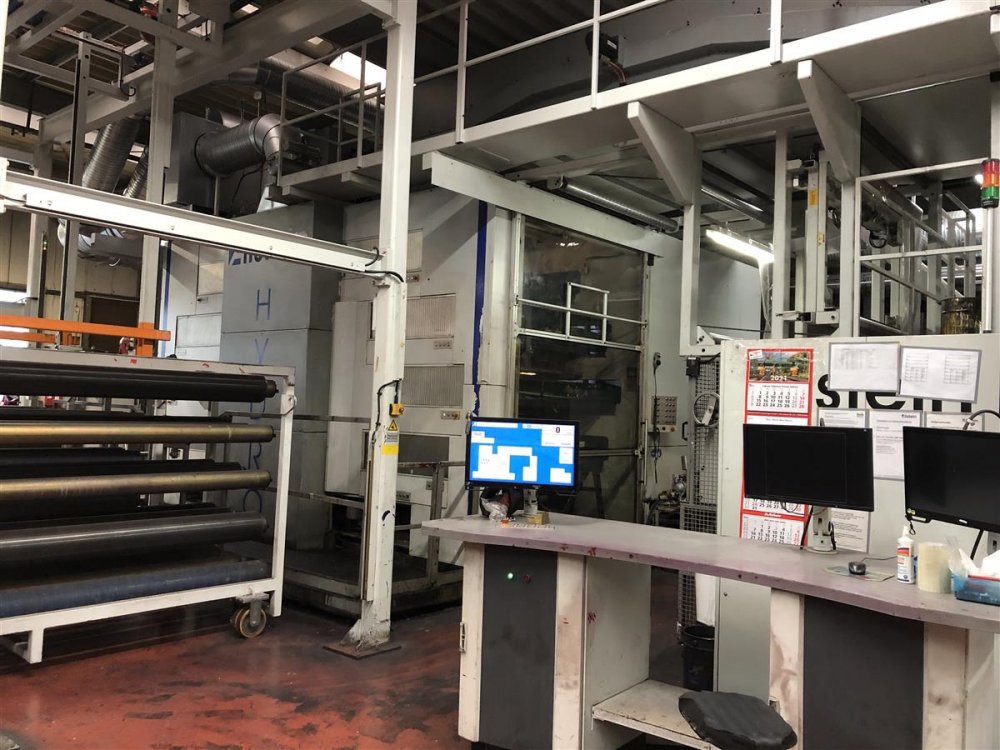

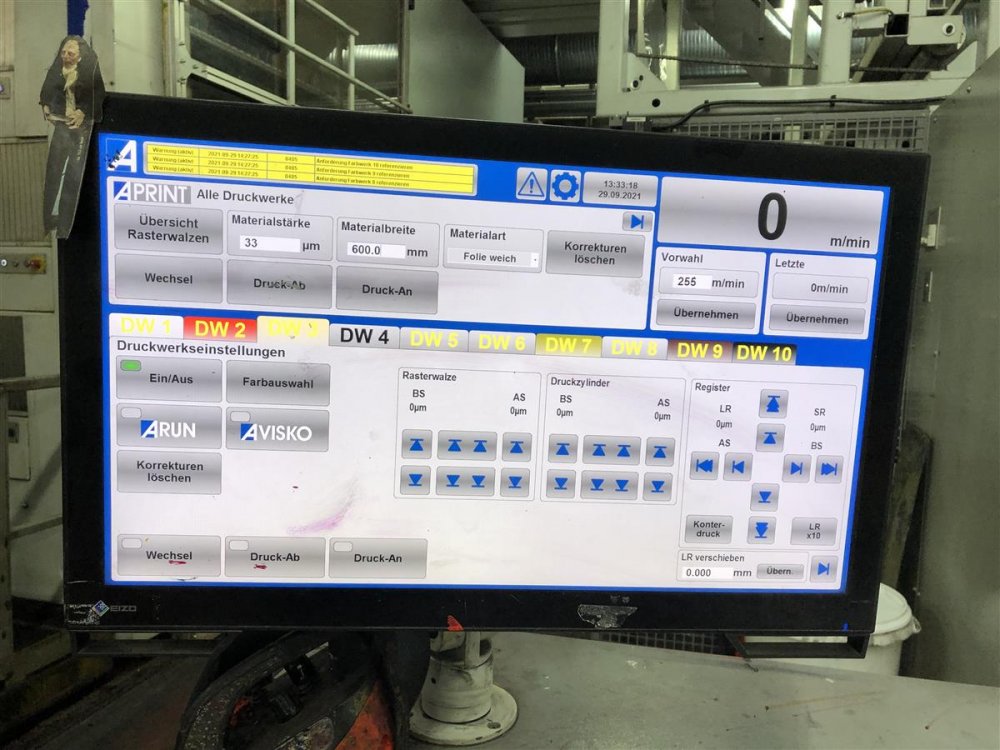

Computer supervision Yes
Web width (mm) 1850
Print width (mm) 1800
Min print repeat (mm) 440
Max print repeat (mm) 880

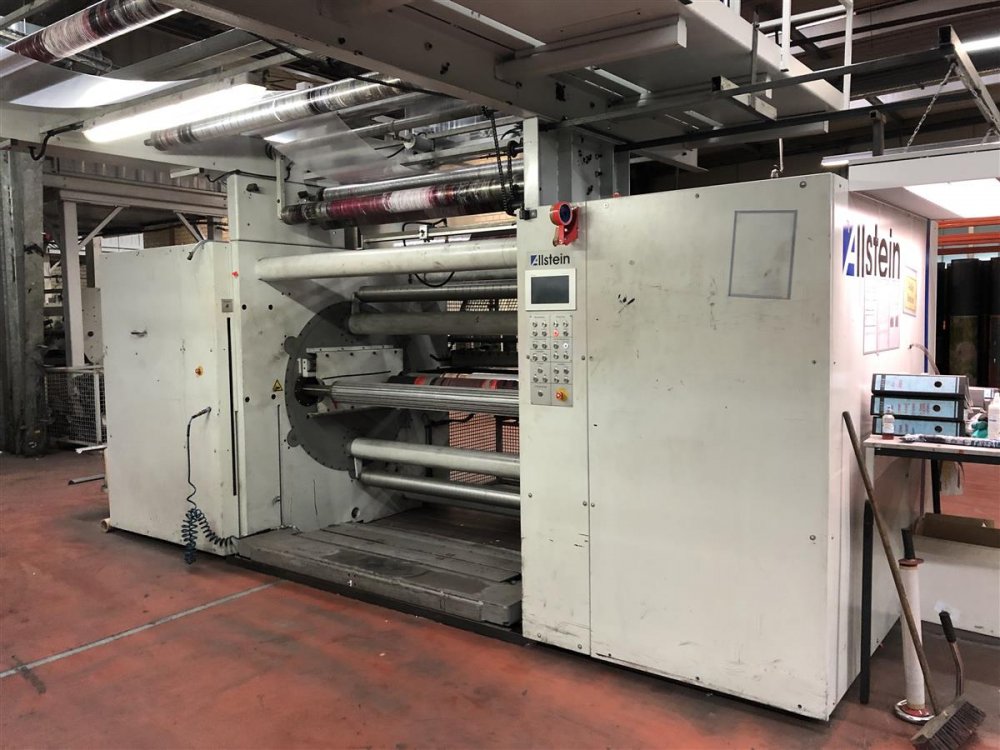

Unwinder type TURRET bi-directional
Max reel diameter unwinder (mm) 1000

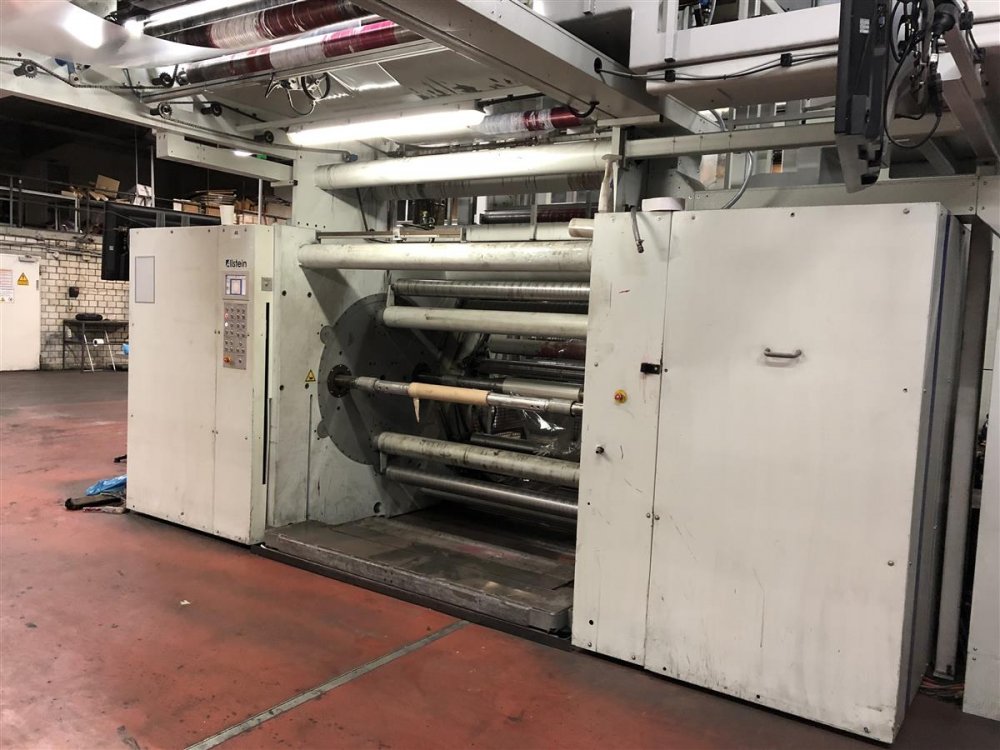

Rewinder type TURRET bi-directional
Max reel diameter rewinder (mm) 1000
Drying 2 zones , 4 fans , 5 m drying tunnel Gas burners Maxon with LEL control

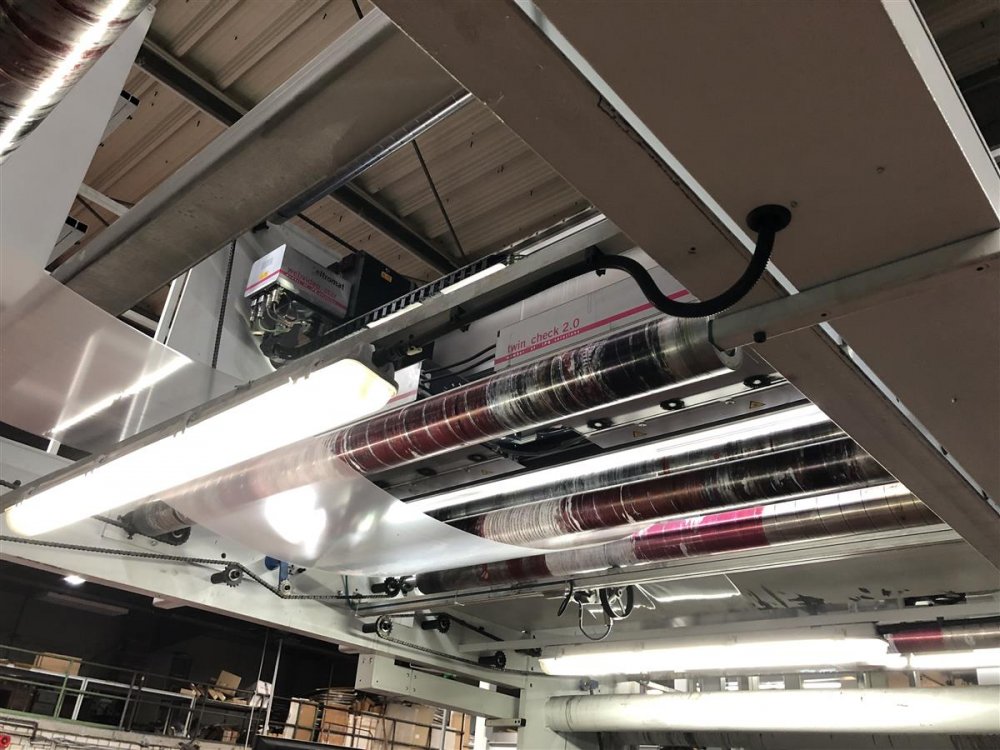

Videocamera Eltromat with quality inspection. 3ccd camera + 100% inspection
Web guides 2 in and out

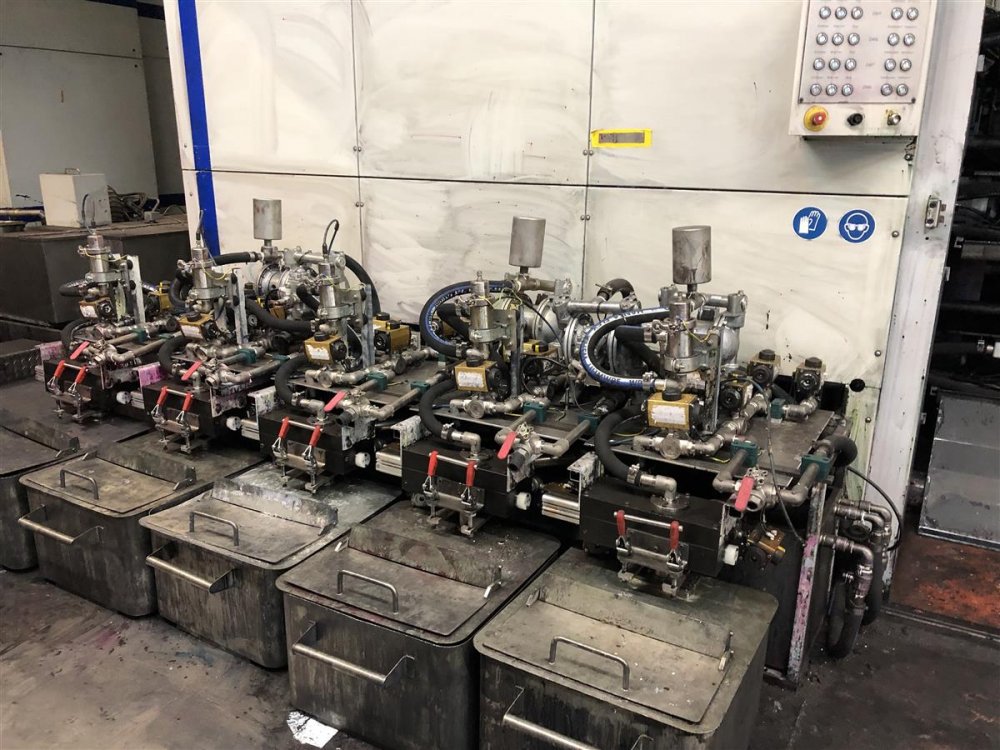

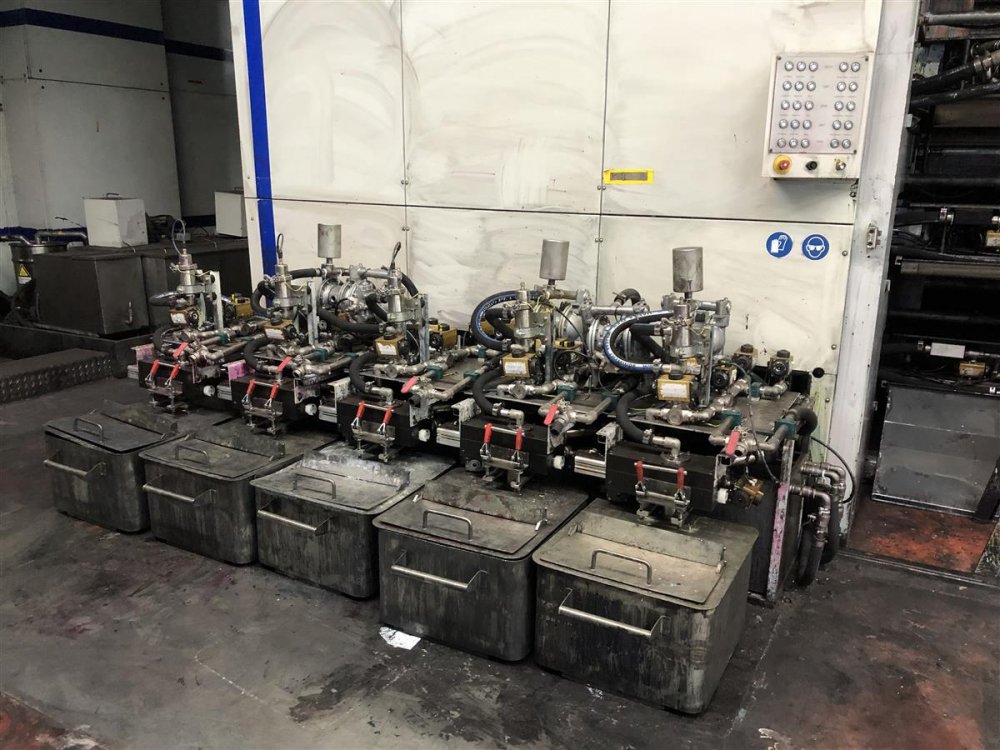

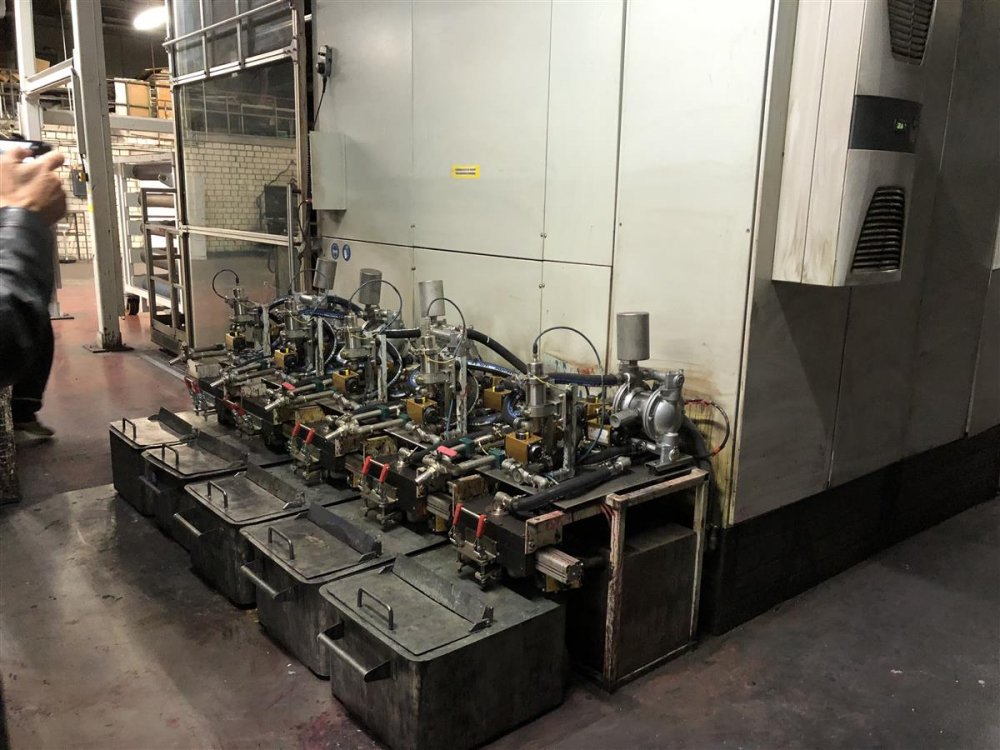

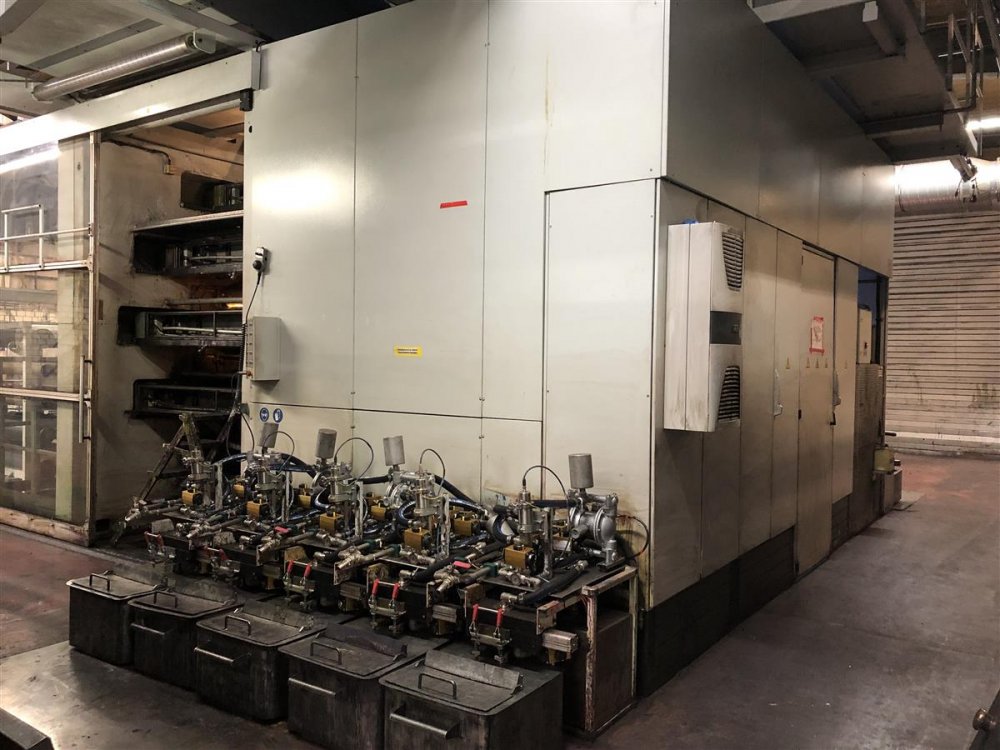

Vyscosity control yes automatic ACLIAN

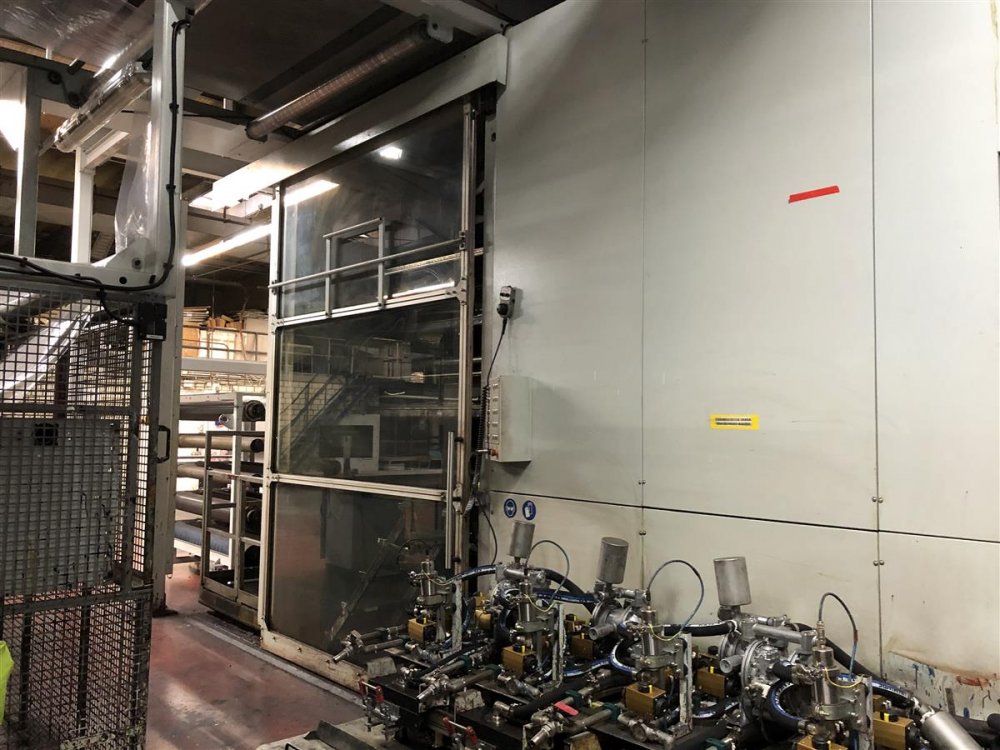

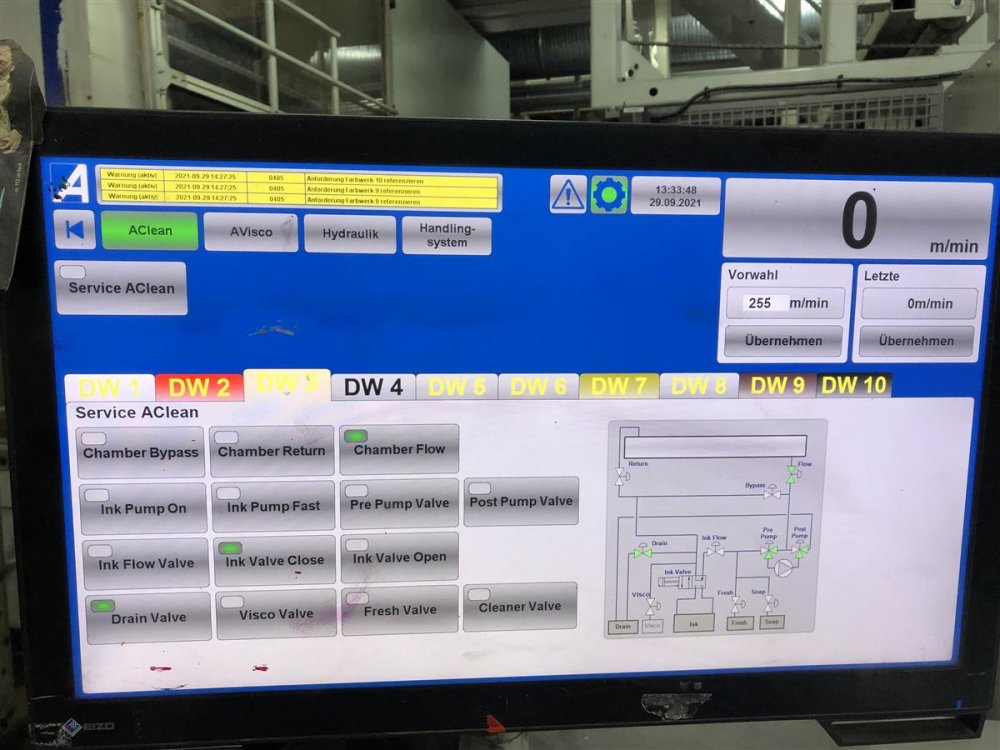

Washing system Yes automatic
Inking system CFK chambers
Anilox 1x120 L/cm, , 1x180, 1x160, 2x140, 2x220, 1x280, 3x400 , 1x340, 2x285.

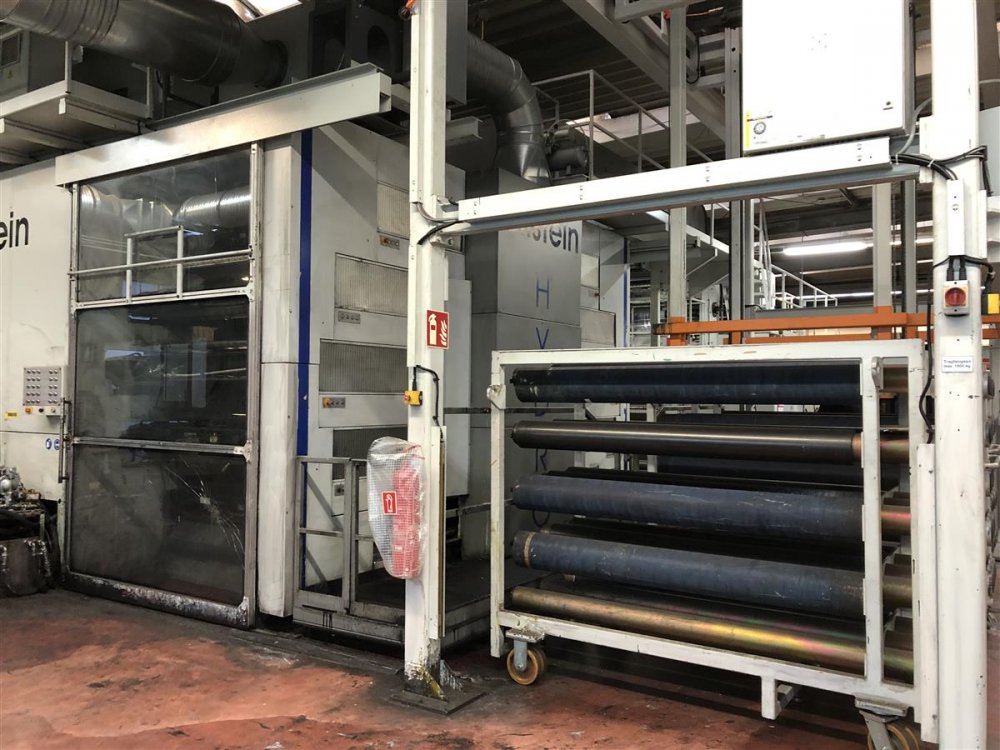

Print Sleeves approx 300, plate thickness 1,14mm: qty x repeat (mm) 11x440, 20x460, 20x480, 10x490,10x500, 10x520, 10x540, 10x560, 10x570, 10x580, 29x600, 10x620, 10x660, 20x680, 20x690, 20x700, 10x720, 20x780, 10x800, 10x840, 10x870
Additional information 8 color on a 10 color frame complete 8 print station fully operational 2 print station ( 4 and 5 ) to be upgraded CI drum diam 2750mm speed 600 m/min LEL sensors
