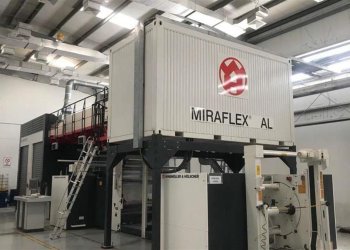

** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL892
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- MIRAFLEX AL
- Year
- 2014
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 370
- Max print repeat (mm)
- 1130
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- TURRET
- Max reel diameter rewinder (mm)
- 1000

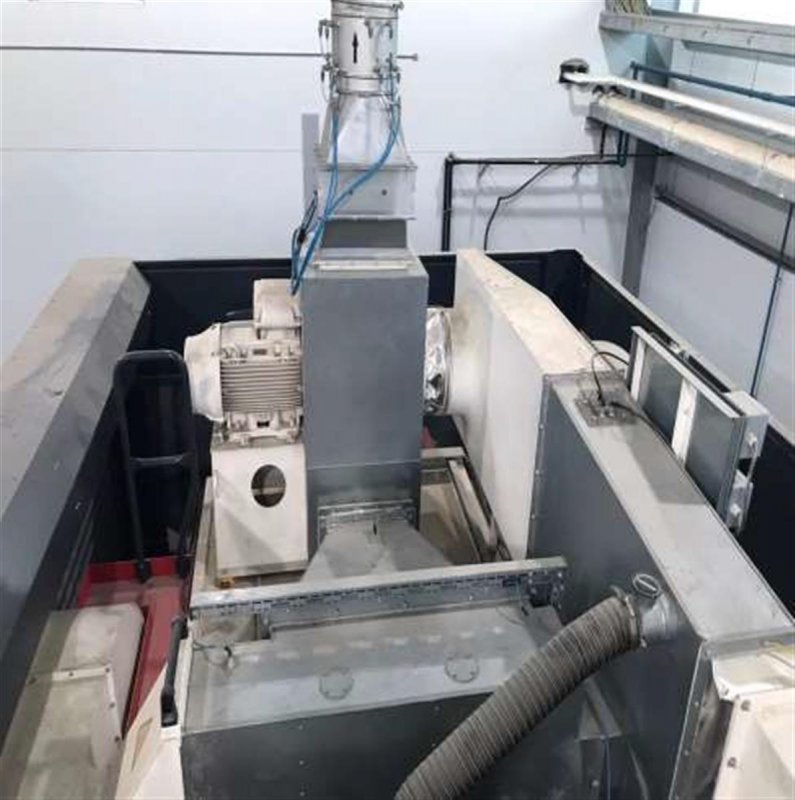

- Drying
- 2 x Electric heaters
- Videocamera
- BST PREMIUM high resolution 3 chip camera,with easy registretion feature
- Web guides
- 2
- Vyscosity control
- Automatic
- Washing system
- Turbowash
- Inking system
- closed chamber doctor blades
- Anilox
- qtyxL/cm: 2x140, 2x160, 2x180, 1x220, 1x280, 2x340, 2x400
- Print Sleeves
- qtyxmm repeat: 8x400, 8x420, 8x440, 8x460, 8x480, 8x490, 8x510, 8x530, 8x570, 8x610, 8x640, 8x700, 8x715, 8x850, 8x900, 8x1015
- Note
- EASY SET: Automated print deck position system
| Machine Code | FL892 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | MIRAFLEX AL |
| Year | 2014 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 370 |
| Max print repeat (mm) | 1130 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | TURRET |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 x Electric heaters |
| Videocamera | BST PREMIUM high resolution 3 chip camera,with easy registretion feature |
| Web guides | 2 |
| Vyscosity control | Automatic |
| Washing system | Turbowash |
| Inking system | closed chamber doctor blades |
| Anilox | qtyxL/cm: 2x140, 2x160, 2x180, 1x220, 1x280, 2x340, 2x400 |
| Print Sleeves | qtyxmm repeat: 8x400, 8x420, 8x440, 8x460, 8x480, 8x490, 8x510, 8x530, 8x570, 8x610, 8x640, 8x700, 8x715, 8x850, 8x900, 8x1015 |
| Note | EASY SET: Automated print deck position system |
