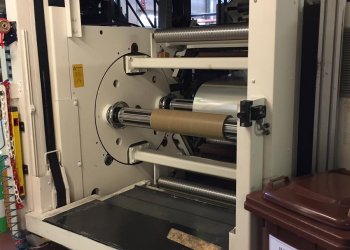

WINDMOLLER & HOLSCHER PRIMAFLEX CM Flexo central drum printing press 8 colors

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
about a similar one
Machine Code
FL862
Manufacturer
WINDMOLLER & HOLSCHER
Model
PRIMAFLEX CM
Year
2005
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1050
Print width (mm)
1000
Min print repeat (mm)
300
Max print repeat (mm)
800
Unwinder type
TURRET
Max reel diameter unwinder (mm)
800
Rewinder type
TURRET
Max reel diameter rewinder (mm)
800
Drying
2 zones, 2 thermal oil heaters, 4 fans
Videocamera
Qview BST 100% inspection installed in year 2015 Handy cam BST video camera
Corona treatment
AFS, driven
Web guides
BST
Washing system
Turboclean 400
Inking system
closed chambers doctor blades
Anilox
Approx 26 anolox rollers: 1x40 L/cm, 1x60 L/cm, 1x 80 L/cm, 1x100 L/cm, 2x120 L/cm, 2x140 L/cm,1x180 L/cm,2x200 L/cm,2x260 L/cm,2x300 L/cm, 7x340 L/cm, +5
Print Sleeves
approx 300 sleeves, formats, 300,310,320,330,340,350,360,370,380,390,400,410,420,430,440,450,460,470,480,500,520,540,560,570,580,600,620,650,680,700,750
Additional information
SIMCO ionization bars before printing LEL Optima plus ENPRO approx 3 stes of carriers
Machine Code FL862
Manufacturer WINDMOLLER & HOLSCHER
Model PRIMAFLEX CM
Year 2005
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1050
Print width (mm) 1000
Min print repeat (mm) 300
Max print repeat (mm) 800
Unwinder type TURRET
Max reel diameter unwinder (mm) 800
Rewinder type TURRET
Max reel diameter rewinder (mm) 800
Drying 2 zones, 2 thermal oil heaters, 4 fans
Videocamera Qview BST 100% inspection installed in year 2015 Handy cam BST video camera
Corona treatment AFS, driven
Web guides BST
Washing system Turboclean 400
Inking system closed chambers doctor blades
Anilox Approx 26 anolox rollers: 1x40 L/cm, 1x60 L/cm, 1x 80 L/cm, 1x100 L/cm, 2x120 L/cm, 2x140 L/cm,1x180 L/cm,2x200 L/cm,2x260 L/cm,2x300 L/cm, 7x340 L/cm, +5
Print Sleeves approx 300 sleeves, formats, 300,310,320,330,340,350,360,370,380,390,400,410,420,430,440,450,460,470,480,500,520,540,560,570,580,600,620,650,680,700,750
Additional information SIMCO ionization bars before printing LEL Optima plus ENPRO approx 3 stes of carriers
