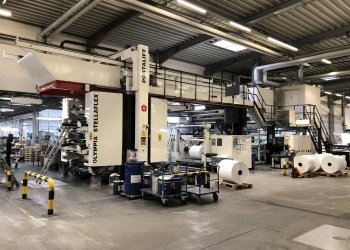

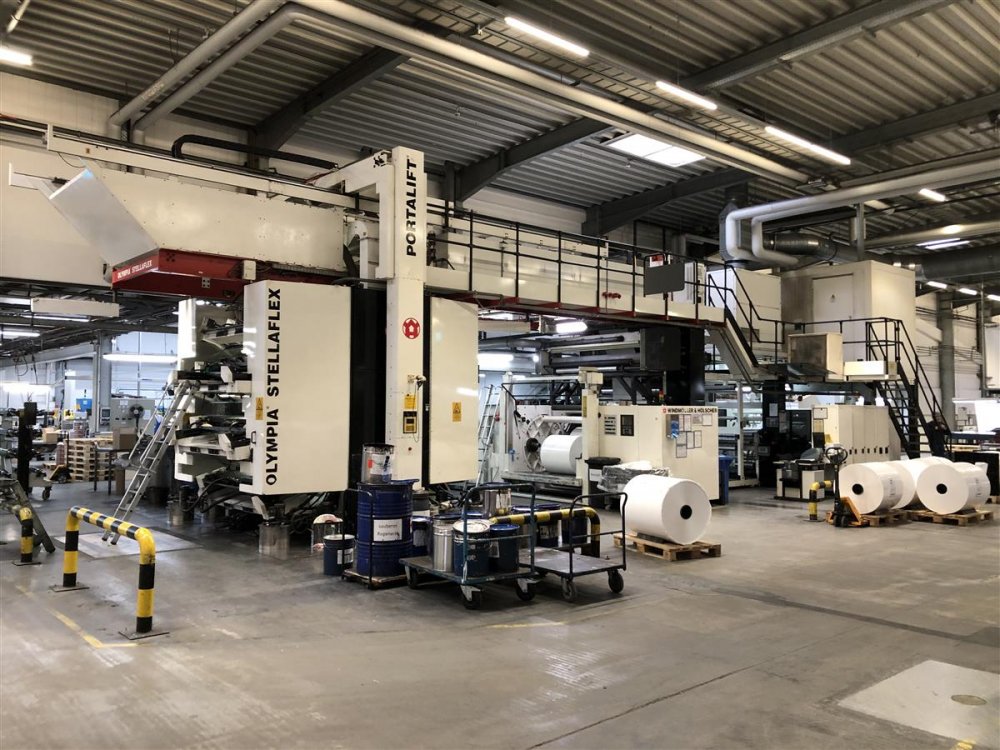

WINDMÖLLER & HÖLSCHER STELLAFLEX flexo printing machine 8 colors

** SOLD **

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
about a similar one
Machine Code
FL893
Manufacturer
WINDMÖLLER & HÖLSCHER
Model
STELLAFLEX
Year
1998
Number of colors
8
Print possibilityes
8+0
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1620
Print width (mm)
1570
Min print repeat (mm)
400
Max print repeat (mm)
1020
Unwinder type
Turret Automatic
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret Automatic
Max reel diameter rewinder (mm)
1000
Drying
2 zones 4 fans 2 heat exchanger
Videocamera
Yes AVT Jupiter
Vyscosity control
yes autmatic BLOSS
Inking system
Closed chamber doctor blades
Anilox
16 ceramic anilox between 130 and 340 l/cm
Print Sleeves
620 sleeves
Print cylinders
Air mandrels of following repeats 350,400,470,540,610,680,750 mm
Machine Code FL893
Manufacturer WINDMÖLLER & HÖLSCHER
Model STELLAFLEX
Year 1998
Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1620
Print width (mm) 1570
Min print repeat (mm) 400
Max print repeat (mm) 1020
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 1000
Drying 2 zones 4 fans 2 heat exchanger
Videocamera Yes AVT Jupiter
Vyscosity control yes autmatic BLOSS
Inking system Closed chamber doctor blades
Anilox 16 ceramic anilox between 130 and 340 l/cm
Print Sleeves 620 sleeves
Print cylinders Air mandrels of following repeats 350,400,470,540,610,680,750 mm
