** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL855
- Manufacturer
- UTECO
- Modello
- ONYX 808
- Year
- 2010
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800

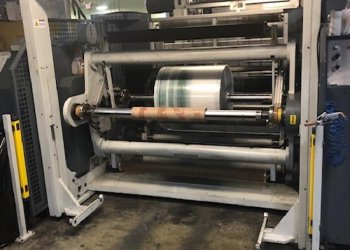

- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , four fans , extended drying tunnel 4 mt , Two gas burners , Automatic recirculation system with LEL control
- Videocamera
- Video inspection system Grafikontrol with interactive register control Click&Drag
- Web guides
- Yes in and out
- Vyscosity control
- Viscosity controllers
- Washing system
- Semi Automatic washing system for doctor blades and aniloxes;
- Inking system
- Closed chamber doctor blades with quick changeover of the blades and side sealings and Double pneumatic inking pumps
- Anilox
- 12 ceramic anilox sleeves 3 x 900 L/inch, vol.2,3 BCM; 2 X 800 L/inch , vol 2,3 BCM ; 1 x 700L/inch ; 3 x 550L/inch vol. 5,5 ; 1x350 l/inch -vol .5,9 ; 2 x250L/inch -vol.9
- Print Sleeves
- 56 repeats 14.5” , 15” 16.25” , 17” , 17.5” , 18.25” , 19.25
- Note
- Gearless machine with patented Direct Drive Evo; Chiller;
Machine Code | FL855 |
Manufacturer | UTECO |
Modello | ONYX 808 |
Year | 2010 |
Number of colors | 8 |
Print possibilityes | 8+0 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1350 |
Print width (mm) | 1300 |
Min print repeat (mm) | 350 |
Max print repeat (mm) | 800 |
Unwinder type | Turret Automatic |
Max reel diameter unwinder (mm) | 800 |
Rewinder type | Turret Automatic |
Max reel diameter rewinder (mm) | 800 |
Drying | 2 zones , four fans , extended drying tunnel 4 mt , Two gas burners , Automatic recirculation system with LEL control |
Videocamera | Video inspection system Grafikontrol with interactive register control Click&Drag |
Web guides | Yes in and out |
Vyscosity control | Viscosity controllers |
Washing system | Semi Automatic washing system for doctor blades and aniloxes; |
Inking system | Closed chamber doctor blades with quick changeover of the blades and side sealings and Double pneumatic inking pumps |
Anilox | 12 ceramic anilox sleeves 3 x 900 L/inch, vol.2,3 BCM; 2 X 800 L/inch , vol 2,3 BCM ; 1 x 700L/inch ; 3 x 550L/inch vol. 5,5 ; 1x350 l/inch -vol .5,9 ; 2 x250L/inch -vol.9 |
Print Sleeves | 56 repeats 14.5” , 15” 16.25” , 17” , 17.5” , 18.25” , 19.25 |
Note | Gearless machine with patented Direct Drive Evo; Chiller; |
