Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations

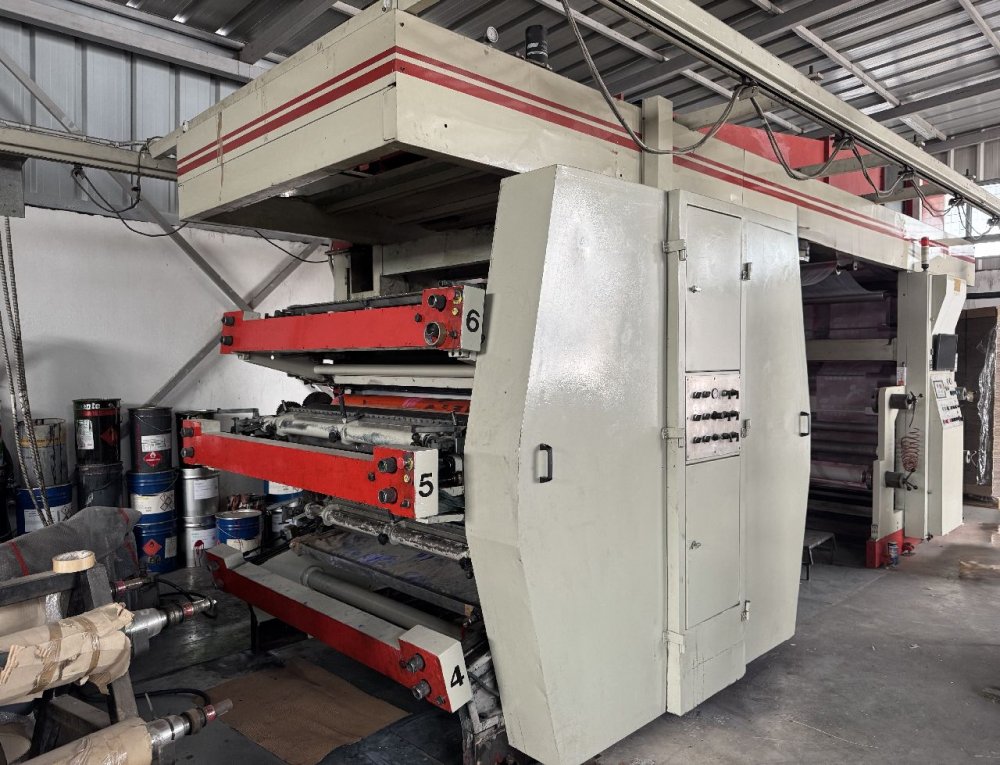

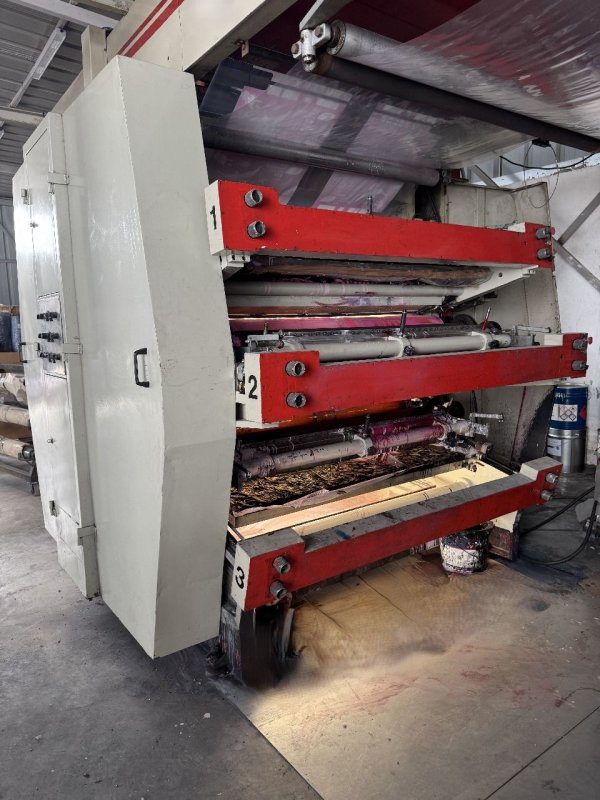

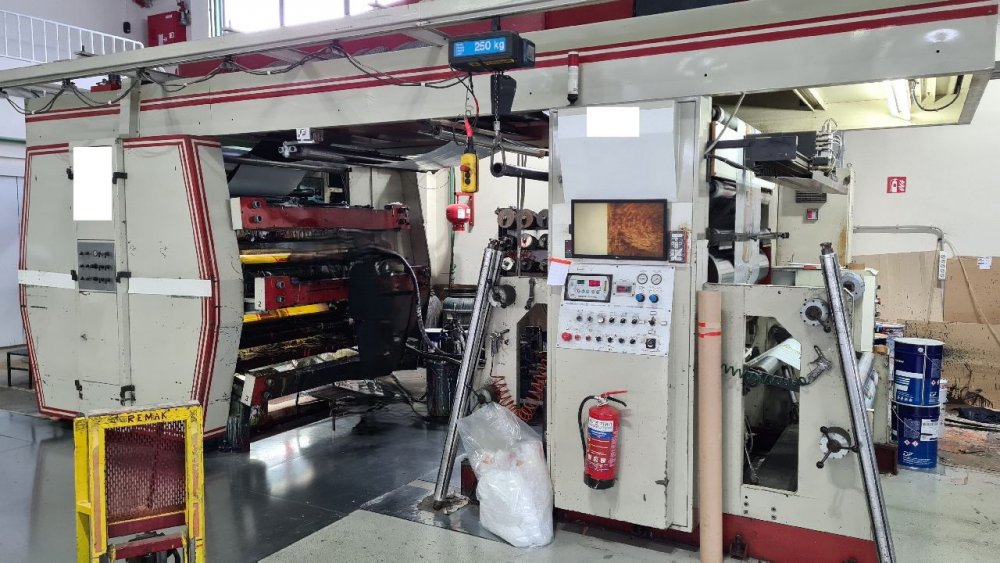

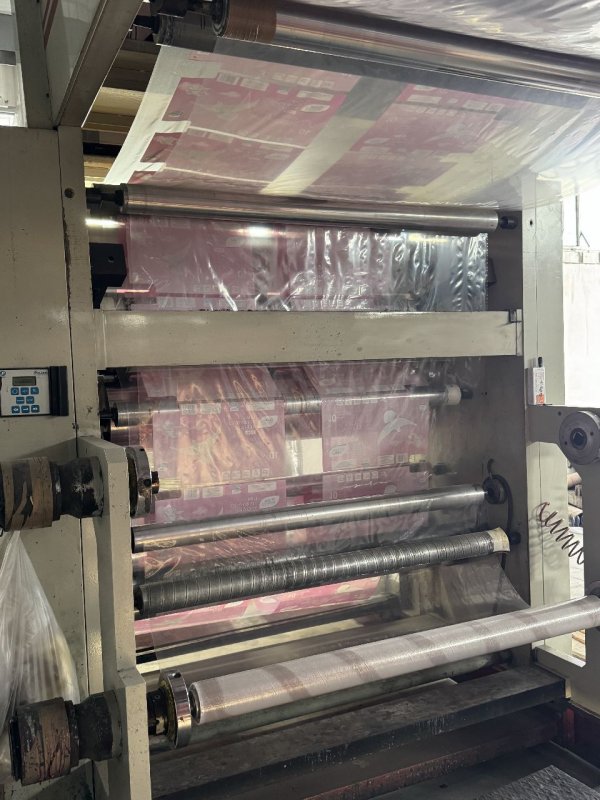

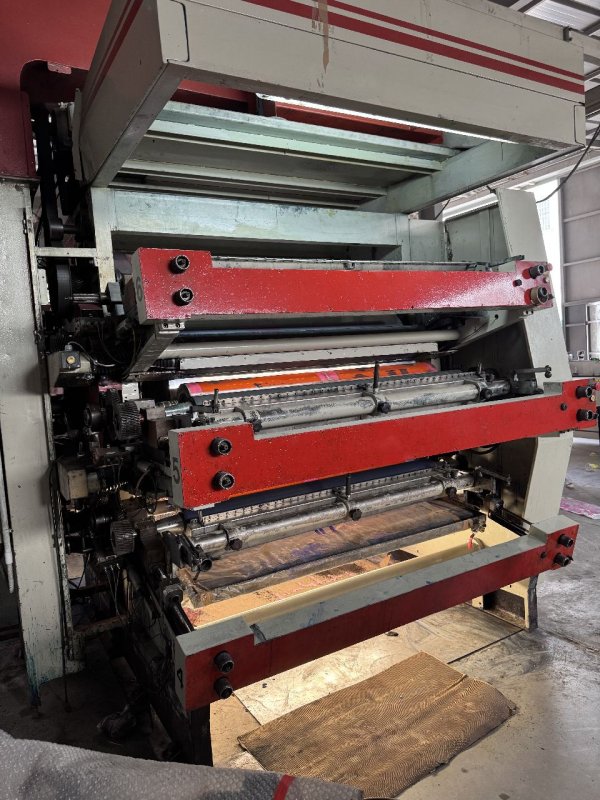

- Machine Code
- FL1164
- Manufacturer
- REMAK
- Year
- 2006
- Number of colors
- 6
- Gearless
- No
- Web width (mm)
- 1500
- Print width (mm)
- 1350
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 710

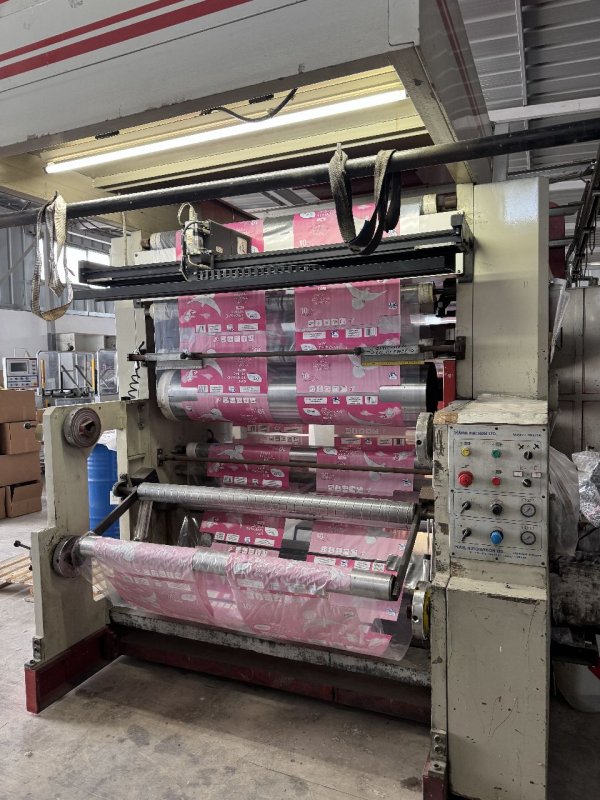

- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Single
- Max reel diameter rewinder (mm)
- 80
- Drying
- Electrica drying system with resistors and for hot air flow, one motor in the drum, one motor in the drying aisle
- Videocamera
- Fife camera for printing monitoring
- Web guides
- Yes, Fife - in and out

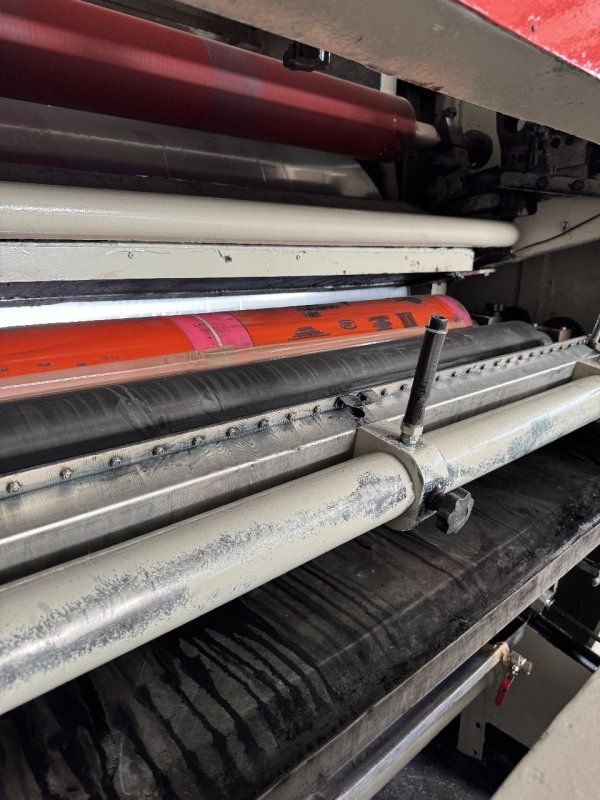

- Anilox
- 11 anilox rollers - 1 x80/18 L/cm,1x 80/14 L/cm, 1x80/14 L/cm,1x 120/9 L/cm, 1x120/14 L/cm, 1x140/9 L/cm, 1x180/7.5 L/cm,1x 220/7 L/cm, 1x280/5.2 L/cm, 1x280/7 L/cm,1x280/7 L/cm
- Print Sleeves
- 12 series of sleeve cliché cylinders, available sleeves for repeats 35, 40, 42, 45, 46.5, 50, 53, 57, 61, 65, 68, 71
| Machine Code | FL1164 |
| Manufacturer | REMAK |
| Year | 2006 |
| Number of colors | 6 |
| Gearless | No |
| Web width (mm) | 1500 |
| Print width (mm) | 1350 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 710 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Single |
| Max reel diameter rewinder (mm) | 80 |
| Drying | Electrica drying system with resistors and for hot air flow, one motor in the drum, one motor in the drying aisle |
| Videocamera | Fife camera for printing monitoring |
| Web guides | Yes, Fife - in and out |
| Anilox | 11 anilox rollers - 1 x80/18 L/cm,1x 80/14 L/cm, 1x80/14 L/cm,1x 120/9 L/cm, 1x120/14 L/cm, 1x140/9 L/cm, 1x180/7.5 L/cm,1x 220/7 L/cm, 1x280/5.2 L/cm, 1x280/7 L/cm,1x280/7 L/cm |
| Print Sleeves | 12 series of sleeve cliché cylinders, available sleeves for repeats 35, 40, 42, 45, 46.5, 50, 53, 57, 61, 65, 68, 71 |
BOBST FISCHER & KRECKE FK 15 S
-
Machine Code: FL1170
-
Year: 2011
-
Web width (mm): 1320
FLEXOTECNICA CHRONOS
-
Machine Code: FL1141
-
Year: 2006
-
Web width (mm): 1250
WINDMÖLLER & HÖLSCHER Olympia
-
Machine Code: FL1120
-
Year: 1982
-
Web width (mm): 1135

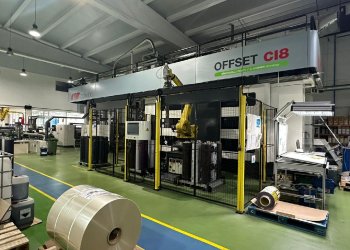

COMEXI OFFSET CI 8
-
