** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL823
- Manufacturer
- SCHIAVI
- Modello
- SIGMA
- Year
- 2003
- Number of colors
- 8
- Print possibilityes
- 8+0
- Overhaul/renovation
- 2012 - New inking system
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

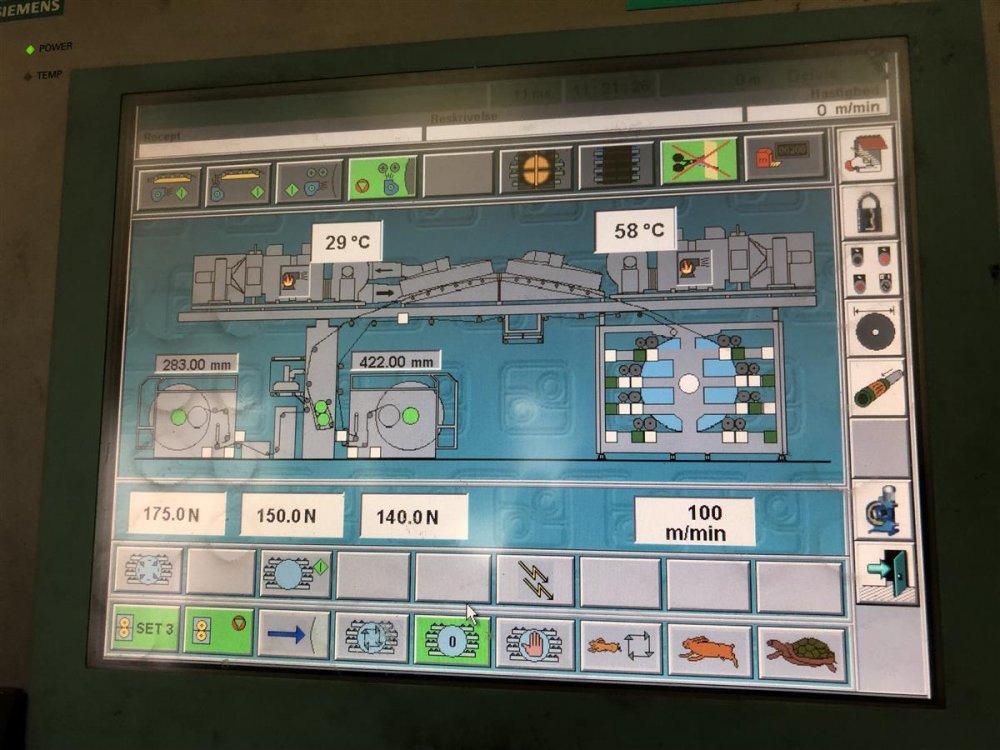

- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 750
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 800

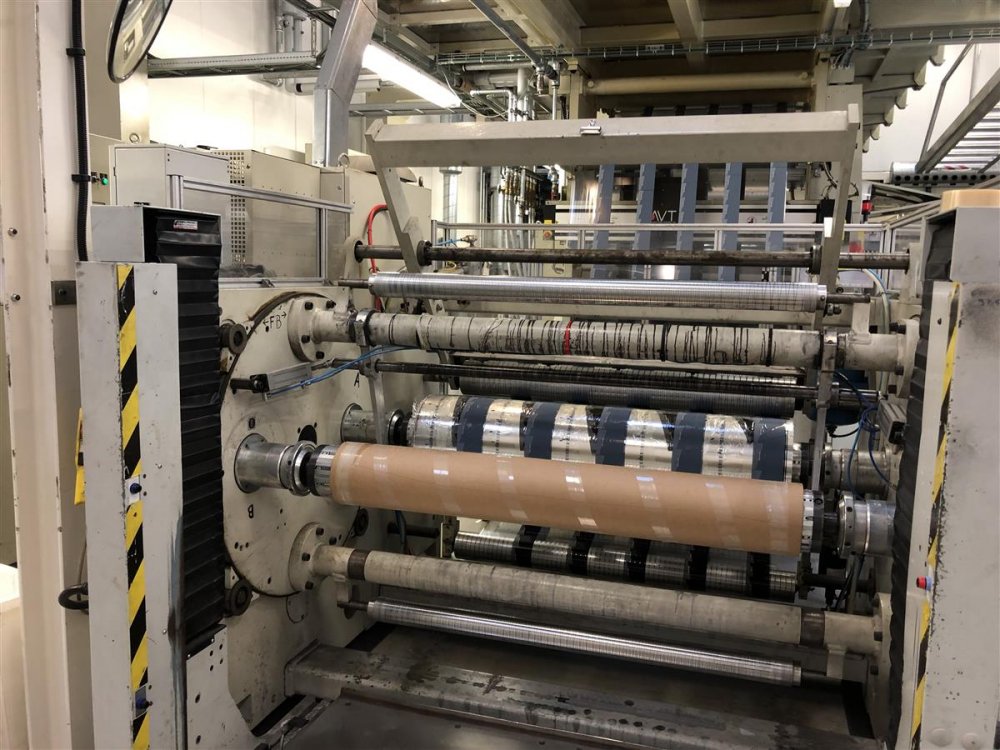

- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones 4 fans - Thermo oil heat exchangers - Automatic recirculation system with LEL controls
- Videocamera
- YES AVT
- Corona treatment
- Yes driven by Mero
- Web guides
- BST EKR 1000 in and out
- Vyscosity control
- yes
- Washing system
- yes by TRESU
- Inking system
- Closed chmaber doctor blades TRESU
- Anilox
- 33 CERAMIC ANILOX SLEEVS , from 60 l/cm to 460 l/cm
- Print Sleeves
- 320 print sleeves, 4 sets of carriers
- Note
- New complete inking system complete with ink tanks and pneumatic pumps, solvent automatic mixing system for 3 different solvents, new closed chamber doctor blades TRESU, Autowash up system , viscosity control system . double set of closed chamber doctor bòlades and ink tanks covers
Machine Code | FL823 |
Manufacturer | SCHIAVI |
Modello | SIGMA |
Year | 2003 |
Number of colors | 8 |
Print possibilityes | 8+0 |
Overhaul/renovation | 2012 - New inking system |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1270 |
Print width (mm) | 1220 |
Min print repeat (mm) | 350 |
Max print repeat (mm) | 750 |
Unwinder type | Turret Automatic |
Max reel diameter unwinder (mm) | 800 |
Rewinder type | Turret Automatic |
Max reel diameter rewinder (mm) | 800 |
Drying | 2 zones 4 fans - Thermo oil heat exchangers - Automatic recirculation system with LEL controls |
Videocamera | YES AVT |
Corona treatment | Yes driven by Mero |
Web guides | BST EKR 1000 in and out |
Vyscosity control | yes |
Washing system | yes by TRESU |
Inking system | Closed chmaber doctor blades TRESU |
Anilox | 33 CERAMIC ANILOX SLEEVS , from 60 l/cm to 460 l/cm |
Print Sleeves | 320 print sleeves, 4 sets of carriers |
Note | New complete inking system complete with ink tanks and pneumatic pumps, solvent automatic mixing system for 3 different solvents, new closed chamber doctor blades TRESU, Autowash up system , viscosity control system . double set of closed chamber doctor bòlades and ink tanks covers |
