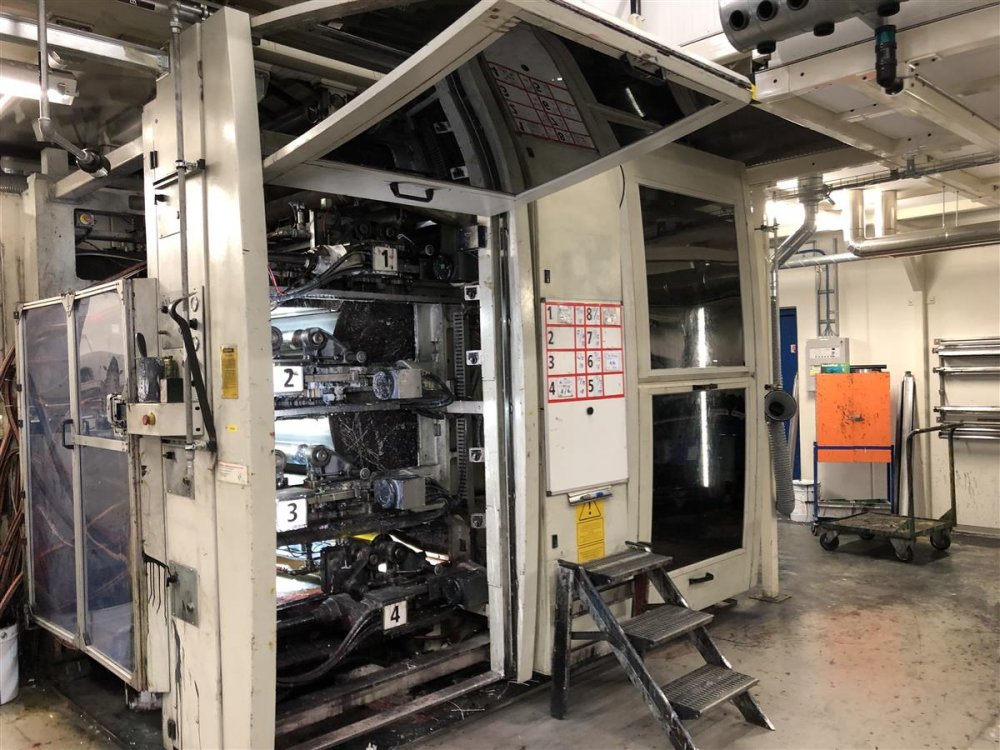

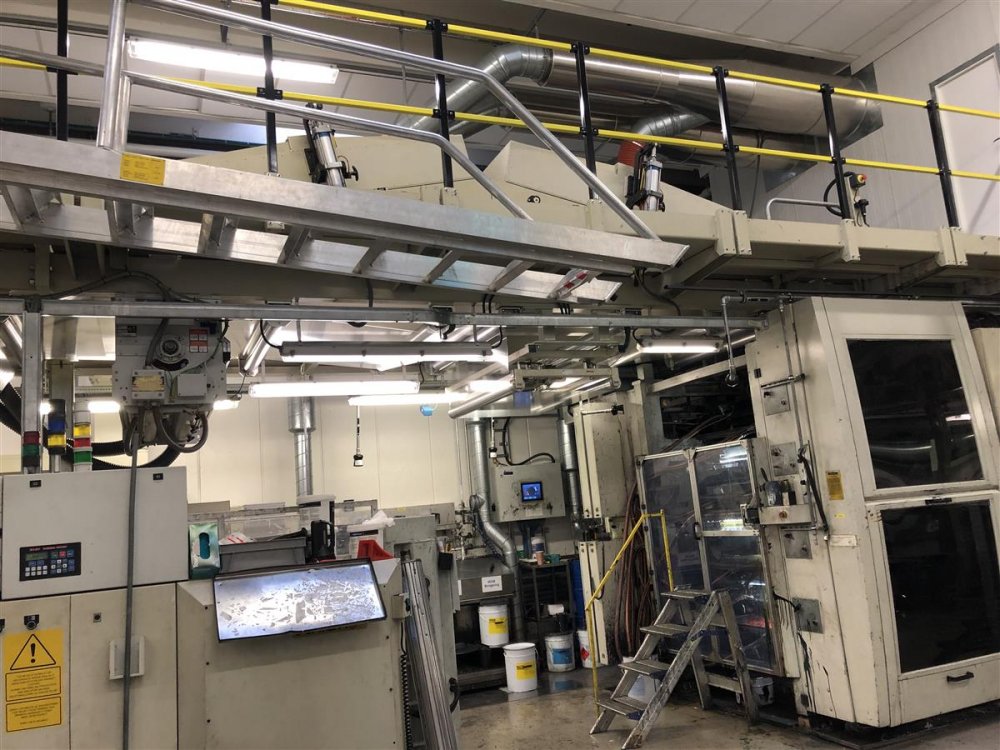

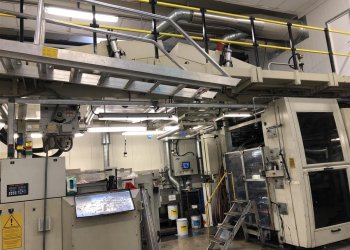

SCHIAVI SIGMA flexographic printing machine 8 colors ** SOLD ** Ask more informations about a similar one

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code FL823
Manufacturer SCHIAVI
Model SIGMA
Year 2003
Number of colors 8
Print possibilities 8+0
Overhaul/renovation 2012 - New inking system
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes

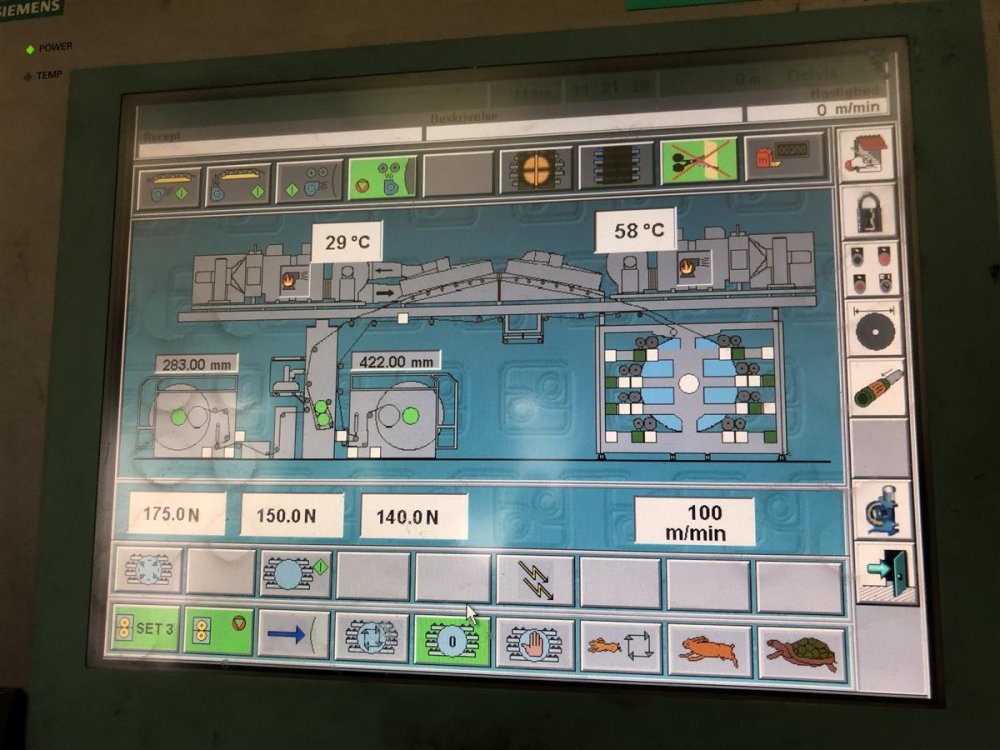

Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 350
Max print repeat (mm) 750
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 800

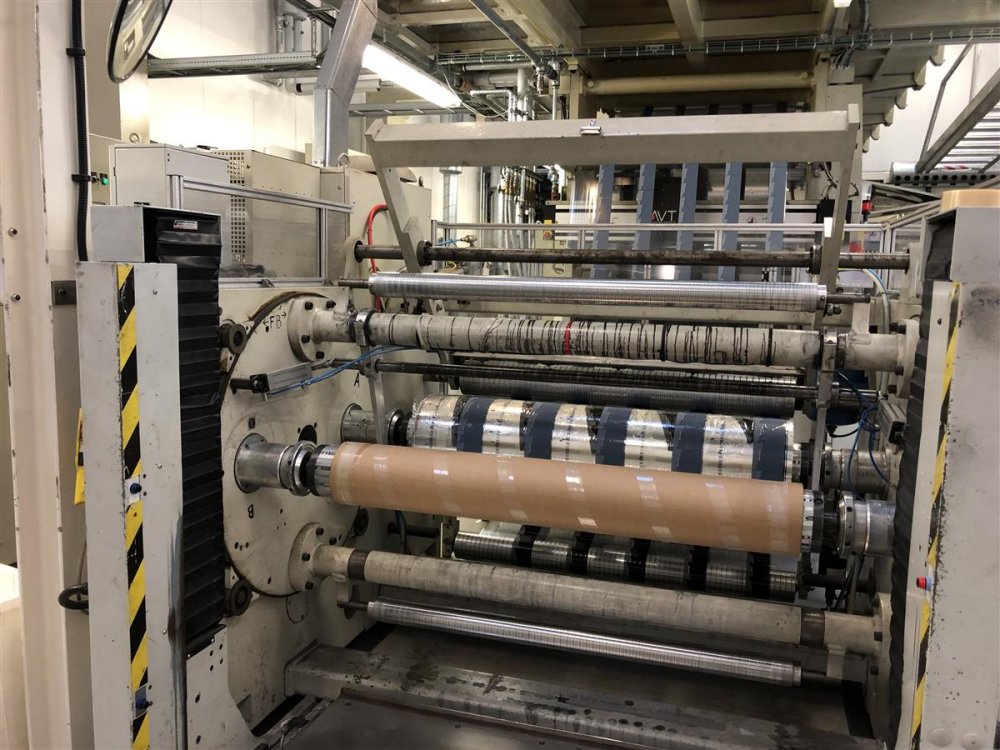

Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones 4 fans - Thermo oil heat exchangers - Automatic recirculation system with LEL controls
Videocamera YES AVT
Corona treatment Yes driven by Mero
Web guides BST EKR 1000 in and out
Vyscosity control yes
Washing system yes by TRESU
Inking system Closed chmaber doctor blades TRESU
Anilox 33 CERAMIC ANILOX SLEEVS , from 60 l/cm to 460 l/cm
Print Sleeves 320 print sleeves, 4 sets of carriers
Additional information New complete inking system complete with ink tanks and pneumatic pumps, solvent automatic mixing system for 3 different solvents, new closed chamber doctor blades TRESU, Autowash up system , viscosity control system . double set of closed chamber doctor bòlades and ink tanks covers

** SOLD **
