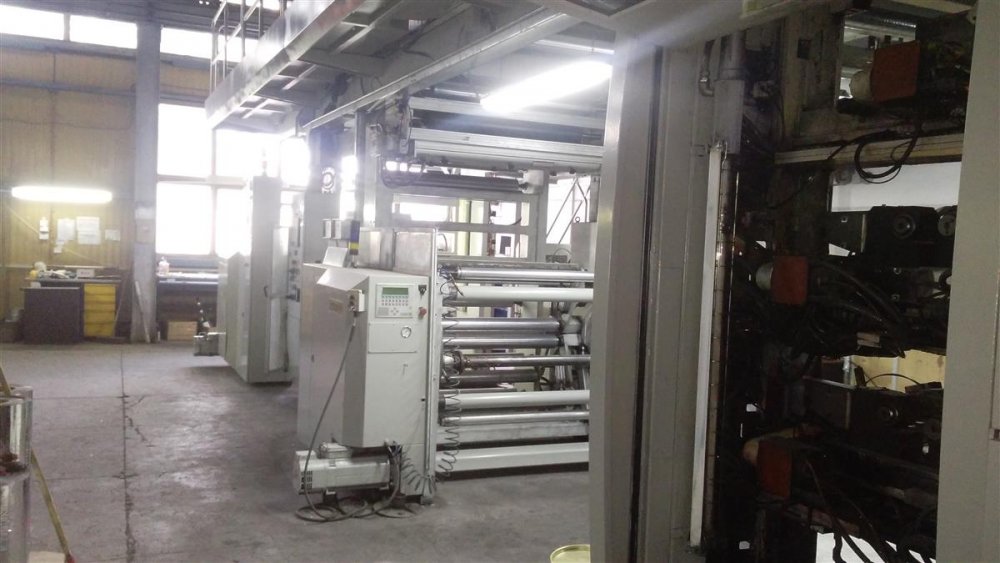

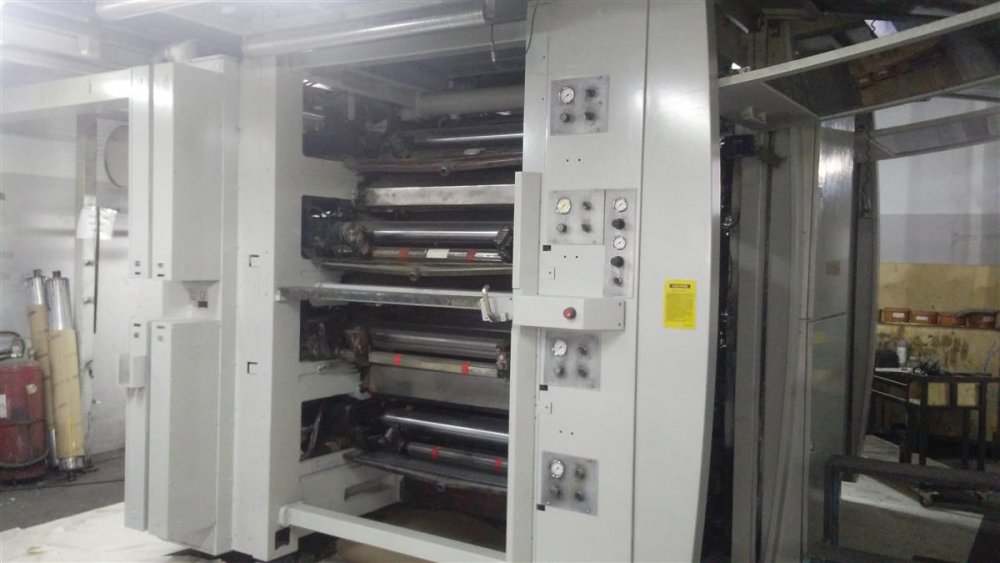

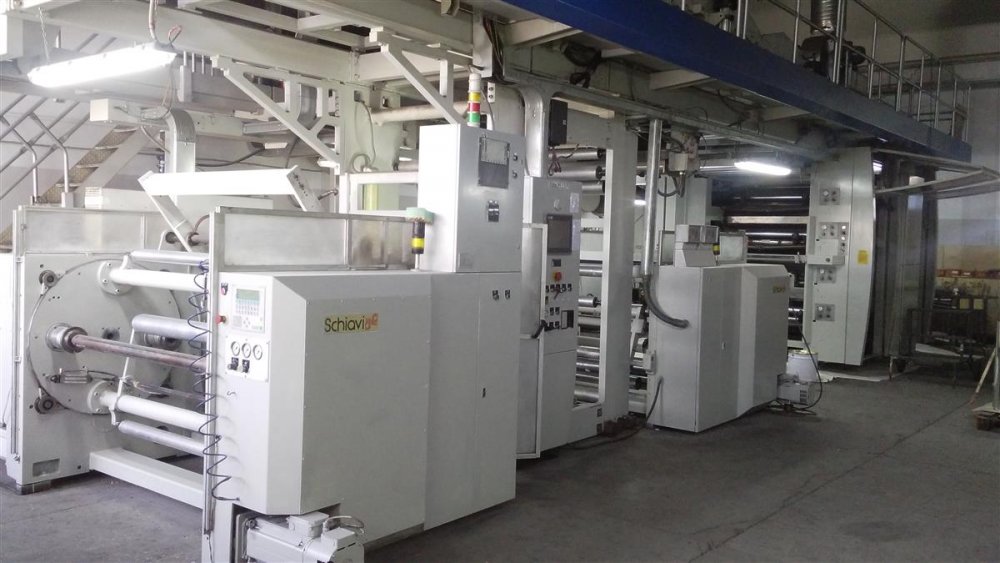

SCHIAVI ALPHA Flexo printer 8 colors
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
| Machine Code | FL891 |
| Manufacturer | SCHIAVI |
| Model | ALPHA |
| Year | 2002 |
| Number of colors | 8 |
| Print possibilities | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |

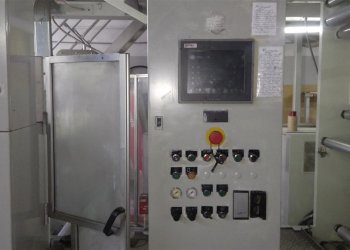

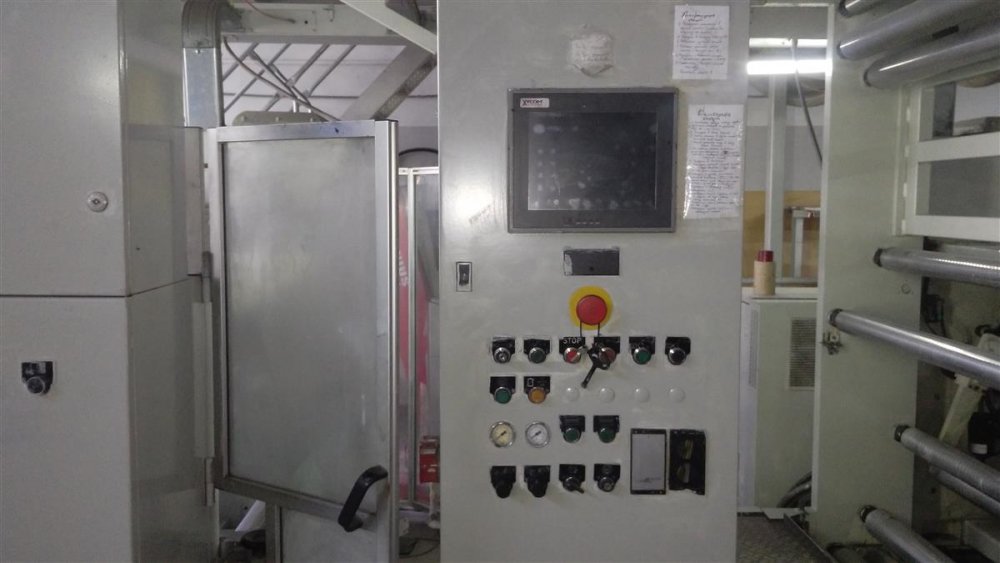

| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 650 |

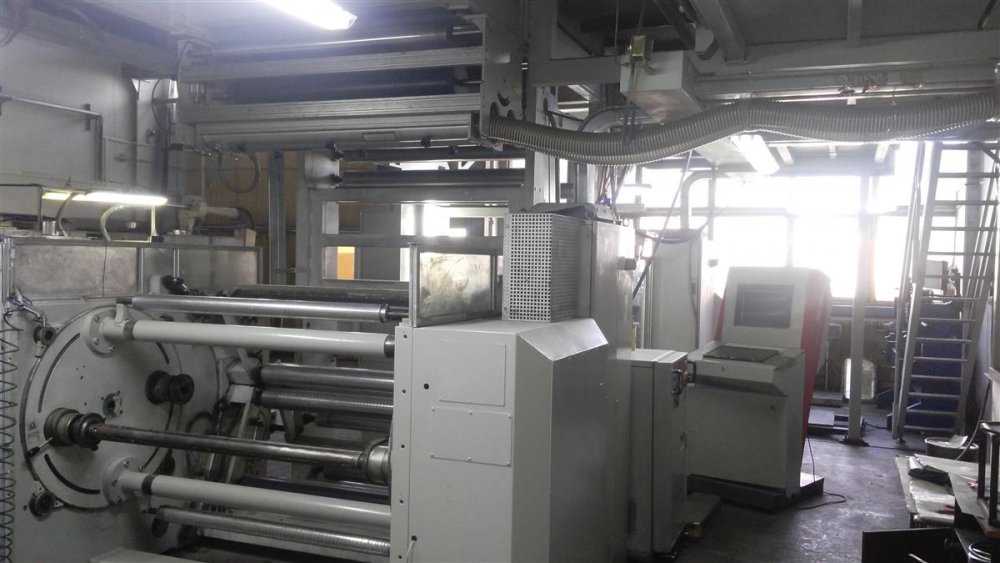

| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 800 |

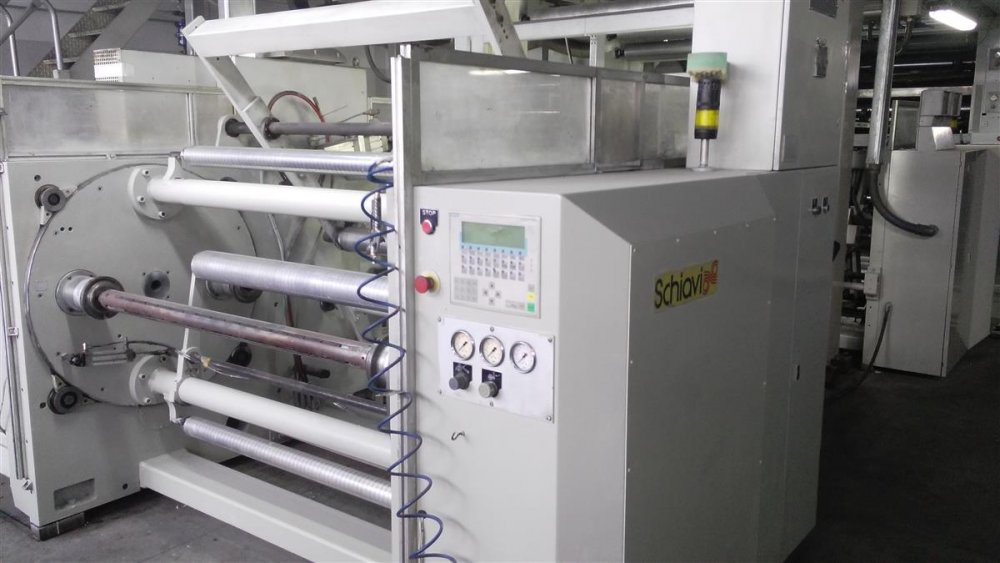

| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 800 |

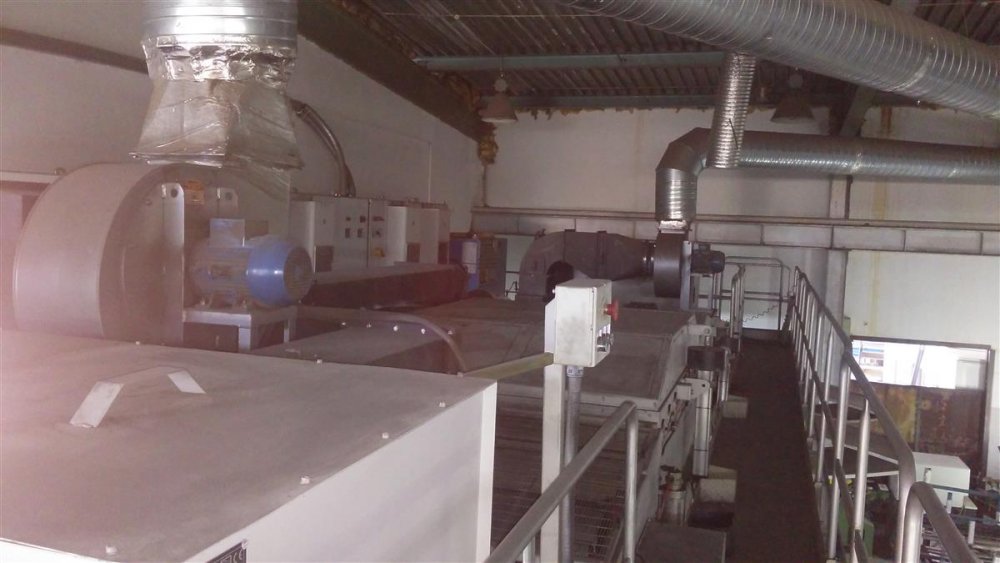

| Drying | Gas |
| Videocamera | BST |
| Corona treatment | Yes |
| Web guides | Yes in and out BST |
| Vyscosity control | Manual |
| Washing system | No |
| Inking system | ceramic anilox + chamber doctor blade |
| Additional information | Min film thicknes: 12 my Max mech.speed: 250 m/min Overall sizes: LxWxH 16x6x5 m |
