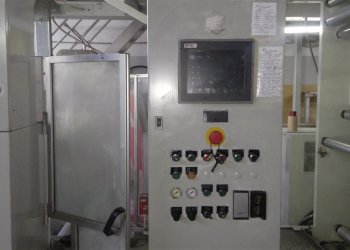

SCHIAVI ALPHA Flexo central drum printing press 8 colors

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
Machine Code
FL891
Manufacturer
SCHIAVI
Model
ALPHA
Year
2002
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1250
Print width (mm)
1200
Min print repeat (mm)
330
Max print repeat (mm)
650
Unwinder type
Turret
Max reel diameter unwinder (mm)
800
Rewinder type
Turret
Max reel diameter rewinder (mm)
800
Drying
Gas
Videocamera
BST
Corona treatment
Yes
Web guides
Yes in and out BST
Vyscosity control
Manual
Washing system
No
Inking system
ceramic anilox + chamber doctor blade
Anilox
4x240linee, 1x100, 1x260, 2x320, 1x120, 1x80. More pieces available for extraprice
Print Sleeves
8x 530mm on 98,792mm mandre. More sets available for extra price.l
Additional information
Min film thicknes: 12 my Max mech.speed: 250 m/min Overall sizes: LxWxH 16x6x5 m
Machine Code FL891
Manufacturer SCHIAVI
Model ALPHA
Year 2002
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 330
Max print repeat (mm) 650
Unwinder type Turret
Max reel diameter unwinder (mm) 800
Rewinder type Turret
Max reel diameter rewinder (mm) 800
Drying Gas
Videocamera BST
Corona treatment Yes
Web guides Yes in and out BST
Vyscosity control Manual
Washing system No
Inking system ceramic anilox + chamber doctor blade
Anilox 4x240linee, 1x100, 1x260, 2x320, 1x120, 1x80. More pieces available for extraprice
Print Sleeves 8x 530mm on 98,792mm mandre. More sets available for extra price.l
Additional information Min film thicknes: 12 my Max mech.speed: 250 m/min Overall sizes: LxWxH 16x6x5 m
