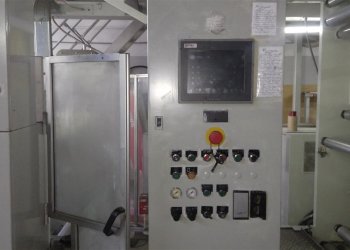

SCHIAVI ALPHA Flexo central drum printing press 8 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL891
Manufacturer SCHIAVI
Model ALPHA
Year 2002
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 330
Max print repeat (mm) 650
Unwinder type Turret
Max reel diameter unwinder (mm) 800
Rewinder type Turret
Max reel diameter rewinder (mm) 800
Drying Gas
Videocamera BST
Corona treatment Yes
Web guides Yes in and out BST
Vyscosity control Manual
Washing system No
Inking system ceramic anilox + chamber doctor blade
Anilox 4x240linee, 1x100, 1x260, 2x320, 1x120, 1x80
Print Sleeves 8x 530mm on 98,792mm mandrel
Additional information Min film thicknes: 12 my Max mech.speed: 250 m/min Overall sizes: LxWxH 16x6x5 m
