SOMA FLEX-OPTIMA 8 EG/WG Flexo central drum printing press 8 colors
Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Machine Code | FL883 |
Manufacturer | SOMA |
Model | FLEX-OPTIMA 8 EG/WG |
Year | 2016 |
Number of colors | 8 |
Print possibilities | 8+0 |
Overhaul/renovation | Machine brand new . used only for printing test and demo in demo center , not for daily production .less than 1000 hours f operation |
Gearless | Yes |
Fast sleeve change | No |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 850 |
Print width (mm) | 820 |
Min print repeat (mm) | 280 |
Max print repeat (mm) | 600 |
Unwinder type | Single position shaftless |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Single position shaftless |
Max reel diameter rewinder (mm) | 1000 |
Drying | 2 zones - 4 fans- Tunnel 3mt lomg 19 air knives 2 gas burners |
Videocamera | BST Digital Super Handy Scan 4000 with automatic register control |
Corona treatment | yes |
Web guides | Yes in and out |
Washing system | Yes automatic |
Inking system | Closed chamber doctor blades with pneumatic ink pumps with mixer |
Anilox | 14 ceramic anilox sleeves 4 x360 lines/cm-vol3,5; 3x320 L/cm-vol.6,5 ; 1x260 L/cm.vol.6,2 ; 3x180 L/cm- vol.12; 1x 180 L/cm-vol.8; 1x140 L/cm-vol.10 ;1x 100 L/cm-vol.14 |
Print Sleeves | 8x260, 8x270, 8x280, 8x290, 8x300, 8x320, 8x330, 8x350, 8x360, 8x380, 8x400, 8x430, 8x450, 8x490 |
Additional information | Materials: LDPE 0.020-0.160 mm, HDPE/OPP 0.010-0.150 mm, CPP 0.020-0.070 mm, BOPP 0.010-0.060 mm, PET 0.012-0.050 mm, OPA 0.015-0.050 mm, Laminates 0.020-0.150 mm, Paper 20-180 g Temperature control for CI drum and coolimg calender Servo unit for register control-motive reprint on already printed material |
Others in the same category:

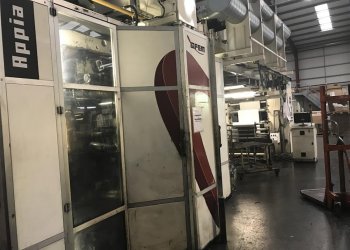

OFEM APPIA GL803
