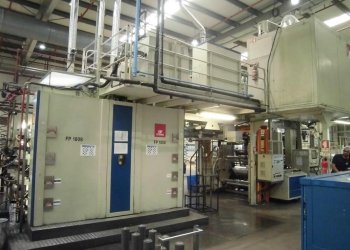

COMEXI FP 1808 CNC Flexo printer 8 colors

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Machine Code FL741
Manufacturer COMEXI
Model FP 1808 CNC
Year 1998
Number of colors 8
Overhaul/renovation Several upgrades : Siemens S7 PLCs. Register system upgraded to encoders. Sleeves for 1.7 plates. Repeates 400-640mm. Rossini everstat sleeves and Axcyl.8 Rossini adaptors with metalic rings. Anilox from Sandon. Eltromat web inspection system with matricial error detecor. Ultrasonic visco controller for all decks. Ferrarini corona web. Heaford manual monter with revamp. Flexoart ink chambers and fixation system to reduce vibration. Stainless rack for both sleeve and anilox. Imbroved system for fast ink changeover. Inline ink cooling system for each deck
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1050
Print width (mm) 1000
Min print repeat (mm) 330
Max print repeat (mm) 650
Unwinder type Double unwinding shaft, electromagnetic brake, marriage rolls, dancing rollers
Max reel diameter unwinder (mm) 800
Rewinder type Turret Non Stop
Max reel diameter rewinder (mm) 800
Drying Gas
Videocamera Video system -BST-Eltromat IPQ with Register system & inspection system Eltromat
Corona treatment Ferrarini & Benelli
Web guides BST
Vyscosity control Inkspeck
Inking system Electrical pump inking system.Pneumatic pumps .Doctor blades system from flexoArt
Anilox 5x340L/cm Vol3,6; 2x340L/cm Vol3,5; 2x340 L/cm Vol3,4; 2x360L/cm Vol3,8; 1x340L/cm Vol4,8; 1x340L/cm Vol5 ; 2x320 L/cm Vol6,5; 1x260L/cm Vol5; 2x280L/cm Vol7,7; 1x200L/cm Vol 7,7; 1x200L/cm Vol10,2;2x200L/cm Vol5,3 ; 120L/cm Vol9,4; 120L/cm Vol10;100L/cm Vol12
Print Sleeves as available 8x400,410,420,430,440,450,460,480,490,510,520,530,540,550,560,570,580,590,600,610,620,640mm Twinlock 16x440mm; 9x490,500,520,580,640mm; 8x590,620mm
Additional information Materials: BOPP, PET, LDPE, NYLON, Cellophane Speed 250m/min Cantilever system to work with sleeves Sleeves and twinlocks Automatic positioning & adjustement of all print stations Lateral side register tolerance +/- 5mm Fire safety - CO2 Automatic extinguishing system-bottles excluded Cylinder width 1000mm With motorized longitudinal register Banana rolls, 1 pcs Cliché holder hoist lifting Electrical hoists, 3 pcs Plate mounting machine included Rack for sleeves storage included PLC revamp to Siemens S7 done Ink cooling Gears 8x330,340,350,360,370,380,390,400,410,420,430,435 ; 10x440,450; 8x 460; 10x470,480,490,500,510,520 ;8x 530,540,550,560,570,580,590,600,610,620mm
