UTECO TOPAZ 608 GL MOD 160 Flexo printer 6 colors ** SOLD ** Ask more informations about a similar one

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code FL732
Manufacturer UTECO
Model TOPAZ 608 GL MOD 160
Year 2014
Number of colors 6
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1650
Print width (mm) 1600
Min print repeat (mm) 450
Max print repeat (mm) 850
Unwinder type Single
Max reel diameter unwinder (mm) 1500
Rewinder type Turret
Max reel diameter rewinder (mm) 1000
Drying Gas burners. Tunnel 4 mt long. Motorized air recirculation system with LEL system
Videocamera Grafikscan 2200 with Click & Drag
Web guides OPG at web infeed . Spreader roll MINK type
Washing system Yes
Inking system 6 closed chamber doctor blades; 6 ink pumps; solvent based and water based inks
Anilox 6
Print Sleeves 500
Additional information Machine installed end of 2014 and started in beginning 2015 Mechanical speed :up to 300 m/min max Material:paper 50-150 g/m2 Single shaft unwinder “SAC-N-U-1500” Rewinder type TAR-N-1000 Spreader rollers MINK type

** SOLD **


You may also be interested in:

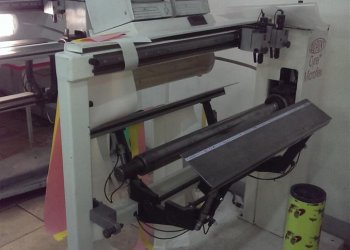

3704 - FISCHER & KRECKE 10 DF/8 CNC
