** SOLD **
Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL731
- Manufacturer
- COMEXI
- Modello
- FL2508
- Year
- 2003
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 1200

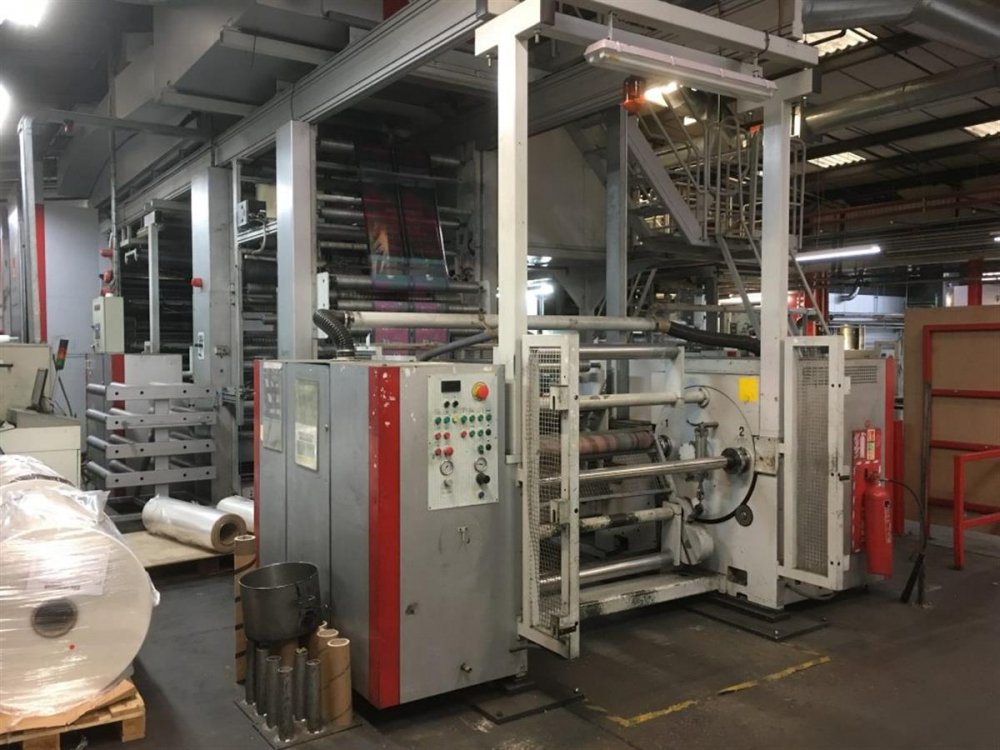

- Unwinder type
- Turret with flying splace
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret with flying splace
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Gas
- Videocamera
- AVT Genesis video inspection system
- Corona treatment
- No
- Web guides
- BST
- Vyscosity control
- Inelme auto viscosity system
- Washing system
- yes
- Inking system
- Sealed chamber doctor blades
- Anilox
- 15 as follows 2x5.5v; 3x10v; 3x10.8v;5x4v;1x3.7v;113v
- Print Sleeves
- 209 as follows: 2+8x440mm; 16x530;550;750;920;1050;1090; 15x690mm; 8x420;580;680;725;770;800;830;850;890;970;1020;1060;1180;
- Note

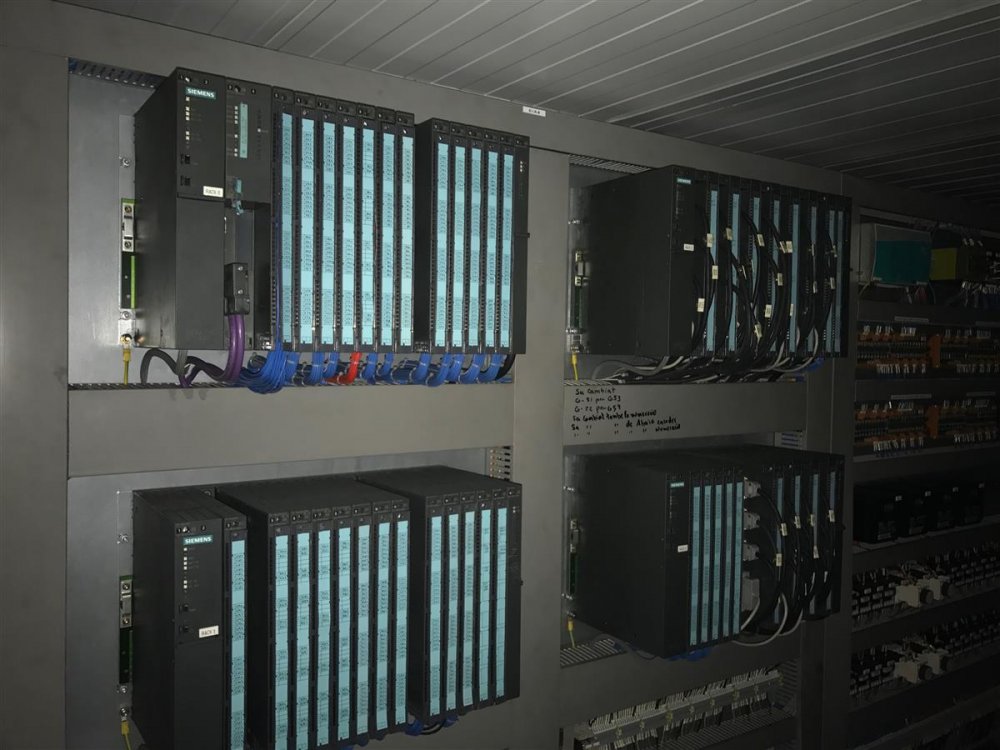

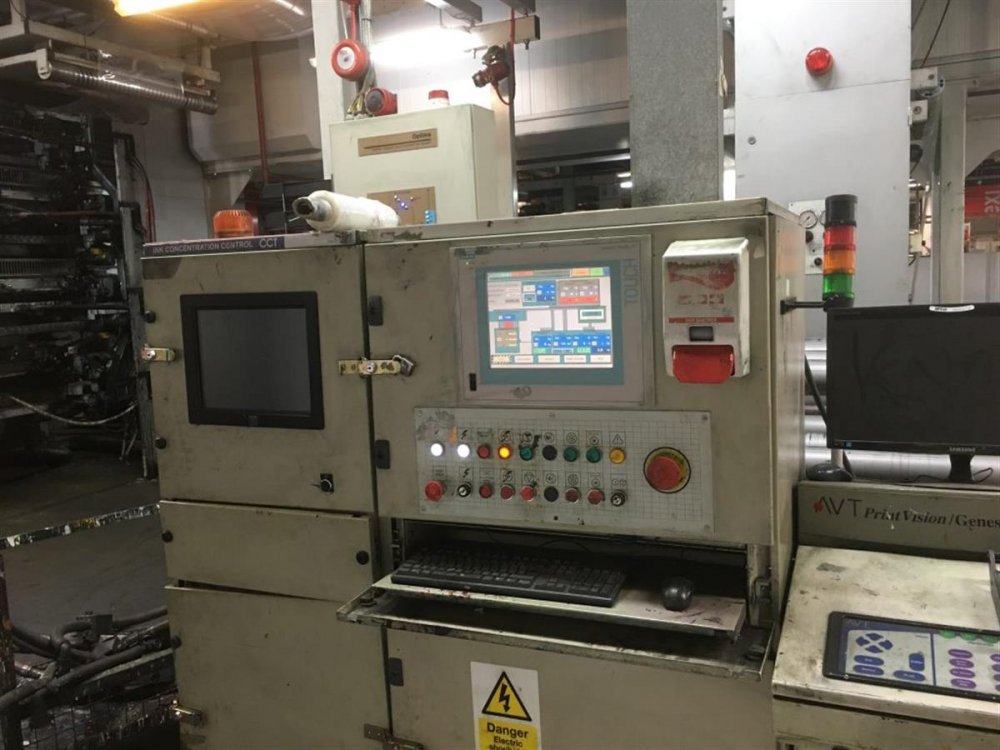

- Siemens touch screen Operator control pads Inline slitting 350m/min speed Materials LDPE, OPP,CPP,PET,MEt,Paper
| Machine Code | FL731 |
| Manufacturer | COMEXI |
| Modello | FL2508 |
| Year | 2003 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 1200 |
| Unwinder type | Turret with flying splace |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret with flying splace |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Gas |
| Videocamera | AVT Genesis video inspection system |
| Corona treatment | No |
| Web guides | BST |
| Vyscosity control | Inelme auto viscosity system |
| Washing system | yes |
| Inking system | Sealed chamber doctor blades |
| Anilox | 15 as follows 2x5.5v; 3x10v; 3x10.8v;5x4v;1x3.7v;113v |
| Print Sleeves | 209 as follows: 2+8x440mm; 16x530;550;750;920;1050;1090; 15x690mm; 8x420;580;680;725;770;800;830;850;890;970;1020;1060;1180; |
| Note | Siemens touch screen Operator control pads Inline slitting 350m/min speed Materials LDPE, OPP,CPP,PET,MEt,Paper |
