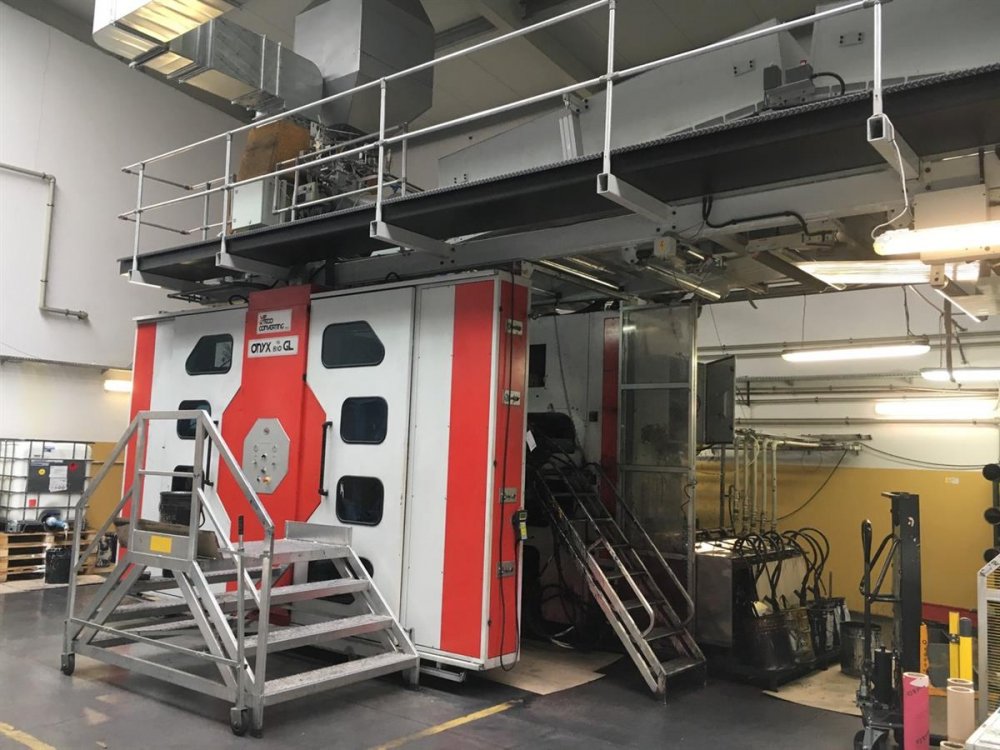

UTECO ONYX 810 GL flexographic printing machine 8 colors ** SOLD ** Ask more informations about a similar one

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL764
Manufacturer UTECO
Model ONYX 810 GL
Year 2006
Number of colors 8
Print possibilities 8+0
Overhaul/renovation 2011 - Grafikontrol camera with clik&drag; 2013, new chambers and new washing system
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes

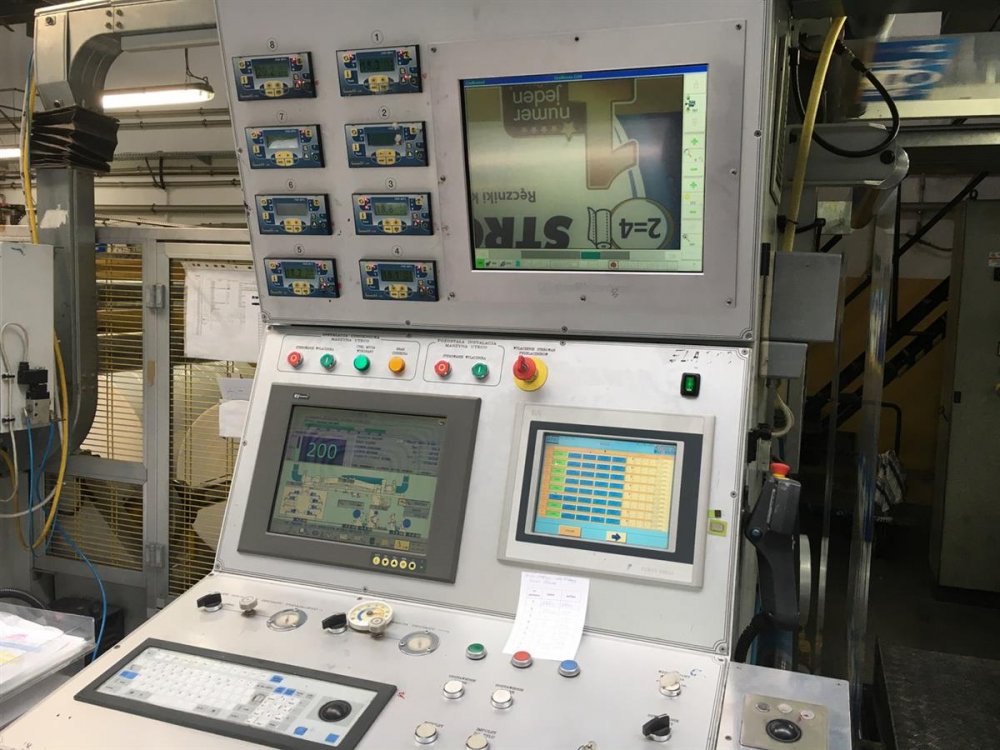

Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 400
Max print repeat (mm) 1100

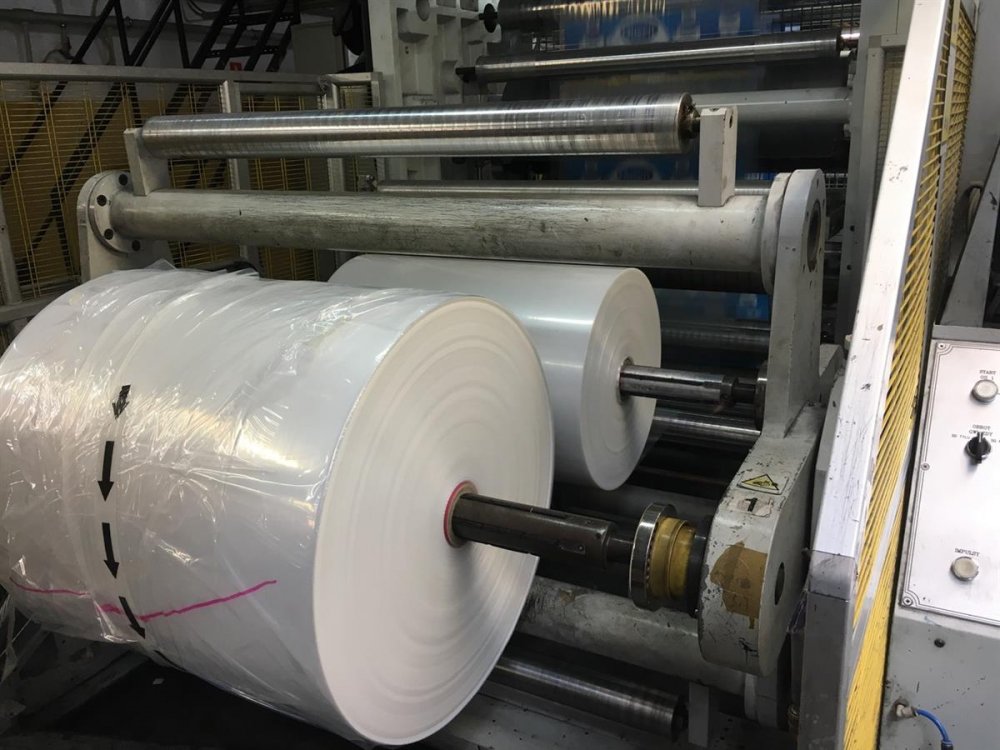

Unwinder type AUTOMATIC TURRET
Max reel diameter unwinder (mm) 800

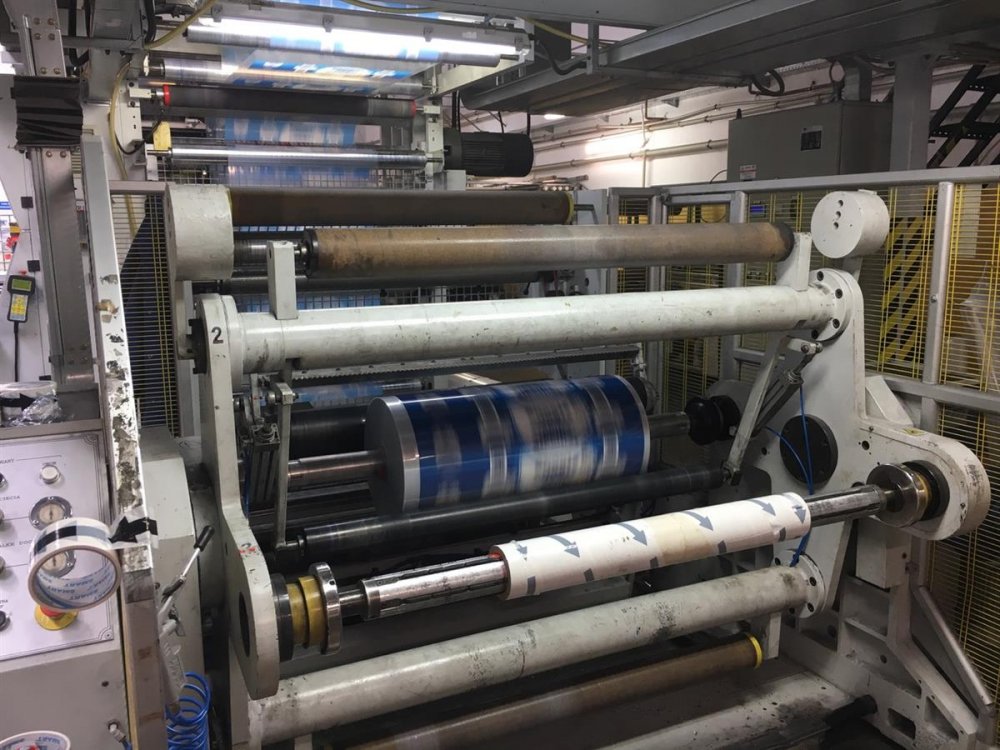

Rewinder type AUTOMATIC TURRET
Max reel diameter rewinder (mm) 800
Drying 2 zones ; 2 gas burners; 4 fans; Extended drying tunnel 6 mt long ; automatic air recirculation system with LEL control by Heck

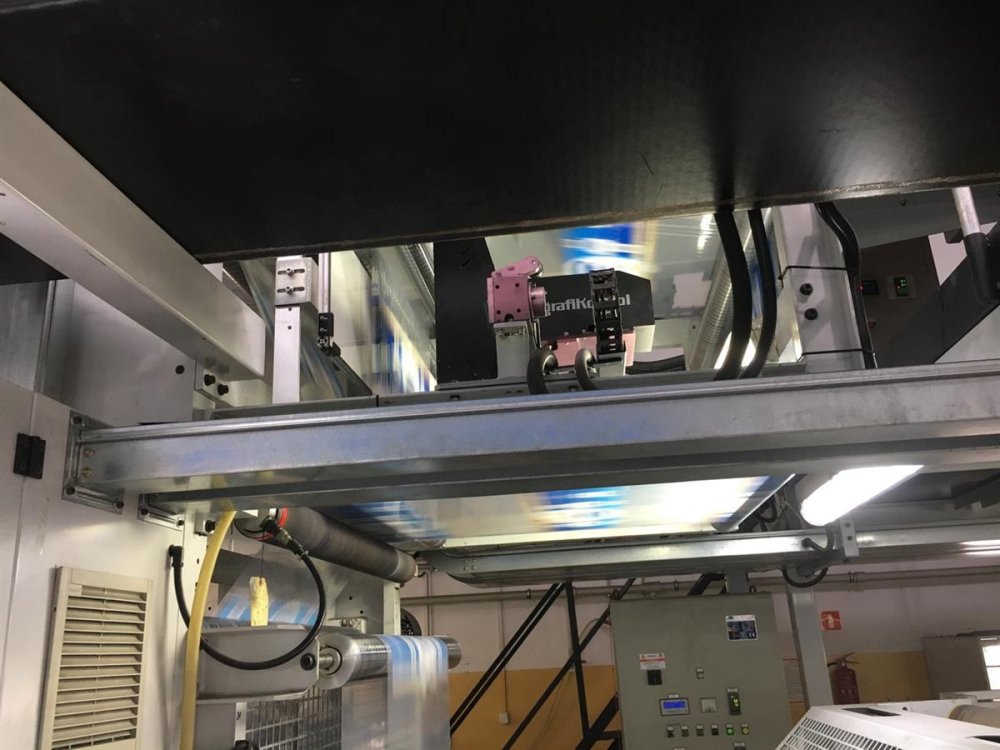

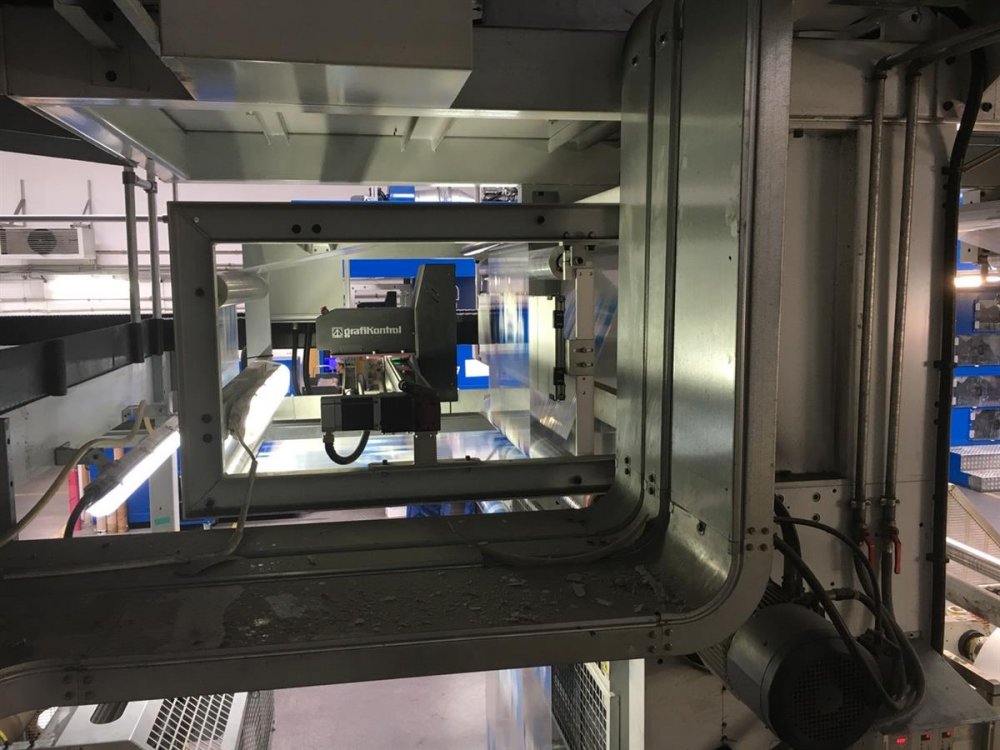

Videocamera AUTOMATIC PRINT SETTING CLICK&DRAG
Web guides 2 X EDGE GUIDE CONTROL
Vyscosity control FASNACHT FKR-S4
Washing system AUTOMATIC WASHING SYSTEM

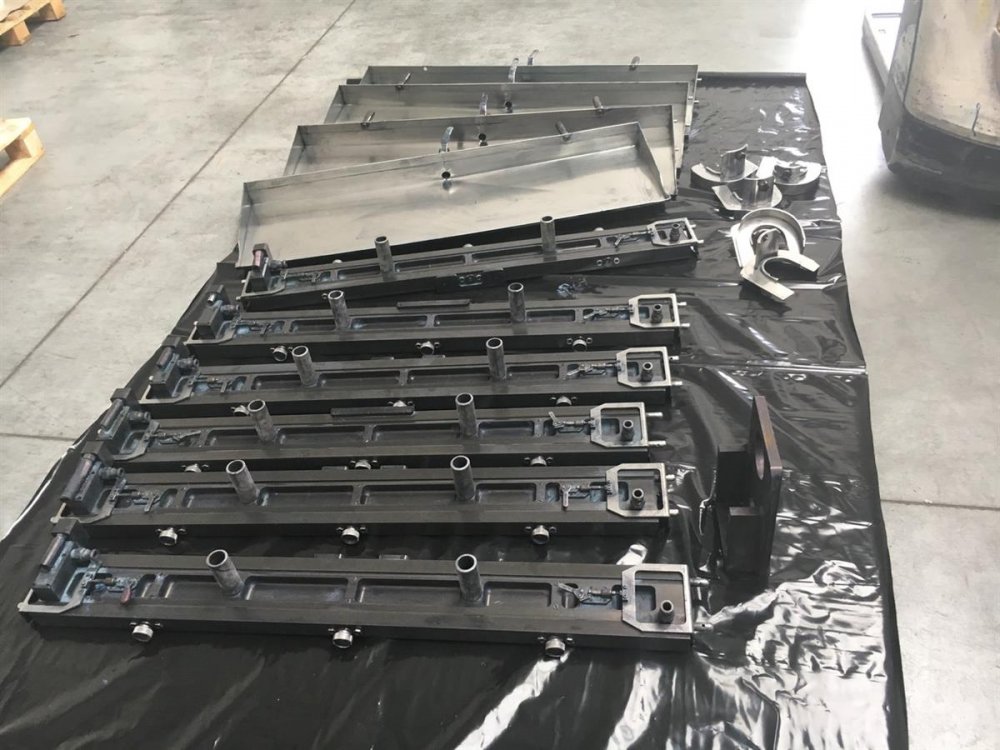

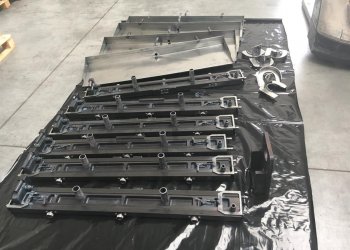

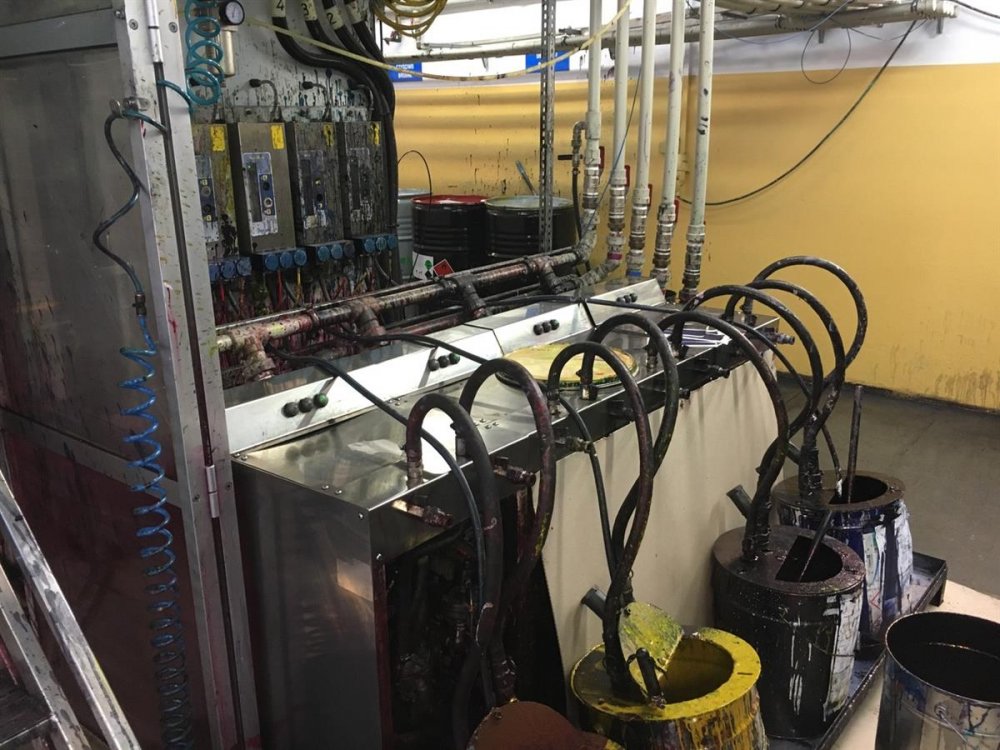

Inking system CLOSED CHAMBER DOCTOR BLADE NEW SYSTEM 2013 - PNEUMATIC INK PUMPS
Anilox 17 ceramic anilox sleeves 6x340 l/cm-vol.1,24 ; 2x340 l/cm-vol.1,3 ; 7x250 l/cm-vol.1,74 ;
Print Sleeves 199 as follows : 16 x400 mm ; 8x410mm ; 8x420mm ; 8x430mm ; 8x440mm ; 8x450mm ; 16x460mm ; 8x480mm ; 8x500mm ; 16x520mm ; 16x540mm ; 8x560mm ;8x600mm ; 7x630mm ;8x640mm ; 8x660mm ; 8x670mm ; 8x700 ; 8x720mm ; 8x760mm ; 8x860mm

** SOLD **
