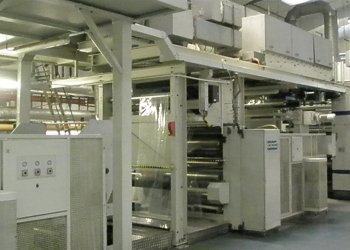

FISCHER & KRECKE 16S flexographic printing machine 8 colors ** SOLD ** Ask more informations about a similar one

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL685
Manufacturer FISCHER & KRECKE
Model 16S
Year 2005
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Not specifed
Web width (mm) 1300
Print width (mm) 1250
Min print repeat (mm) 320
Max print repeat (mm) 800
Max reel diameter unwinder (mm) 1000
Max reel diameter rewinder (mm) 1000
Drying Oil
Videocamera BST Genius
Web guides Fife OPG edge guide
Vyscosity control Bloss Viscolour 1000 automatic
Washing system F & K auto clean system
Inking system Solvent based
Anilox approximately 10
Print Sleeves 4 or 5 sets
Additional information CI drum diameter: 1910mm Chrome nickel plated Mandrel diameter: 89.243mm Plate thickness: 1.7mm Winding system: flying splice Reel loading table at unwind In line slitting by razor blade centre slit only Web tension range: maximum 250N, minimum 10N Mechanical speed: 400m/min Materials: PE LDPE/HDPE, PP OPP/BOPP PET, PA approximately 10-120 microns Spreader roller before CI drum Auto fresh solvent intake and used solvent emptying Drying tunnel length: 5m Operator control OCS Carbon fibre mandrels x 3 sets

** SOLD **
