** SOLD **
Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL685
- Manufacturer
- FISCHER & KRECKE
- Modello
- 16S
- Year
- 2005
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Not specifed
- Web width (mm)
- 1300
- Print width (mm)
- 1250
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 800
- Max reel diameter unwinder (mm)
- 1000
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Oil
- Videocamera
- BST Genius
- Web guides
- Fife OPG edge guide
- Vyscosity control
- Bloss Viscolour 1000 automatic
- Washing system
- F & K auto clean system
- Inking system
- Solvent based
- Anilox
- approximately 10
- Print Sleeves
- 4 or 5 sets
- Note
- CI drum diameter: 1910mm Chrome nickel plated Mandrel diameter: 89.243mm Plate thickness: 1.7mm Winding system: flying splice Reel loading table at unwind In line slitting by razor blade centre slit only Web tension range: maximum 250N, minimum 10N Mechanical speed: 400m/min Materials: PE LDPE/HDPE, PP OPP/BOPP PET, PA approximately 10-120 microns Spreader roller before CI drum Auto fresh solvent intake and used solvent emptying Drying tunnel length: 5m Operator control OCS Carbon fibre mandrels x 3 sets
| Machine Code | FL685 |
| Manufacturer | FISCHER & KRECKE |
| Modello | 16S |
| Year | 2005 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Not specifed |
| Web width (mm) | 1300 |
| Print width (mm) | 1250 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 800 |
| Max reel diameter unwinder (mm) | 1000 |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Oil |
| Videocamera | BST Genius |
| Web guides | Fife OPG edge guide |
| Vyscosity control | Bloss Viscolour 1000 automatic |
| Washing system | F & K auto clean system |
| Inking system | Solvent based |
| Anilox | approximately 10 |
| Print Sleeves | 4 or 5 sets |
| Note | CI drum diameter: 1910mm Chrome nickel plated Mandrel diameter: 89.243mm Plate thickness: 1.7mm Winding system: flying splice Reel loading table at unwind In line slitting by razor blade centre slit only Web tension range: maximum 250N, minimum 10N Mechanical speed: 400m/min Materials: PE LDPE/HDPE, PP OPP/BOPP PET, PA approximately 10-120 microns Spreader roller before CI drum Auto fresh solvent intake and used solvent emptying Drying tunnel length: 5m Operator control OCS Carbon fibre mandrels x 3 sets |

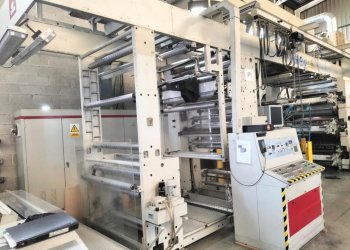

COMEXI FW2110
-
