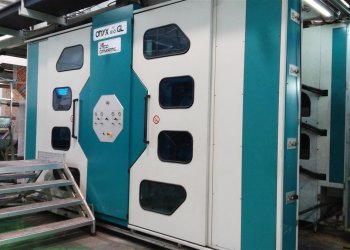

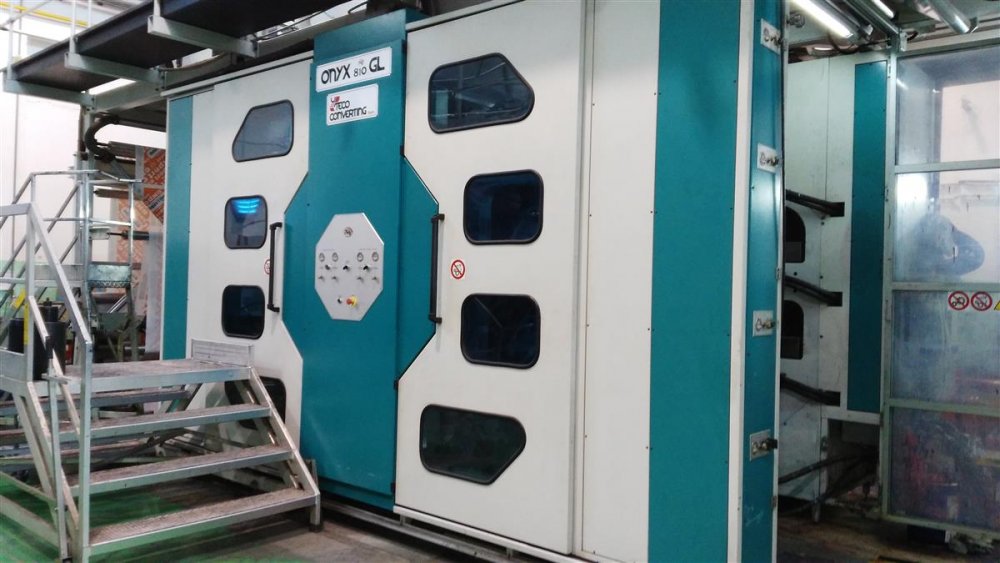

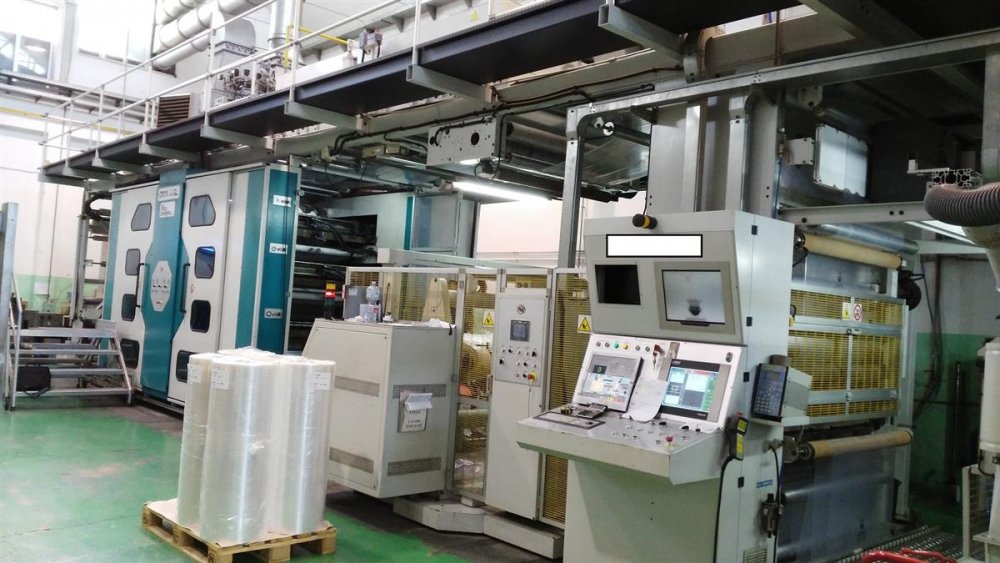

UTECO ONYX 810 flexo printing machine 8 colors

** SOLD **

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
about a similar one
Machine Code
FL652
Manufacturer
UTECO
Model
ONYX 810
Year
2007
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1450
Print width (mm)
1400
Min print repeat (mm)
400
Max print repeat (mm)
1100
Unwinder type
Turret automatic
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
1000
Drying
2 zones drying system 4 fans 2 gas burer s
Videocamera
yes Bst Premius
Web guides
yes in and out
Vyscosity control
yes
Washing system
Semi automatic
Inking system
Closed chamber doctor blades
Anilox
12
Print Sleeves
10 sets
Machine Code FL652
Manufacturer UTECO
Model ONYX 810
Year 2007
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes

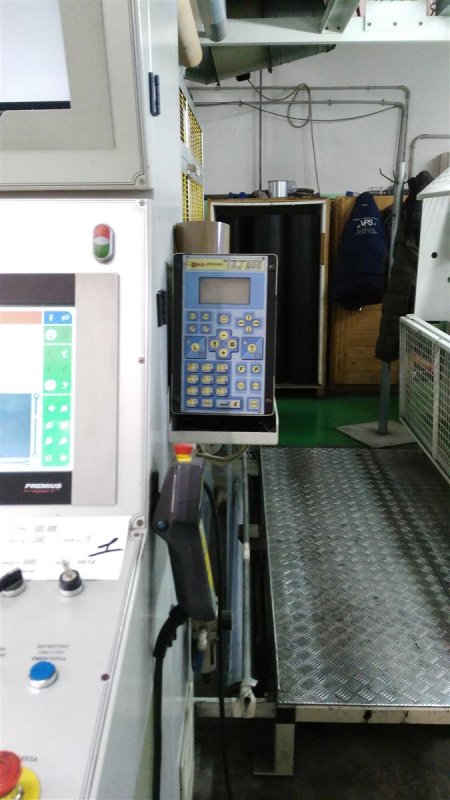

Computer supervision Yes
Web width (mm) 1450
Print width (mm) 1400
Min print repeat (mm) 400
Max print repeat (mm) 1100

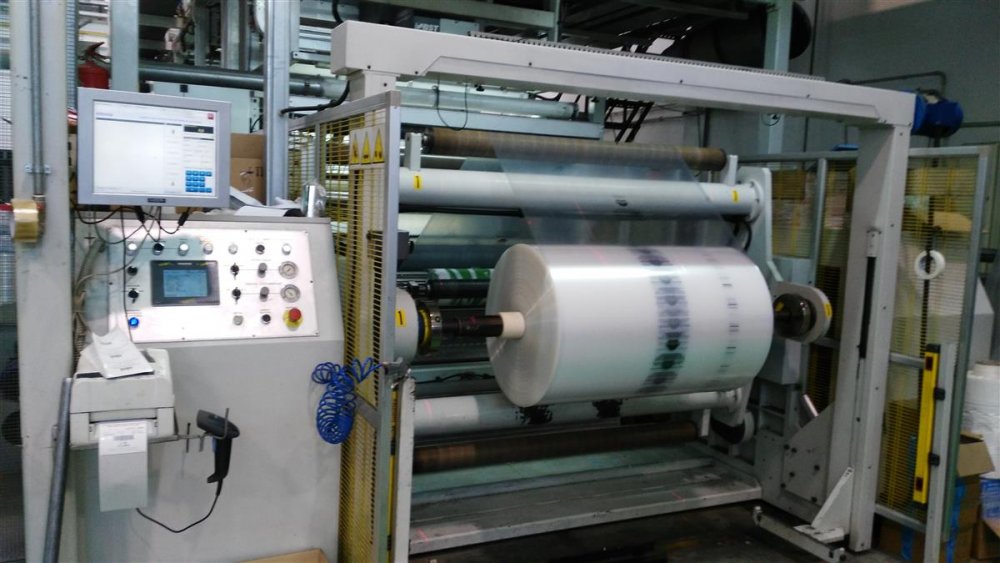

Unwinder type Turret automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 1000
Drying 2 zones drying system 4 fans 2 gas burer s
Videocamera yes Bst Premius
Web guides yes in and out
Vyscosity control yes
Washing system Semi automatic

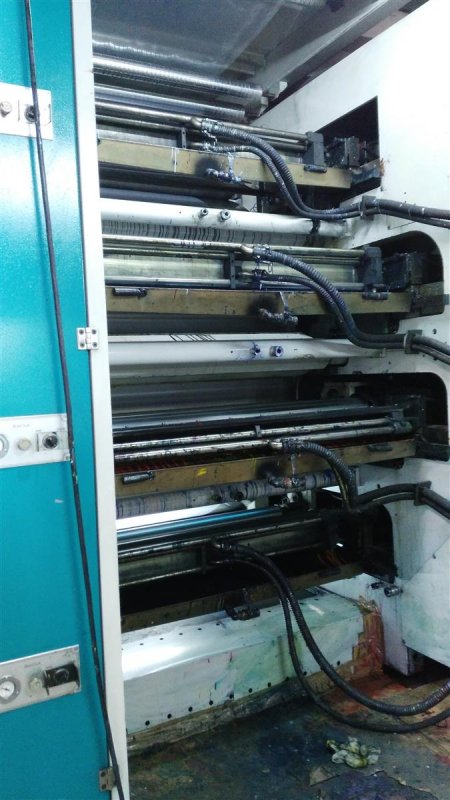

Inking system Closed chamber doctor blades
Anilox 12
Print Sleeves 10 sets
