** SOLD **

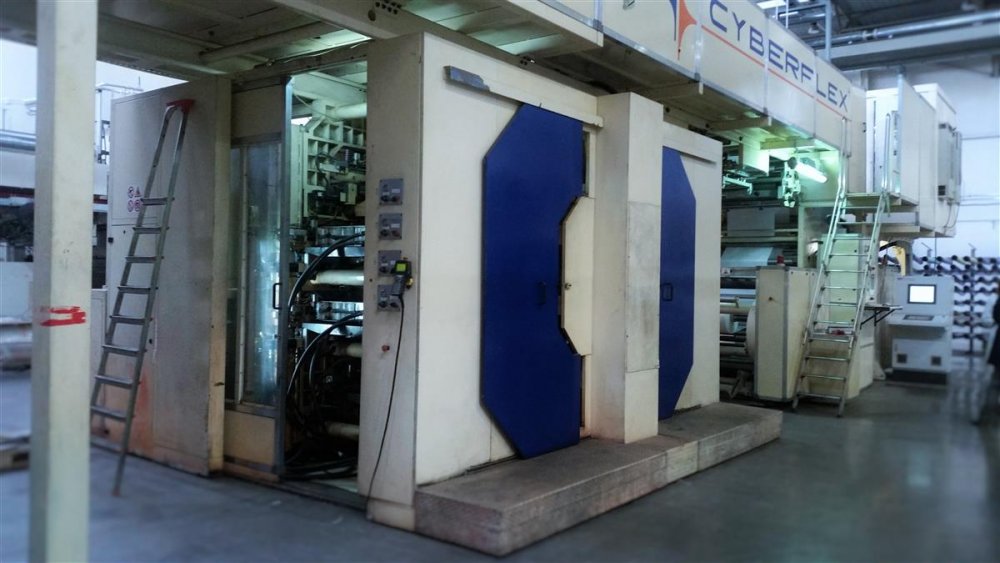

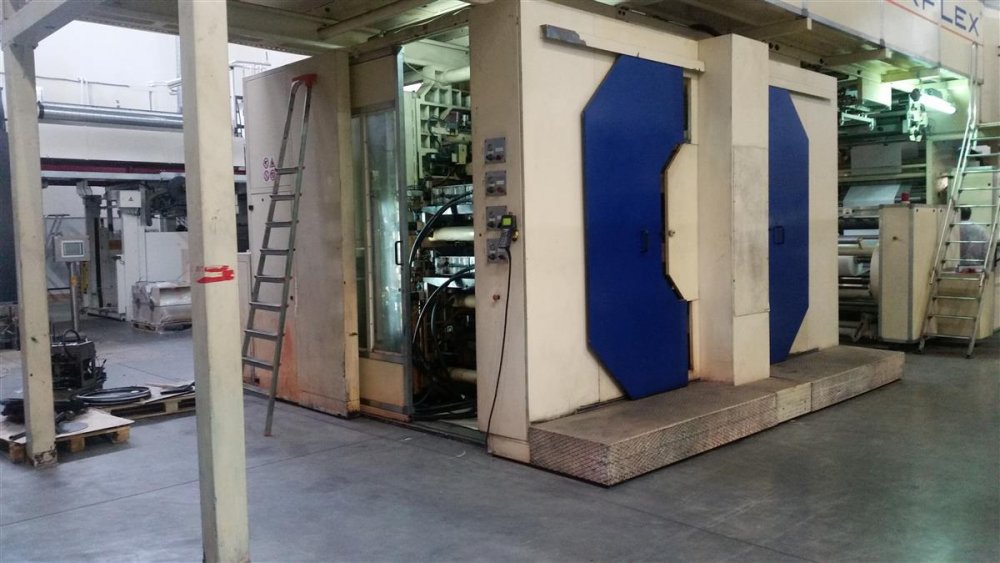

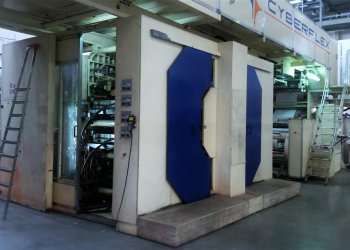

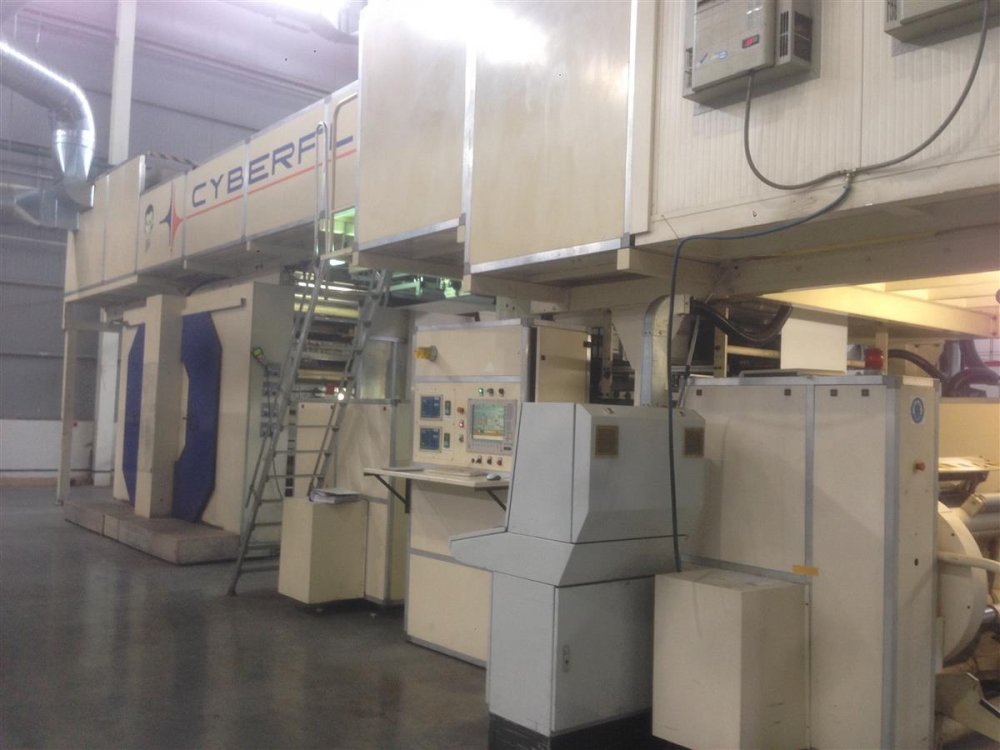

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL634
- Manufacturer
- CARINT
- Modello
- CYBERFLEX (GEARLESS)
- Year
- 2004
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 800
- Unwinder type
- TURRET UATOMATIC
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- TURRET AUTOMATIC
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones- 4 fans- thermooil heaters -automatic recirculation system with MSA solvent concentration control
- Videocamera
- BST PREMIUS 3 ccd digital
- Web guides
- in and out BST EKR
- Vyscosity control
- Automatic by Gama
- Washing system
- YES
- Inking system
- closed chamber doctor blades
- Anilox
- 20 ceramic sleeves 6x320l/cm-vol.4,5; 1x320-vol.5; 1x320-vol.6; 1x320-vol.3,6; 1x220-vol8,6; 1x220-vol.6; 1x200-vol7; 2x180-vol.7; 1x160-vol.9,4; 2x160-vol.8,2; 1x140-vol.12; 1x140-vol.9,2; 3x120-vol.12,2 ; 1x100-vol16,5
- Print Sleeves
- 240 8 each repeats 380mm, 390,400,420,430,440,450,460,470,480,490,500,510,520, 540,560, 580, 600, 620, 640, 650, 660, 670, 680, 700, 720, 740, 760
| Machine Code | FL634 |
| Manufacturer | CARINT |
| Modello | CYBERFLEX (GEARLESS) |
| Year | 2004 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 800 |
| Unwinder type | TURRET UATOMATIC |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | TURRET AUTOMATIC |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones- 4 fans- thermooil heaters -automatic recirculation system with MSA solvent concentration control |
| Videocamera | BST PREMIUS 3 ccd digital |
| Web guides | in and out BST EKR |
| Vyscosity control | Automatic by Gama |
| Washing system | YES |
| Inking system | closed chamber doctor blades |
| Anilox | 20 ceramic sleeves 6x320l/cm-vol.4,5; 1x320-vol.5; 1x320-vol.6; 1x320-vol.3,6; 1x220-vol8,6; 1x220-vol.6; 1x200-vol7; 2x180-vol.7; 1x160-vol.9,4; 2x160-vol.8,2; 1x140-vol.12; 1x140-vol.9,2; 3x120-vol.12,2 ; 1x100-vol16,5 |
| Print Sleeves | 240 8 each repeats 380mm, 390,400,420,430,440,450,460,470,480,490,500,510,520, 540,560, 580, 600, 620, 640, 650, 660, 670, 680, 700, 720, 740, 760 |
