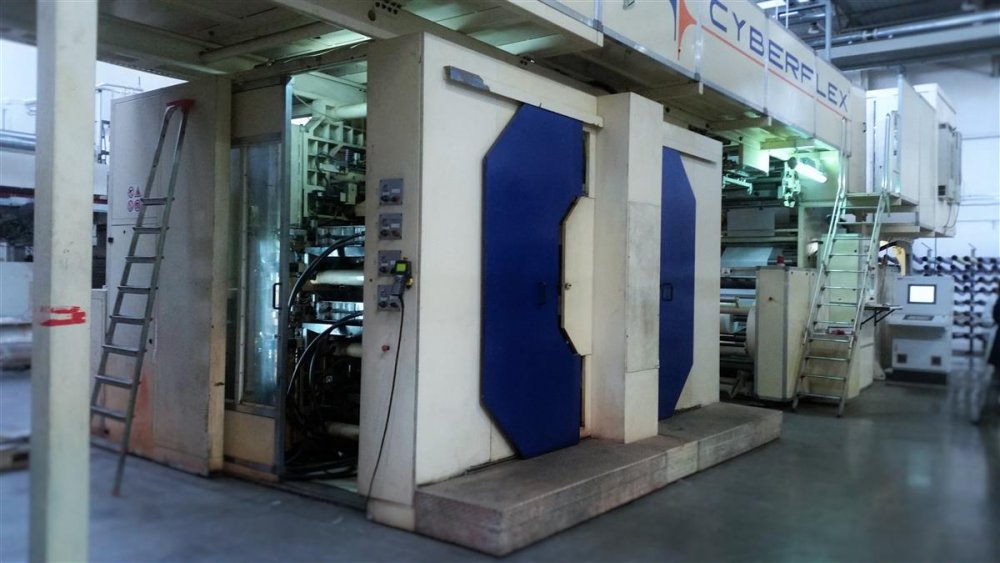

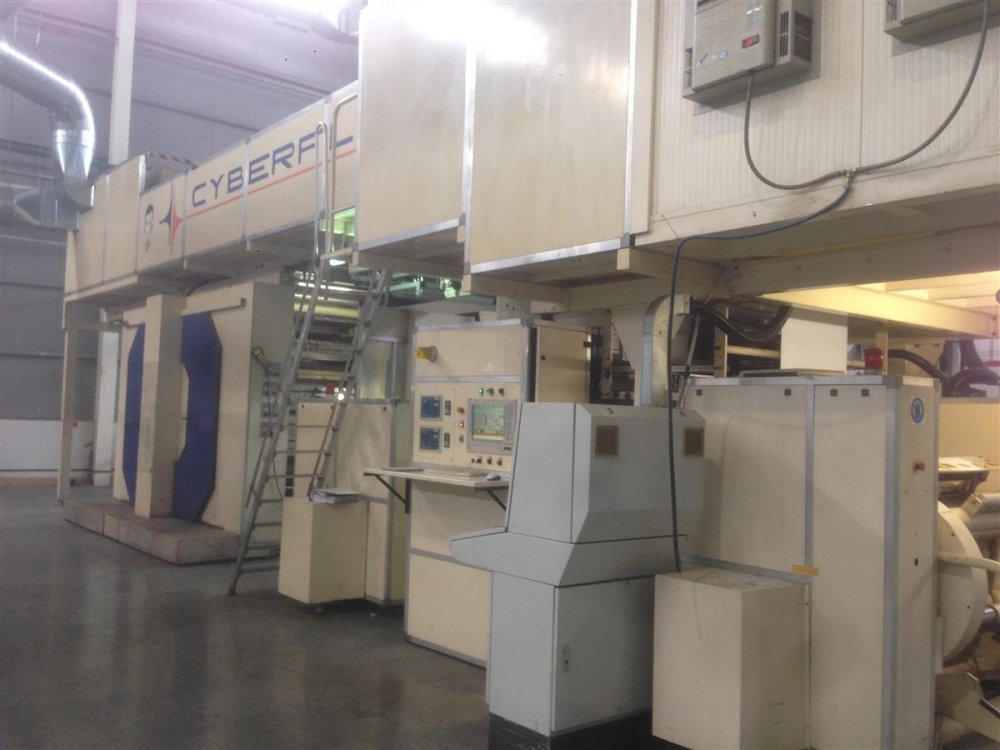

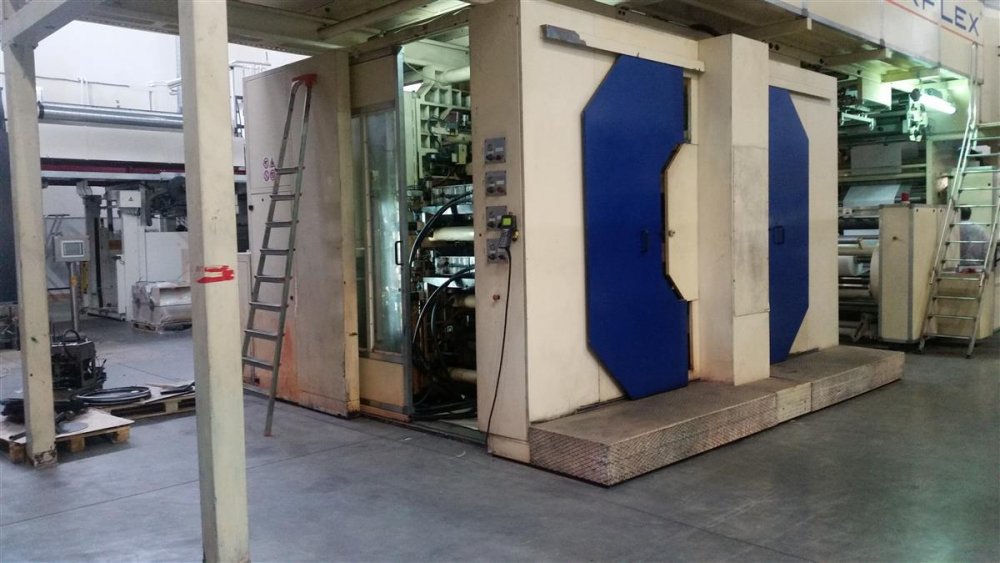

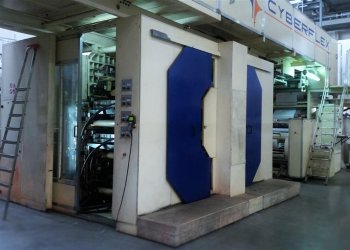

CARINT CYBERFLEX (GEARLESS) Flexo central drum printing press 8 colors ** SOLD ** Ask more informations about a similar one

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Machine Code FL634
Manufacturer CARINT
Model CYBERFLEX (GEARLESS)
Year 2004
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 380
Max print repeat (mm) 800
Unwinder type TURRET UATOMATIC
Max reel diameter unwinder (mm) 800
Rewinder type TURRET AUTOMATIC
Max reel diameter rewinder (mm) 800
Drying 2 zones- 4 fans- thermooil heaters -automatic recirculation system with MSA solvent concentration control
Videocamera BST PREMIUS 3 ccd digital
Web guides in and out BST EKR
Vyscosity control Automatic by Gama
Washing system YES
Inking system closed chamber doctor blades
Anilox 20 ceramic sleeves 6x320l/cm-vol.4,5; 1x320-vol.5; 1x320-vol.6; 1x320-vol.3,6; 1x220-vol8,6; 1x220-vol.6; 1x200-vol7; 2x180-vol.7; 1x160-vol.9,4; 2x160-vol.8,2; 1x140-vol.12; 1x140-vol.9,2; 3x120-vol.12,2 ; 1x100-vol16,5
Print Sleeves 240 8 each repeats 380mm, 390,400,420,430,440,450,460,470,480,490,500,510,520, 540,560, 580, 600, 620, 640, 650, 660, 670, 680, 700, 720, 740, 760

** SOLD **
