** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one

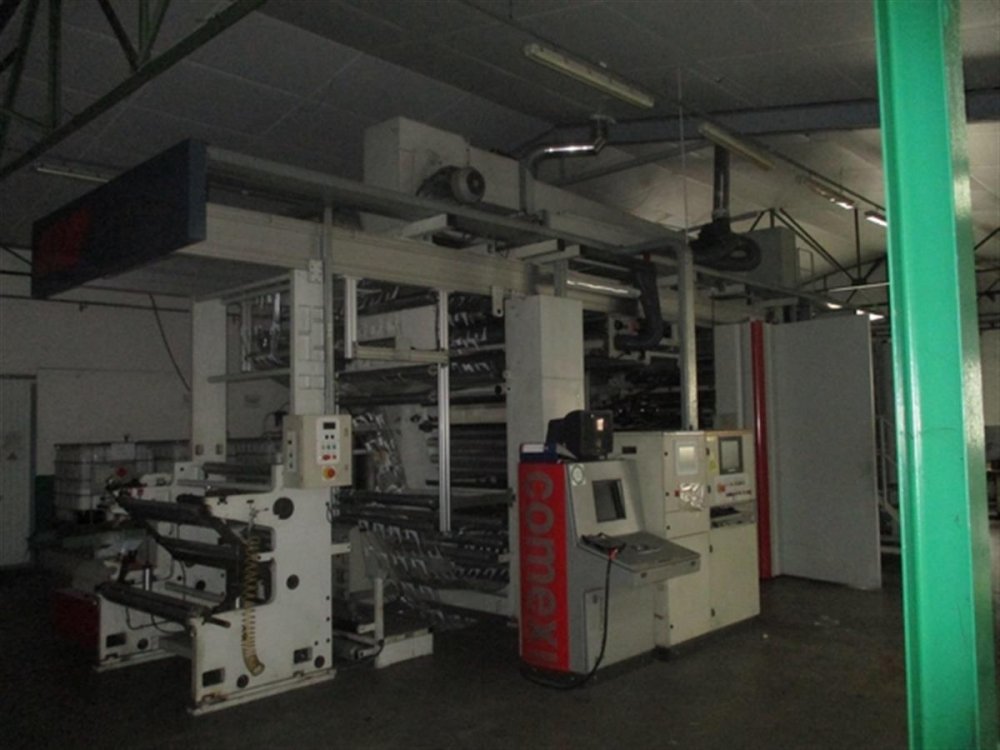

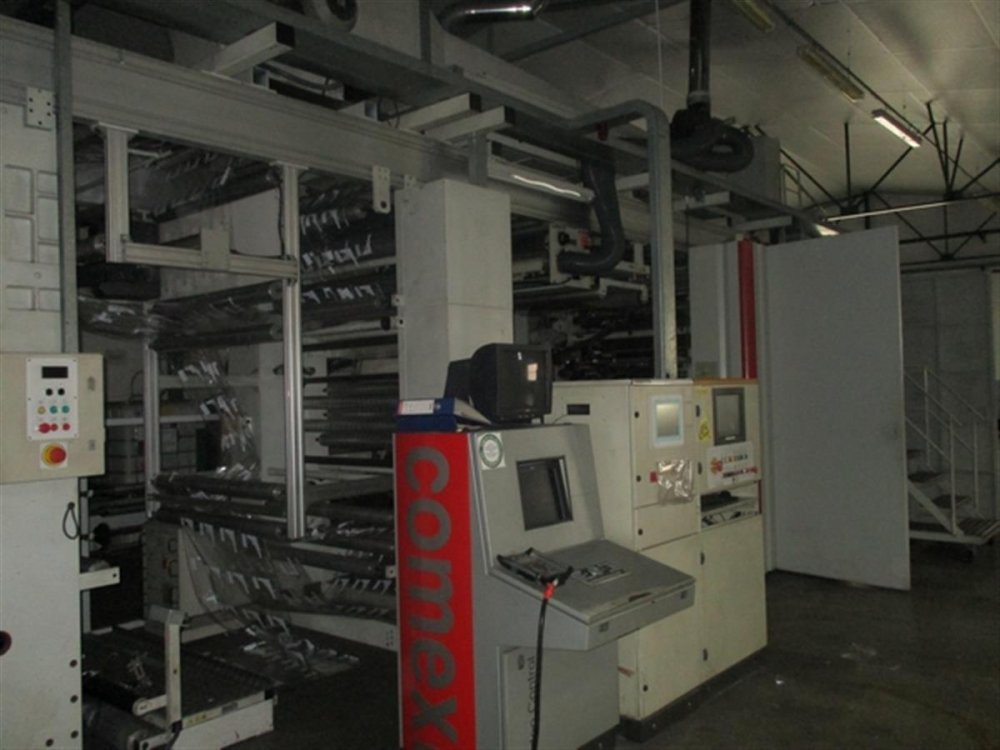

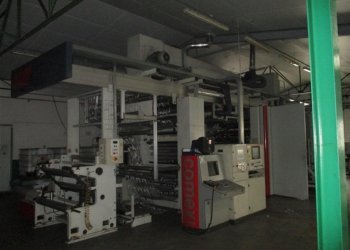

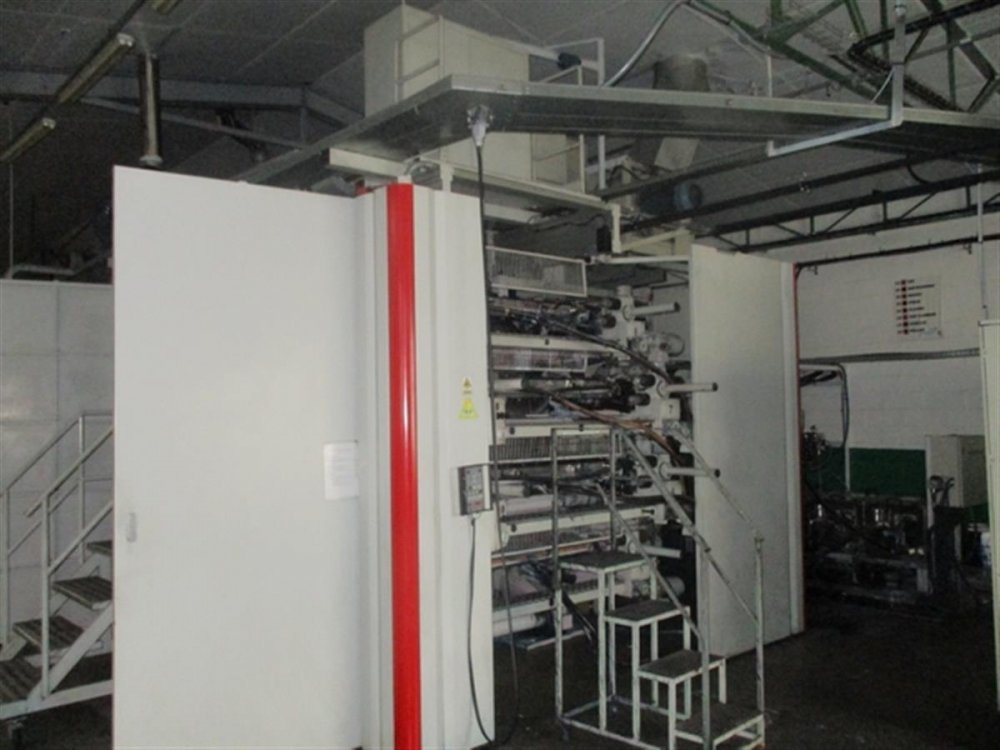

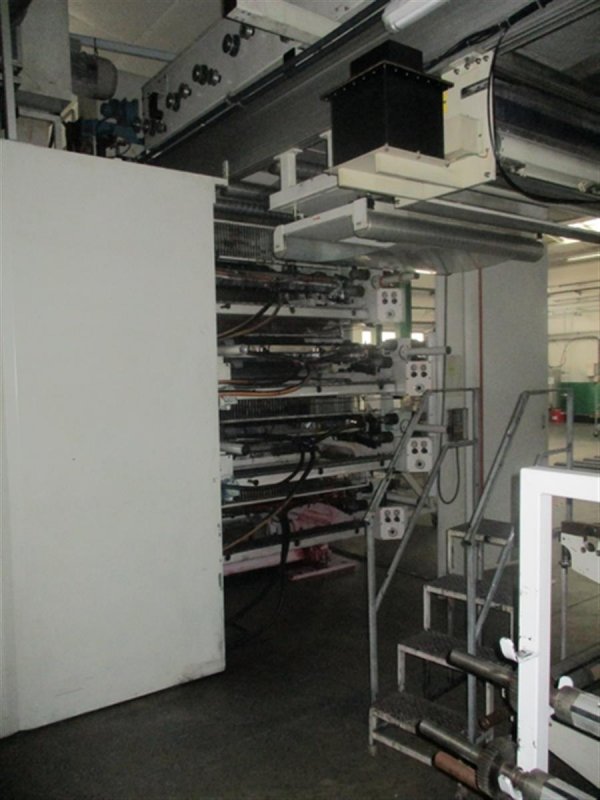

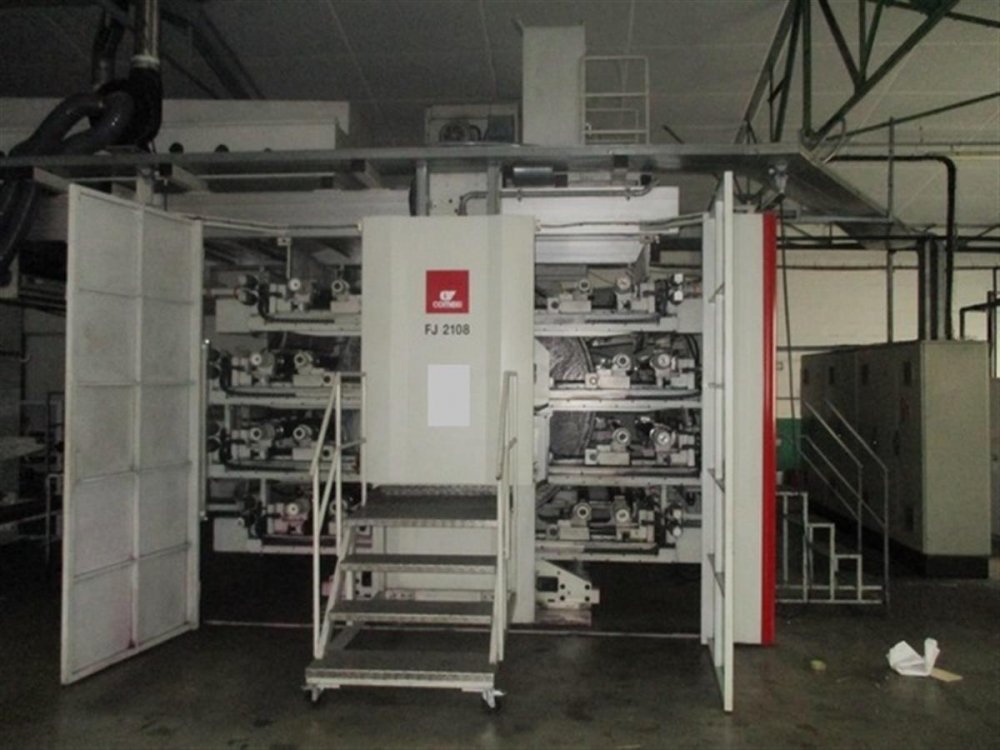

- Machine Code
- FL664
- Manufacturer
- COMEXI
- Modello
- FJ2108 CNC
- Year
- 2001
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- Double bracket
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Double bracket
- Max reel diameter rewinder (mm)
- 800
- Corona treatment
- Yes
- Web guides
- Yes before printing and rewinding brand BST type OPG
- Vyscosity control
- Yes
- Washing system
- Yes
- Inking system
- 8 pneumatic ink pumps, chamber doctor blades
- Anilox
- 10 anilox
- Print Sleeves
- Yes
- Note
- 10 mm gear pitch motorized longitudinal /side register Speed 300 m/min Materials : LDPE, PP, OPP Unwinder : marriage roll, dancing roller, tension control, pneuamtic shaft 3" and 6" Rewinder : pneuamtic shaft 3" and 6" Sleeve machine for anilox and cylinders plates, slow rotation with electrical motors; through off system, meshing system Sets of gears Conditionig system for the central drum
Machine Code | FL664 |
Manufacturer | COMEXI |
Modello | FJ2108 CNC |
Year | 2001 |
Number of colors | 8 |
Print possibilityes | 8+0 |
Gearless | No |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Web width (mm) | 1270 |
Print width (mm) | 1220 |
Min print repeat (mm) | 350 |
Max print repeat (mm) | 800 |
Unwinder type | Double bracket |
Max reel diameter unwinder (mm) | 800 |
Rewinder type | Double bracket |
Max reel diameter rewinder (mm) | 800 |
Corona treatment | Yes |
Web guides | Yes before printing and rewinding brand BST type OPG |
Vyscosity control | Yes |
Washing system | Yes |
Inking system | 8 pneumatic ink pumps, chamber doctor blades |
Anilox | 10 anilox |
Print Sleeves | Yes |
Note | 10 mm gear pitch motorized longitudinal /side register Speed 300 m/min Materials : LDPE, PP, OPP Unwinder : marriage roll, dancing roller, tension control, pneuamtic shaft 3" and 6" Rewinder : pneuamtic shaft 3" and 6" Sleeve machine for anilox and cylinders plates, slow rotation with electrical motors; through off system, meshing system Sets of gears Conditionig system for the central drum |
