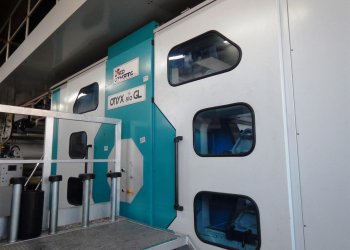

UTECO ONYX 810 (GEARLESS) flexo printing machine 8 colors ** SOLD ** Ask more informations about a similar one

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code FL636
Manufacturer UTECO
Model ONYX 810 (GEARLESS)
Year 2010
Number of colors 8
Print possibilities 8+0, REPRINT possibility
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1500
Print width (mm) 1400
Min print repeat (mm) 350
Max print repeat (mm) 1100
Unwinder type Automatic turret
Max reel diameter unwinder (mm) 1000
Rewinder type Automatic turret
Max reel diameter rewinder (mm) 1000
Drying Electric heaters. Air recyling system with heat recovery system. Automatic system to detect the solvent concentration. Lenght 5m. Air flow 15.600 normal m3/h. Air speed 45 m/s . Installed powe 190 kw.
Videocamera BST PREMIUS Digital
Corona treatment Mero
Web guides BST
Vyscosity control Gama
Washing system Automatic wash up system for anilox rollers and doctor blades
Inking system Water and solvent base. 8 ink pumps, tanks,8 doctor chamber blades
Anilox 16 anilox rollers sleeve type as follows: 1x 80-160 L 12,5-8 V ; 1x 120 L 11V ; 2x140L 10V; 1x180L 8V; 1x200L 10V;1x240L 9V;1x280L 8V; 1x280L 7V; 2x320L 6V ; 1x360L 3,8V; 4x360L 4,5V
Print Sleeves 152 sleeves for cliche
Additional information The printing group is on the left side, looking the machine from the operator side. Materials it is possible to print all the main type of plastic films and papers normally used in the flexible packaging Max reels weight 2000kg Register control BST Premius Digital 3 Antistatic bars. Curved (banana)roller 9 carrier for plate sleeves Blade slitter at rewinder with trim exhaust

** SOLD **
