- Machine Code
- OT123
- Manufacturer
- BABCOCK & WANSON
- Modello

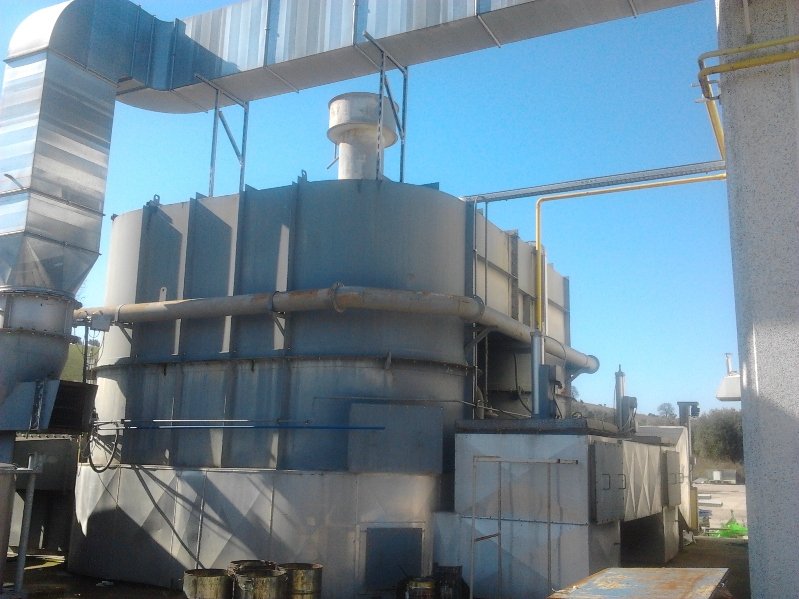

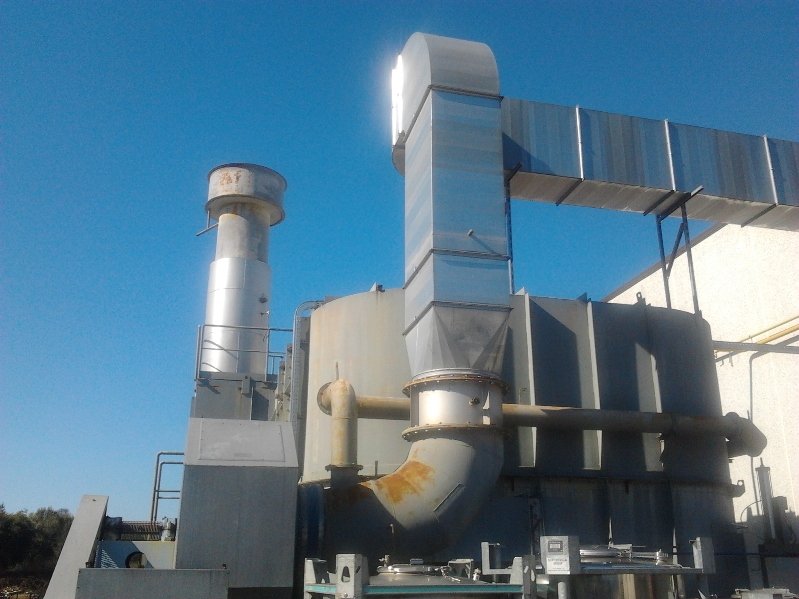

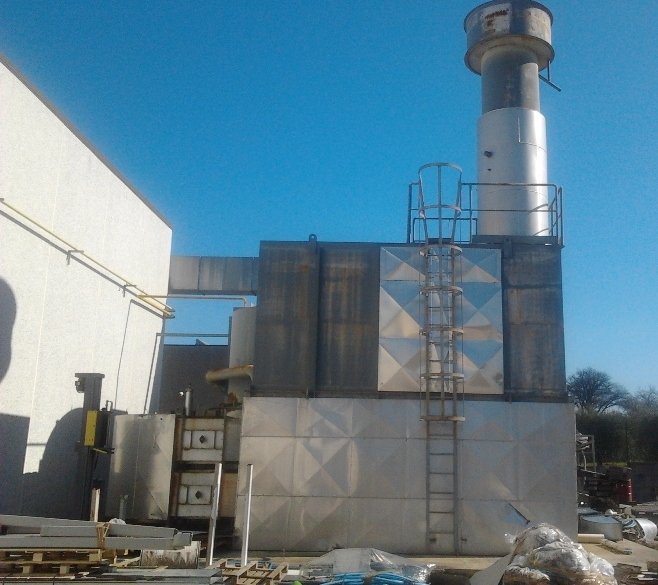

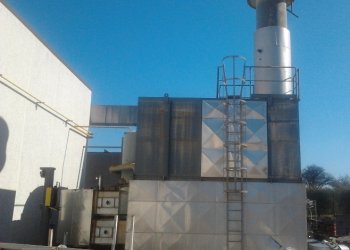

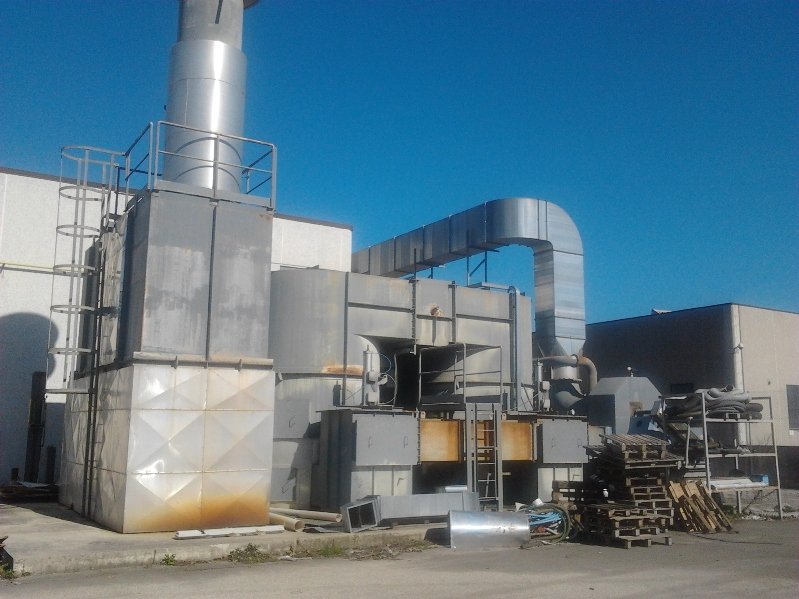

- Air treatment system
- Year
- 2001
- Note
- Fuel: methane gas Power of burner 1045 KW, Electrical power 75 KW, Voltage 400 volts Auxiliary voltage 230 volts, Frequency 50 Hz. Max air capacity 28.000 Nm 3 / h Maximum temperature in the combustion chamber 950 ° C Minimum temperature in the combustion chamber 720 ° C Power of burner 900.000 Kcal / h Heating chambers N ° 2 Total weight approximately 17.200 Kg Ceramics ring 1 " Total weight in operation 52.000 Kg Installed electric power 55 Kw
| Machine Code | OT123 |
| Manufacturer | BABCOCK & WANSON |
| Modello | Air treatment system |
| Year | 2001 |
| Note | Fuel: methane gas Power of burner 1045 KW, Electrical power 75 KW, Voltage 400 volts Auxiliary voltage 230 volts, Frequency 50 Hz. Max air capacity 28.000 Nm 3 / h Maximum temperature in the combustion chamber 950 ° C Minimum temperature in the combustion chamber 720 ° C Power of burner 900.000 Kcal / h Heating chambers N ° 2 Total weight approximately 17.200 Kg Ceramics ring 1 " Total weight in operation 52.000 Kg Installed electric power 55 Kw |
