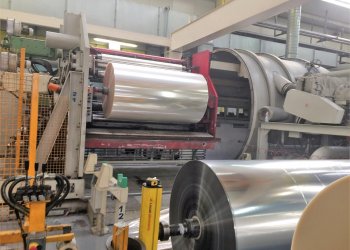

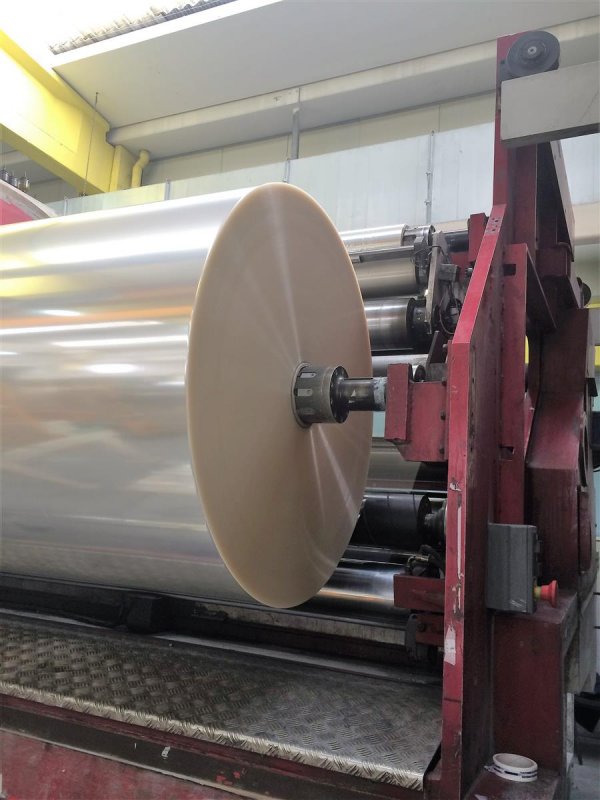

GALILEO MEGA 2011/BX Vacuum metallizer ** SOLD ** Ask more informations about a similar one

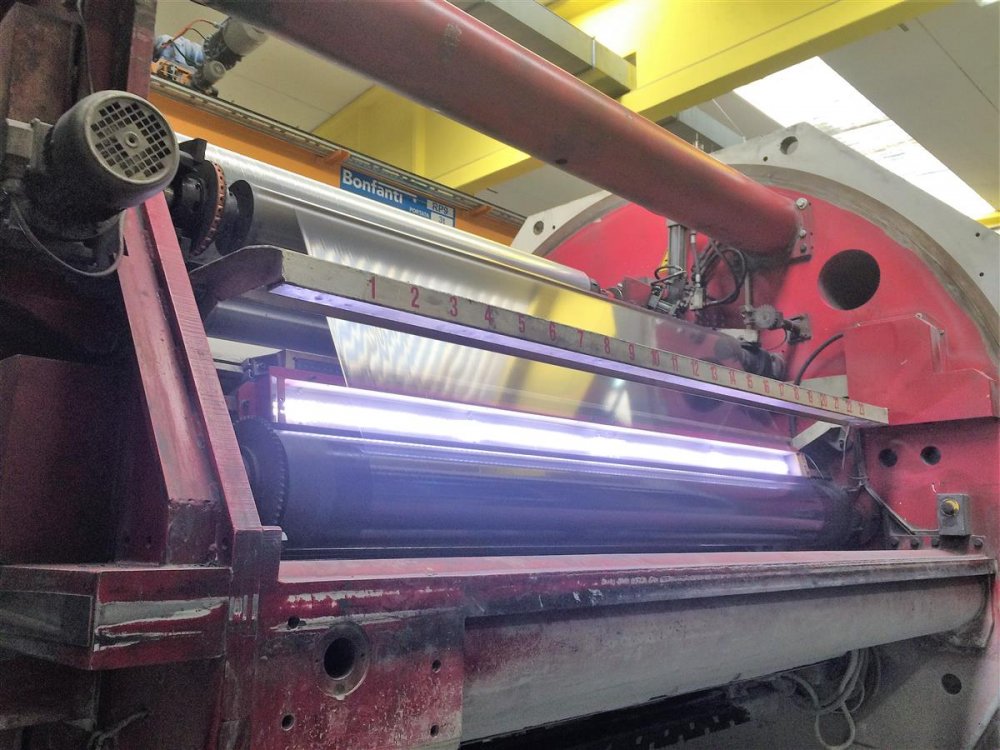

The process is carried out under high vacuum in a closed chamber, in which several boots located under a process roller are used to evaporate aluminium wires. This material condensates on the web, running close by these boots.

Machine Code ME50
Manufacturer GALILEO
Model MEGA 2011/BX
Year 1998
Working width (mm) 2050
Materials PET 9-30µ; OPP 12-40µ; CPP 20-60µ
Speed 840 m/min
Max diameter reel unwinder 1100
Max diameter reel rewinder 1100
Evapouration Boots 23

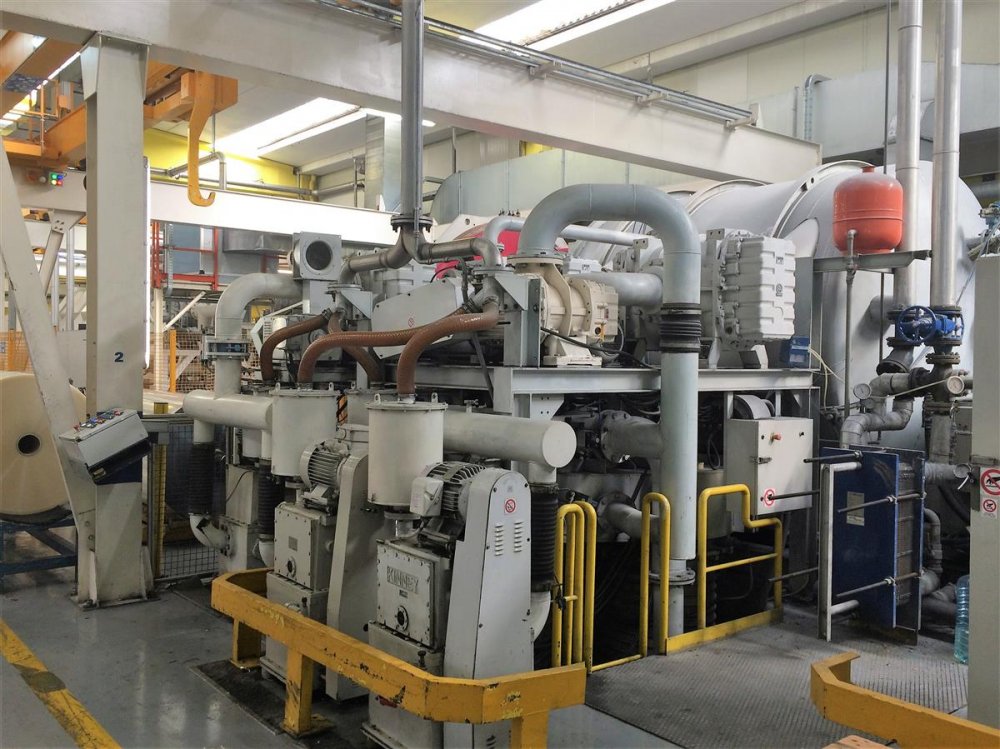

Pumping system -Pumping zone : Pumps in metallization chamber zone : 3pcs, diffusion pumps : 50000 l/s, 1pcs, mechanical roots pump : 5500 m3/h, Criogenic panel (Polycold) : 200.000l/s, 2pcs, mechanical pumps : 505m3/h, Pumps in winding chamber zone : 2pcs, mechanical roots pums : 13000 m3/h, 1pcs, mechanical roots pump : 5500 m3/h, 2pcs, mechanical pumps : 505m3/h,

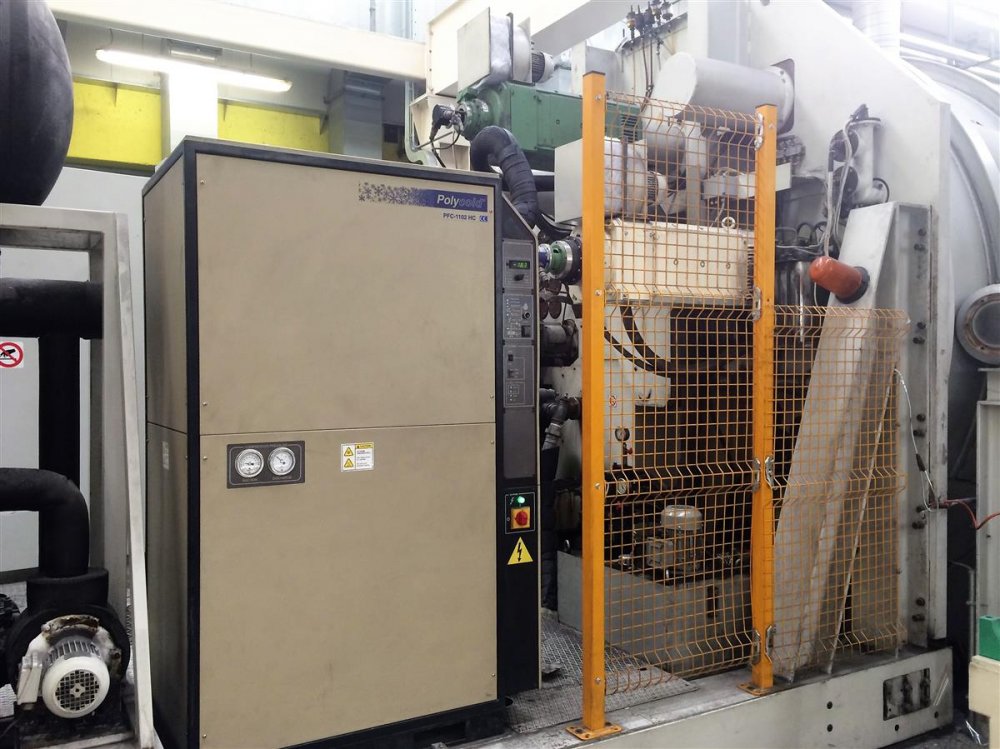

Polycold Yes, model PFC 1100 HC; Flow: 200.000l/s
Additional information Min working width: 1200mm Inner core diam: 150mm Type of evaporators : Sintered Intermetallic Aluminium evaporated per boat: 10gr/min Boat dimensions: 120x35x10mm Deposited material: Alu( purness 99,8%) Deposit thickness: 0.8-10 µ Absorbed power: max 300kw Voltage : 380v-50hz

** SOLD **
