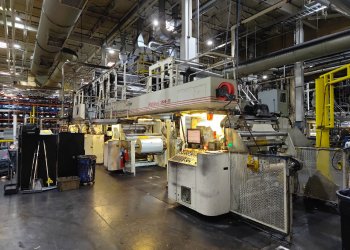

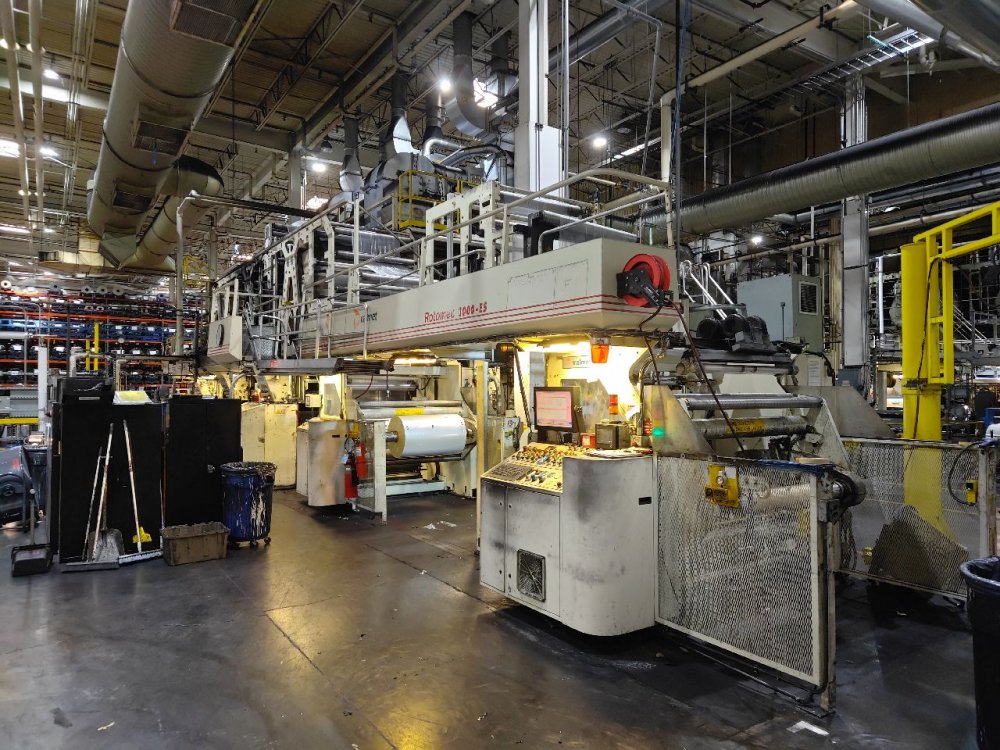

ROTOMEC ROTOPAK 3000-S/1200/400 Laminator / coating machine SOLVENT / WATER BASED // Laminators and coaters // Converting machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).

Photo Gallery

Ask more informations

Machine Code: LA538
Manufacturer: ROTOMEC
Modello: ROTOPAK 3000-S/1200/400
Year: 2002
Application: Coating
Type of lamination/coating: SOLVENT / WATER BASED
Working width (mm): 1220
Speed: 525mpm

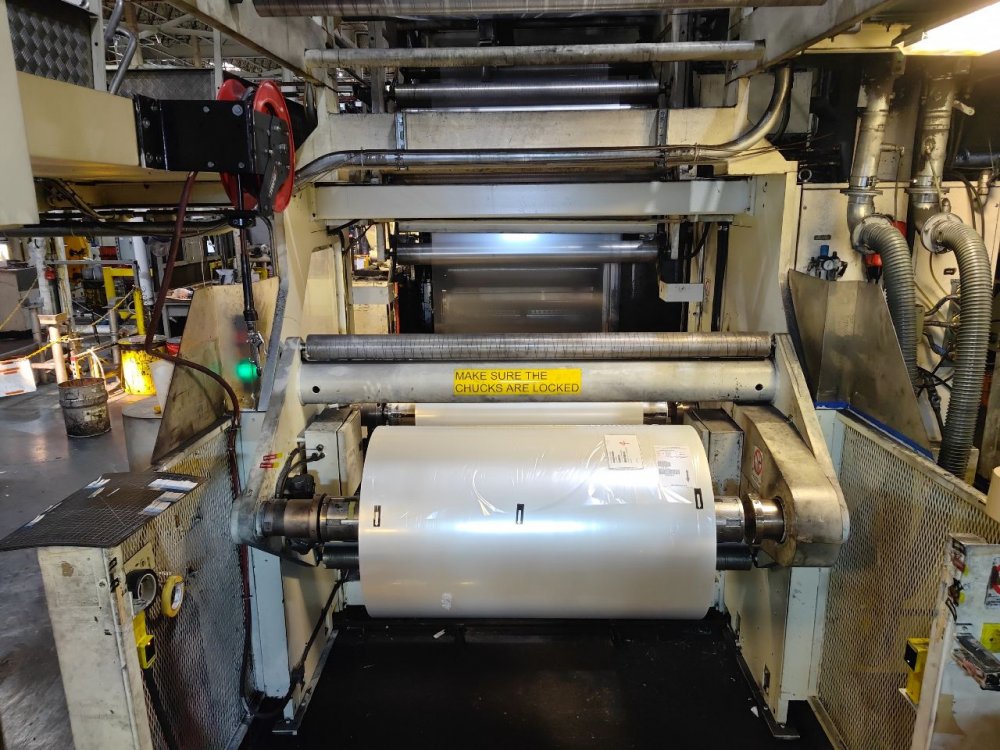

First unwinder type: Turret automatic
Max diameter reel unwinder: 1000
Secondary unwinder type: Turret automatic
Max diameter reel unwinder: 1000
Third unwinder type: Turret automatic
Max diameter reel unwinder: 1000

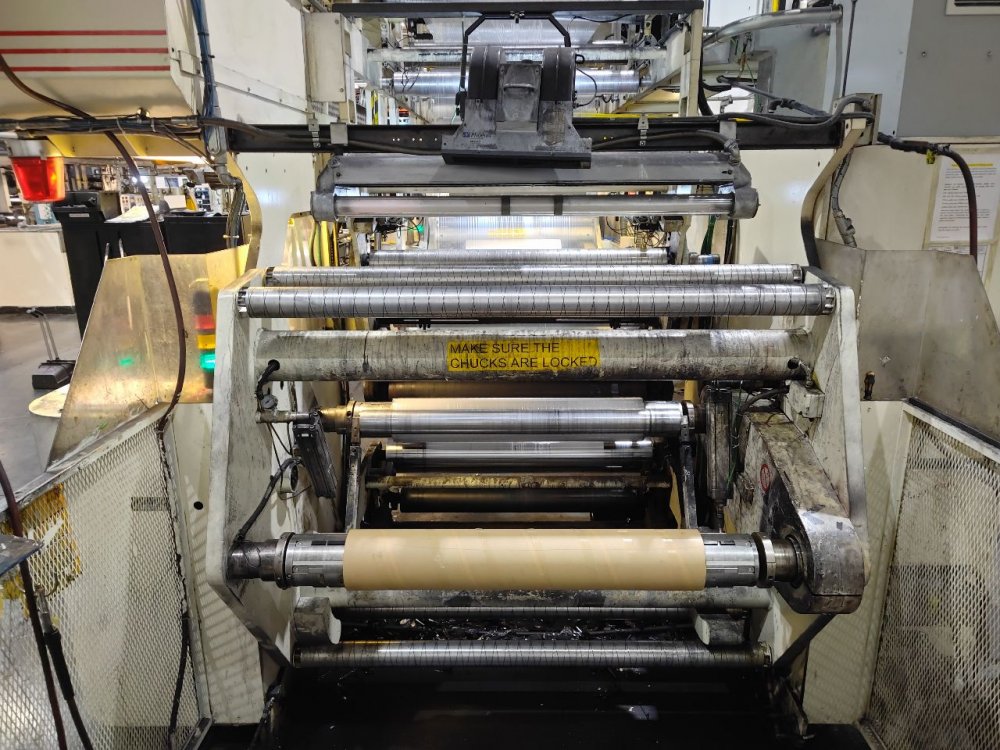

Rewinder type: Turret automatic
Max diameter reel rewinder: 1000

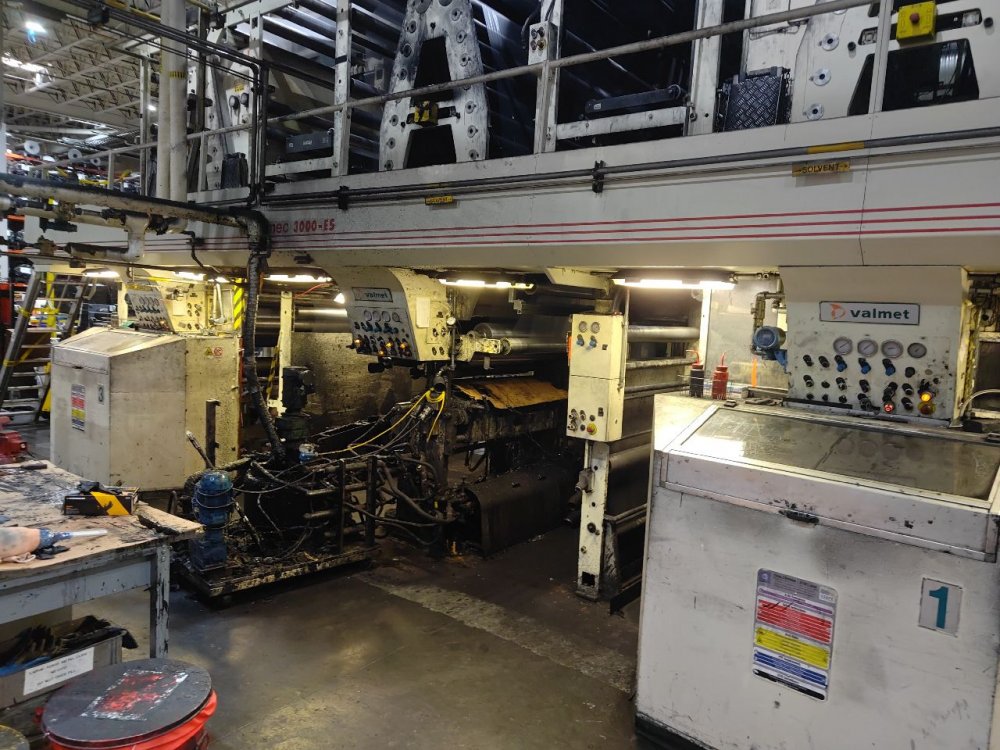

Drying: All 3 units are double hood, each with one supply fan and one exhaust fan.Drying Heat Source - Steam
Note: 3-station (2 reversible, 1 hotmelt) Drive: Independent Drive Machine HMI: Factory Talk, Windows 10 PLC: Siemens 6ES7414-2XJ01-0AB0, Profibus Drives: Siemens Dilution Control: Yes

Machine Code	LA538
Manufacturer	ROTOMEC
Modello	ROTOPAK 3000-S/1200/400
Year	2002
Application	Coating
Type of lamination/coating	SOLVENT / WATER BASED
Working width (mm)	1220
Speed	525mpm
First unwinder type	Turret automatic
Max diameter reel unwinder	1000
Secondary unwinder type	Turret automatic
Max diameter reel unwinder	1000
Third unwinder type	Turret automatic
Max diameter reel unwinder	1000
Rewinder type	Turret automatic
Max diameter reel rewinder	1000
Drying	All 3 units are double hood, each with one supply fan and one exhaust fan.Drying Heat Source - Steam
Note	3-station (2 reversible, 1 hotmelt) Drive: Independent Drive Machine HMI: Factory Talk, Windows 10 PLC: Siemens 6ES7414-2XJ01-0AB0, Profibus Drives: Siemens Dilution Control: Yes

Back

UTECO RAINBOW S

Converting machines
Laminators and coaters
Machine Code: LA259
Year: 1998
Working width (mm): 1530

NORDMECCANICA SIMPLEX COMBI

Converting machines
Laminators and coaters
Machine Code: LA336
Year: 1996
Working width (mm): 1300

NORDMECCANICA Simplex SL

Converting machines
Laminators and coaters
Machine Code: LA528
Year: 2015
Working width (mm): 1300

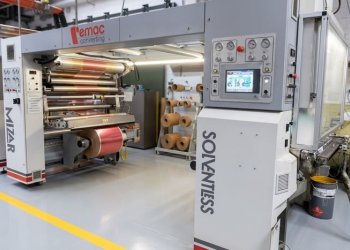

REMAC Mizar 130
