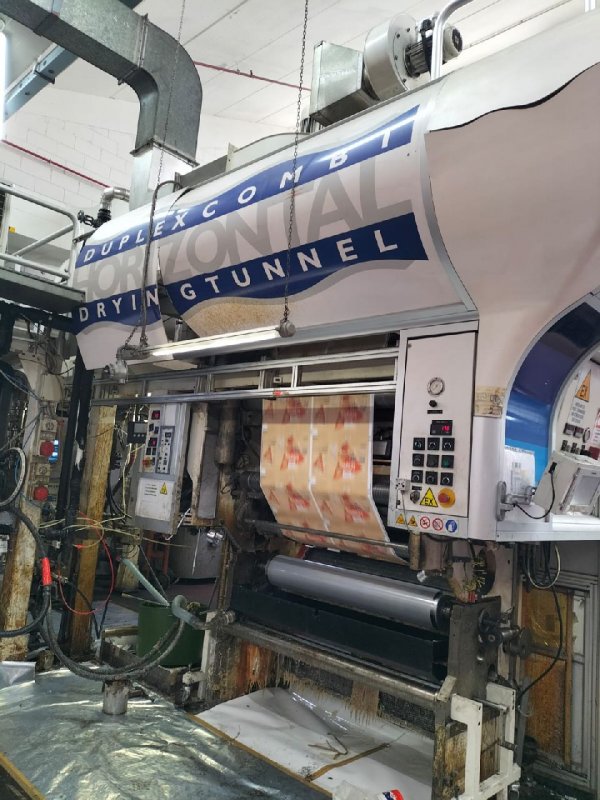

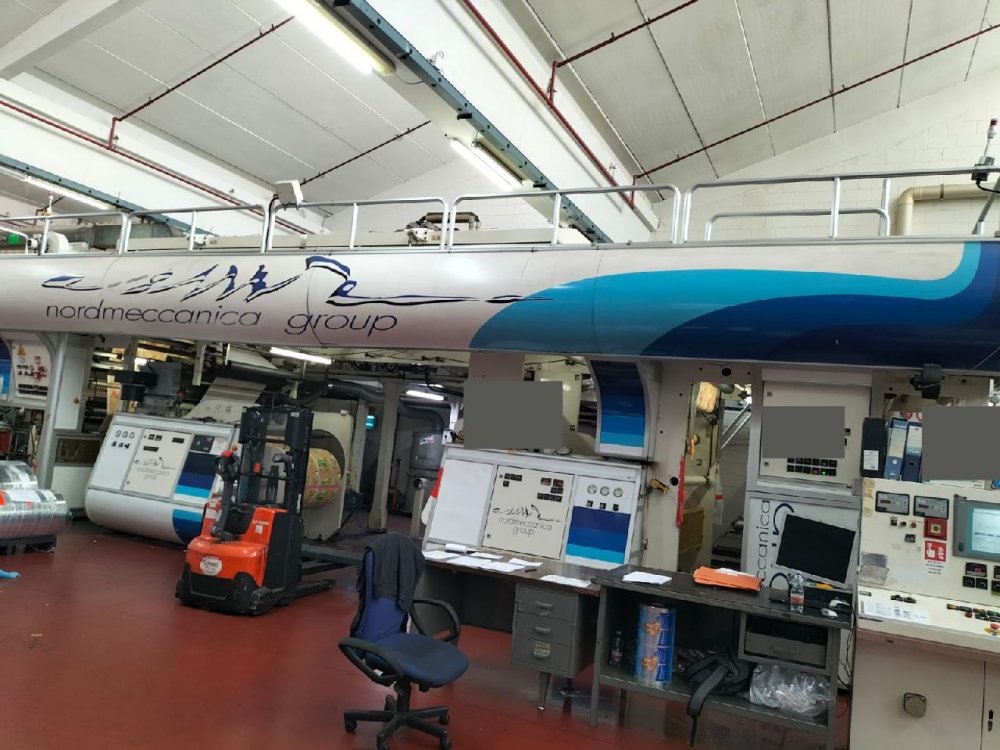

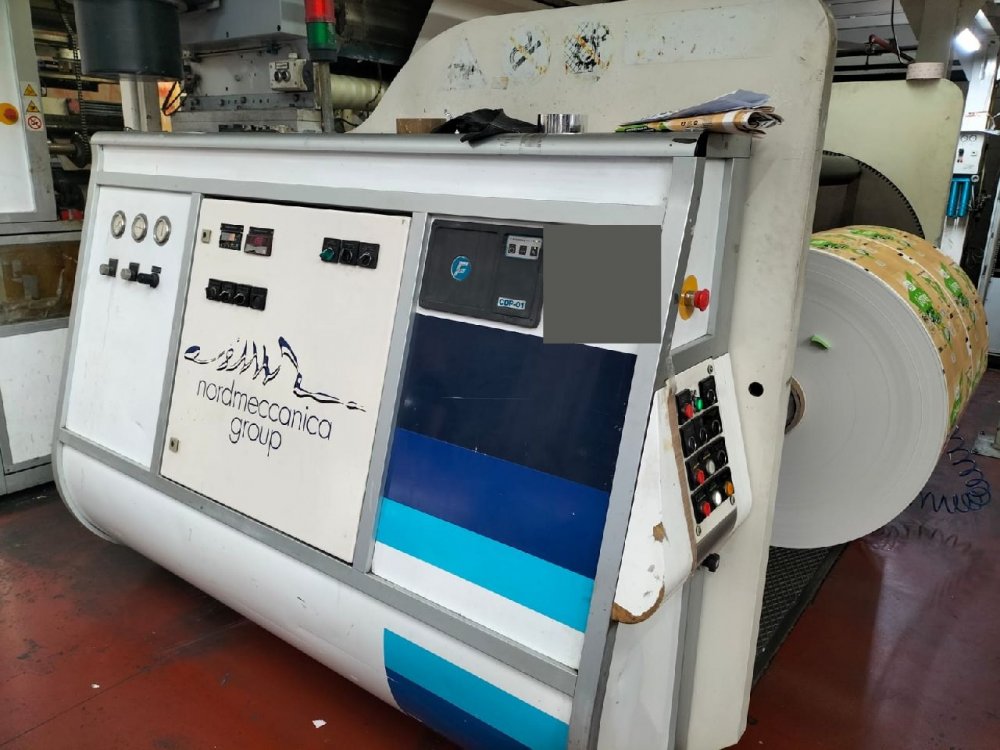

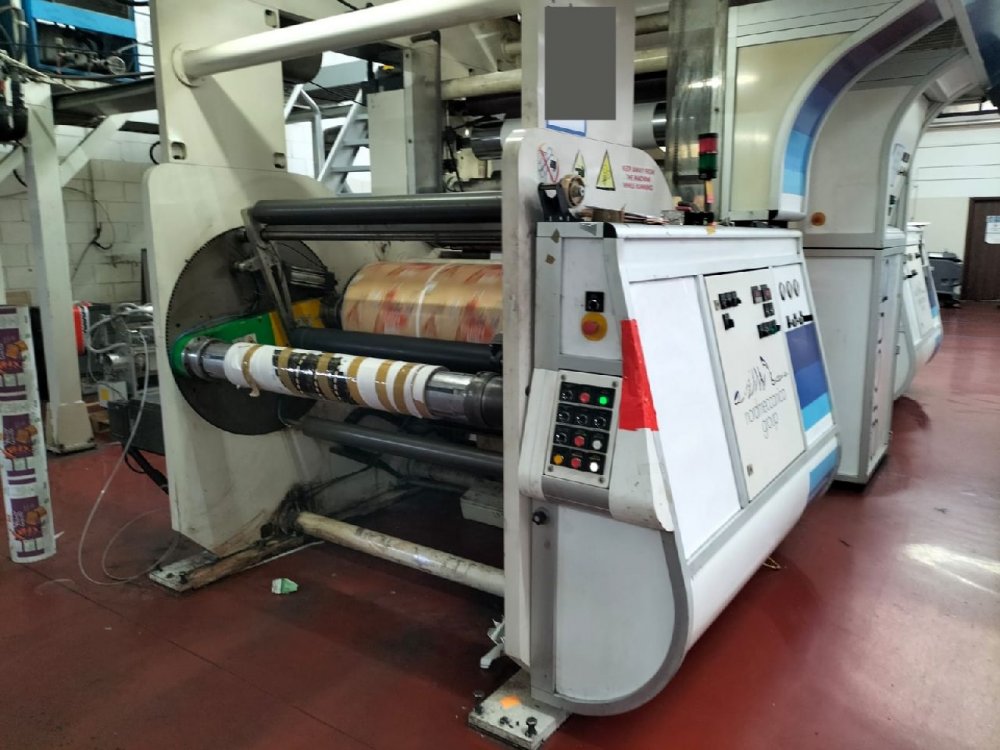

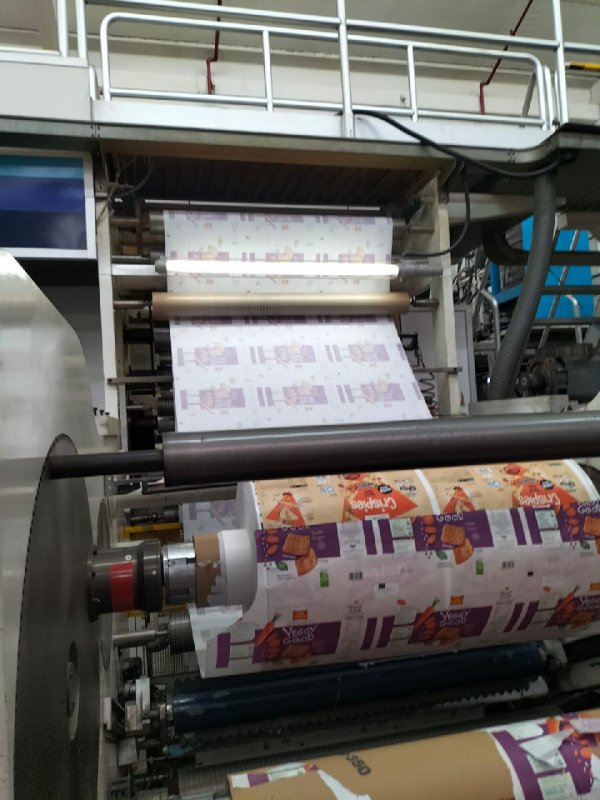

A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).
Ask more informations
- Machine Code
- LA521
- Manufacturer
- NORDMECCANICA
- Modello
- Horizontal combi
- Year
- 2004
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1300
- First unwinder type
- Turret automatic, non stop
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- Turret automatic, non stop
- Max diameter reel unwinder
- 800
- Rewinder type
- Turret automatic, non stop
- Max diameter reel rewinder
- 1000
- Coating unit
- 2 rotogravure trolleys, 1 semiflexo trolley , 1 solventless trolley
- Drying
- 2 Zones, four fans, double tunnel 2x3 mt, Thermo oil heaters
- Corona treatment
- Yes, 2 corona treaters
| Machine Code | LA521 |
| Manufacturer | NORDMECCANICA |
| Modello | Horizontal combi |
| Year | 2004 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1300 |
| First unwinder type | Turret automatic, non stop |
| Max diameter reel unwinder | 800 |
| Secondary unwinder type | Turret automatic, non stop |
| Max diameter reel unwinder | 800 |
| Rewinder type | Turret automatic, non stop |
| Max diameter reel rewinder | 1000 |
| Coating unit | 2 rotogravure trolleys, 1 semiflexo trolley , 1 solventless trolley |
| Drying | 2 Zones, four fans, double tunnel 2x3 mt, Thermo oil heaters |
| Corona treatment | Yes, 2 corona treaters |
