A duplex laminator will joins 2 layer of web, a triplex lamination machine will join 3 layers together in 1 pass. Coating machines are used to apply a layer of coated material onto a web (support).
Ask more informations
- Machine Code
- LA508
- Manufacturer
- NORDMECCANICA
- Modello

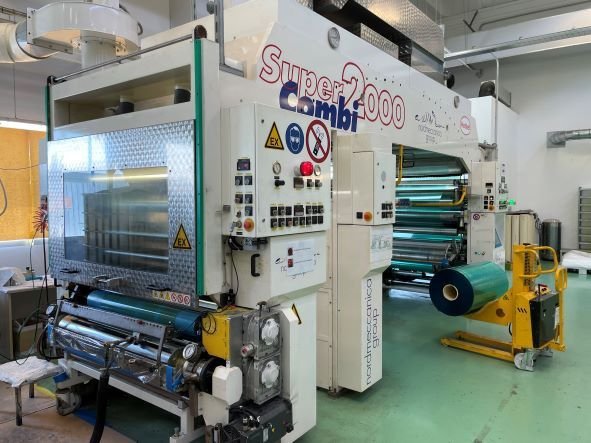

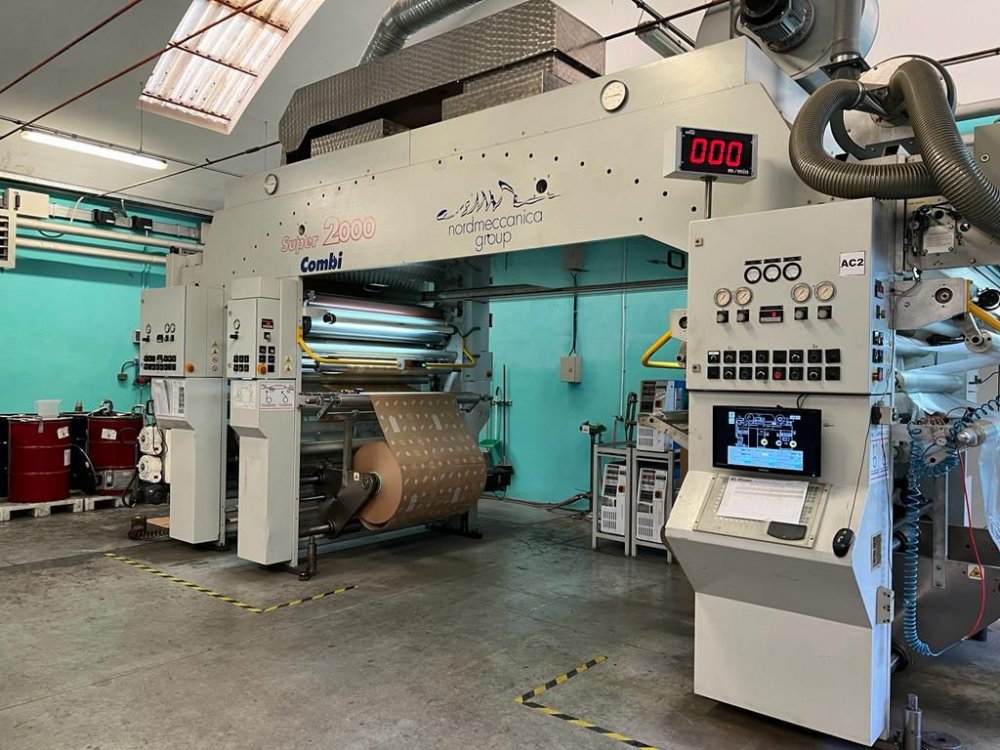

- SUPER COMBI 2000
- Year
- 2000
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Overhaul/renovation
- Yes
- Working width (mm)
- 1350
- Materials
- Paper and Film
- Speed
- 400 mpm
- First unwinder type
- Single position shaftless driven
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Single position shaftless driven
- Max diameter reel unwinder
- 1000
- Max diameter reel unwinder
- 1000
- Rewinder type
- Single position shaftless driven
- Max diameter reel rewinder
- 1000
- Coating unit
- Solventless trolley 4 roll type and Gravure trolley for solvent adhesives
- Drying
- 2 drying zones , Gas burners
- pumping mixing unit
- Vea
- Corona treatment
- Yes 2 corona treaters Ferrarini Benelli
- Coating rollers
- 10 transfer rollers
- Note
- 3 heating thermo regulating units for solventless trolley Machine already renovated
| Machine Code | LA508 |
| Manufacturer | NORDMECCANICA |
| Modello | SUPER COMBI 2000 |
| Year | 2000 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Overhaul/renovation | Yes |
| Working width (mm) | 1350 |
| Materials | Paper and Film |
| Speed | 400 mpm |
| First unwinder type | Single position shaftless driven |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | Single position shaftless driven |
| Max diameter reel unwinder | 1000 |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Single position shaftless driven |
| Max diameter reel rewinder | 1000 |
| Coating unit | Solventless trolley 4 roll type and Gravure trolley for solvent adhesives |
| Drying | 2 drying zones , Gas burners |
| pumping mixing unit | Vea |
| Corona treatment | Yes 2 corona treaters Ferrarini Benelli |
| Coating rollers | 10 transfer rollers |
| Note | 3 heating thermo regulating units for solventless trolley Machine already renovated |
