ROTOMEC M2 Laminator / coating machine SOLVENT / WATER BASED // Laminators and coaters // Converting machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

Lamination machines for flexible packaging industry are used to join together different webs creating a single web composed of a multi layer structure. Laminators coat a glue on a primary material and laminates secondary material onto it.

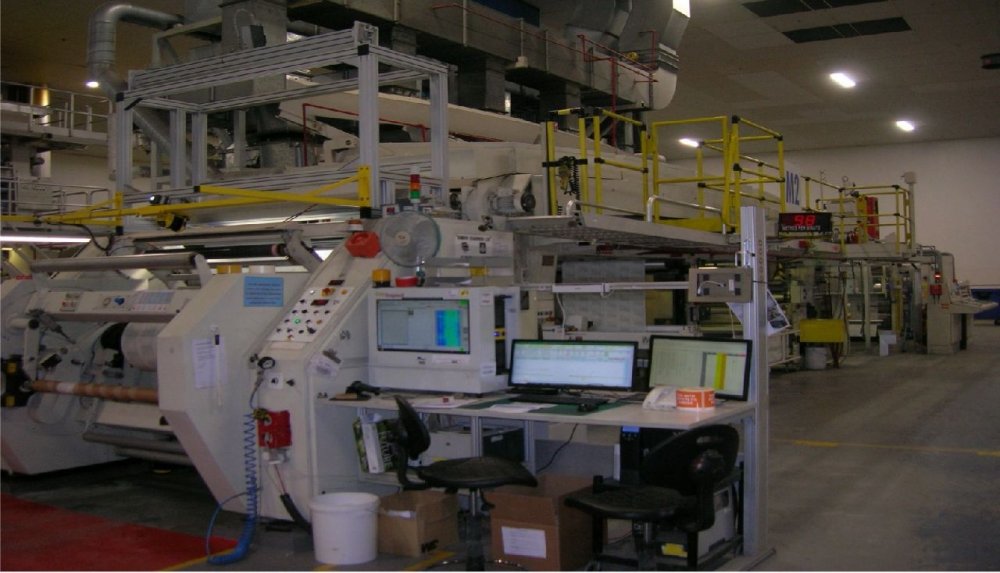

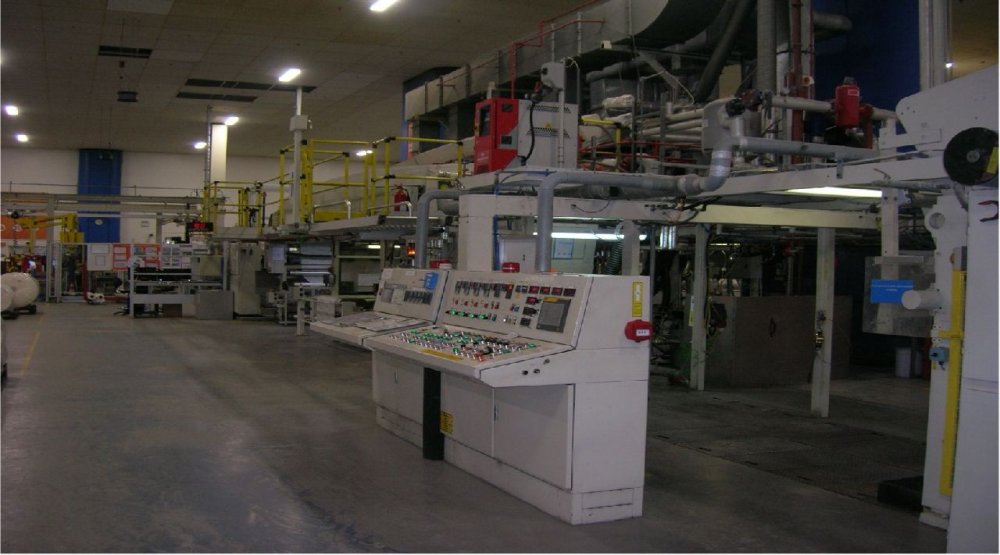

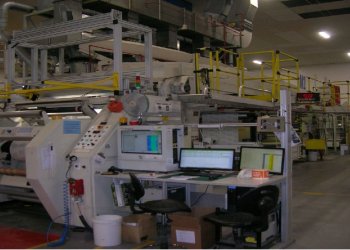

Photo Gallery

Ask more informations

Machine Code: LA471
Manufacturer: ROTOMEC
Modello: M2
Year: 1984
Application: Coating
Type of lamination/coating: SOLVENT / WATER BASED
Overhaul/renovation: yes, in 2021
Working width (mm): 1135
Speed: 200mpm
First unwinder type: Turret automatic
Max diameter reel unwinder: 1000
Rewinder type: Turret automatic
Max diameter reel rewinder: 1000
Coating unit: 1 gravure units
Drying: 4 hot air drying up to 150 degrees. Horizontal tunnel
Note: Rotomec air sleeve system NDC Coatwieght Scanner NDC Moister scanner Dr Schenk Web Detection 13 Spare cylinders 30 Spare Pressure Sleeves Water heating System - Tricol Lacquer Mix System - Spiroflow, including Hoppers, Screws and 2 holding tanks Safety Scanner unwind/rewind - 2 top, 2 bottom

Machine Code	LA471
Manufacturer	ROTOMEC
Modello	M2
Year	1984
Application	Coating
Type of lamination/coating	SOLVENT / WATER BASED
Overhaul/renovation	yes, in 2021
Working width (mm)	1135
Speed	200mpm
First unwinder type	Turret automatic
Max diameter reel unwinder	1000
Rewinder type	Turret automatic
Max diameter reel rewinder	1000
Coating unit	1 gravure units
Drying	4 hot air drying up to 150 degrees. Horizontal tunnel
Note	Rotomec air sleeve system NDC Coatwieght Scanner NDC Moister scanner Dr Schenk Web Detection 13 Spare cylinders 30 Spare Pressure Sleeves Water heating System - Tricol Lacquer Mix System - Spiroflow, including Hoppers, Screws and 2 holding tanks Safety Scanner unwind/rewind - 2 top, 2 bottom
