Coatings used in packaging industry are various. Cold and hot seal coating are common. Also, cold and hot seal coatings are commonly used, as well as hot melt and wax coatings. Silicon, Pvdc coating, ant mist and many others are employed. Materials which can be coated with a certain machine depends highly on the type of coating unit(s) available, on machine's construction and equipment.
Ask more informations
- Machine Code
- LA460
- Manufacturer
- NORDMECCANICA
- Modello
- Combi Lab
- Year
- 2000
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 440
- Materials
- Plastic films, alluminium foil, paper
- Speed
- 250 m/min mechanical speed
- First unwinder type
- Single
- Max diameter reel unwinder
- 400
- Secondary unwinder type
- Single
- Max diameter reel unwinder
- 400
- Rewinder type
- Single
- Max diameter reel rewinder
- 400
- Coating unit

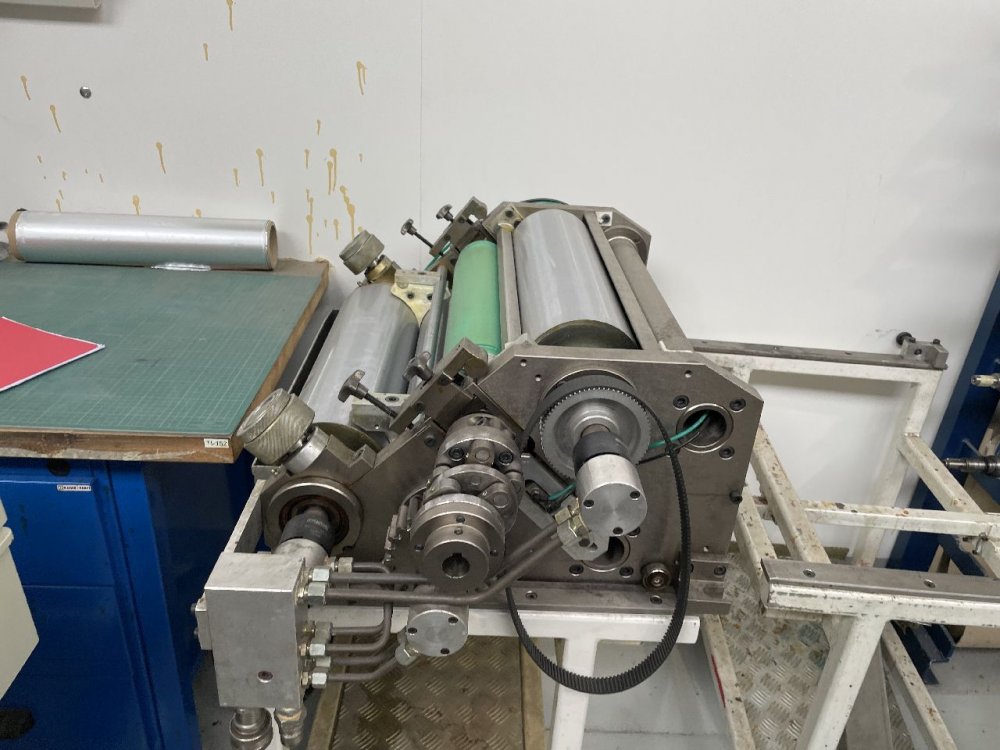

- Available with 3 trolleys: solventless, gravure, semiflexo
- Drying
- Electric heaters
- Corona treatment
- yes
- Coating rollers
- several coating rollers available. 8 coating cylinders
- Note
- 3x thermo regulation units Solventless trolley Corona treater Sherman Semiflexo trolley Rotogravure trolley
| Machine Code | LA460 |
| Manufacturer | NORDMECCANICA |
| Modello | Combi Lab |
| Year | 2000 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 440 |
| Materials | Plastic films, alluminium foil, paper |
| Speed | 250 m/min mechanical speed |
| First unwinder type | Single |
| Max diameter reel unwinder | 400 |
| Secondary unwinder type | Single |
| Max diameter reel unwinder | 400 |
| Rewinder type | Single |
| Max diameter reel rewinder | 400 |
| Coating unit | Available with 3 trolleys: solventless, gravure, semiflexo |
| Drying | Electric heaters |
| Corona treatment | yes |
| Coating rollers | several coating rollers available. 8 coating cylinders |
| Note | 3x thermo regulation units Solventless trolley Corona treater Sherman Semiflexo trolley Rotogravure trolley |
