Coatings used in packaging industry are various. Cold and hot seal coating are common. Also, cold and hot seal coatings are commonly used, as well as hot melt and wax coatings. Silicon, Pvdc coating, ant mist and many others are employed. Materials which can be coated with a certain machine depends highly on the type of coating unit(s) available, on machine's construction and equipment.
Ask more informations
- Machine Code
- LA448
- Manufacturer
- GENERAL CONVERTING MACHINES
- Modello

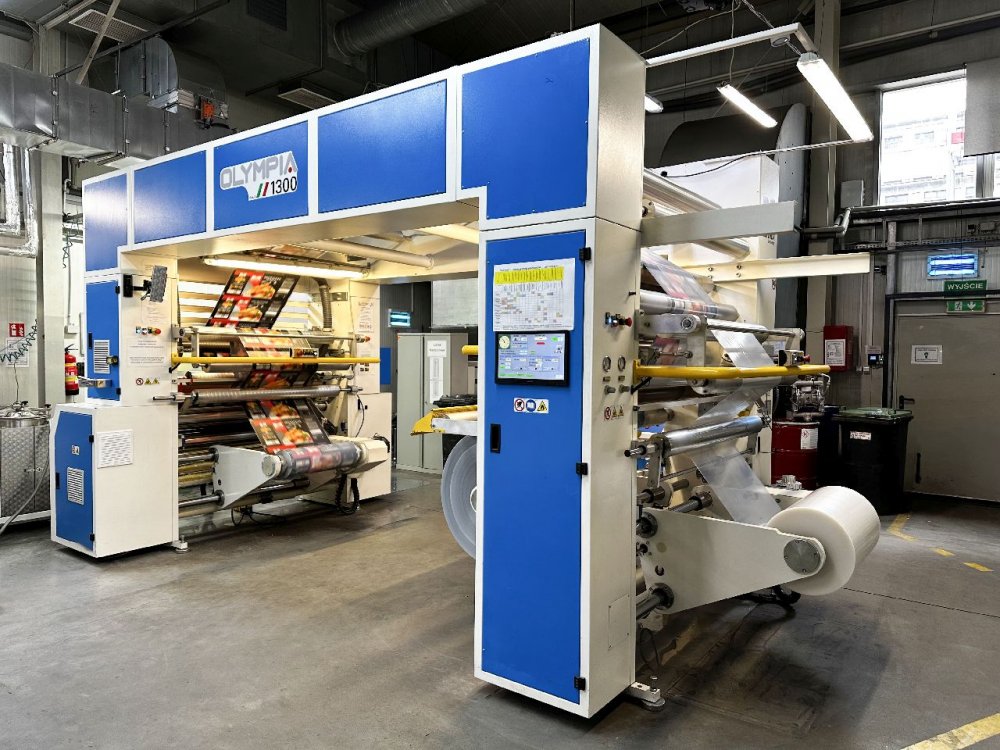

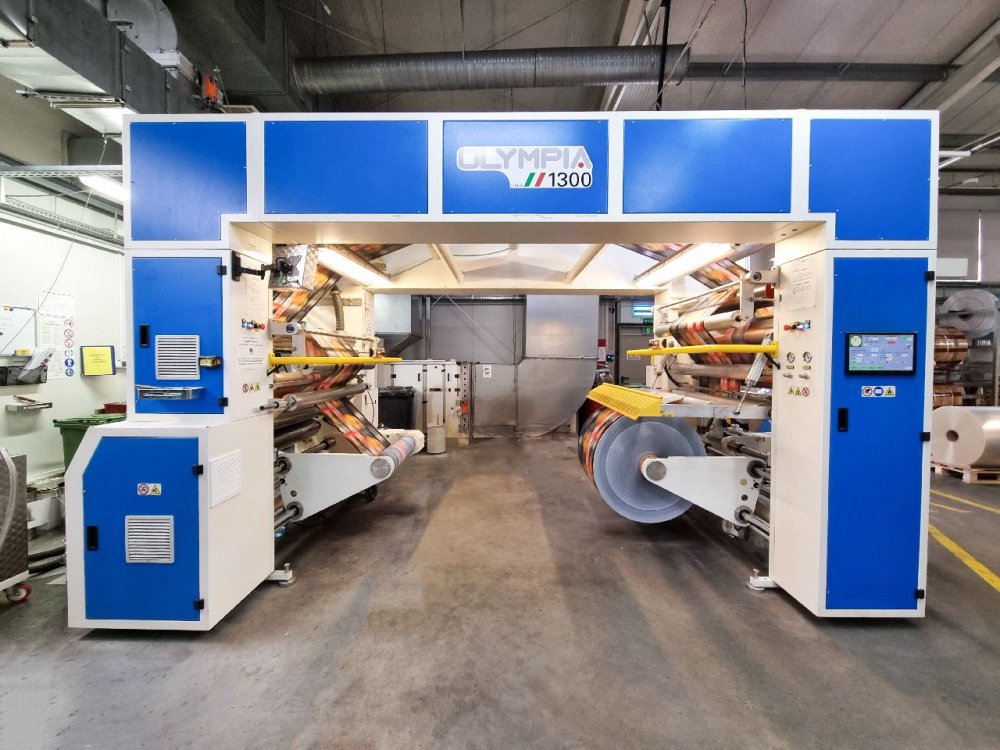

- Olympia 1300
- Year
- 2019
- Application
- Duplex lamination
- Type of lamination/coating
- SOLVENTLESS
- Working width (mm)
- 1300
- Materials
- PE, PP, PET, OPA, ALU FOIL, PAPER,PLA
- Speed
- 450m/min
- First unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 800
- Rewinder type
- Shaftless AC motor driven
- Max diameter reel rewinder
- 1000
- Coating unit
- 4 rolls type

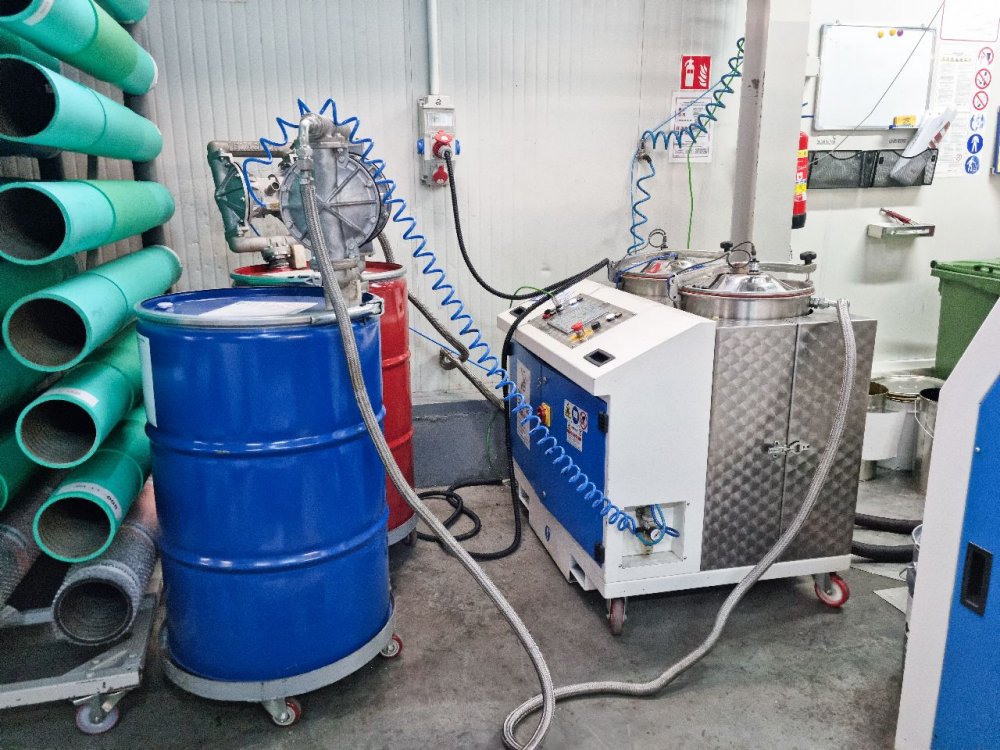

- pumping mixing unit
- 2 component solvetness mixer, 2019
- Note
- automatic glue deposition setting system Computer supervision : yes Independent motorisation for metering rollers, sleeve, coating and laminating nip. All systems are integrated on board : main cabinet. thermo-regulations, air conditioning. Sleeve system : quick change of work
| Machine Code | LA448 |
| Manufacturer | GENERAL CONVERTING MACHINES |
| Modello | Olympia 1300 |
| Year | 2019 |
| Application | Duplex lamination |
| Type of lamination/coating | SOLVENTLESS |
| Working width (mm) | 1300 |
| Materials | PE, PP, PET, OPA, ALU FOIL, PAPER,PLA |
| Speed | 450m/min |
| First unwinder type | Shaftless AC motor driven |
| Max diameter reel unwinder | 800 |
| Secondary unwinder type | Shaftless AC motor driven |
| Max diameter reel unwinder | 800 |
| Rewinder type | Shaftless AC motor driven |
| Max diameter reel rewinder | 1000 |
| Coating unit | 4 rolls type |
| pumping mixing unit | 2 component solvetness mixer, 2019 |
| Note | automatic glue deposition setting system Computer supervision : yes Independent motorisation for metering rollers, sleeve, coating and laminating nip. All systems are integrated on board : main cabinet. thermo-regulations, air conditioning. Sleeve system : quick change of work |
BIELLONI Julia II
-
Machine Code: LA461
-
Year: 1998
-
Working width (mm): 1400
DCM Laminastar 2
-
Machine Code: LA306
-
Year: 2000
-
Working width (mm): 1300
NORDMECCANICA TRIPLEX COMBI
-
Machine Code: LA512
-
Year: 1994
-
Working width (mm): 1280
NORDMECCANICA Super Simplex 1500
-
Machine Code: LA501
-
Year: 2004
-
Working width (mm): 1500
NORDMECCANICA Super Simplex 1500
-
Machine Code: LA502
-
Year: 2014
-
Working width (mm): 1500

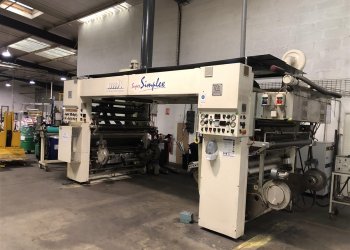

NORDMECCANICA Supersimplex
-
