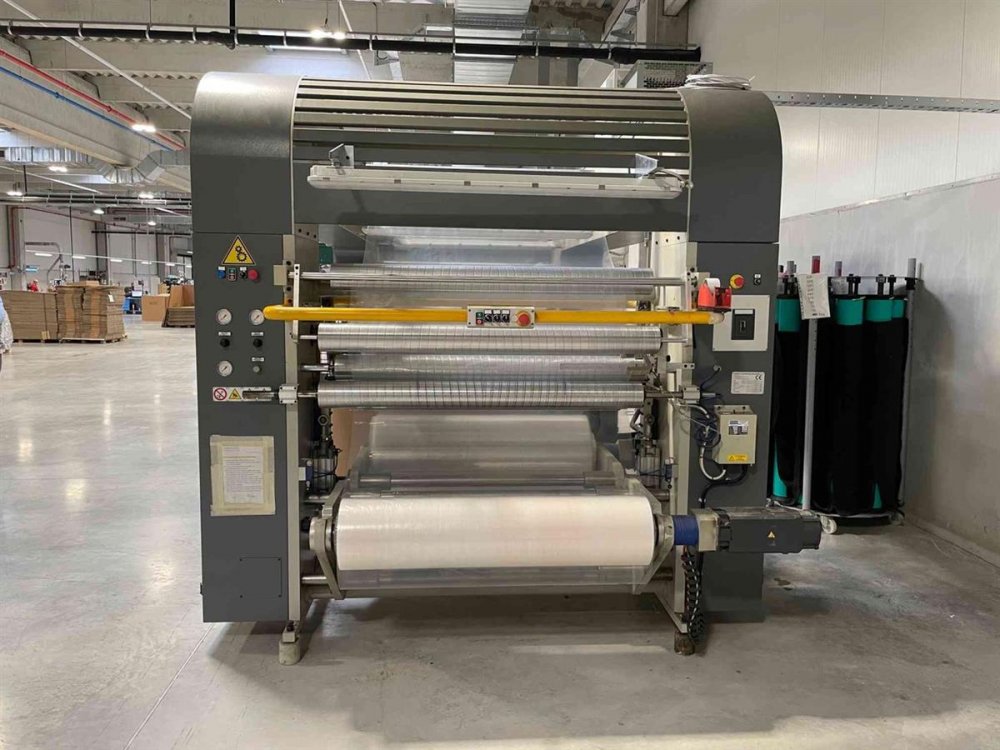

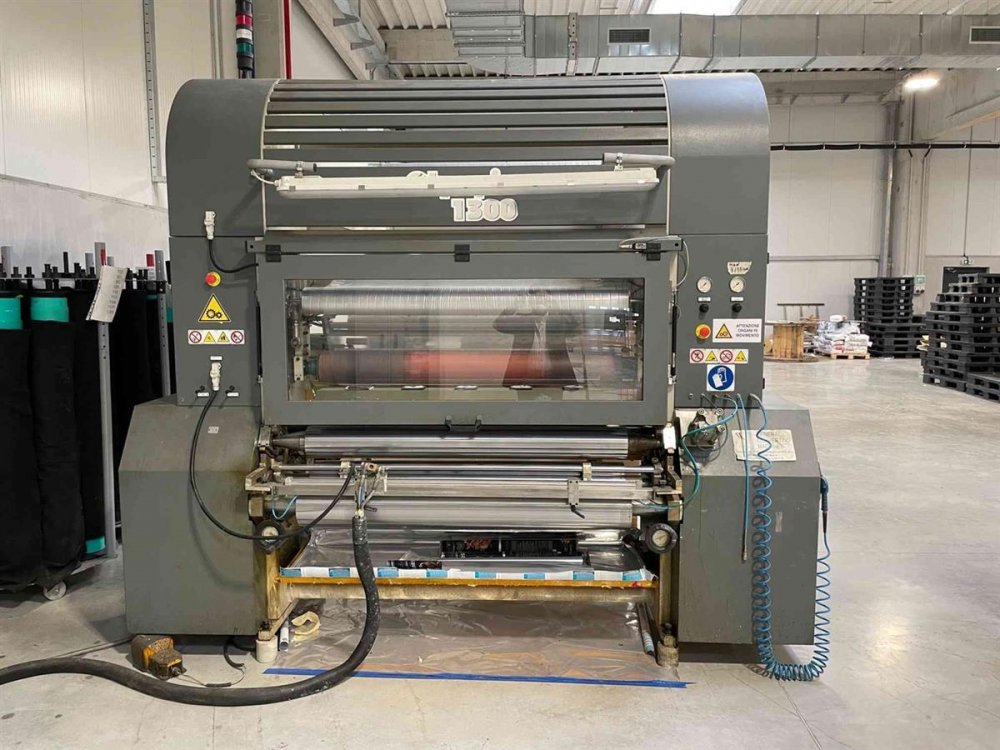

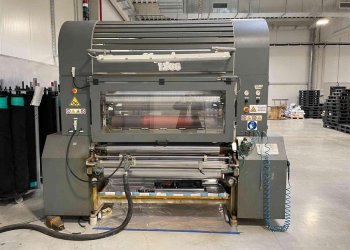

GENERAL CONVERTING MACHINES Olympia ST 1300 Laminator / coating machine SOLVENTLESS

Lamination machines for flexible packaging industry are used to join together different webs creating a single web composed of a multi layer structure. Laminators coat a glue on a primary material and laminates secondary material onto it.

Machine Code LA363
Manufacturer GENERAL CONVERTING MACHINES
Model Olympia ST 1300
Year 2013
Application Duplex lamination
Type of lamination/coating SOLVENTLESS
Working width (mm) 1300

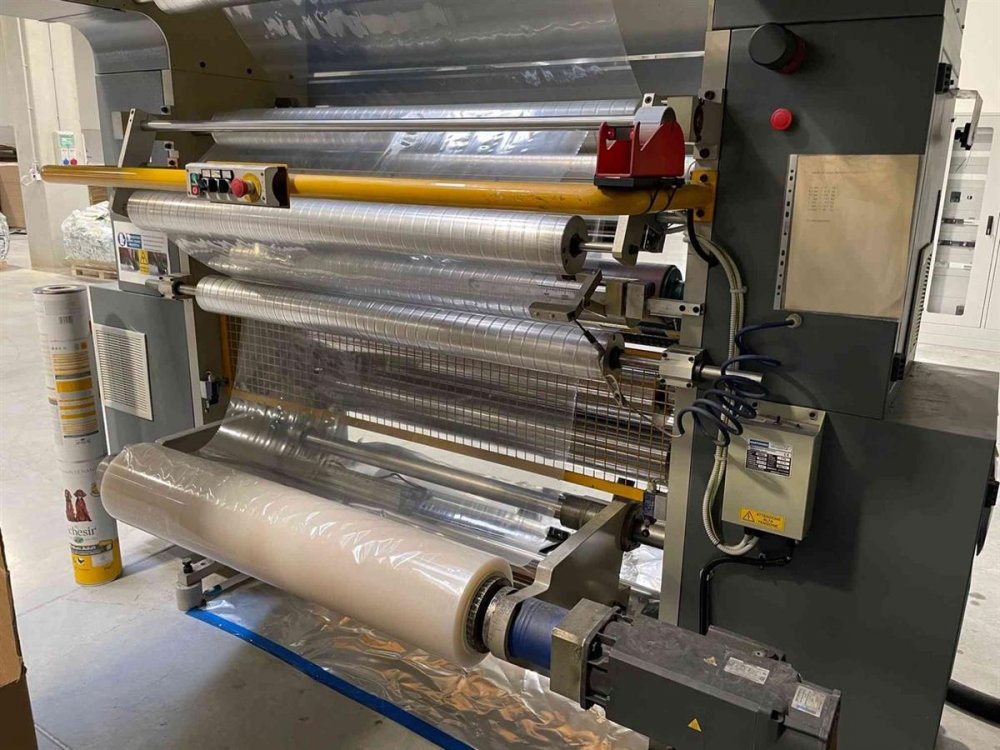

First unwinder type Shaftless, driven
Max diameter reel unwinder 1000
Secondary unwinder type Shaftless, driven
Max diameter reel unwinder 1000
Rewinder type Shaftless, driven
Max diameter reel rewinder 1000
Coating unit 5 rollers, staggerd

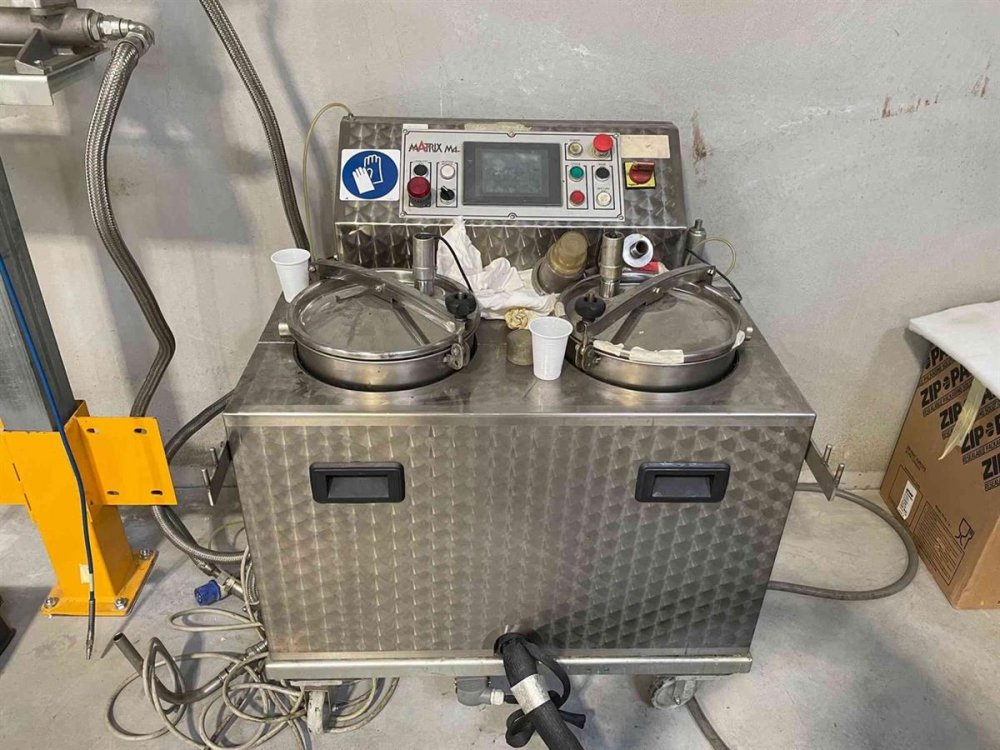

Pumping mixing unit 2 component, gear pump, Make VEA Model Matrix, with Pumps
Corona treatment Martignoni

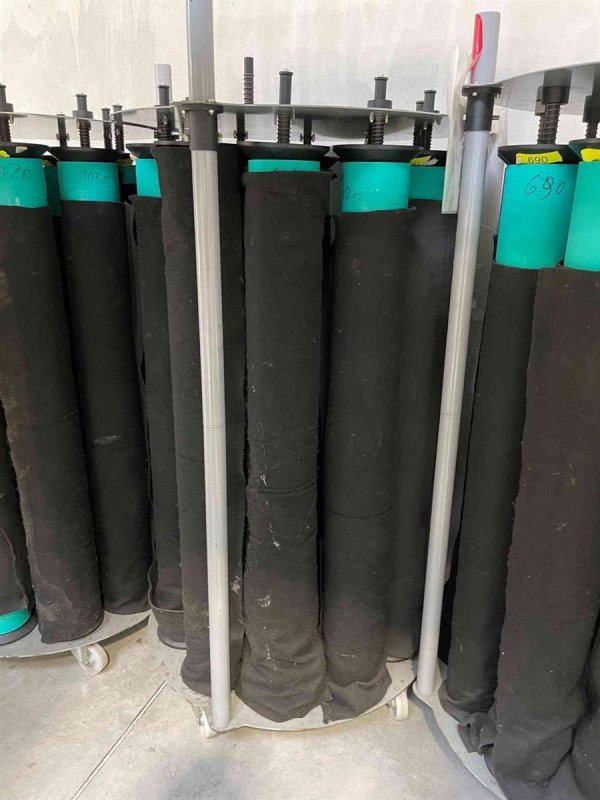

Coating rollers Sleeves: 3x shafts for sleeves, 29 sleeves
