CMR Supercompact Laminator / coating machine COMBI / INTECHANGEABLE TROLLEY // Laminators and coaters // Converting machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

These employ an interchangeable trolley system which allows different types of coatings or laminations depending on available trolleys.

Photo Gallery

Ask more informations

about a similar one

Machine Code: LA322
Manufacturer: CMR
Modello: Supercompact
Year: 2012
Application: Duplex lamination
Type of lamination/coating: COMBI / INTECHANGEABLE TROLLEY
Working width (mm): 1240
Materials: All plastic films
Speed: 250m/min for SL, 150 m/min for SB
First unwinder type: Single
Max diameter reel unwinder: 800
Secondary unwinder type: Single
Max diameter reel unwinder: 800
Rewinder type: Single
Max diameter reel rewinder: 1000
Coating unit: Rotogravure for SB
Second Coating unitr: 5 roller type for SL
Drying: Electric

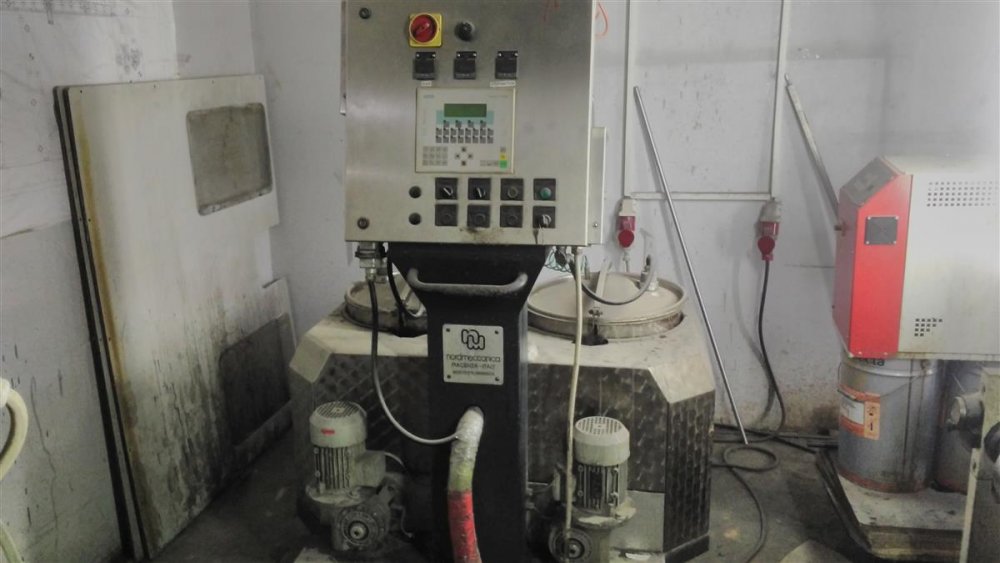

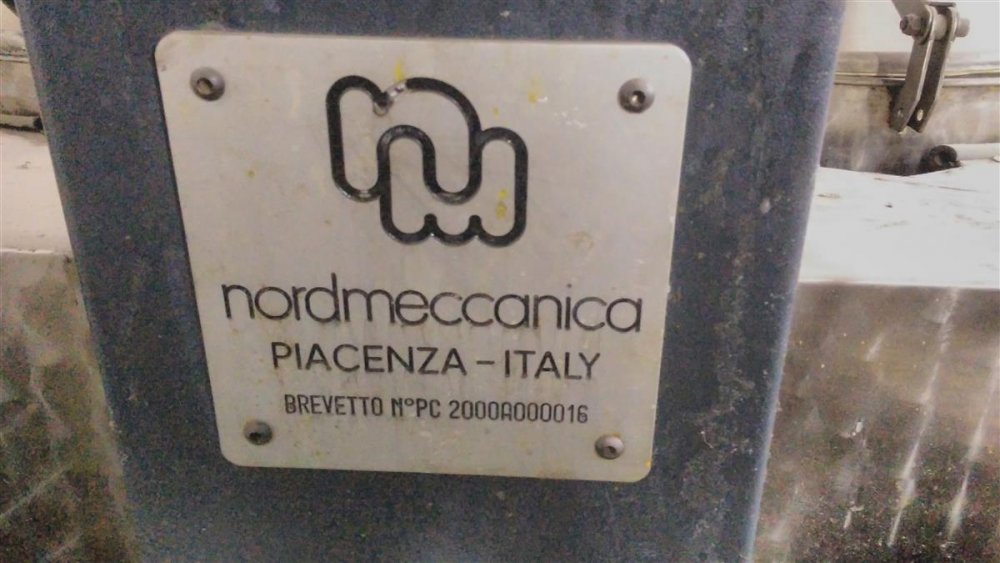

pumping mixing unit: Yes Nordmeccanica
Corona treatment: Yes
Coating rollers: Yes
Note: Overall sizes LxWxH = 8x4x3 m

Machine Code	LA322
Manufacturer	CMR
Modello	Supercompact
Year	2012
Application	Duplex lamination
Type of lamination/coating	COMBI / INTECHANGEABLE TROLLEY
Working width (mm)	1240
Materials	All plastic films
Speed	250m/min for SL, 150 m/min for SB
First unwinder type	Single
Max diameter reel unwinder	800
Secondary unwinder type	Single
Max diameter reel unwinder	800
Rewinder type	Single
Max diameter reel rewinder	1000
Coating unit	Rotogravure for SB
Second Coating unitr	5 roller type for SL
Drying	Electric
pumping mixing unit	Yes Nordmeccanica
Corona treatment	Yes
Coating rollers	Yes
Note	Overall sizes LxWxH = 8x4x3 m

** SOLD **
