** SOLD **
Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
Ask more informations
about a similar one
- Machine Code
- BO46
- Manufacturer
- BRUCKNER
- Number of layers
- 3
- Film structure
- ABA
- Material
- BOPP
- Output
- 1200kg/h
- Width (mm)
- 6000
- Extruder 1 Description
- BARMAG 25E4/30D
- Extruder 2 Description
- BANDERA TR100X1
- Head description
- SIMPLAS TYPE E13 LD
- Die width
- 830
- Chill roll unit
- 2400mm diam with water bath
- MDO description
- BRUCKNER - preheating Thermoil/steam

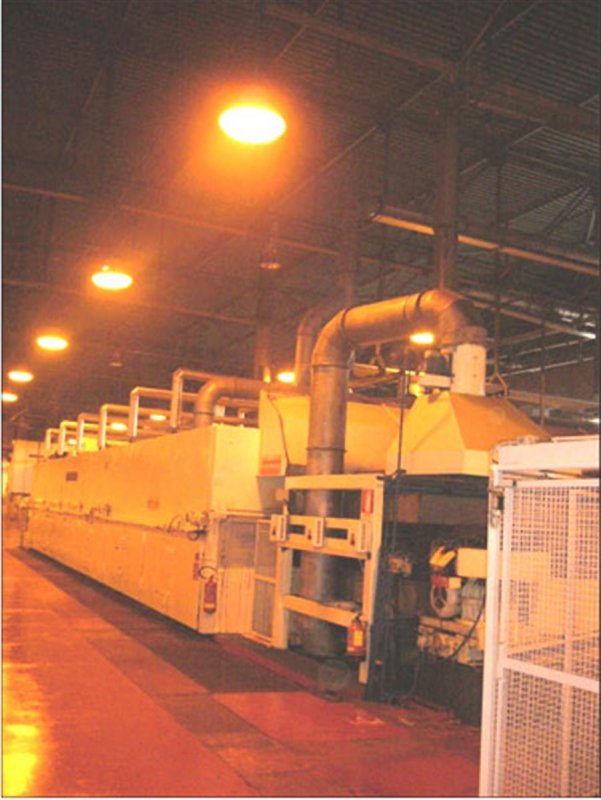

- TDO description
- BRUCKNER - Preheating length:12m; Stretching length:15m; Total length: 35m
- Pull roll unit
- Treatments 1 side corona; 1 side Flame
- Rewinder width
- 6000
- Rewinder description
- BRUCKNER - 1988
- Note
- Film thickness 20-30; Speed: mechanical 140m/min ; in production 120m/min; Grinder: 1 inline grinder
Machine Code | BO46 |
Manufacturer | BRUCKNER |
Number of layers | 3 |
Film structure | ABA |
Material | BOPP |
Output | 1200kg/h |
Width (mm) | 6000 |
Extruder 1 Description | BARMAG 25E4/30D |
Extruder 2 Description | BANDERA TR100X1 |
Head description | SIMPLAS TYPE E13 LD |
Die width | 830 |
Chill roll unit | 2400mm diam with water bath |
MDO description | BRUCKNER - preheating Thermoil/steam |
TDO description | BRUCKNER - Preheating length:12m; Stretching length:15m; Total length: 35m |
Pull roll unit | Treatments 1 side corona; 1 side Flame |
Rewinder width | 6000 |
Rewinder description | BRUCKNER - 1988 |
Note | Film thickness 20-30; Speed: mechanical 140m/min ; in production 120m/min; Grinder: 1 inline grinder |
