3 layers DORNIER BOPP / BOPET tenderframe plant
Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
| Machine Code | BO22 |
| Manufacturer | DORNIER |
| Year | 1991 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | BOPP |
| Output | 2500KG/H |
| Width (mm) | 6400 |
| Extruder 1 Description | A 70mm |

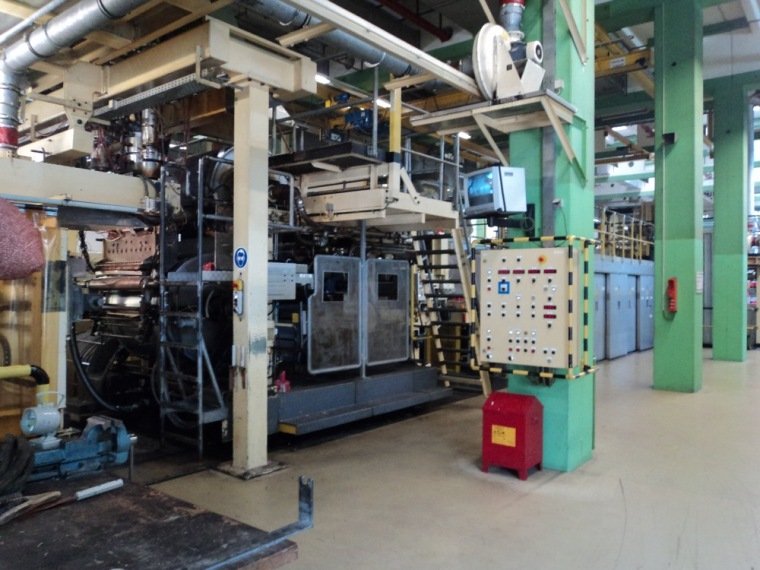

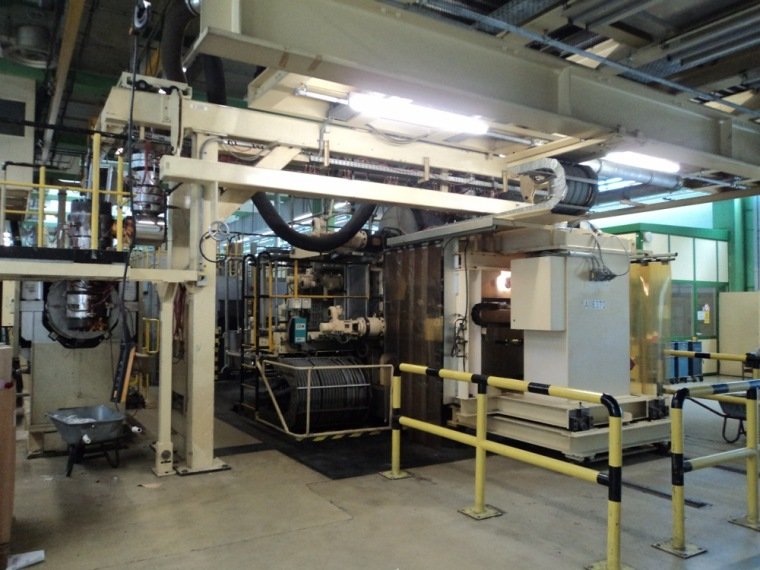

| Extruder 2 Description | B 2 cascade extruder x 250mm Motor power2x 650Kw |
| Extruder 3 Description | C 70mm |

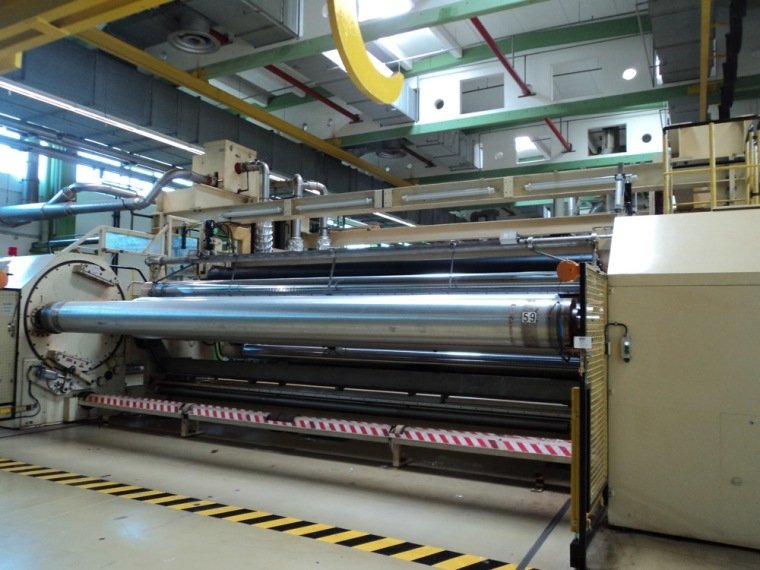

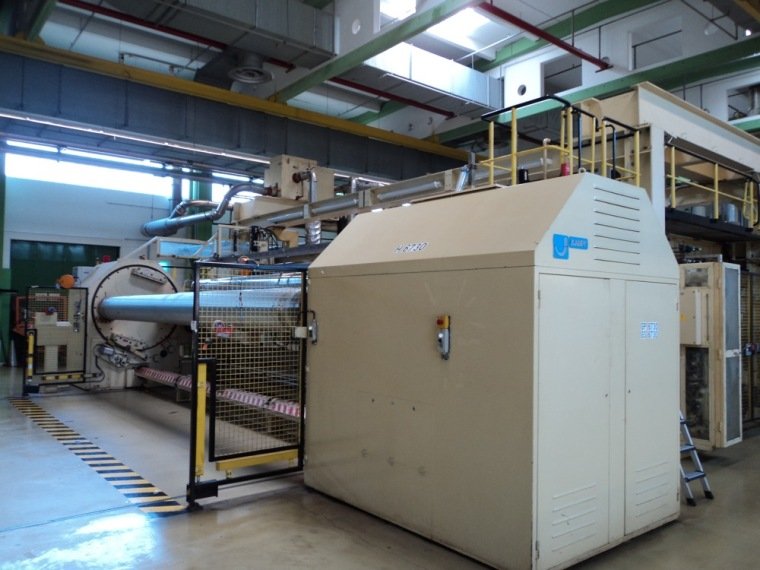

| Chill roll unit | with 3 chill rollers. Width 1000mm |
| MDO description | MDO Kampf oil heated with lamination unit |

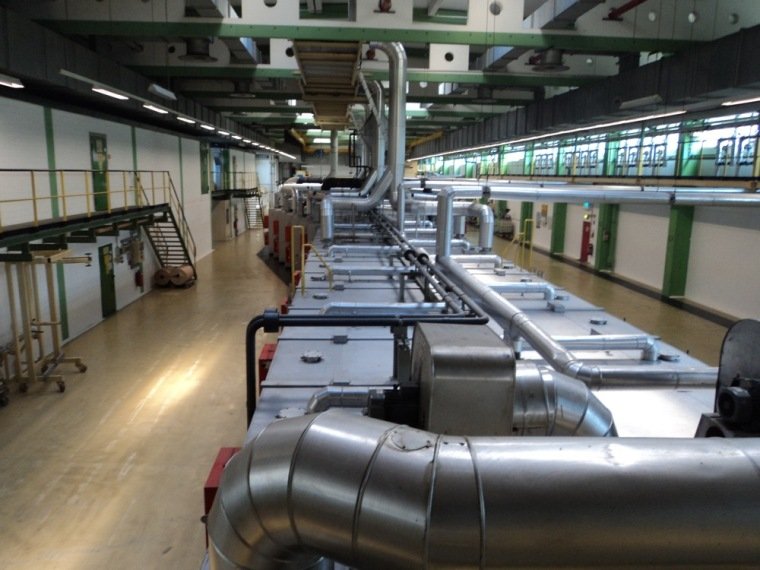

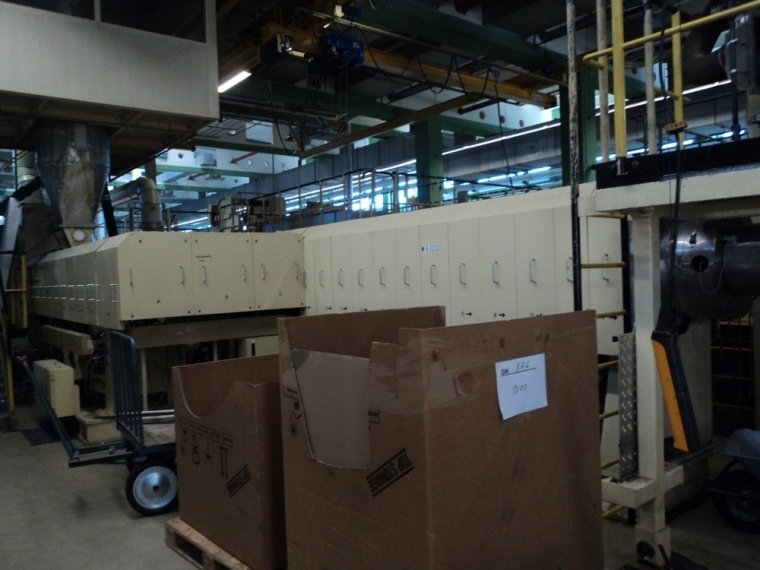

| TDO description | TDO Dornier |
| Pull roll unit | yes |

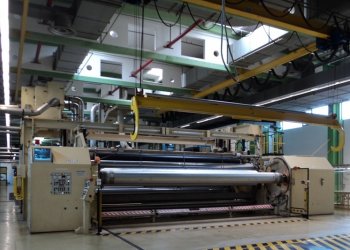

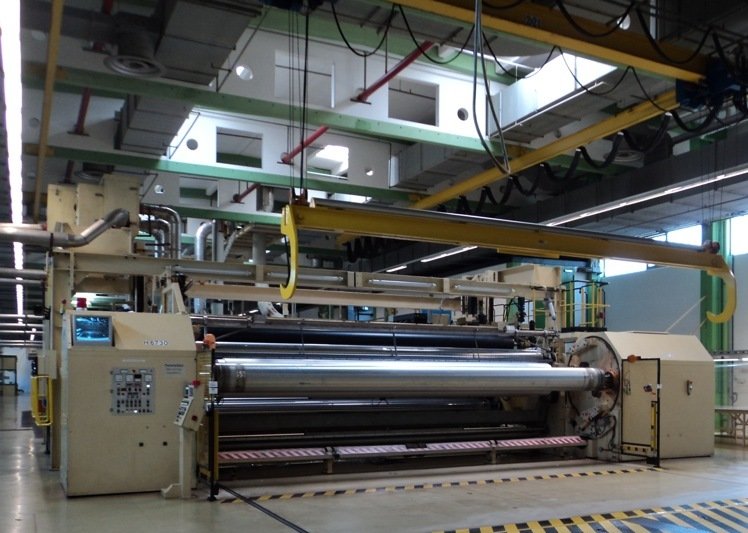

| Rewinder description | Rewinder Kampf |

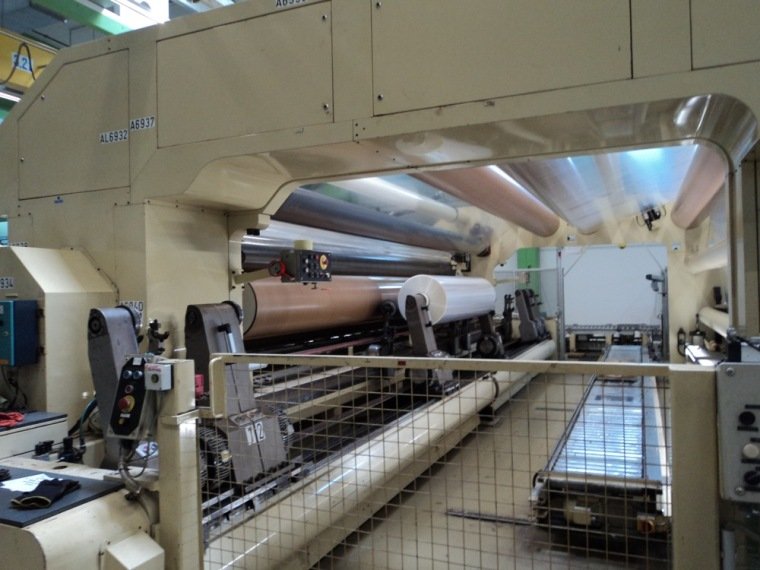

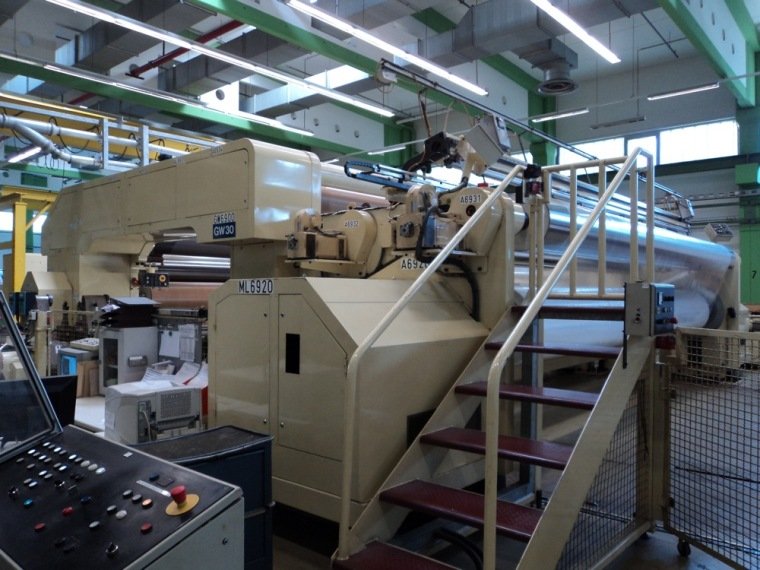

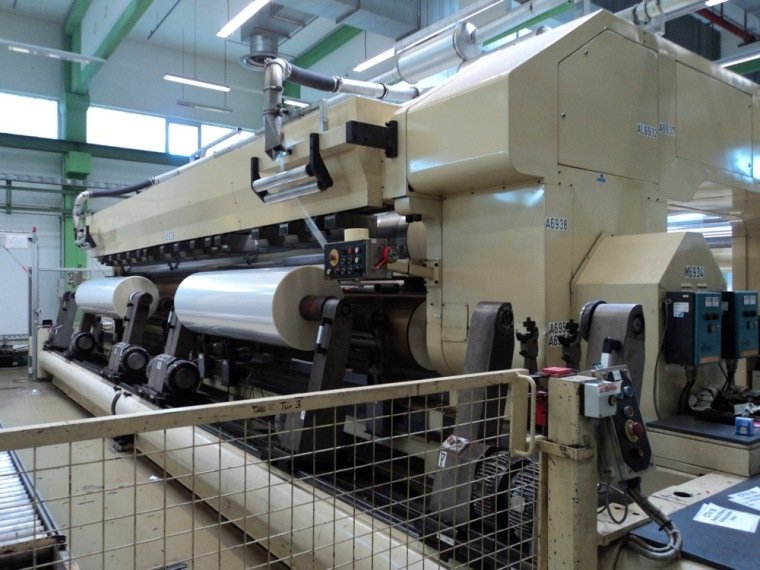

| Slitter | Slitter rewinder Atlas 7 m wide |
| Additional information | Grinders for edge recovery. |
