3 layers DORNIER BOPP / BOPET tenderframe plant ** SOLD ** Ask more informations about a similar one

Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.

Machine Code BO22
Manufacturer DORNIER
Year 1991
Number of layers 3
Film structure ABC
Material BOPP
Output 2500KG/H
Width (mm) 6400

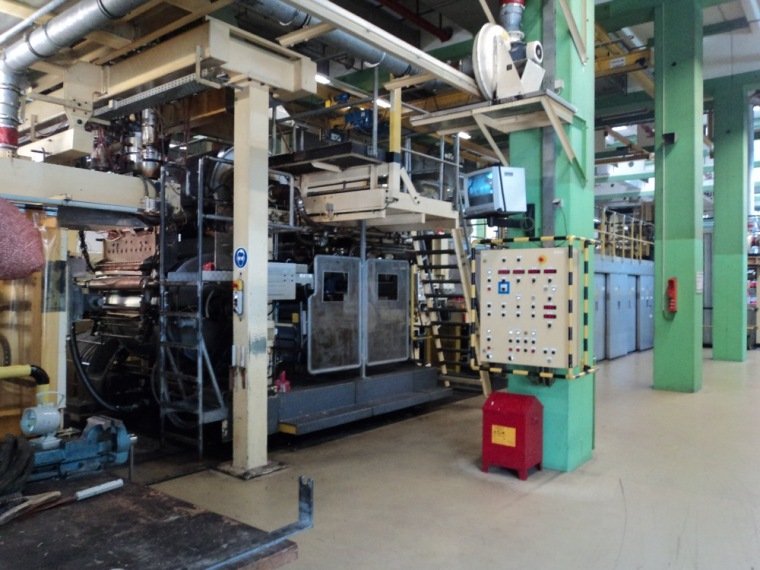

Extruder 1 Description A 70mm

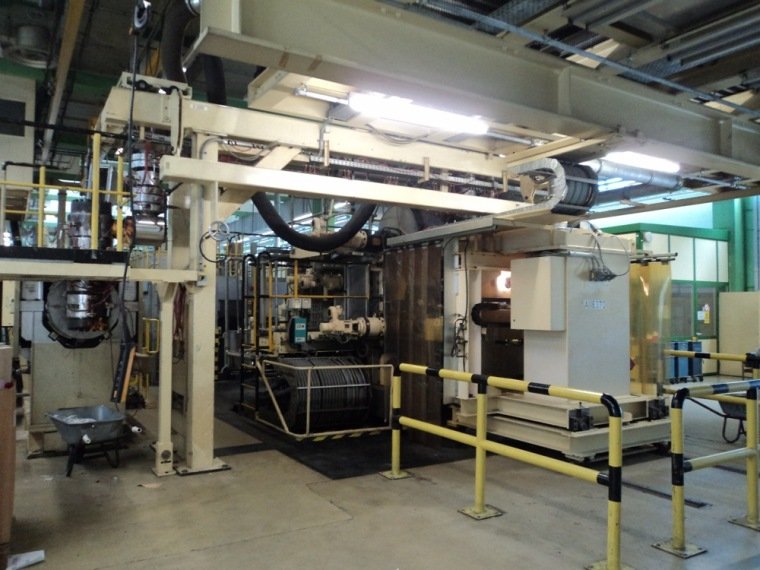

Extruder 2 Description B 2 cascade extruder x 250mm Motor power2x 650Kw
Extruder 3 Description C 70mm
Chill roll unit with 3 chill rollers. Width 1000mm
MDO description MDO Kampf oil heated with lamination unit

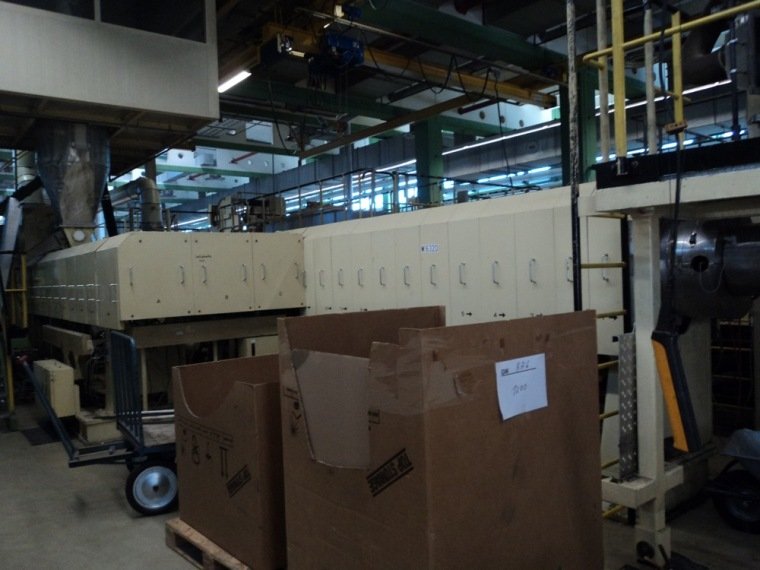

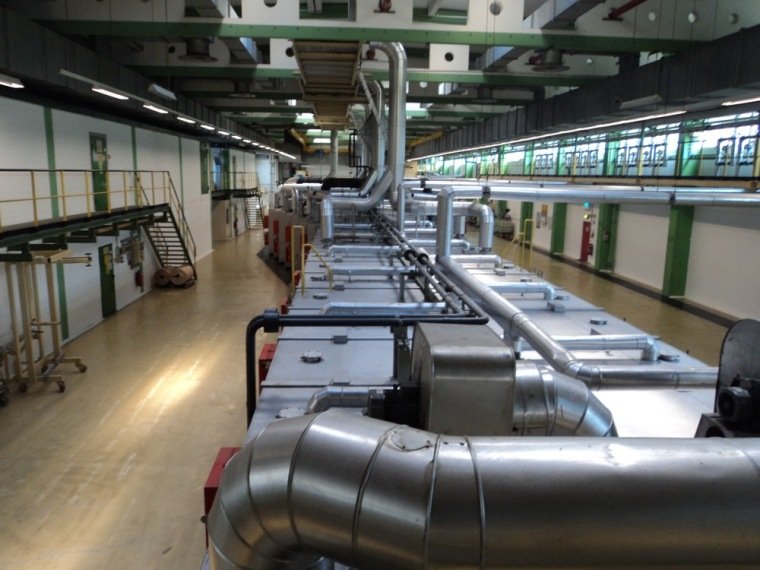

TDO description TDO Dornier
Pull roll unit yes

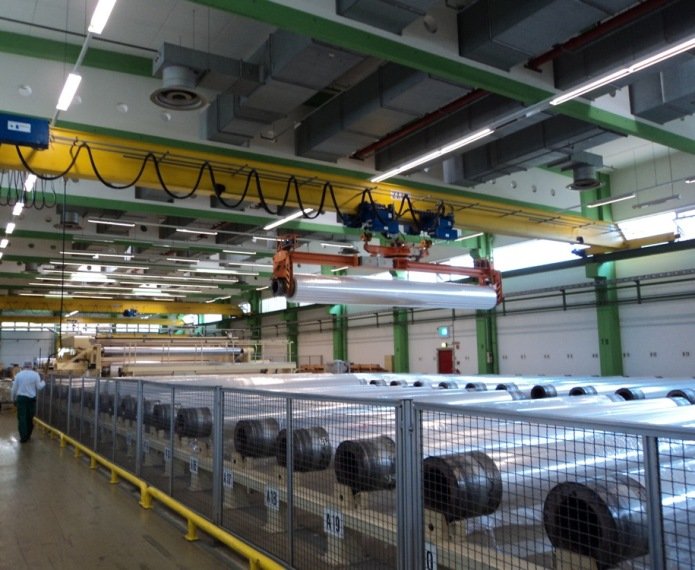

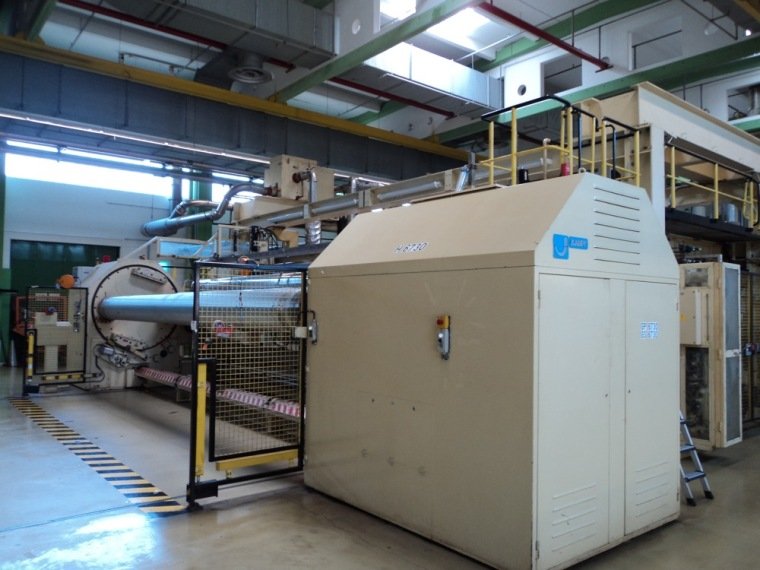

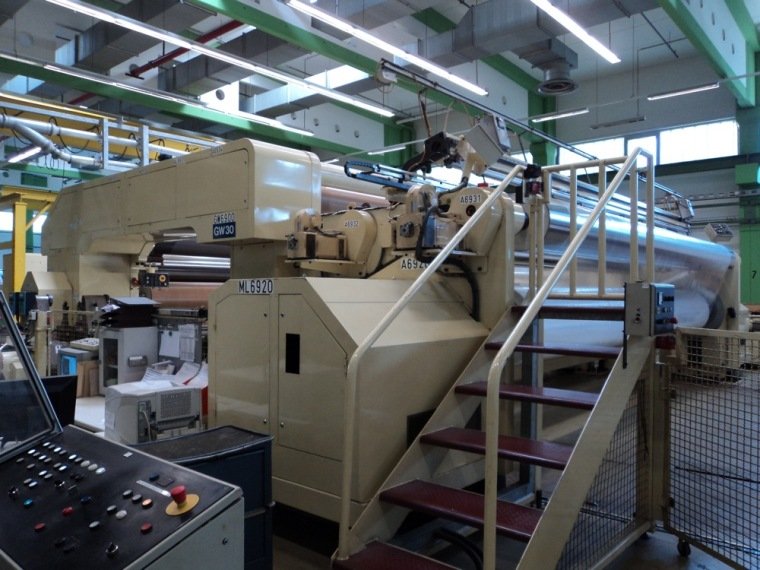

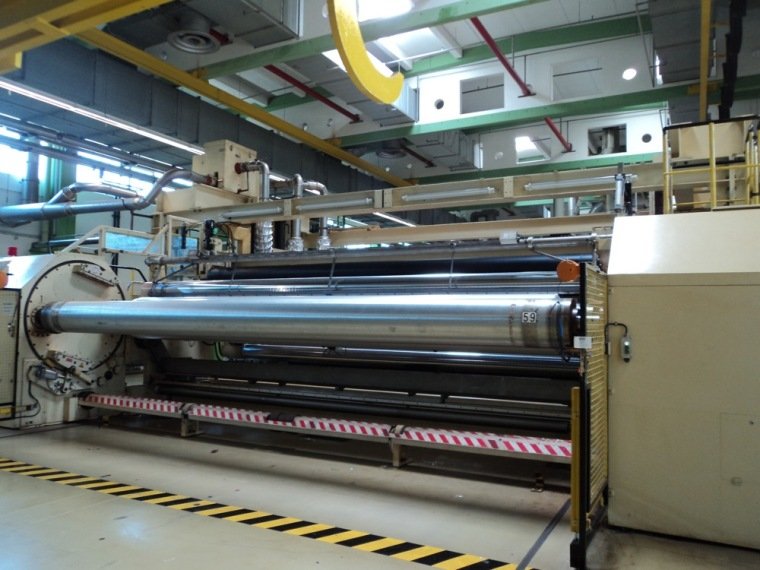

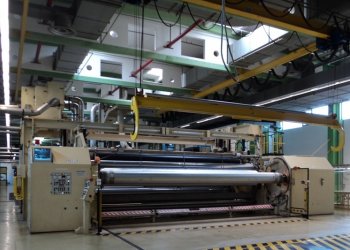

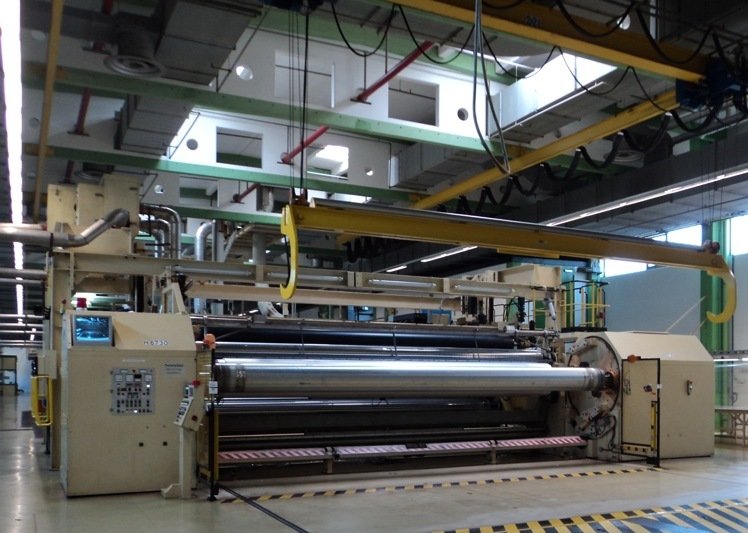

Rewinder description Rewinder Kampf

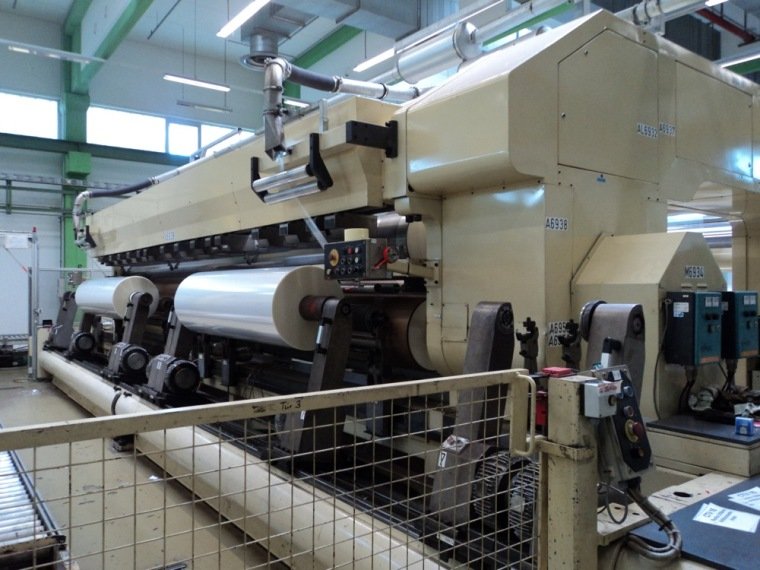

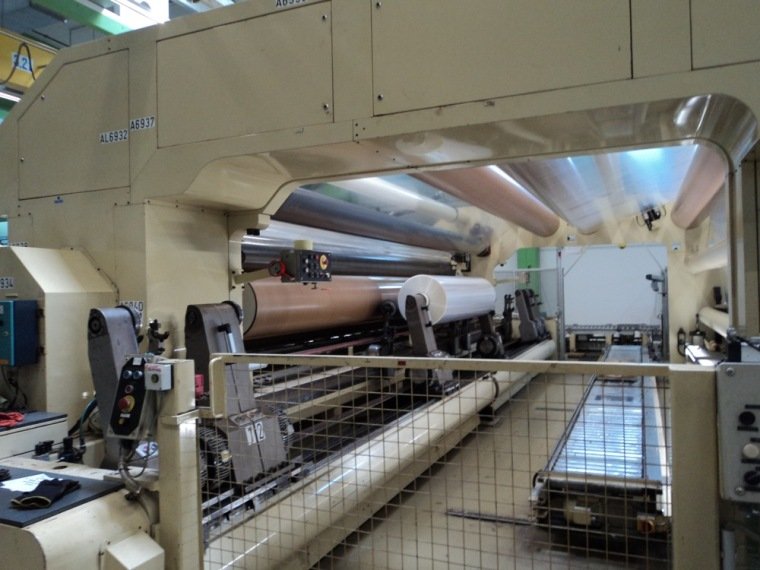

Slitter Slitter rewinder Atlas 7 m wide
Additional information Grinders for edge recovery.

** SOLD **


You may also be interested in:

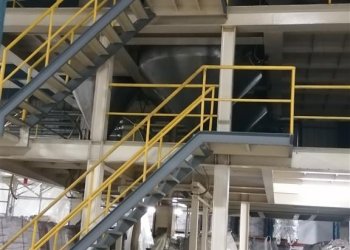

3497 - DMT BOPP Coextrusion Line
