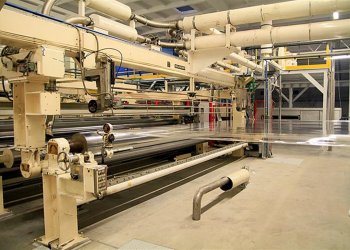

Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
Ask more informations
- Machine Code
- BO79
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- W&H + Brueckner CAST COEX TD3000
- Year
- 2002
- Number of layers
- 3
- Material
- BOPS
- Output
- 300kg/h
- Width (mm)
- 2800
- Extruder 1 Description
- Main extruder: Twin-screw extruder Coperion ZSK 70McPlus 1 -Gravimetric chip feeding and batching unit (6-component granules) for the main extruder . mAAG MELT PUMP
- Extruder 2 Description
- SINGLE EXTRUDER ,Volumetric chip feeding and batching unit (3-component granules) for the coextruder
- Head description
- Automatic extrusion die - 750 coex - 3-layer coextrusion feed block
- Die width
- 750 MM
- Thickness controll system
- Thickness gauge 1200 (NDC) 1
- Chill roll unit
- Width 2000 mm
- MDO description
- WuH
- TDO description
- BRUCKNER
- Corona treatment
- yes
- Rewinder width
- 2800 mm
- Rewinder description
- WH Filmatic
- Note
- MD stretch ratio max 1:1,2 TD stretch ratio max 1 : 4,2- ..5 Output (on the winder) 300 kg/h Film structure 3 layers Thickness 40 - 60 micron Mechanical speed from 10 to 50 m/min Winding web width 2800 mm 1.9 Die width 750 mm 1.10 Chill-roll width 2000 mm 1.11 Rollers width after TDO 3200 mm
| Machine Code | BO79 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | W&H + Brueckner CAST COEX TD3000 |
| Year | 2002 |
| Number of layers | 3 |
| Material | BOPS |
| Output | 300kg/h |
| Width (mm) | 2800 |
| Extruder 1 Description | Main extruder: Twin-screw extruder Coperion ZSK 70McPlus 1 -Gravimetric chip feeding and batching unit (6-component granules) for the main extruder . mAAG MELT PUMP |
| Extruder 2 Description | SINGLE EXTRUDER ,Volumetric chip feeding and batching unit (3-component granules) for the coextruder |
| Head description | Automatic extrusion die - 750 coex - 3-layer coextrusion feed block |
| Die width | 750 MM |
| Thickness controll system | Thickness gauge 1200 (NDC) 1 |
| Chill roll unit | Width 2000 mm |
| MDO description | WuH |
| TDO description | BRUCKNER |
| Corona treatment | yes |
| Rewinder width | 2800 mm |
| Rewinder description | WH Filmatic |
| Note | MD stretch ratio max 1:1,2 TD stretch ratio max 1 : 4,2- ..5 Output (on the winder) 300 kg/h Film structure 3 layers Thickness 40 - 60 micron Mechanical speed from 10 to 50 m/min Winding web width 2800 mm 1.9 Die width 750 mm 1.10 Chill-roll width 2000 mm 1.11 Rollers width after TDO 3200 mm |
