** SOLD **

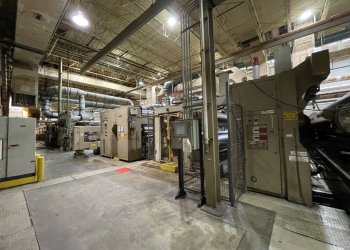

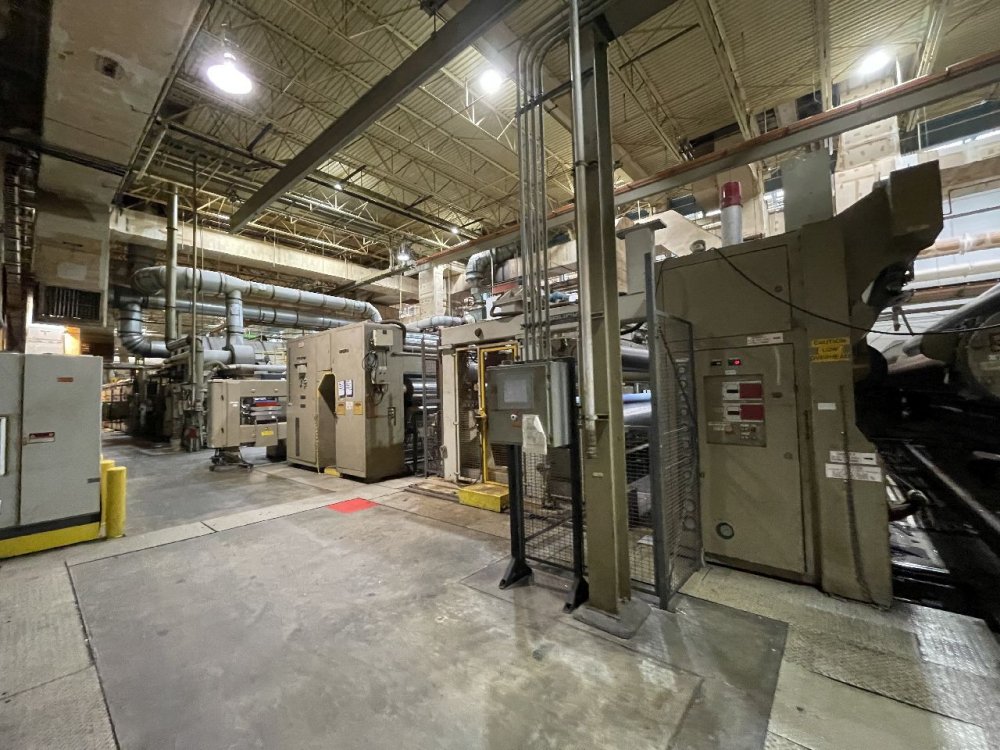

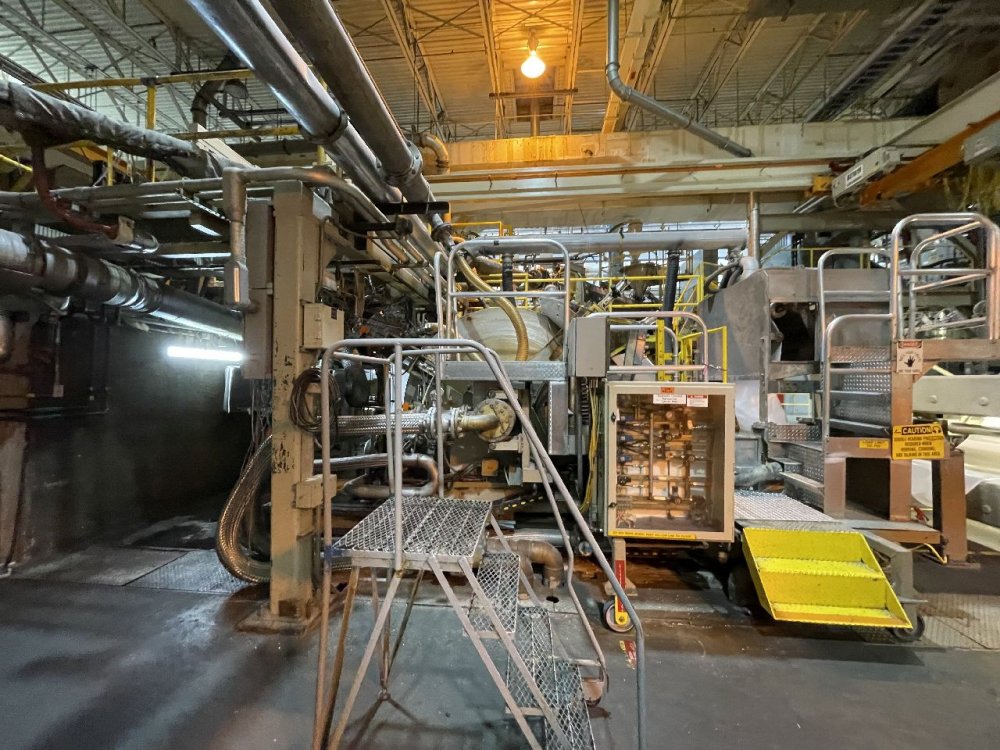

Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
Ask more informations
about a similar one
- Machine Code
- BO81
- Manufacturer
- BRUCKNER
- Year
- 1992
- Number of layers
- 5
- Overhaul/renovation
- 1998 new winder and chain track + chain. 2010 upgrade to 5 layers, 2 x new extruders + ned extrusion die
- Film structure
- ABCDE
- Material
- BOPP
- Output
- 345 m(min
- Width (mm)
- 8200

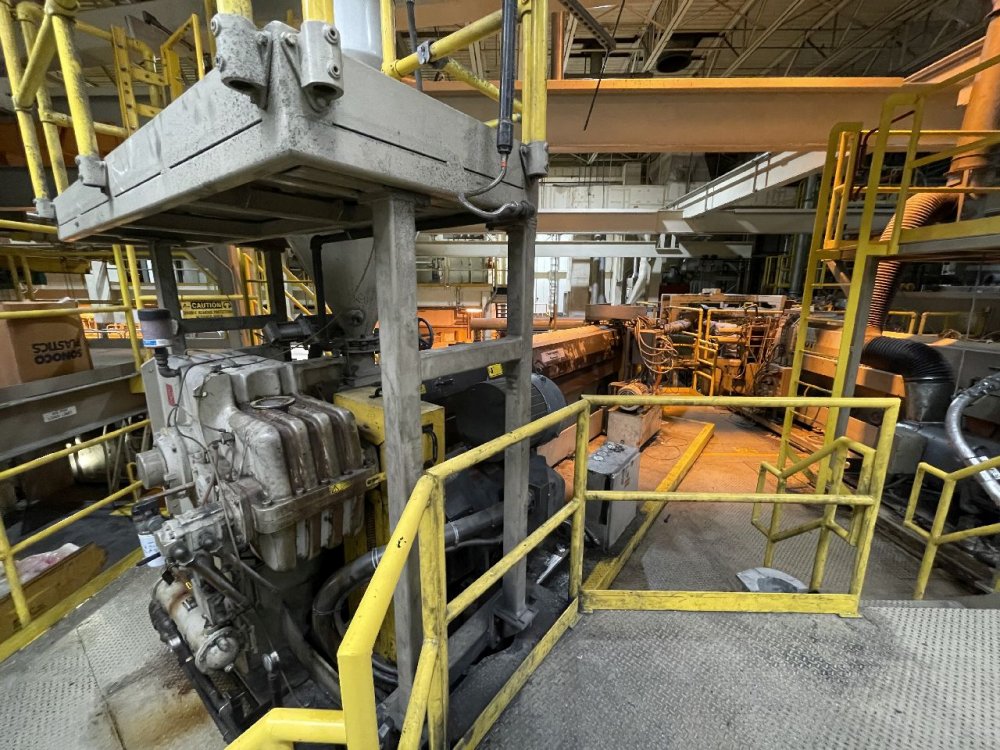

- Extruder 1 Description
- A- Make Davis Standard, type single screw, output 300 kg/h, hydraulic screen changer, gravimetric blender
- Extruder 2 Description
- B- Make Davis Standard Thematic, year 2010, type single screw, output 560 kg/h, screw dial 120mm L/D 30, hydraulic screen changer, metal pump, gravimetric blender
- Extruder 3 Description
- C- Mitsubishi, type double cascade extruder, output 3200 kg/h, screw dial 2x250mm L/D 42, hydraulic screen changer, gravimetric blender
- Extruder 4 Description
- D- Make Davis Standard Thematic, year 2010, type single screw, output 560 kg/h, screw dial 120mm L/D 30, hydraulic screen changer, metal pump, gravimetric blender
- Extruder 5 Description
- E- Make Davis Standard, type single screw, output 300 kg/h, hydraulic screen changer, gravimetric blender

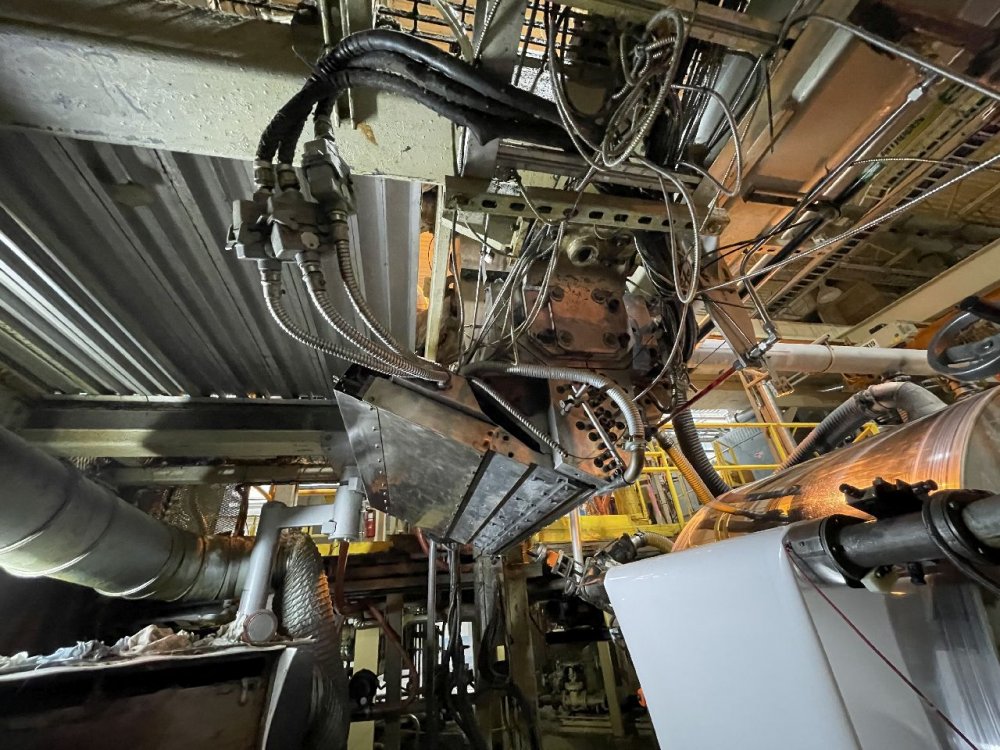

- Head description
- Make EDI, automatic thickness profile adjustment via flex lip and thermal bolts
- Die width
- 1200mm
- Thickness controll system
- ABB: 2 gauges, first after chill roll, second in pull roll area
- Chill roll unit
- Type, chill roller in water bath. Chill roller dial 2200 mm

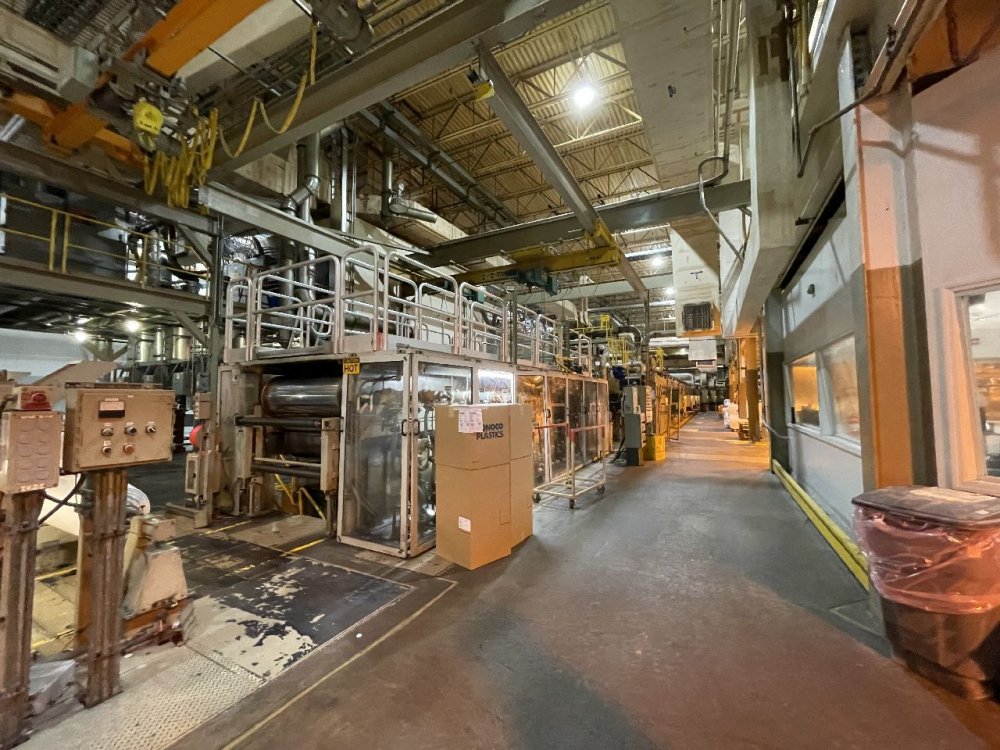

- MDO description
- 16 preheating rollers, 6 stretching rollers, 2 Annealing rollers. Hot oil heating. Hot oil oven included

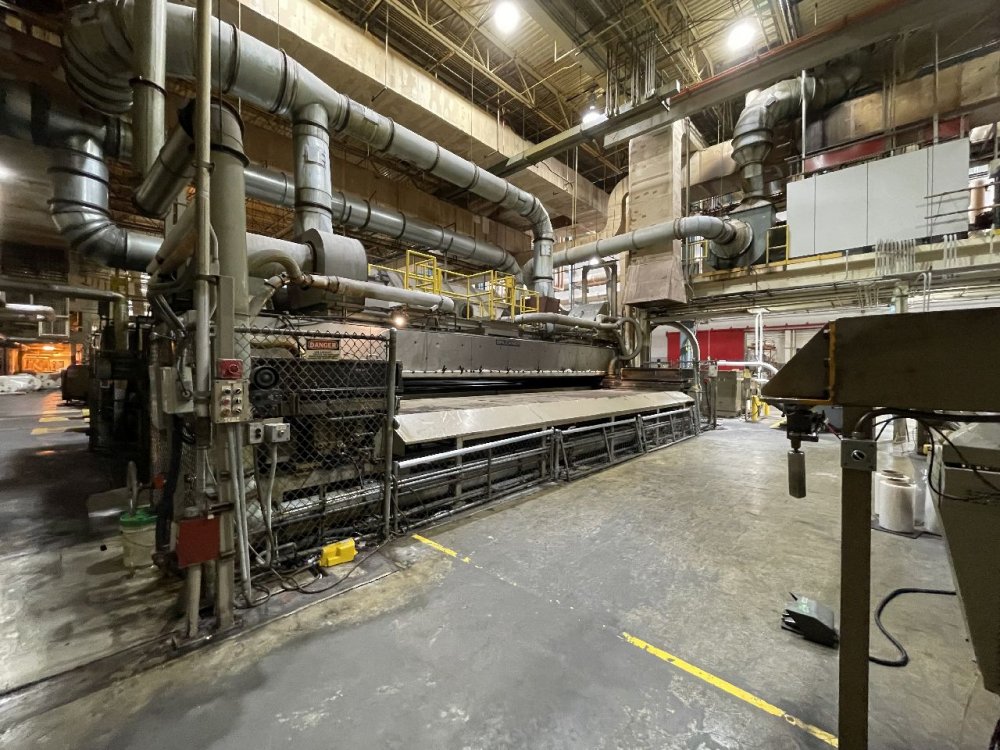

- TDO description
- Chain track type: F.O.K. 4.4.4, Thermal oil heated, 27 m preheating, 15 m stretching, 15m annealing
- Corona treatment
- Make MERO, 2 side treatment
- Rewinder description
- Type turret, non stop. 80 metal cores/reel stand
- Slitter
- Make Atlas, model CW980AP, width 8400mm, unwind max dial 1200mm, rewind type: independent couple of arms center driven, mar output reel dial 1000mm, output reel width 413-3300mm, max weight 2080kg. Approx 12 winder stands. Winder for edges. max speed 750m/min , slitting system: razor blades and grooved roller counter blade
- Note
- Extensive set of spare parts available. 80 reel cores over head bridge cranes
| Machine Code | BO81 |
| Manufacturer | BRUCKNER |
| Year | 1992 |
| Number of layers | 5 |
| Overhaul/renovation | 1998 new winder and chain track + chain. 2010 upgrade to 5 layers, 2 x new extruders + ned extrusion die |
| Film structure | ABCDE |
| Material | BOPP |
| Output | 345 m(min |
| Width (mm) | 8200 |
| Extruder 1 Description | A- Make Davis Standard, type single screw, output 300 kg/h, hydraulic screen changer, gravimetric blender |
| Extruder 2 Description | B- Make Davis Standard Thematic, year 2010, type single screw, output 560 kg/h, screw dial 120mm L/D 30, hydraulic screen changer, metal pump, gravimetric blender |
| Extruder 3 Description | C- Mitsubishi, type double cascade extruder, output 3200 kg/h, screw dial 2x250mm L/D 42, hydraulic screen changer, gravimetric blender |
| Extruder 4 Description | D- Make Davis Standard Thematic, year 2010, type single screw, output 560 kg/h, screw dial 120mm L/D 30, hydraulic screen changer, metal pump, gravimetric blender |
| Extruder 5 Description | E- Make Davis Standard, type single screw, output 300 kg/h, hydraulic screen changer, gravimetric blender |
| Head description | Make EDI, automatic thickness profile adjustment via flex lip and thermal bolts |
| Die width | 1200mm |
| Thickness controll system | ABB: 2 gauges, first after chill roll, second in pull roll area |
| Chill roll unit | Type, chill roller in water bath. Chill roller dial 2200 mm |
| MDO description | 16 preheating rollers, 6 stretching rollers, 2 Annealing rollers. Hot oil heating. Hot oil oven included |
| TDO description | Chain track type: F.O.K. 4.4.4, Thermal oil heated, 27 m preheating, 15 m stretching, 15m annealing |
| Corona treatment | Make MERO, 2 side treatment |
| Rewinder description | Type turret, non stop. 80 metal cores/reel stand |
| Slitter | Make Atlas, model CW980AP, width 8400mm, unwind max dial 1200mm, rewind type: independent couple of arms center driven, mar output reel dial 1000mm, output reel width 413-3300mm, max weight 2080kg. Approx 12 winder stands. Winder for edges. max speed 750m/min , slitting system: razor blades and grooved roller counter blade |
| Note | Extensive set of spare parts available. 80 reel cores over head bridge cranes |
