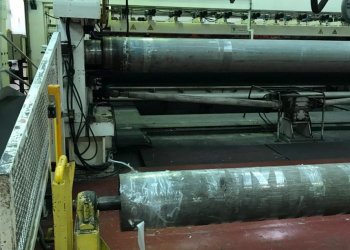

3 layers BRUCKNER BOPP / BOPET tenderframe plant

Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.

Machine Code BO55
Manufacturer BRUCKNER
Year 1990
Number of layers 3
Film structure ABC
Material BOPP 15- 40 micron
Output 1600 KG/H
Width (mm) 6000
Extruder 1 Description TR 250 L/D 33
Extruder 2 Description TR 80 L/D 32
Extruder 3 Description TR 80 L/D 32
Thickness controll system yes by THERMOfuscher

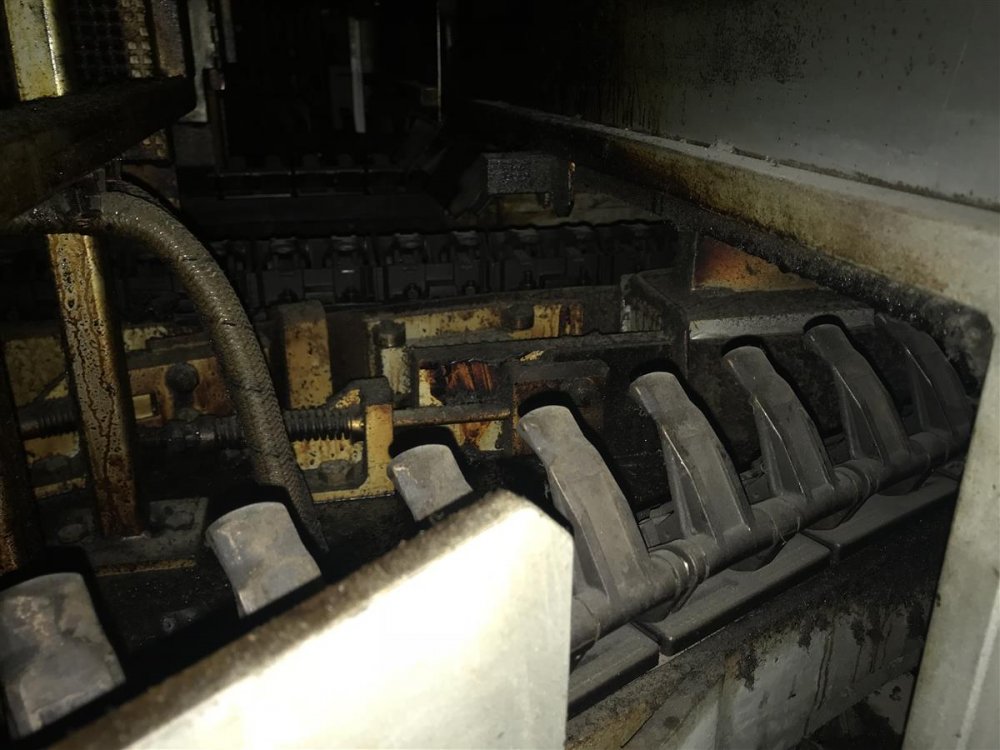

TDO description FOK 4.5.5. Chain track system -Opening closing magnetic system clips - 4 preheating zones , 4 stretching zones , 3 annealimg zones , 1 final cooling zone. Sliding chain type renovted 2010
Corona treatment yes
Flame treatment yes
Rewinder width 6000 mm
Rewinder description width 6.200 mm
Slitter available Goebels
Additional information 5 feeding silos (10 m3 each) 3 HASLER dosing equipments in line edge trim slitting with grinding and recycling Dust abatement equipments Filtration units 3 Bandera extruders L/D 32 1 biaxial (MD + TD) stenter machinery Surface treatment equipments Reeling unit Electric control cabinets Heating units (diatermic oil) edge trim suction , grinding and refeeding Max speed: 180mt/min New PLC 2013 renovation of electronic drives Mmachineis supplied with slitter Goebels 1988, width 6000mm included
