2 layers LEADER MACHINERY BOPP / BOPET tenderframe plant

** SOLD **

Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.

Ask more informations
about a similar one
Machine Code
BO42
Manufacturer
LEADER MACHINERY
Year
2006
Number of layers
2
Film structure
ABA
Material
BOPET , PETG, Shrink film (has also conducted succesful shrink OPS film trials) The thickness parameter range is 35my to 60my.
Output
300Kg/h
Width (mm)
2400

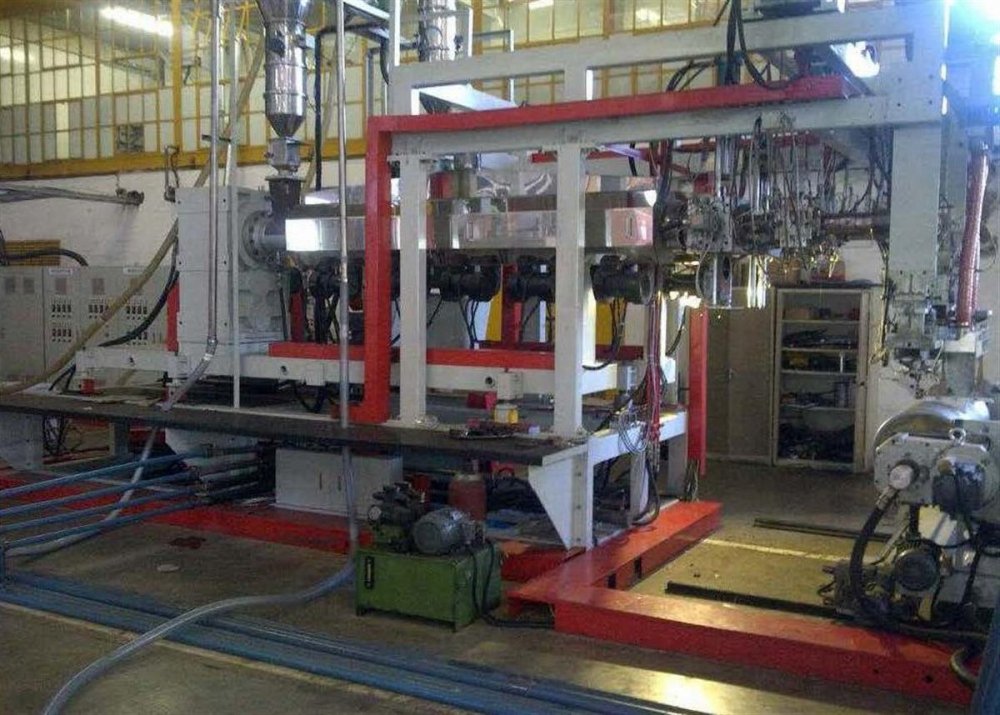

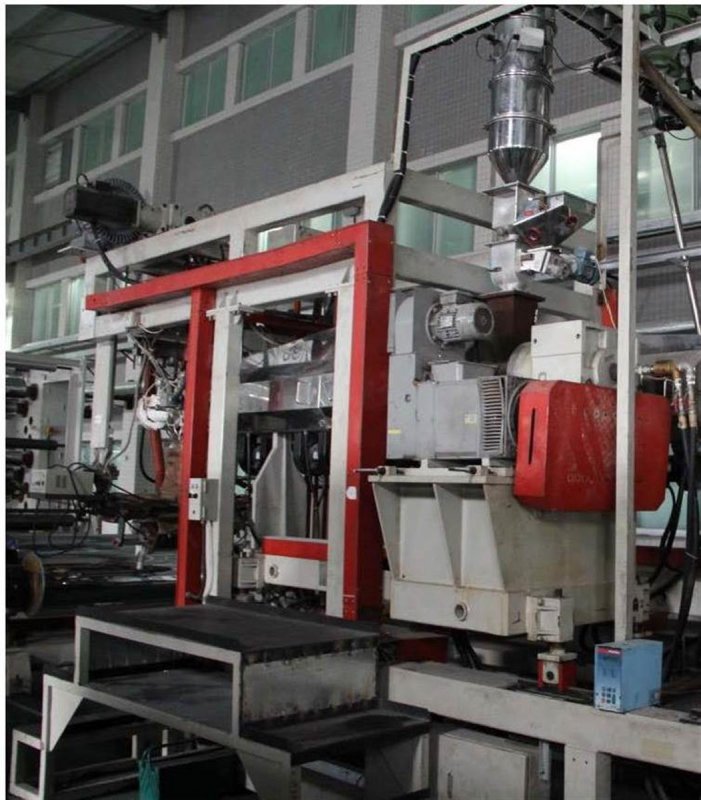

Extruder 1 Description
Auto screen changer
Extruder 2 Description
Auto screen changer
Head description
Manual T-die

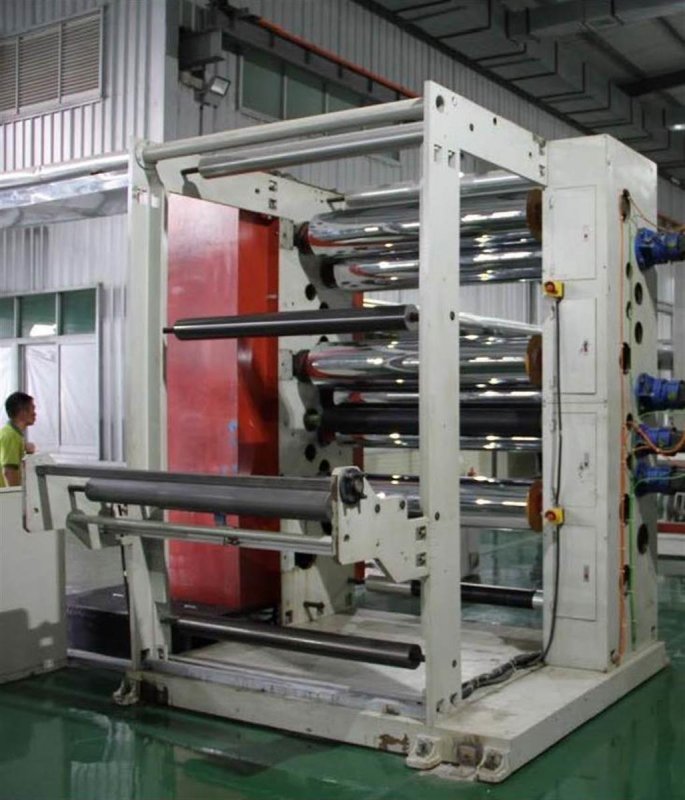

MDO description
max 30% vertical.

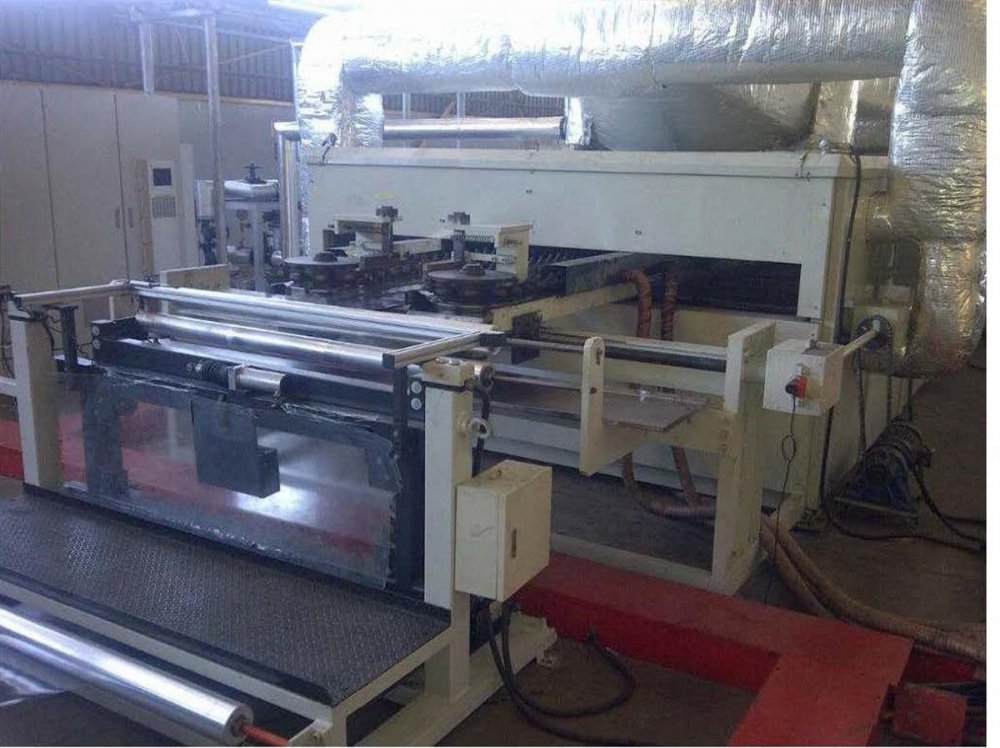

TDO description
variable width max 600%. Thermal oil heated, 6 zones. Can run separate to extrusion.
Rewinder description
Turet system with auto splice
Note
Drying : automatic drying (3 dehumidifiers, 3 silos) with auto feed Option of offline strething of alternative products such as PVC and OPP Scanning isotopic gauge scanner with display Electronics: all lates version Siemens including 7 touch screen HMI's encoders, inverters, PLC's and motors. Power requires 450 A for start up, 360V 3 phase. Consumes 220A while running Labour can be operated by 2 skilled and 2 semi-skilled operators Including boiler (fuel burning), chillers, water cooler, piping 1 x accumulator
Machine Code BO42
Manufacturer LEADER MACHINERY
Year 2006
Number of layers 2
Film structure ABA
Material BOPET , PETG, Shrink film (has also conducted succesful shrink OPS film trials) The thickness parameter range is 35my to 60my.
Output 300Kg/h
Width (mm) 2400
Extruder 1 Description Auto screen changer
Extruder 2 Description Auto screen changer
Head description Manual T-die
MDO description max 30% vertical.
TDO description variable width max 600%. Thermal oil heated, 6 zones. Can run separate to extrusion.
Rewinder description Turet system with auto splice
Note Drying : automatic drying (3 dehumidifiers, 3 silos) with auto feed Option of offline strething of alternative products such as PVC and OPP Scanning isotopic gauge scanner with display Electronics: all lates version Siemens including 7 touch screen HMI's encoders, inverters, PLC's and motors. Power requires 450 A for start up, 360V 3 phase. Consumes 220A while running Labour can be operated by 2 skilled and 2 semi-skilled operators Including boiler (fuel burning), chillers, water cooler, piping 1 x accumulator
