- Machine Code
- PC27
- Manufacturer
- DAVIS STANDARD - ERWEPA
- Year
- 2002
- Number of layers
- 7
- Material
- PP,PS, APET, PET, barrier foils as ex: PP-EVOH-PP, EPP-EVOH-PE, PS-EVOH-PP,APET-EVOH-APET. Thicknesses: 100-2000my
- Sheet width (mm)
- 1350

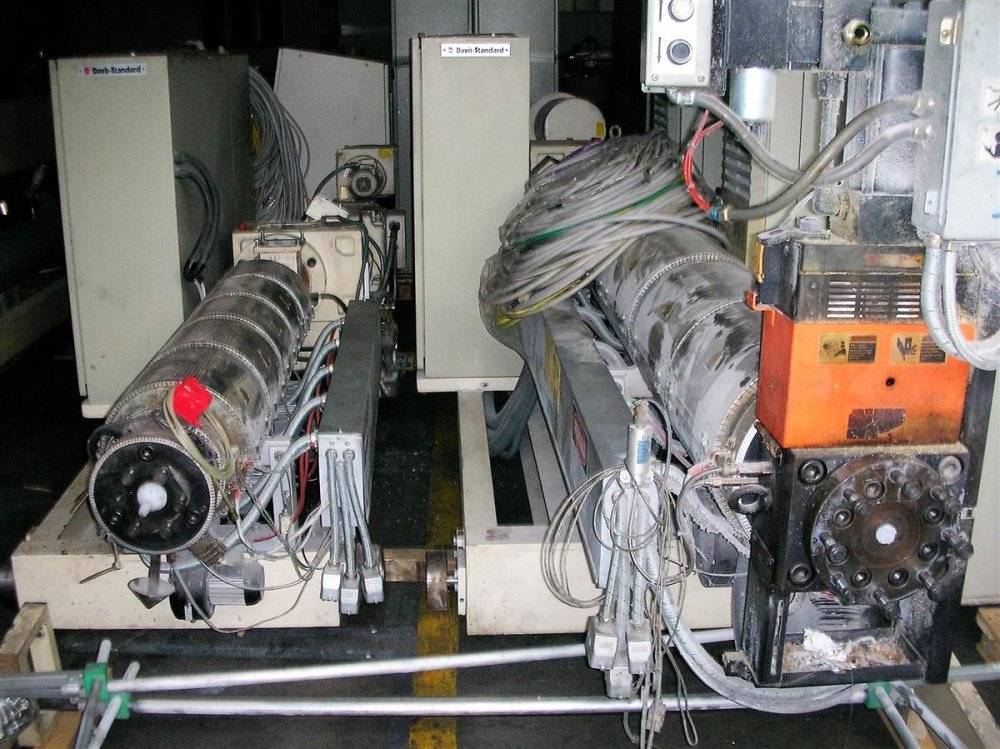

- Extruder 1 Layer ref:
- S
- Screw diam
- 115mm
- Description
- L/D32
- Extruder 2 Layer ref:
- I
- Screw diam
- 90mm
- Description
- L/D32
- Extruder 3 Layer ref:
- O
- Screw diam
- 115mm
- Description
- L/D32
- Extruder 4 Layer ref:
- B
- Screw diam
- 65mm
- Description
- L/D 28
- Extruder 5 Layer ref:
- A1
- Screw diam
- 50mm
- Description
- L/D 28
- Extruder 6 Layer ref:
- A2
- Screw diam
- 50mm
- Description
- L/D 28
- Head description
- Flat extrusion die. Automatic thickness profile adjustment though thermo bolts
- Die width (mm)
- 1590
- Thisckness controll system
- Automatic thickness control
- Polishing stack/ calender lines unit
- Rollers width 1700mm. First chill roller diam 500mm, second 600mm, third 600mm diam. guiding rollers 180mm diam
- Corona treatment
- Ferrarini Benelli
- Rewinder description
- Automatic reel change. Max reel diameter 1200mm, web tension 70-1000N
| Machine Code | PC27 |
| Manufacturer | DAVIS STANDARD - ERWEPA |
| Year | 2002 |
| Number of layers | 7 |
| Material | PP,PS, APET, PET, barrier foils as ex: PP-EVOH-PP, EPP-EVOH-PE, PS-EVOH-PP,APET-EVOH-APET. Thicknesses: 100-2000my |
| Sheet width (mm) | 1350 |
| Extruder 1 Layer ref: | S |
| Screw diam | 115mm |
| Description | L/D32 |
| Extruder 2 Layer ref: | I |
| Screw diam | 90mm |
| Description | L/D32 |
| Extruder 3 Layer ref: | O |
| Screw diam | 115mm |
| Description | L/D32 |
| Extruder 4 Layer ref: | B |
| Screw diam | 65mm |
| Description | L/D 28 |
| Extruder 5 Layer ref: | A1 |
| Screw diam | 50mm |
| Description | L/D 28 |
| Extruder 6 Layer ref: | A2 |
| Screw diam | 50mm |
| Description | L/D 28 |
| Head description | Flat extrusion die. Automatic thickness profile adjustment though thermo bolts |
| Die width (mm) | 1590 |
| Thisckness controll system | Automatic thickness control |

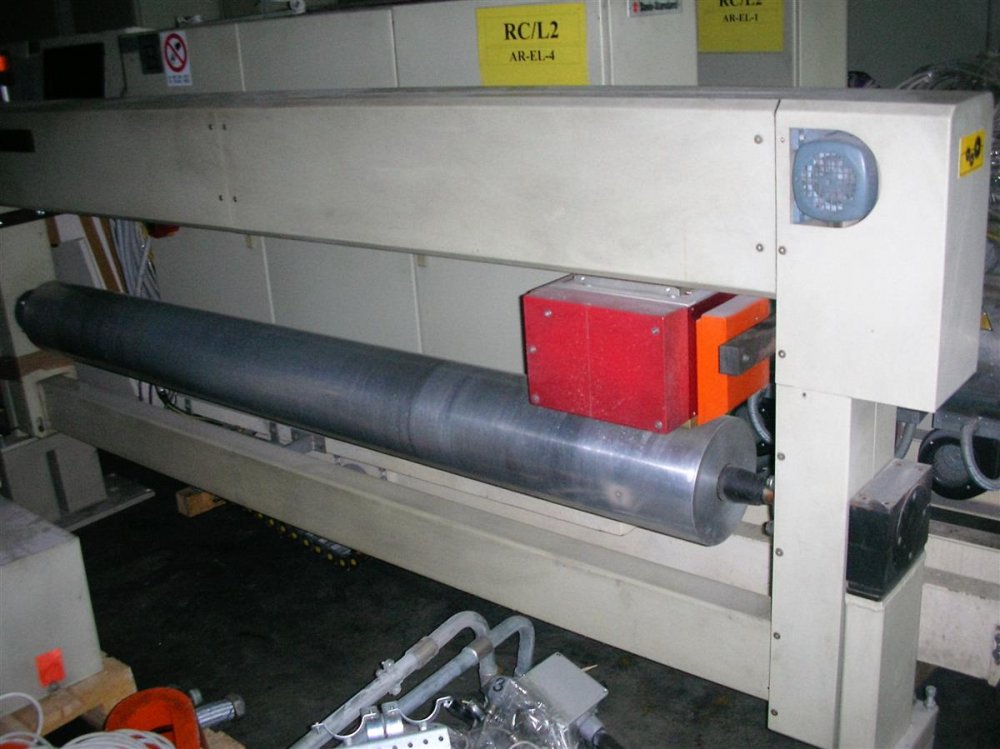

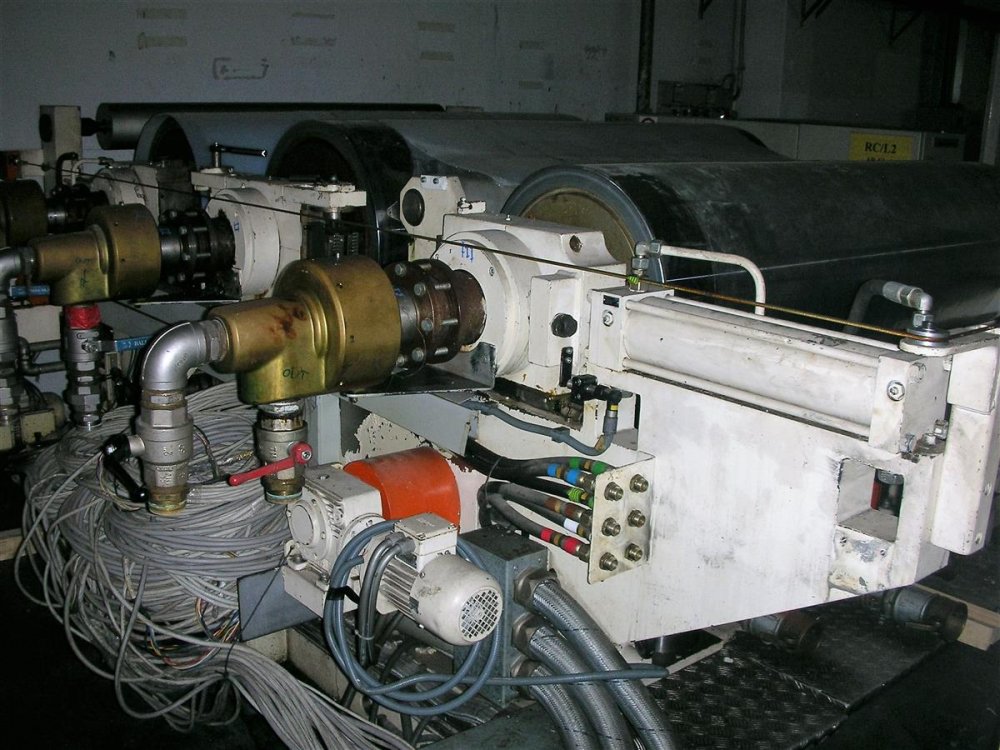

| Polishing stack/ calender lines unit | Rollers width 1700mm. First chill roller diam 500mm, second 600mm, third 600mm diam. guiding rollers 180mm diam |
| Corona treatment | Ferrarini Benelli |
| Rewinder description | Automatic reel change. Max reel diameter 1200mm, web tension 70-1000N |
