** SOLD **

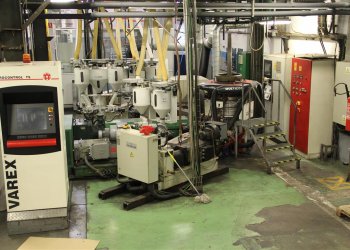

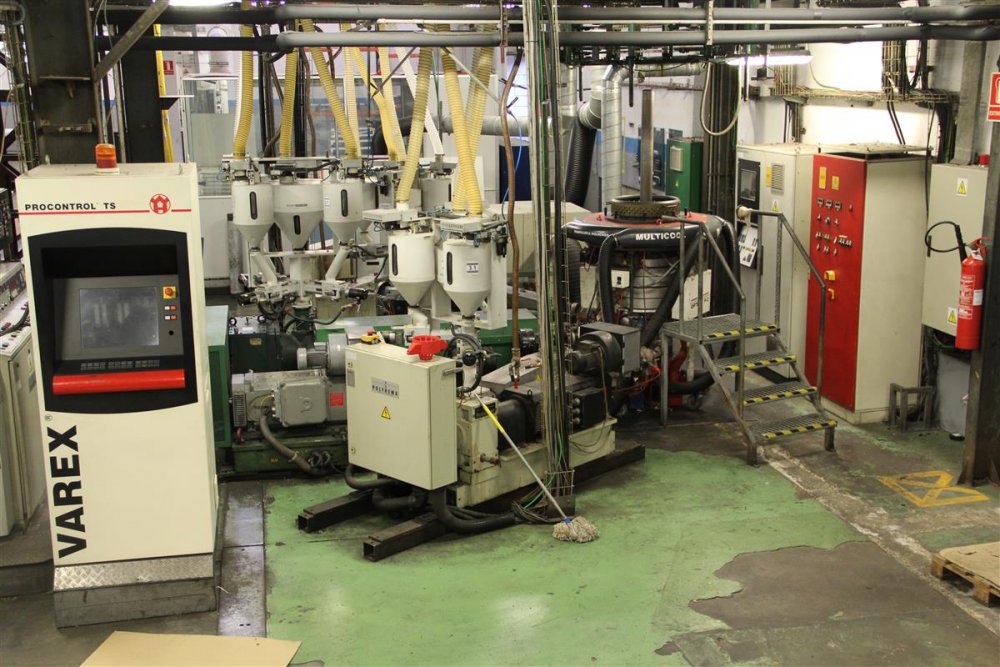

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.
Ask more informations
about a similar one
- Machine Code
- EX541
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Year
- 1999
- Number of layers
- 3
- Overhaul/renovation
- Machine partially renovated/ upgraded year-2002-2007-2010
- Film structure
- ABC
- Material
- LDPE (up to 100%), LLDPE (up to 100%) ,MDPE
- Film Width
- 1600
- Output (Kg/h)
- 300

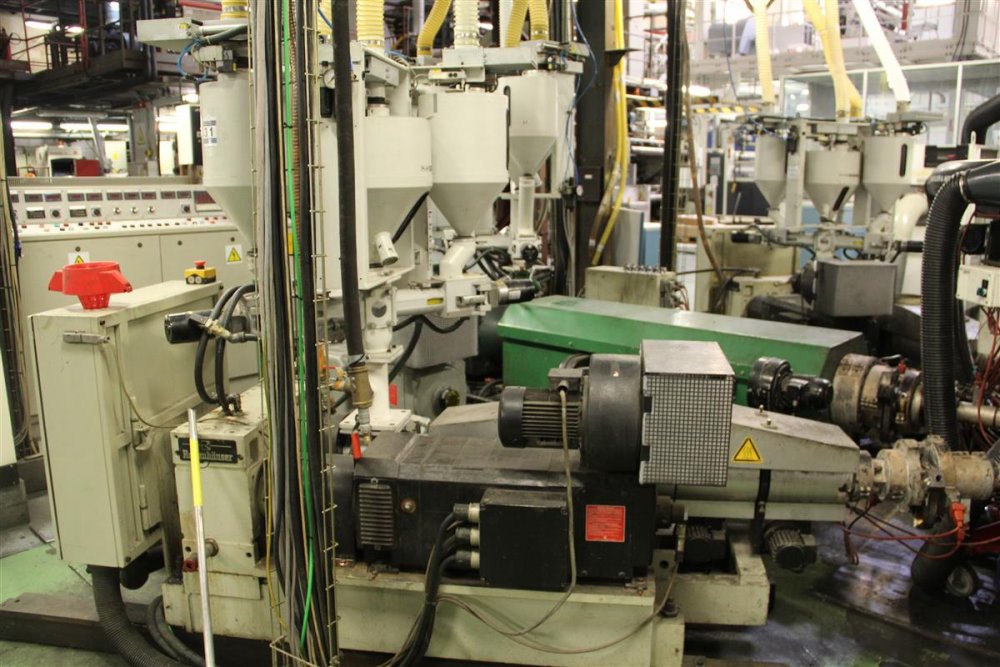

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 50
- Description 1

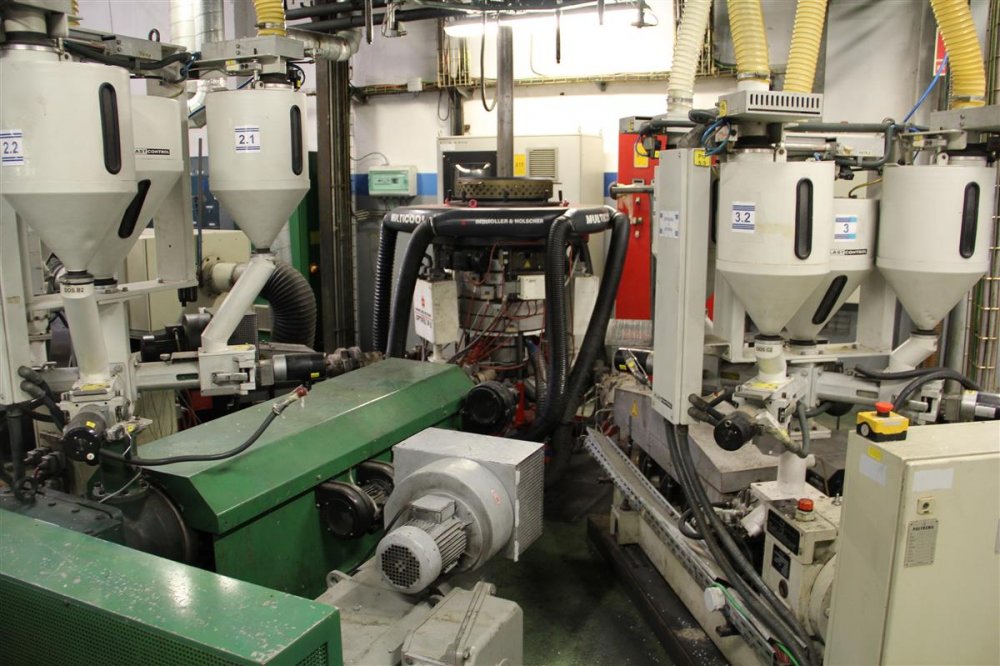

- L/D 30D; Dosing unit 4 components Plastcontrol; make: Reifenhauser
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 80
- Description 2
- L/D 23D , Dosing unit 4 components Plastcontrol
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 50
- Description 3
- L/D 30D; Dosing unit 4 components Plastcontrol; make: Reifenhauser

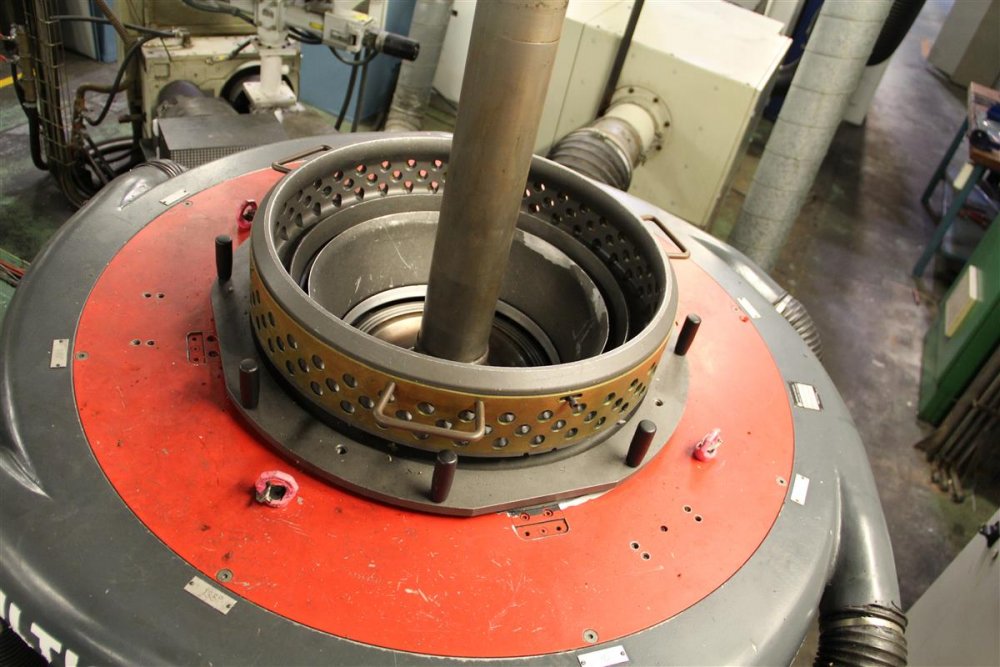

- Head description

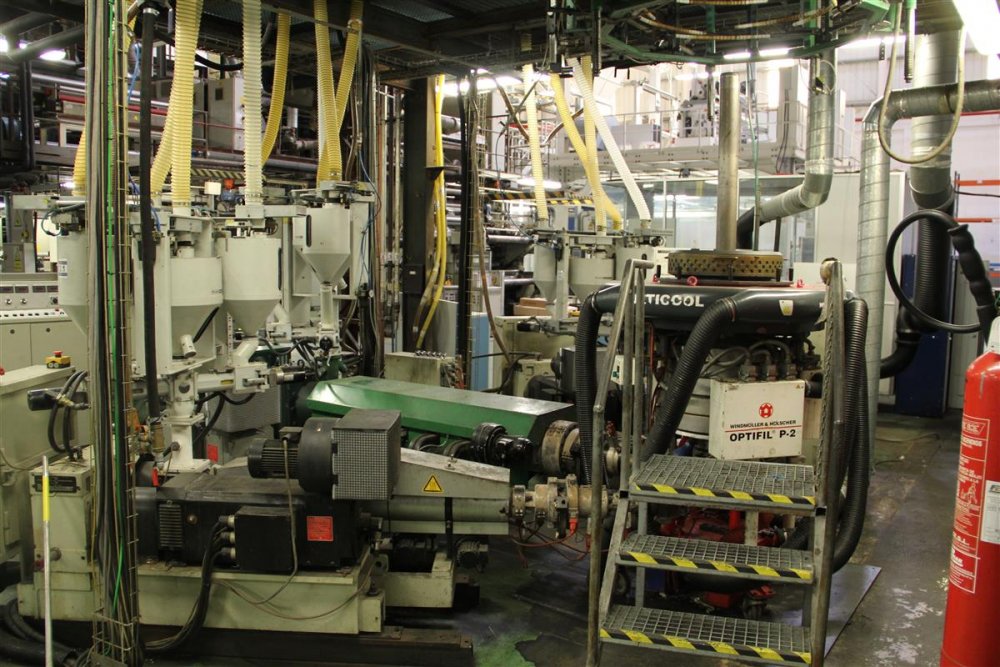

- Make W&H, Die Gap 2mm, automatic air ring W&H Optifil P2K year 2007
- Die diam (mm)
- 300
- Thickness controll system

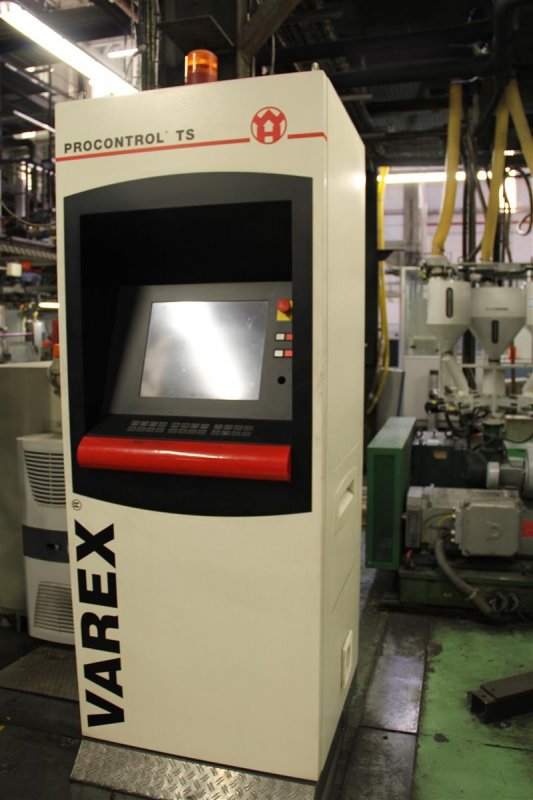

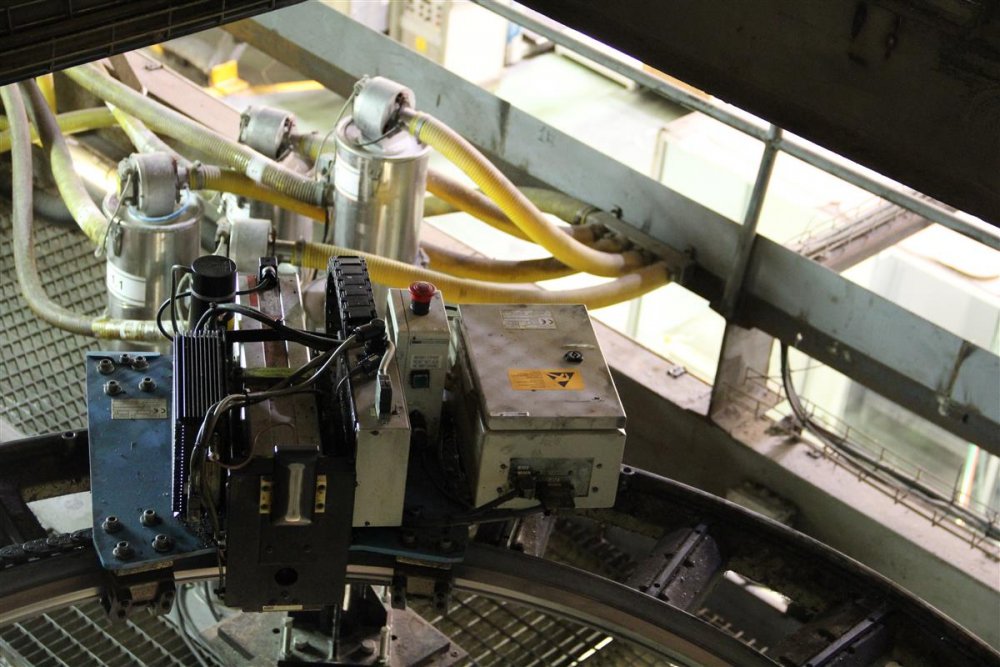

- Yes, gauge Kundig, Control W&H Procontrol TS year 2011, air ring W&H Optifil P2K
- Bubble cage
- yes

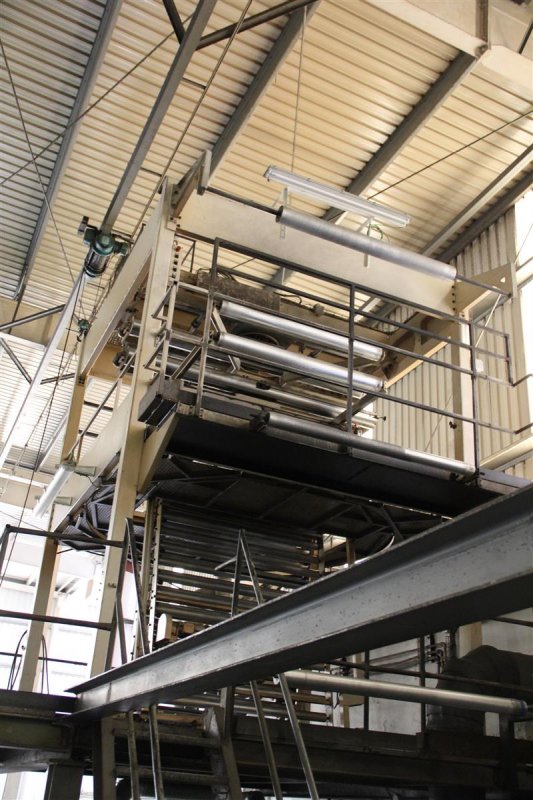

- Take off unit
- W&H Rotating
- Corona treatment
- Softal
- Web guide
- yes

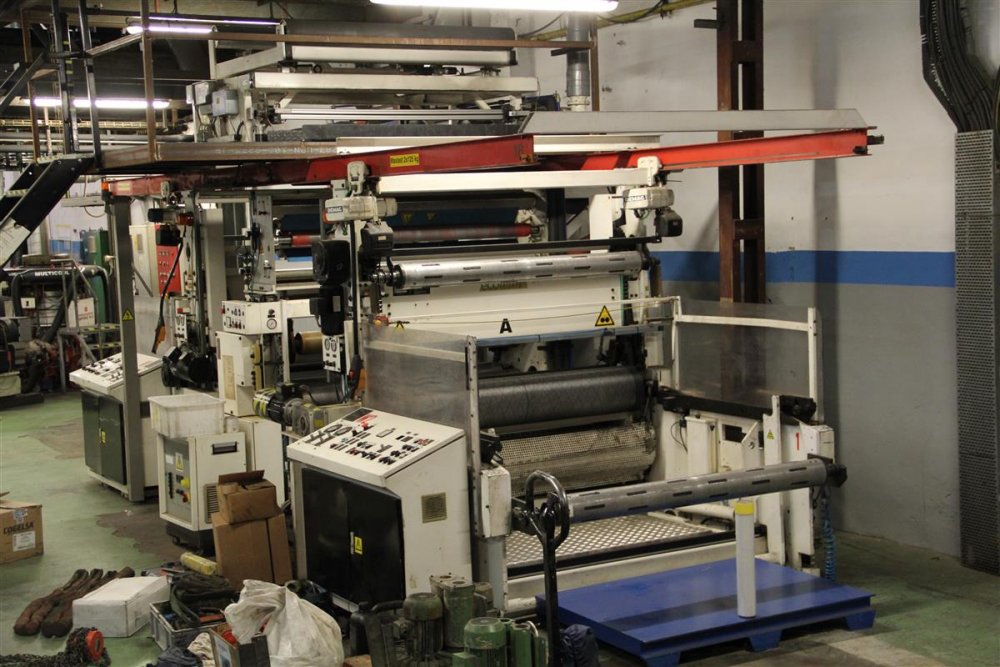

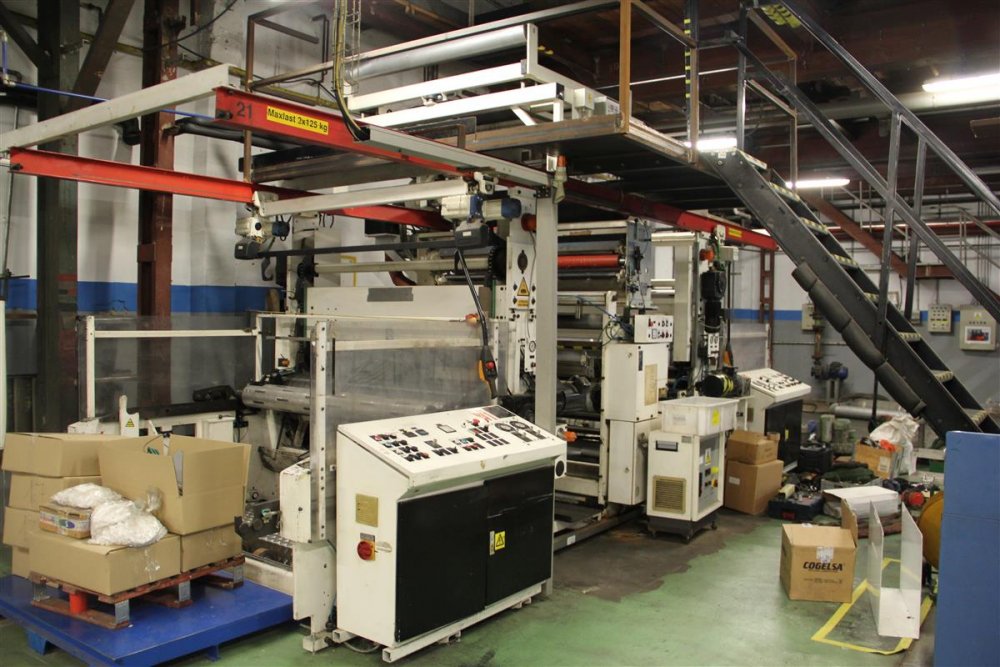

- Rewinder Type
- Double back to back
- Rewinder max reel diameter
- 1250
- Rewinder description
- Make: W& H Filmatic K , year 1997 . Width 1600mm ; Core size: 3" - 6"; Max speed 200m/min.
- Note
- Process control W&H Procontrol 2010 Perforation device
| Machine Code | EX541 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Year | 1999 |
| Number of layers | 3 |
| Overhaul/renovation | Machine partially renovated/ upgraded year-2002-2007-2010 |
| Film structure | ABC |
| Material | LDPE (up to 100%), LLDPE (up to 100%) ,MDPE |
| Film Width | 1600 |
| Output (Kg/h) | 300 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 50 |
| Description 1 | L/D 30D; Dosing unit 4 components Plastcontrol; make: Reifenhauser |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 80 |
| Description 2 | L/D 23D , Dosing unit 4 components Plastcontrol |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 50 |
| Description 3 | L/D 30D; Dosing unit 4 components Plastcontrol; make: Reifenhauser |
| Head description | Make W&H, Die Gap 2mm, automatic air ring W&H Optifil P2K year 2007 |
| Die diam (mm) | 300 |
| Thickness controll system | Yes, gauge Kundig, Control W&H Procontrol TS year 2011, air ring W&H Optifil P2K |
| Bubble cage | yes |
| Take off unit | W&H Rotating |
| Corona treatment | Softal |
| Web guide | yes |
| Rewinder Type | Double back to back |
| Rewinder max reel diameter | 1250 |
| Rewinder description | Make: W& H Filmatic K , year 1997 . Width 1600mm ; Core size: 3" - 6"; Max speed 200m/min. |
| Note | Process control W&H Procontrol 2010 Perforation device |

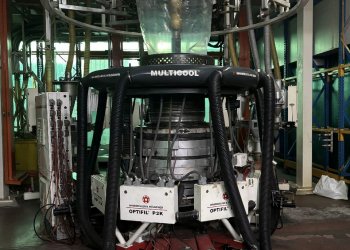

WINDMÖLLER & HÖLSCHER VAREX
-
