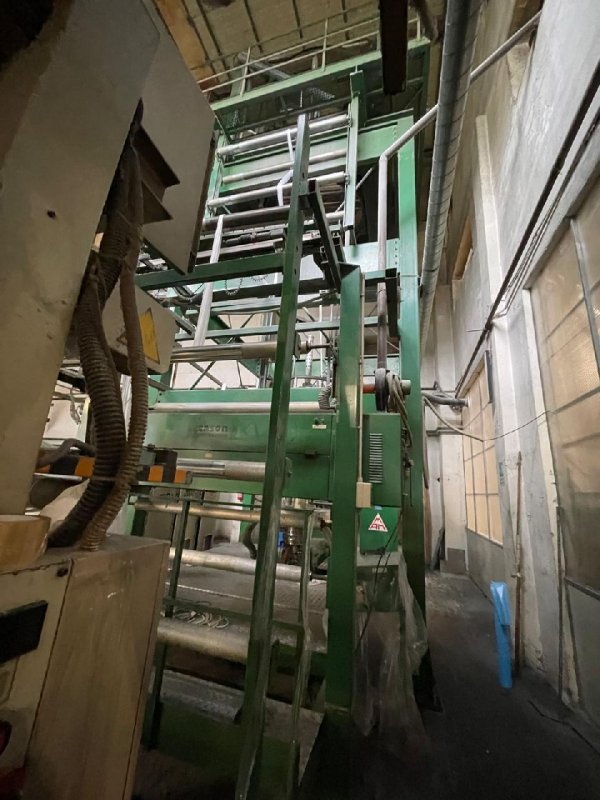

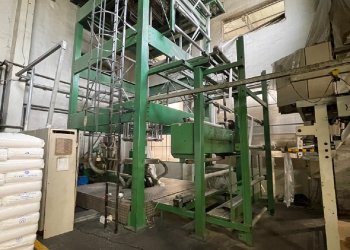

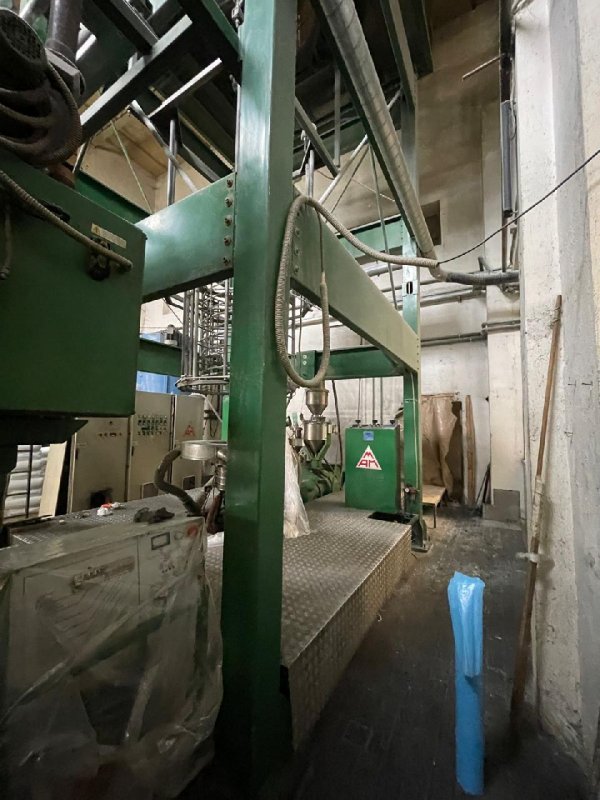

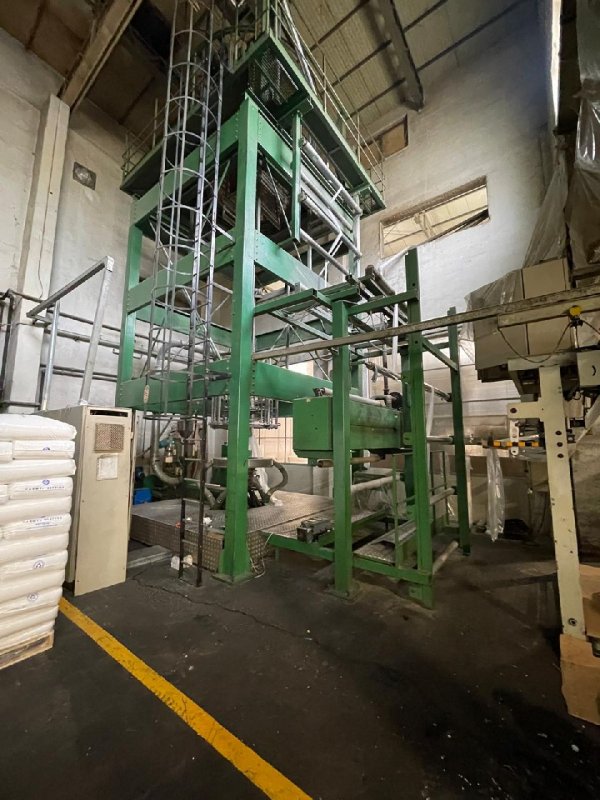

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.
Ask more informations
- Machine Code
- EX835
- Manufacturer
- MAM
- Modello
- 70
- Year
- 1998
- Number of layers
- 1
- Material
- LDPE/HDPE/BIO
- Film Width
- 1800
- Output (Kg/h)
- 240 con LDPE, 220 con HDPE
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 70/30
- Description 1
- DC motor, screen changer
- Head description
- IBC system cooling ring
- Die diam (mm)
- 220

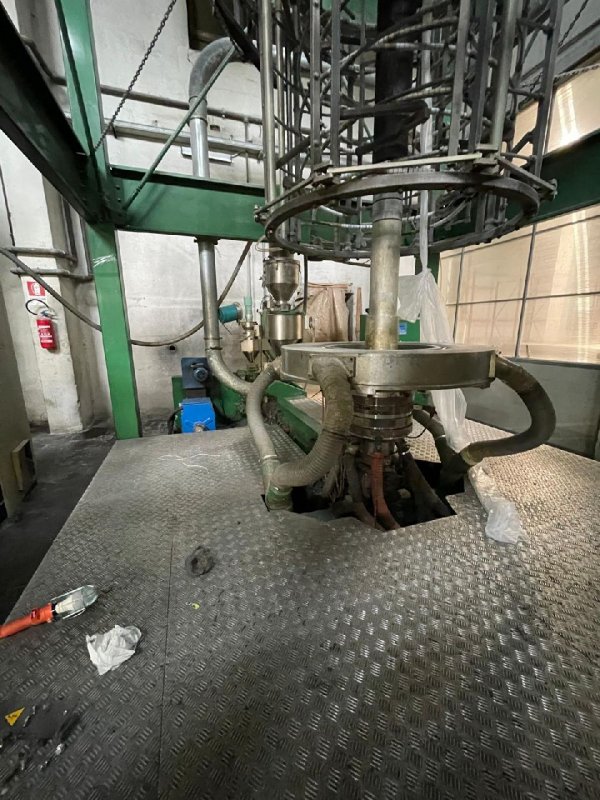

- Bubble cage
- yes
- Panel for gussets
- Yes
- Take off unit
- Oscillating
- Corona treatment
- Yes
- Web guide
- Yes

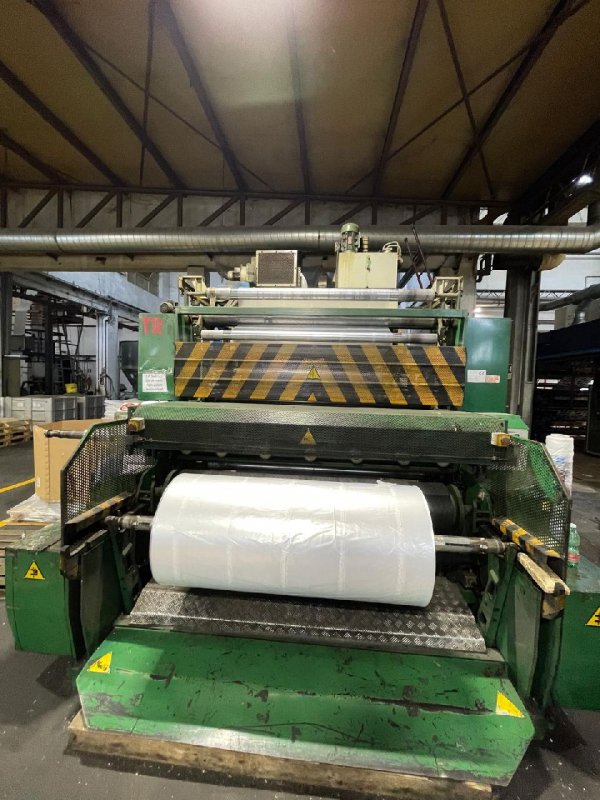

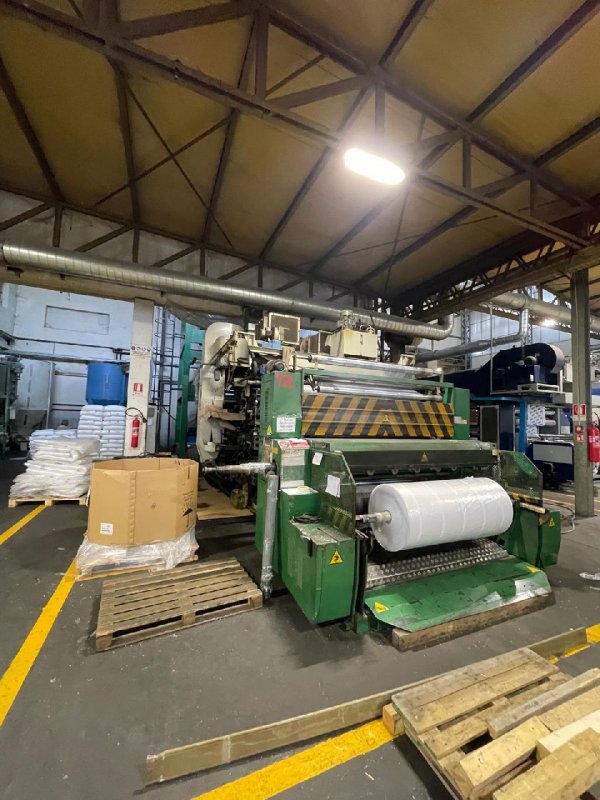

- Rewinder Type
- Single winder
- Rewinder max reel diameter
- 1000
- Rewinder description
- Flat bed
- Note
- Delivery: immediate For sale together with 6 col in line CMF flexo unit (Option).
| Machine Code | EX835 |
| Manufacturer | MAM |
| Modello | 70 |
| Year | 1998 |
| Number of layers | 1 |
| Material | LDPE/HDPE/BIO |
| Film Width | 1800 |
| Output (Kg/h) | 240 con LDPE, 220 con HDPE |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 70/30 |
| Description 1 | DC motor, screen changer |
| Head description | IBC system cooling ring |
| Die diam (mm) | 220 |
| Bubble cage | yes |
| Panel for gussets | Yes |
| Take off unit | Oscillating |
| Corona treatment | Yes |
| Web guide | Yes |
| Rewinder Type | Single winder |
| Rewinder max reel diameter | 1000 |
| Rewinder description | Flat bed |
| Note | Delivery: immediate For sale together with 6 col in line CMF flexo unit (Option). |
