In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.
Ask more informations
- Machine Code
- EX816
- Manufacturer
- BANDERA
- Year
- 2000
- Number of layers
- 3
- Overhaul/renovation
- Possible upon request
- Film structure
- ABC
- Material
- LDPE/LLDPE
- Film Width
- 12000
- Output (Kg/h)
- 1300

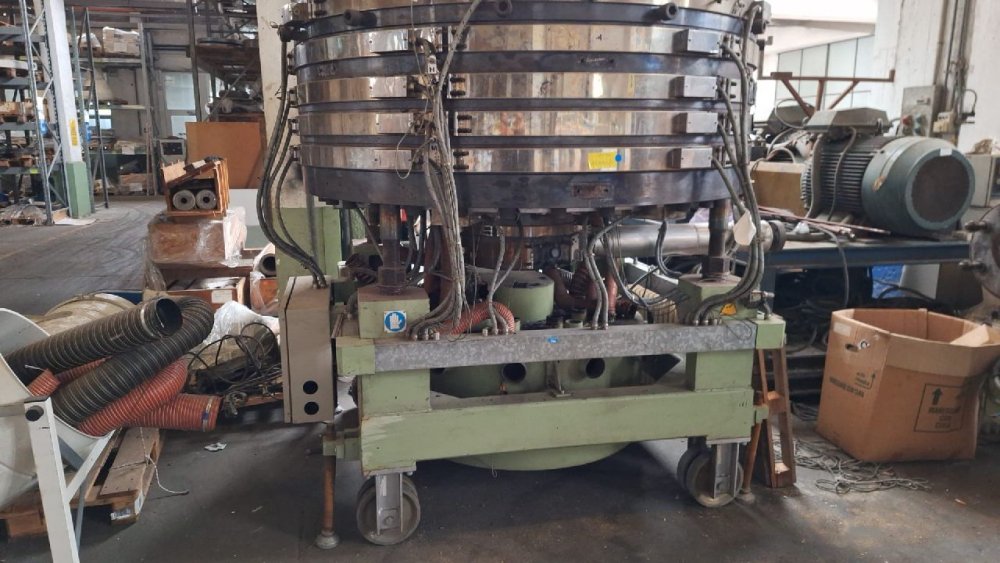

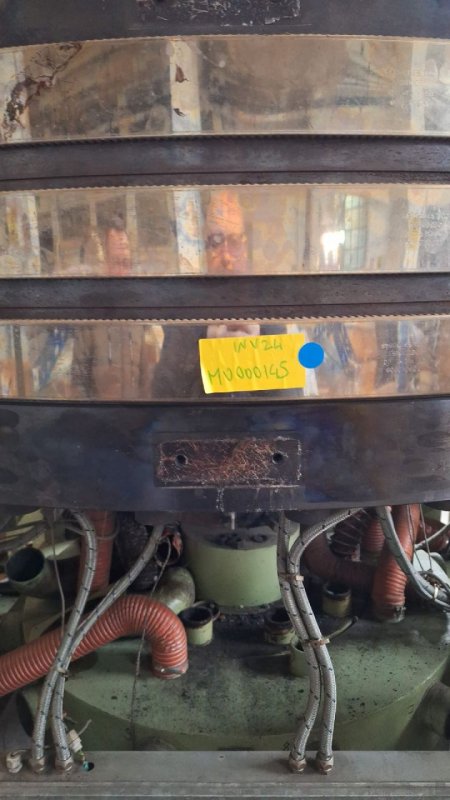

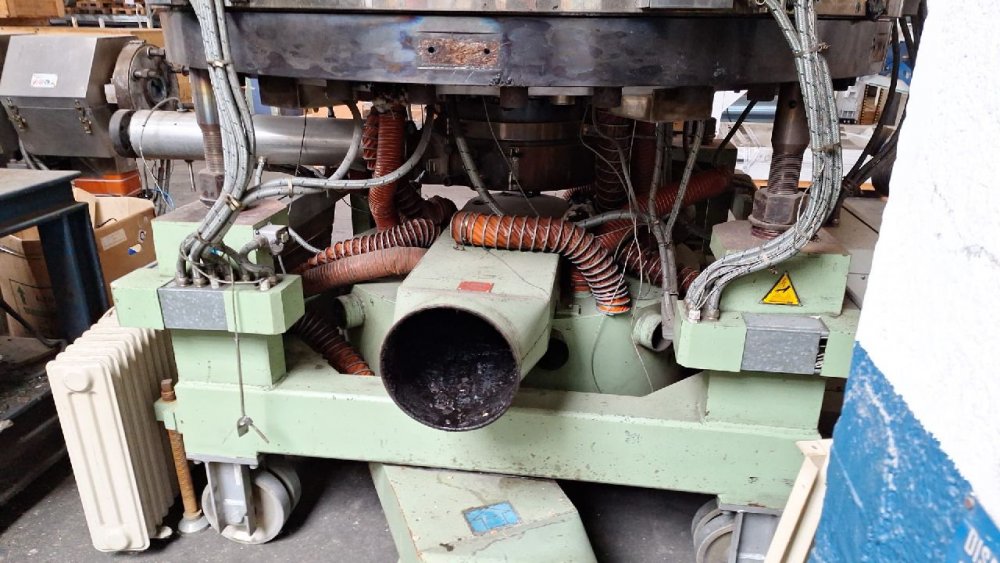

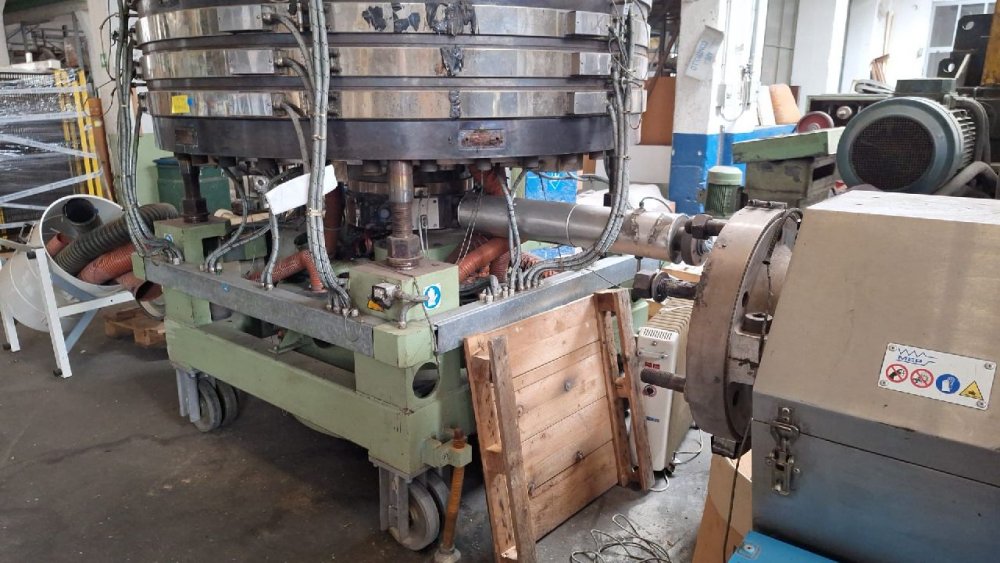

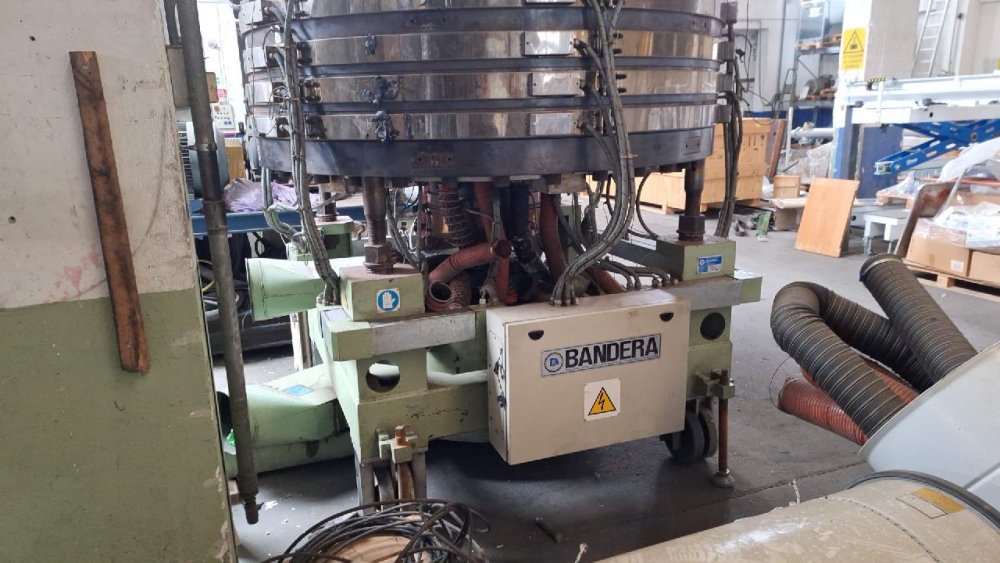

- Head description
- 3 layer head
- Die diam (mm)
- 1500
- Note
- One 120/30 extruder is available, the other two are missing. Layflat: 12.000mm
| Machine Code | EX816 |
| Manufacturer | BANDERA |
| Year | 2000 |
| Number of layers | 3 |
| Overhaul/renovation | Possible upon request |
| Film structure | ABC |
| Material | LDPE/LLDPE |
| Film Width | 12000 |
| Output (Kg/h) | 1300 |
| Head description | 3 layer head |
| Die diam (mm) | 1500 |
| Note | One 120/30 extruder is available, the other two are missing. Layflat: 12.000mm |
