Blown film extrusion lines are commonly used to extrude plastic films for flexible packaging industry.
Ask more informations
- Machine Code
- EX809
- Manufacturer
- REIFENHAUSER KIEFEL
- Modello
- KIRION 10
- Year
- 2002
- Number of layers
- 1
- Overhaul/renovation
- Yes, new screw in 2021
- Film structure
- A
- Material
- LDPE
- Film Width
- 1600
- Output (Kg/h)
- 340kg/h
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 100mm

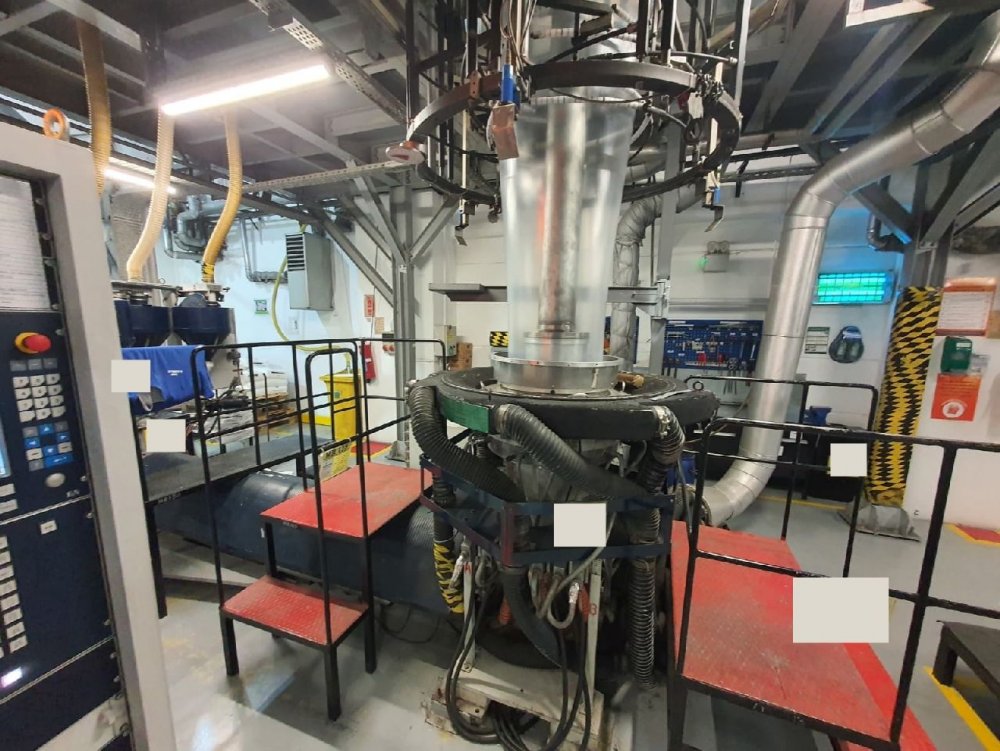

- Head description
- -KIEFEL -Internal bubble cooling IBC -cooling airing Macro, 2002 -Die Gap 1,7mm
- Die diam (mm)
- 636mm
- Thickness controll system
- Thickness gauge control - Plastcontrol C Compact, 2019 Profile control system Plastcontrol, C compact
- Take off unit
- Oscilating
- Corona treatment
- AFS AVE1500, 2 sides treated
- Rewinder Type
- Double back to back
- Rewinder max reel diameter
- 800mm

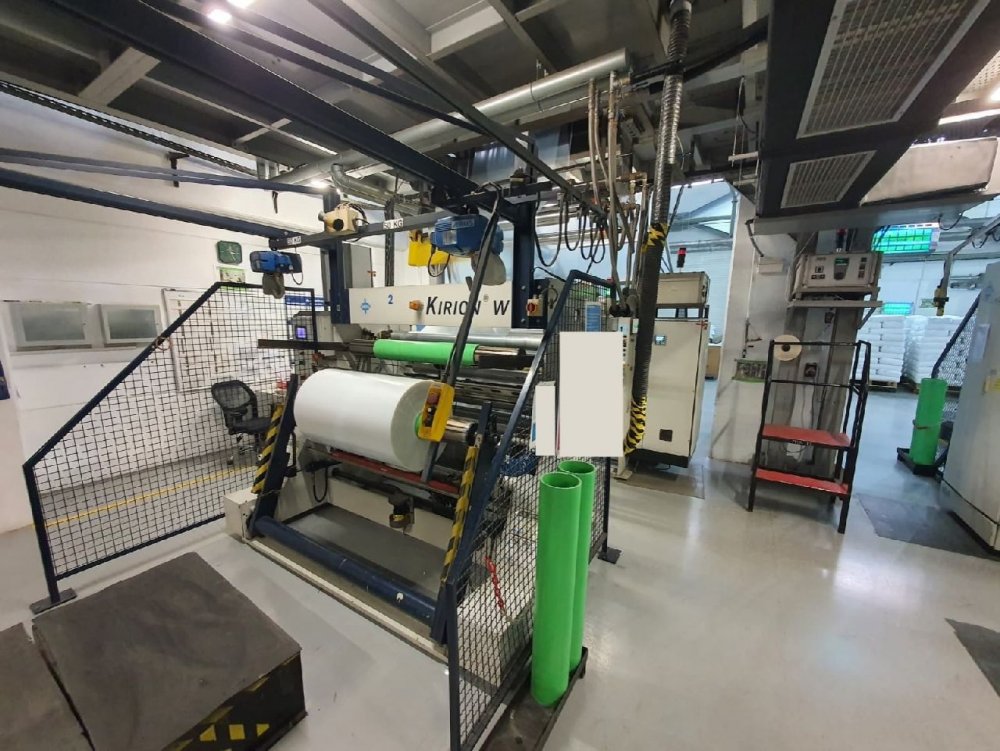

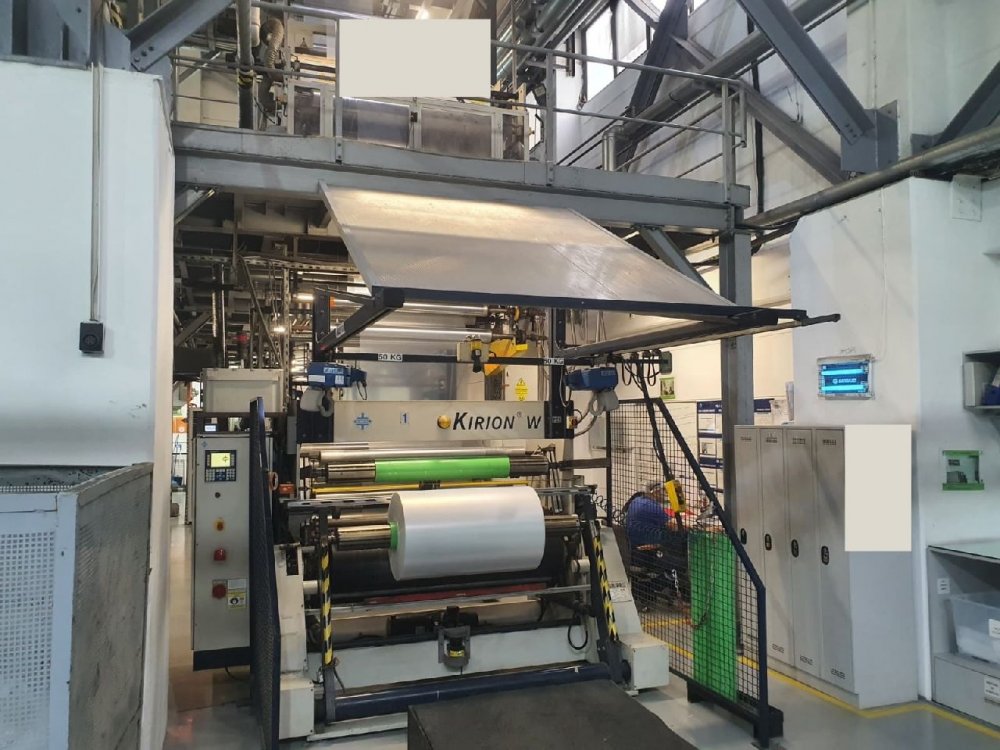

- Rewinder description
- Double turret, KIRION W 1600 S2, automatic cut
- Note
- PLC B&R X20 Film thickness- min. 30 µm, max. 140 µm NGR recycling unit in line
| Machine Code | EX809 |
| Manufacturer | REIFENHAUSER KIEFEL |
| Modello | KIRION 10 |
| Year | 2002 |
| Number of layers | 1 |
| Overhaul/renovation | Yes, new screw in 2021 |
| Film structure | A |
| Material | LDPE |
| Film Width | 1600 |
| Output (Kg/h) | 340kg/h |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 100mm |
| Head description | -KIEFEL -Internal bubble cooling IBC -cooling airing Macro, 2002 -Die Gap 1,7mm |
| Die diam (mm) | 636mm |
| Thickness controll system | Thickness gauge control - Plastcontrol C Compact, 2019 Profile control system Plastcontrol, C compact |
| Take off unit | Oscilating |
| Corona treatment | AFS AVE1500, 2 sides treated |
| Rewinder Type | Double back to back |
| Rewinder max reel diameter | 800mm |
| Rewinder description | Double turret, KIRION W 1600 S2, automatic cut |
| Note | PLC B&R X20 Film thickness- min. 30 µm, max. 140 µm NGR recycling unit in line |
