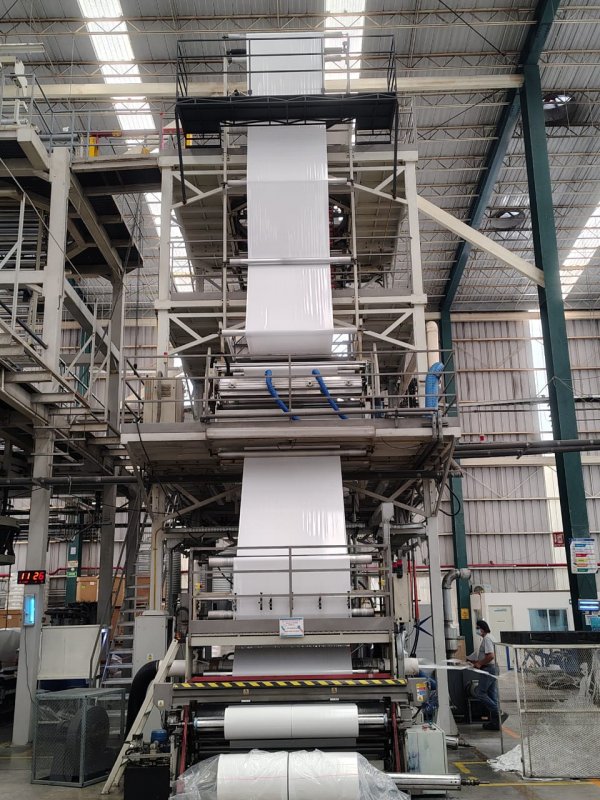

Blown film extrusion lines are commonly used to extrude plastic films for flexible packaging industry.
Ask more informations
- Machine Code
- EX802
- Manufacturer
- GHIOLDI
- Year
- 2007
- Number of layers
- 3
- Film structure
- ABC
- Material
- LDPE, MDPE, LLDPE, PP
- Film Width
- 2000
- Output (Kg/h)
- 300kg/h
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 65mm
- Description 1
- L/D 30, Bimetalic cylinder, AC Motor AC 68 Kw, DOTECO gravimetric dosers. 4 components
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 80mm
- Description 2
- L/D 30, Bimetalic cylinder, AC Motor 120 Kw, DOTECO gravimetric dosers. 4 components
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 65mm
- Description 3
- L/D 30, Bimetalic cylinder, AC Motor 68 Kw, DOTECO gravimetric dosers. 4 components

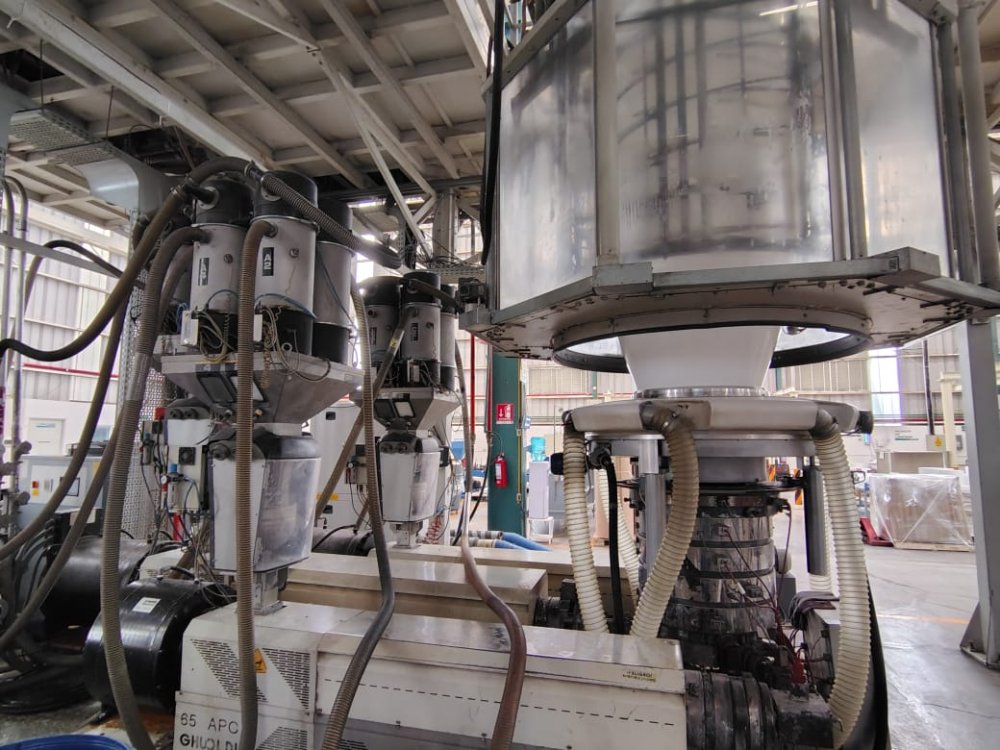

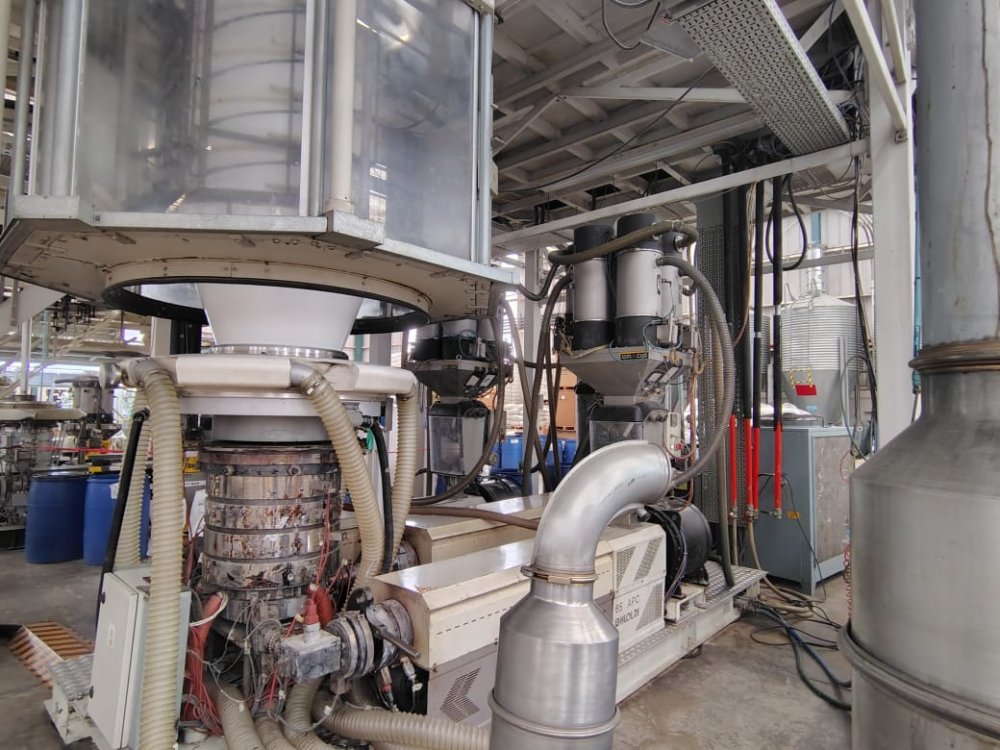

- Head description
- “35 3F” for diez , die. gap 1.4 mm, IBC with ultra Sonic sensors, Lever screen changers,Cooling ring PTS with height regulation
- Die diam (mm)
- 400mn
- Thickness controll system
- Automatic thickness control PTS with KUNDIG measuring system

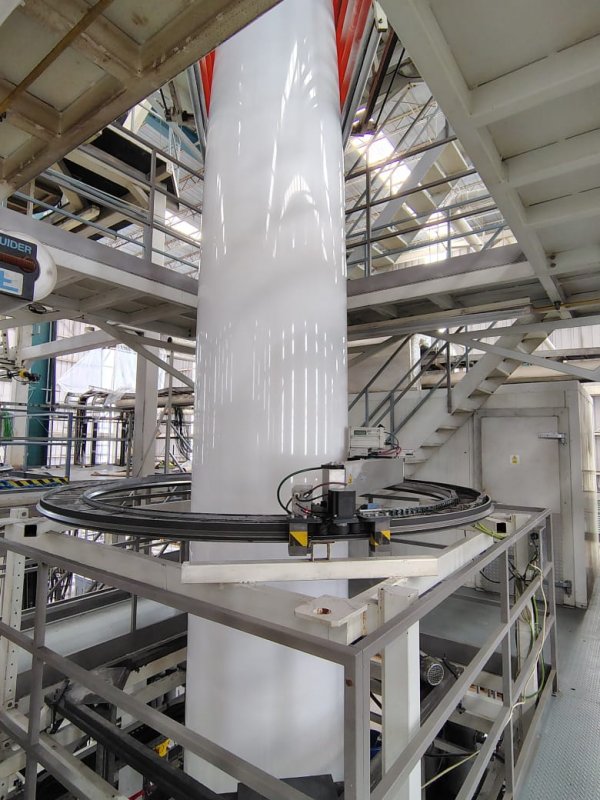

- Bubble cage
- Motorized bubble cage with Teflon rolls
- Take off unit
- Oscilating
- Web guide
- Yes

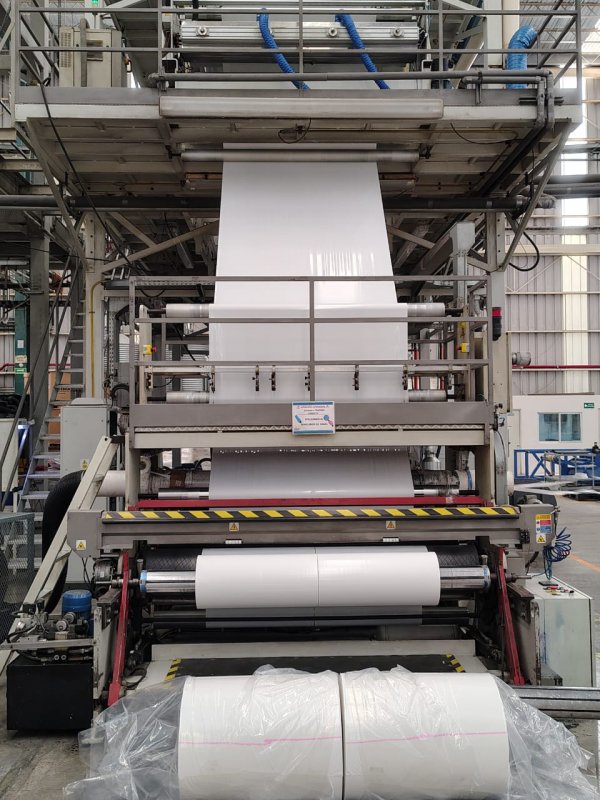

- Rewinder Type
- Double back to back
- Note
- HMI with Touch Screen Film thickness: from 35 to 115 my Central and lateral slitters Tower included
| Machine Code | EX802 |
| Manufacturer | GHIOLDI |
| Year | 2007 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | LDPE, MDPE, LLDPE, PP |
| Film Width | 2000 |
| Output (Kg/h) | 300kg/h |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 65mm |
| Description 1 | L/D 30, Bimetalic cylinder, AC Motor AC 68 Kw, DOTECO gravimetric dosers. 4 components |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 80mm |
| Description 2 | L/D 30, Bimetalic cylinder, AC Motor 120 Kw, DOTECO gravimetric dosers. 4 components |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 65mm |
| Description 3 | L/D 30, Bimetalic cylinder, AC Motor 68 Kw, DOTECO gravimetric dosers. 4 components |
| Head description | “35 3F” for diez , die. gap 1.4 mm, IBC with ultra Sonic sensors, Lever screen changers,Cooling ring PTS with height regulation |
| Die diam (mm) | 400mn |
| Thickness controll system | Automatic thickness control PTS with KUNDIG measuring system |
| Bubble cage | Motorized bubble cage with Teflon rolls |
| Take off unit | Oscilating |
| Web guide | Yes |
| Rewinder Type | Double back to back |
| Note | HMI with Touch Screen Film thickness: from 35 to 115 my Central and lateral slitters Tower included |
