Raw material most commonly used are low density polyethylene (LDPE) and High density polyethylene (HDPE). These are often used in blends with other polymers and additives.
Ask more informations
- Machine Code
- EX801
- Manufacturer
- KIEFEL
- Modello
- COEX 5
- Year
- 2001
- Number of layers
- 5
- Film structure
- A( int) - B ( HV Int) -C (Barrier ) - D (HV -Ext) -E ( Ext)
- Material
- LDPE , LLDPE, MDPE ,
- Film Width
- 2000
- Output (Kg/h)
- 500
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 70 mm -29D
- Description 1

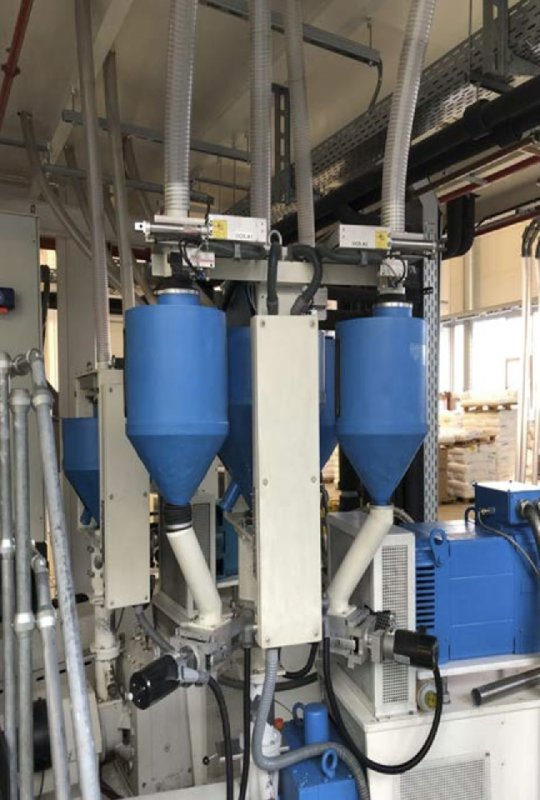

- 5 zone screw for LDPE, LLDPE, MDPE , HV -Gravimetric doser Plast Control - Motor 89 KW
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 50 mm-25D
- Description 2
- 3 zone screw for LDPE, LLDPE/MDPE/HDPE mix, , HV -Gravimetric doser Plast Control -motor 34 KW
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 50 mm-25D
- Description 3
- 5 zone screw for EVOH, PA , LLDPE-MDPE- Mix , HV -Gravimetric doser Plast Control - Motor 34 KW
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 50 mm - 25 D
- Description 4
- 3 zone screw for LDPE, LLDPE/MDPE/HDPE mix, , HV -Gravimetric doser Plast Control -motor 34 KW
- Extruder 5 Layer ref:
- E
- Screw diam 5
- 80 mm- 25D
- Description 5
- 5 zone screw for LDPE, LLDPE, MDPE , HV -Gravimetric doser Plast Control - Motor 89 KW

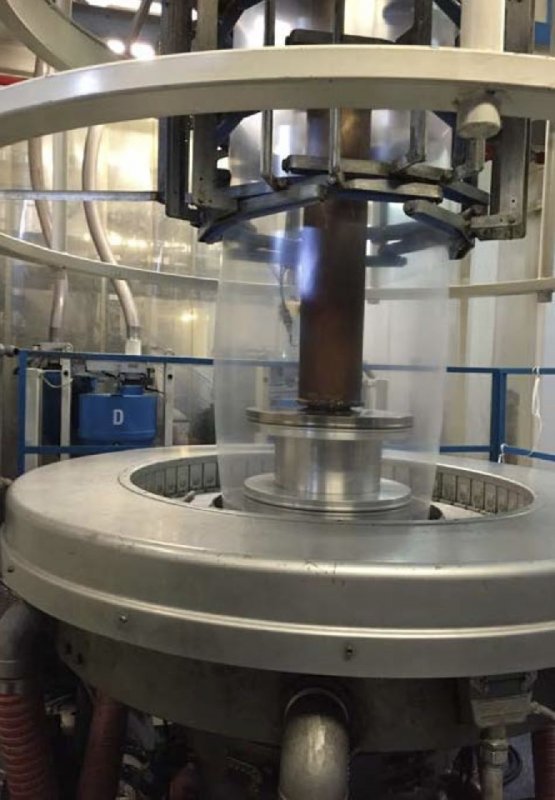

- Head description
- Kiefel FSBK 500 with IBC
- Die diam (mm)
- 500
- Thickness controll system
- yes automatic -Cooling ring Plast Control -Measuring system C- Scan Capacitive system

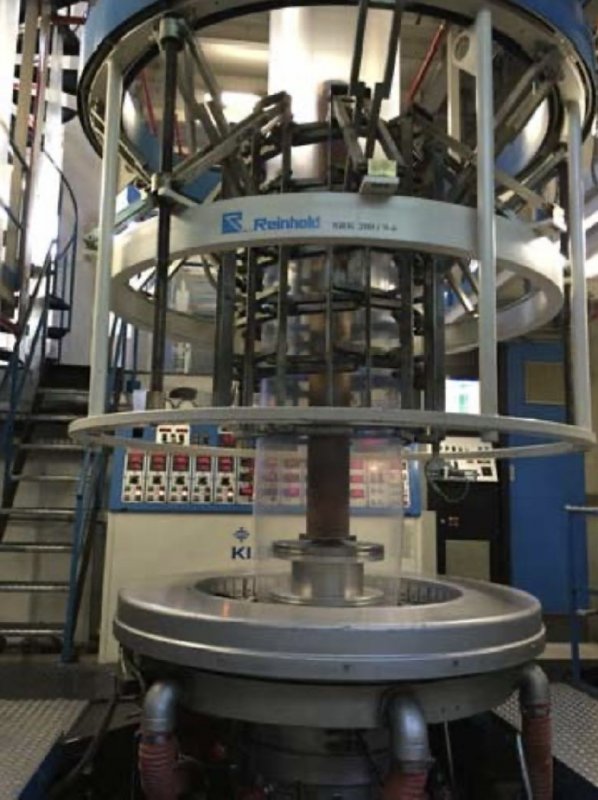

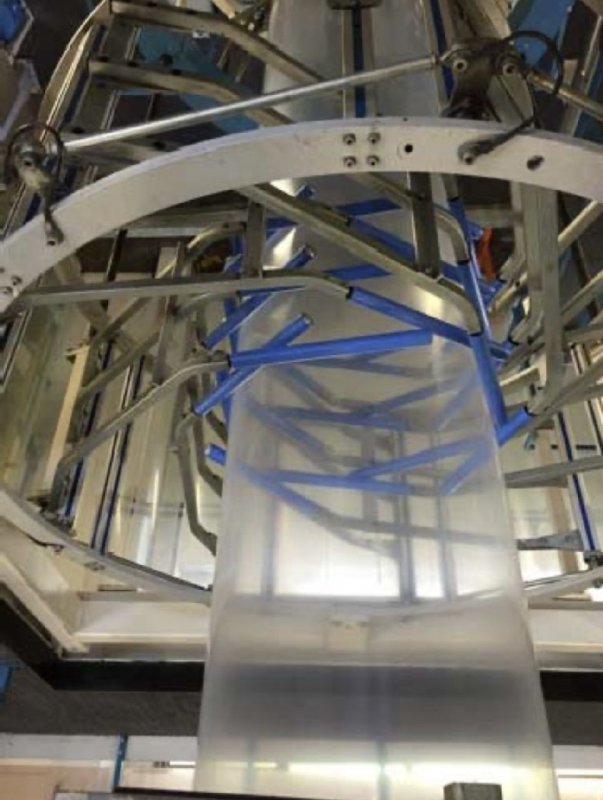

- Bubble cage
- Reinhold SRK 200/ 9-6

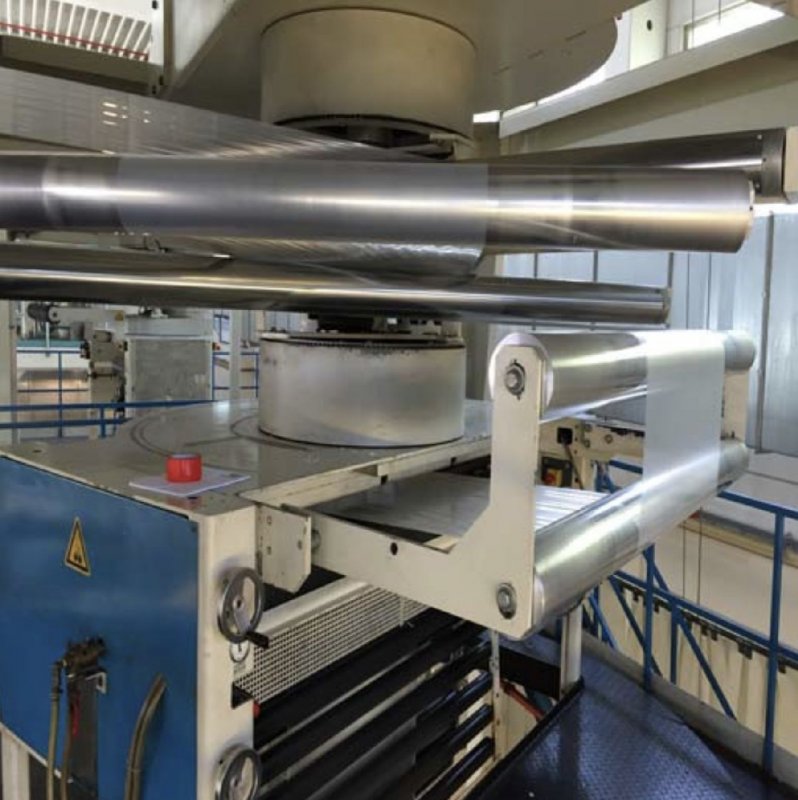

- Take off unit
- Reinhold
- Corona treatment
- AFS Nax 52 mN/m
- Web guide
- Ehrard & Leimer

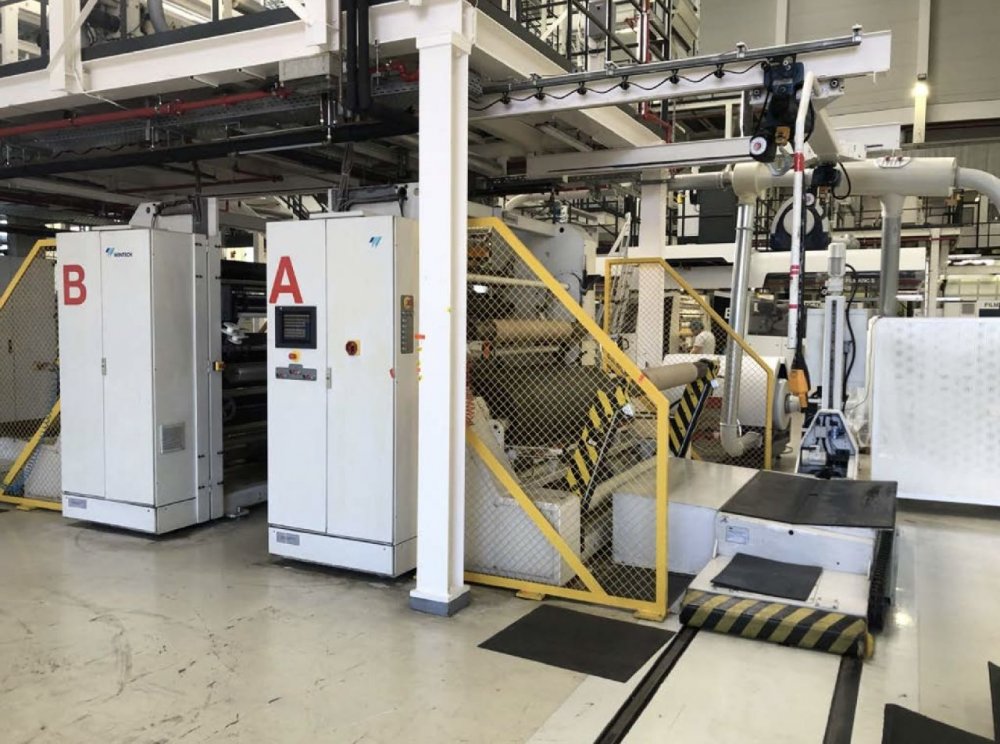

- Rewinder Type
- Double back to back
- Rewinder description
- Wintech
- Note
- Tower structure included
| Machine Code | EX801 |
| Manufacturer | KIEFEL |
| Modello | COEX 5 |
| Year | 2001 |
| Number of layers | 5 |
| Film structure | A( int) - B ( HV Int) -C (Barrier ) - D (HV -Ext) -E ( Ext) |
| Material | LDPE , LLDPE, MDPE , |
| Film Width | 2000 |
| Output (Kg/h) | 500 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 70 mm -29D |
| Description 1 | 5 zone screw for LDPE, LLDPE, MDPE , HV -Gravimetric doser Plast Control - Motor 89 KW |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 50 mm-25D |
| Description 2 | 3 zone screw for LDPE, LLDPE/MDPE/HDPE mix, , HV -Gravimetric doser Plast Control -motor 34 KW |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 50 mm-25D |
| Description 3 | 5 zone screw for EVOH, PA , LLDPE-MDPE- Mix , HV -Gravimetric doser Plast Control - Motor 34 KW |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 50 mm - 25 D |
| Description 4 | 3 zone screw for LDPE, LLDPE/MDPE/HDPE mix, , HV -Gravimetric doser Plast Control -motor 34 KW |
| Extruder 5 Layer ref: | E |
| Screw diam 5 | 80 mm- 25D |
| Description 5 | 5 zone screw for LDPE, LLDPE, MDPE , HV -Gravimetric doser Plast Control - Motor 89 KW |
| Head description | Kiefel FSBK 500 with IBC |
| Die diam (mm) | 500 |
| Thickness controll system | yes automatic -Cooling ring Plast Control -Measuring system C- Scan Capacitive system |
| Bubble cage | Reinhold SRK 200/ 9-6 |
| Take off unit | Reinhold |
| Corona treatment | AFS Nax 52 mN/m |
| Web guide | Ehrard & Leimer |
| Rewinder Type | Double back to back |
| Rewinder description | Wintech |
| Note | Tower structure included |
