** SOLD **

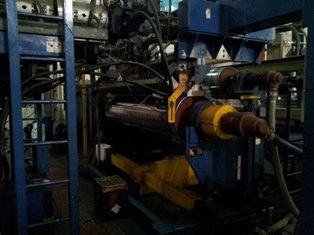

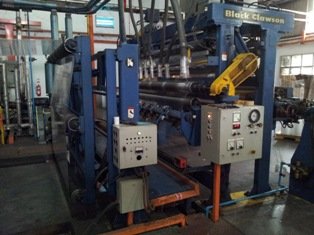

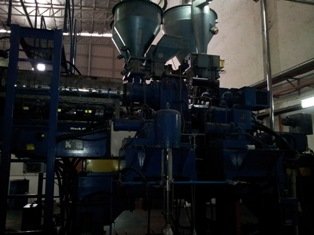

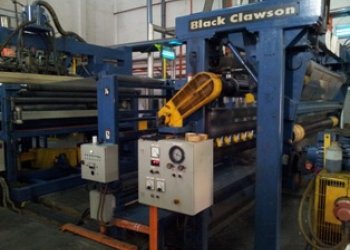

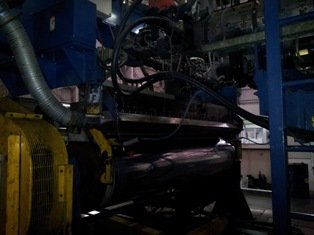

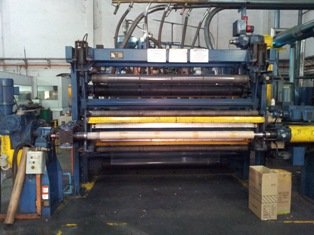

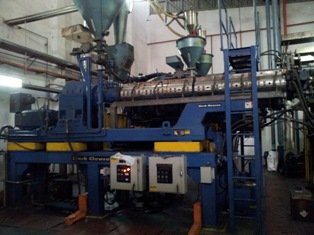

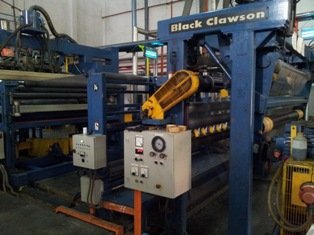

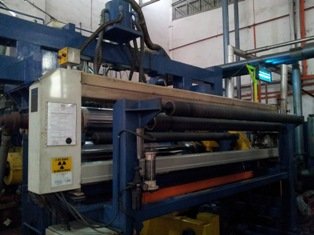

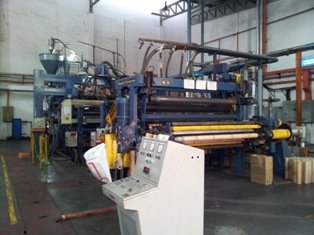

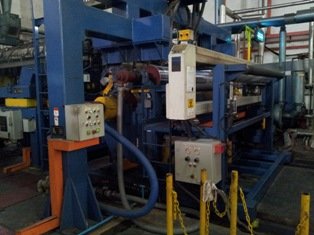

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
about a similar one
- Machine Code
- CA130
- Manufacturer
- BLACK CLAWSON
- Year
- 1995
- Number of layers
- 3
- Material
- Stretch film LLDPE
- Film width (mm)
- 2000
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 114mm (4.5" )
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 63mm (2.5")
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 63mm (2.5")
- Die width (mm)
- 2540mm
- Thickness controll system

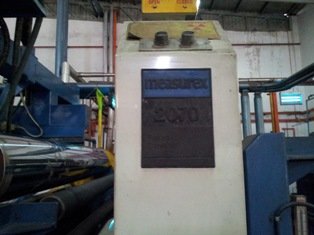

- In line thickness gauge Measurex, die regulation Manual
- Note
- It can be seen in running conditions. Power consumption about 500 amps in smooth operation condition. Startung up is about 800 Amps. Winder shaft 76mm.
| Machine Code | CA130 |
| Manufacturer | BLACK CLAWSON |
| Year | 1995 |
| Number of layers | 3 |
| Material | Stretch film LLDPE |
| Film width (mm) | 2000 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 114mm (4.5" ) |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 63mm (2.5") |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 63mm (2.5") |
| Die width (mm) | 2540mm |
| Thickness controll system | In line thickness gauge Measurex, die regulation Manual |
| Note | It can be seen in running conditions. Power consumption about 500 amps in smooth operation condition. Startung up is about 800 Amps. Winder shaft 76mm. |
