Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA250
- Manufacturer
- SML
- Year
- 2006
- Number of layers
- 3
- Film structure
- ABC
- Material
- CPP
- Film width (mm)
- 2650
- Speed (m/min)
- 350m/min
- Output (Kg/h)
- 1000kg/h

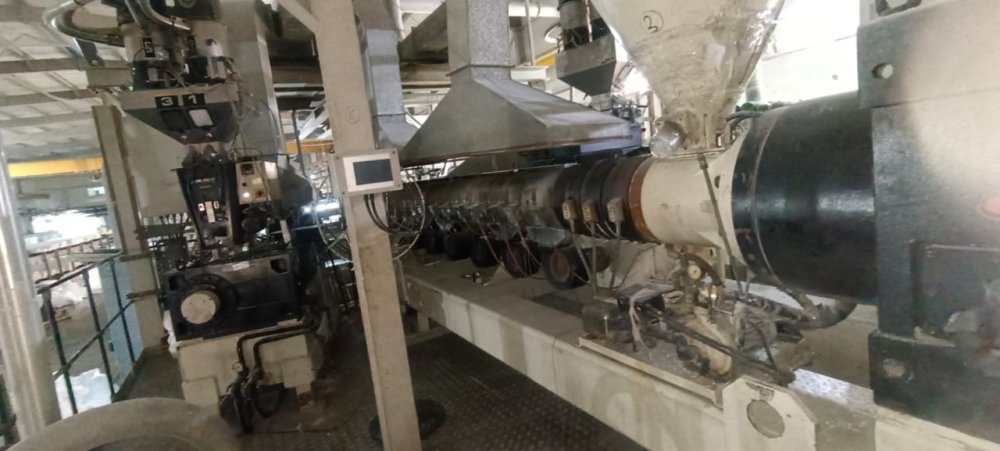

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 150 mm / 33,
- Description 1
- gravimetric dosing system Doteco, Hydraulic Screen Changer HarmsHydraulicGmbH,9EXT0452, Dynisco pressure sensor
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 90 mm/ 33
- Description 2
- gravimetric dosing system Doteco, Hydraulic Screen Changer HarmsHydraulicGmbH,9EXT0452, Dynisco pressure sensor
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 75mm/ 33
- Description 3
- gravimetric dosing system Doteco, Hydraulic Screen Changer HarmsHydraulicGmbH,9EXT0452, Dynisco pressure sensor
- Head description
- Flat die Type AOM IX-100/40//RB60//MF 5, Autoprofile control. Internal deckling system
- Die width (mm)
- 3100mm

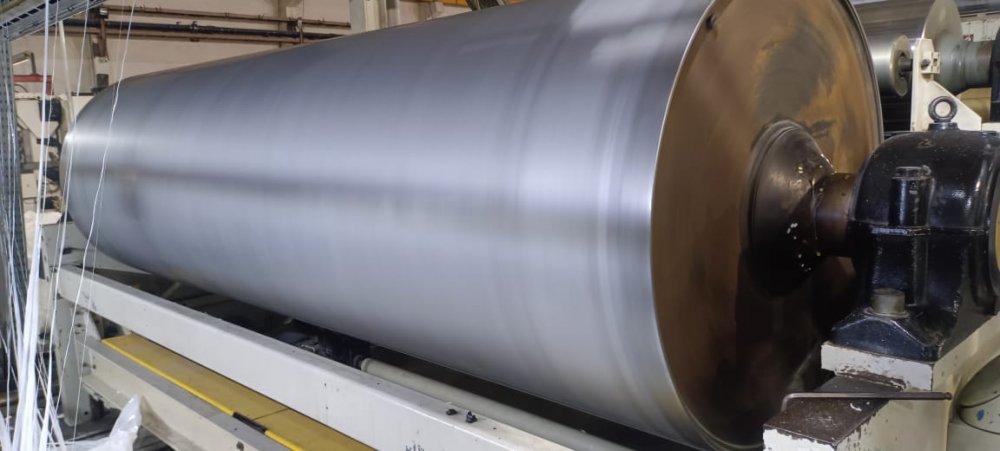

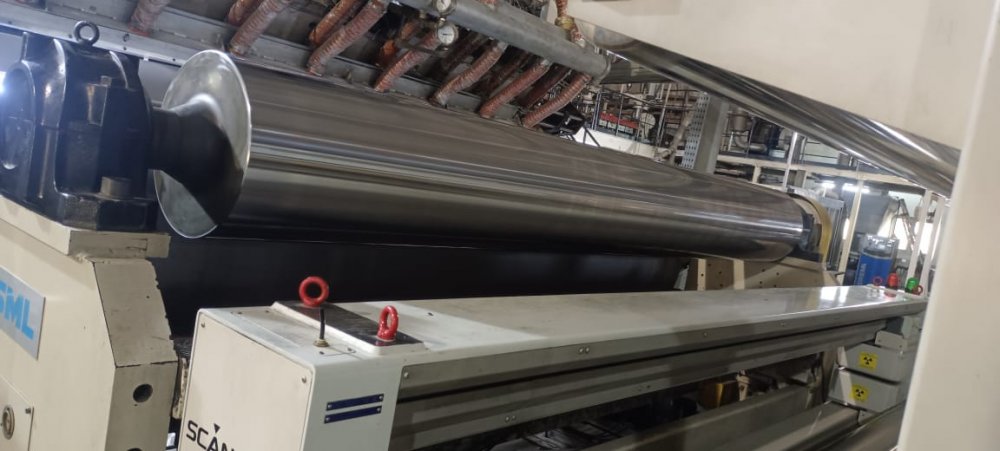

- Chill roll unit
- 2 Chill roll units, 1. 1000 mm/ 3200 mm 2. 400 mm / 3200 mm
- Thickness controll system
- Scan Tech
- Corona treatment
- MERO
- Web guide
- E+L
- Rewinder max reel diameter (mm)
- 1000
- Rewinder description
- W1050/2900/6“/350
- Note
- Edge grinder Tria Unit
| Machine Code | CA250 |
| Manufacturer | SML |
| Year | 2006 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | CPP |
| Film width (mm) | 2650 |
| Speed (m/min) | 350m/min |
| Output (Kg/h) | 1000kg/h |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 150 mm / 33, |
| Description 1 | gravimetric dosing system Doteco, Hydraulic Screen Changer HarmsHydraulicGmbH,9EXT0452, Dynisco pressure sensor |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 90 mm/ 33 |
| Description 2 | gravimetric dosing system Doteco, Hydraulic Screen Changer HarmsHydraulicGmbH,9EXT0452, Dynisco pressure sensor |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 75mm/ 33 |
| Description 3 | gravimetric dosing system Doteco, Hydraulic Screen Changer HarmsHydraulicGmbH,9EXT0452, Dynisco pressure sensor |
| Head description | Flat die Type AOM IX-100/40//RB60//MF 5, Autoprofile control. Internal deckling system |
| Die width (mm) | 3100mm |
| Chill roll unit | 2 Chill roll units, 1. 1000 mm/ 3200 mm 2. 400 mm / 3200 mm |
| Thickness controll system | Scan Tech |
| Corona treatment | MERO |
| Web guide | E+L |
| Rewinder max reel diameter (mm) | 1000 |
| Rewinder description | W1050/2900/6“/350 |
| Note | Edge grinder Tria Unit |
