3 layers JANDI CHINA JDCPE-80/60A Cast film extruder
Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
| Machine Code | CA197 |
| Manufacturer | JANDI CHINA |
| Model | JDCPE-80/60A |
| Year | 2017 |
| Number of layers | 3 |
| Film structure | ABA |
| Material | Stretch film LLDPE |
| Film width (mm) | 1000 |
| Speed (m/min) | 250 |
| Output (Kg/h) | 120 |
| Extruder 1 Layer ref: | 80/30 LD |
| Screw diam | 80 |
| Extruder 2 Layer ref: | 60/30 LD |
| Screw diam | 60 |
| Head description | Manual |
| Die width (mm) | 1250 |
| Chill roll unit | 700mm |
| Web guide | Yes |
| Rewinder description | Suitable for jumbo and hand rolls |
| Additional information | Machine size 6000mm*3000mm*1900mm Total power 110k Film thickness range: 10-50my |
Others in the same category:

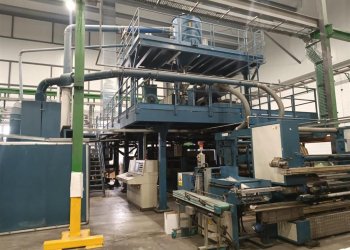

ADTECH PROVERA HR 1000/3
